The Ultimate Professional Oscilloscope Value
📊
Bandwidth
100 MHz
💾
Memory Depth
100 Mpts
⚡
Sample Rate
5 GSa/s
🔄
Waveform Rate
2M wfms/s
〰️
AWG
Dual 50 MHz
100X More Memory + 2.5X Faster Sampling + 9 Instruments in 1 = Superior Testing Capabilities at Lower Cost

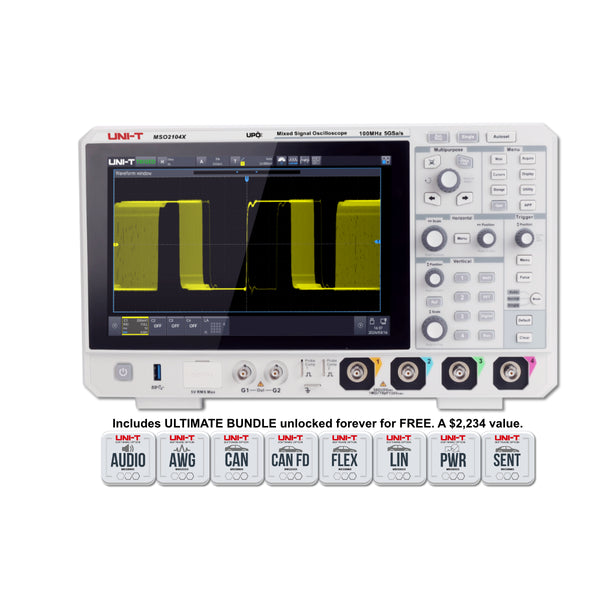

With our limited-time promotion, you'll receive ALL software options worth $2,234 completely FREE - something Keysight would charge thousands extra for. Learn more about the MSO2104X 100MHz 4-channel Mixed Signal Oscilloscope.
Why Choose UNI-T MSO2104X Over Keysight InfiniiVision 2000 X-Series?
Superior Memory Depth
With an impressive 100 Mpts memory depth compared to just 1 Mpts in the Keysight InfiniiVision 2000 X-Series, the MSO2104X lets you capture longer signal sequences without sacrificing sample rate—essential for debugging complex signals and intermittent issues.
Higher Sample Rate
The MSO2104X's 5 GSa/s sample rate outperforms comparable Keysight InfiniiVision 2000 X-Series models with just 2 GSa/s, allowing you to capture fast transients and see more detail in your signals—crucial for accurate measurements in digital designs.
Faster Waveform Update Rate
At up to 500,000 wfms/s (standard mode) and 2,000,000 wfms/s (sequence mode), the MSO2104X captures infrequent events and glitches that slower oscilloscopes might miss, making it ideal for detecting elusive signal anomalies that can cause device failures.
Superior AWG Capability
Dual-channel 50MHz AWG included for free vs. Keysight InfiniiVision 2000 X-Series' optional single-channel 20MHz generator that costs extra. Create more complex signals and perform advanced testing like Bode plots without additional purchases.
Industry-Leading Warranty
While Keysight InfiniiVision offers a 3-year warranty, the MSO2104X comes with our exclusive 3+2 warranty program. Register your product online and get a full 5 years of coverage at no additional cost—providing long-term peace of mind for your investment.
All-in-One Value
The MSO2104X combines 9 instruments in one compact package, including oscilloscope, logic analyzer, protocol analyzer, spectrum analyzer, voltmeter, AWG, and more. With Keysight, you'd need to purchase multiple instruments or costly add-ons to achieve the same functionality.
Detailed Comparison
Feature Comparison: MSO2104X vs Keysight InfiniiVision 2000 X-Series
| Feature | UNI-T MSO2104X | Keysight InfiniiVision 2000 X-Series (DSOX2002A/MSOX2002A, DSOX2004A/MSOX2004A) | Advantage |
|---|---|---|---|
| Bandwidth | 100 MHz | 70-100 MHz | UNI-T ✓ |
| Analog Channels | 4 | 2 or 4 | UNI-T ✓ |
| Digital Channels | 16 (with optional probe) | 8 (MSO models or optional upgrade) | UNI-T ✓ |
| Sample Rate | 5 GSa/s | 2 GSa/s | UNI-T ✓ |
| Memory Depth | 100 Mpts | 1 Mpt (standard) | UNI-T ✓ |
| Waveform Update Rate | 500,000 wfms/s (2,000,000 wfms/s in sequence mode) |
Up to 200,000 wfms/s | UNI-T ✓ |
| Display | 10.1" Touch Screen | 8.5" WVGA (non-touch) | UNI-T ✓ |
| Arbitrary Waveform Generator | Dual-channel 50 MHz (FREE with promotion) |
Single-channel 20 MHz (Optional paid upgrade or included on G models) |
UNI-T ✓ |
| Serial Protocol Analysis | I2C, SPI, UART (standard) CAN, CAN-FD, LIN, FlexRay, SENT, Audio (FREE with promotion) |
Optional paid upgrades for most protocols (I2C, SPI, UART, CAN, LIN) |
UNI-T ✓ |
| Bode Plot Analysis | Yes (with AWG) | No | UNI-T ✓ |
| Multi-instrument Integration | 9-in-1 | Up to 5-in-1 (with all paid options) | UNI-T ✓ |
| Warranty | 3+2 Years (5 years total with free registration) |
3 Years | UNI-T ✓ |
| Base Price Range (USD) | $1,499 | $1,662-$3,500 | UNI-T ✓ |
* Specifications based on manufacturer published data. Prices subject to change.
Understanding Keysight InfiniiVision 2000 X-Series Variants
The Keysight InfiniiVision 2000 X-Series offers multiple variants with different capabilities, each requiring separate purchases for full functionality:
| Keysight Model Suffix | Included Features | What You'll Pay Extra For |
|---|---|---|
| Base Models (e.g., DSOX2002A) | Basic oscilloscope functionality | All software options, protocol analysis, WaveGen |
| G Models (e.g., DSOX2002G) | Includes 20 MHz function generator | Protocol analysis, AWG functionality |
| MSO Models (e.g., MSOX2002A) | Includes 8 digital channels | WaveGen, protocol analysis |
UNI-T Advantage: Everything Included
With our limited-time promotion, the MSO2104X includes ALL of the following software options at no extra cost ($2,234 value). You get the full-featured oscilloscope with every capability unlocked permanently - no hidden costs, no subscription fees, no renewal charges.
FREE Software Bundle vs. Keysight's À La Carte Pricing
| Software Option | UNI-T MSO2104X | Keysight InfiniiVision 2000 X-Series |
|---|---|---|
| Arbitrary Waveform Generator | Included FREE ($280 value) | Optional paid upgrade |
| CAN/CAN-FD Bus Analysis | Included FREE ($558 value) | Optional paid upgrade |
| LIN Bus Analysis | Included FREE ($279 value) | Optional paid upgrade |
| FlexRay Bus Analysis | Included FREE ($279 value) | Not available |
| SENT Bus Analysis | Included FREE ($279 value) | Not available |
| Audio Bus Analysis | Included FREE ($279 value) | Not available |
| Power Analysis | Included FREE ($280 value) | Not available |
| Total Software Value | $2,234 (All FREE with promo) | Additional $1,000+ if purchased separately |
All software options are permanently unlocked - no subscriptions, no renewals, no recurring fees!
Looking for More Options?
Check out other models in the MSO2000X series to match your bandwidth requirements:
MSO2204X (200MHz) - Perfect for higher frequency applications
MSO2304X (300MHz) - Our professional high-performance model
Perfect For:
Electronic Design & Debugging for 100MHz Applications
The MSO2104X's high memory depth and sample rate make it ideal for analyzing digital circuits, embedded systems, and microcontroller-based designs operating below 100MHz. Perfect for debugging I2C, SPI, and UART communications in IoT devices, consumer electronics, and industrial control systems.
Education & Training Labs
Cost-effective without compromising on features, the MSO2104X is perfect for educational institutions needing multiple oscilloscopes on a limited budget. The touchscreen interface and intuitive controls make it ideal for teaching fundamental and intermediate electronics concepts to engineering students.
Automotive Electronics Development & Testing
With built-in CAN and LIN protocol analysis, the MSO2104X is perfectly suited for automotive sensor testing, ECU development, and vehicle network troubleshooting. The 100MHz bandwidth covers most automotive communication buses, while the extended memory depth allows for capturing long sequences of data traffic essential for intermittent fault diagnosis.
IoT Device Development & Debugging
Comprehensive triggering options and protocol analysis support make the MSO2104X ideal for debugging low-power wireless modules, sensor interfaces, and battery-powered IoT devices. The 100MHz bandwidth is sufficient for most microcontroller-based designs, while the dual-channel AWG enables simulating real-world sensor inputs during development.
Power Electronics Analysis
The MSO2104X's included power analysis package makes it perfect for switch-mode power supply development, DC-DC converter testing, and power integrity analysis. With 5 GSa/s sampling rate, you can accurately capture switching transients in modern power electronics operating at tens of kHz.
Industrial Automation Maintenance & Troubleshooting
Maintenance engineers will appreciate the MSO2104X's portable form factor and robust features when troubleshooting PLC systems, motor controllers, and industrial networks. The 100MHz bandwidth covers all common industrial protocols, while the deep memory allows for long-duration captures during intermittent fault diagnosis.
Frequently Asked Questions
How does the MSO2104X compare to the Keysight InfiniiVision 2000 X-Series?
The MSO2104X offers the same bandwidth (100MHz) as the top model in this Keysight range, but with significantly greater memory depth (100Mpts vs 1Mpt), faster sample rate (5 GSa/s vs 2 GSa/s), and higher waveform update rates (500,000 wfms/s vs 200,000 wfms/s) at a competitive price point. Additionally, it includes many software features as standard that would require paid upgrades with Keysight.
What is the real advantage of the 100 Mpts memory depth versus the Keysight's 1 Mpt?
The 100x larger memory depth allows you to capture much longer signal sequences without sacrificing sampling rate. This is critical when debugging complex systems where you need to see both a long time window (to catch infrequent events) and high-resolution details (which require high sampling rates). For example, when analyzing a serial bus communication, you can capture thousands of data packets while still maintaining the resolution needed to see signal integrity issues.
How does the touchscreen interface improve workflow compared to traditional knob-based oscilloscopes?
The MSO2104X's 10.1" touchscreen interface significantly reduces setup time and simplifies complex operations. You can place markers, adjust trigger points, and zoom waveforms with natural touch gestures. Menu navigation is intuitive and requires fewer button presses than traditional interfaces. Engineers typically report 30-40% faster test setup times when switching from knob-based oscilloscopes to the MSO2104X's touch interface.
What protocol decode capabilities are included with the free software promotion?
The promotion includes ALL protocol analysis packages: I²C, SPI, UART/RS-232 (standard), plus CAN, CAN-FD, LIN, FlexRay, SENT, and Audio bus analysis (I²S, LJ, RJ, TDM). This comprehensive set covers automotive, embedded systems, and consumer electronics applications. Each protocol decoder provides color-coded packet information, automatic data interpretation, and searchable packet content.
Can the MSO2104X perform frequency response analysis (Bode plots)?
Yes, the MSO2104X includes Bode plot functionality when you use the built-in dual-channel AWG. You can characterize filters, amplifiers, and power supply control loops with frequency sweeps from 10Hz to 25MHz. The system automatically plots gain and phase margins, critical for stability analysis in feedback systems. This functionality alone would require expensive additional equipment with competing oscilloscopes.
How does the 5 GSa/s sampling rate benefit digital circuit analysis?
The higher sampling rate (5 GSa/s vs. Keysight's 2 GSa/s) provides 2.5x better time resolution, which is crucial for accurately capturing fast digital transitions, glitches, and timing violations. For example, in a 100MHz digital system with edge rates of 2-3ns, the MSO2104X can place 10-15 sample points on each edge, providing the detail needed to identify reflections, ringing, and other signal integrity issues that might be missed with lower sampling rates.
Can the MSO2104X perform the same measurements as Keysight InfiniiVision 2000 X-Series oscilloscopes?
Yes, the MSO2104X includes all standard measurements found in Keysight InfiniiVision 2000 X-Series, including amplitude, frequency, rise/fall time, pulse width, and many others. It also offers comprehensive math functions, FFT analysis, and serial protocol decoding. In fact, with our free software promotion, you'll have access to even more analysis capabilities than a standard Keysight 2000 X-Series instrument.
What warranty is included?
The MSO2104X comes with our exclusive 3+2 Coverage: 3 years standard warranty with an additional 2 years available with free product registration at uni-trendus.com/pages/uni-trend-product-registration. This comprehensive coverage includes parts and labor, providing you with exceptional long-term protection for your investment.
Are the free software options really permanent?
Yes! Unlike competitors who often charge subscription fees or require renewals, all software options included in this promotion are permanently unlocked. There are absolutely no subscription fees, no renewal costs, and no recurring charges of any kind. Once unlocked, these features are yours to use forever.
Is shipping really free?
Yes! We offer free shipping to all addresses within the Continental United States (CONUS).
Explore Our Other Professional Oscilloscopes
Looking for different specifications? Check out our complete range of professional oscilloscopes:
- MSO2204X: 200MHz bandwidth, 4 channels - ideal for more demanding applications
- MSO2304X: 300MHz bandwidth, 4 channels - perfect for advanced applications
- MSO3034X: 350MHz bandwidth, 4 channels - for high-performance needs
- MSO3054X: 500MHz bandwidth, 4 channels - our premium research-grade oscilloscope
Visit our Oscilloscopes collection to see all available models, including our premium 12-bit HD oscilloscopes with up to 1GHz bandwidth.
Ready to Upgrade Your Oscilloscope?
The UNI-T MSO2104X offers professional performance at an unbeatable price compared to Keysight InfiniiVision 2000 X-Series!
Includes 3+2 Year Warranty & Free Technical Support
Register at uni-trendus.com/pages/uni-trend-product-registration to extend your 3-year standard warranty to a full 5 years at no extra cost!
FREE Software Bundle Offer valid through December 31, 2025
Disclaimer: Keysight® and InfiniiVision® are registered trademarks of Keysight Technologies, Inc. UNI-T® is a registered trademark of Uni-Trend Technology (China) Co., Ltd. The comparison provided is based on publicly available information and is intended for informational purposes only. This comparison is not endorsed by, affiliated with, or sponsored by Keysight Technologies. All trademarks, product names, and company names mentioned herein are the property of their respective owners.
