UTS7000A Interceptor-Series Signal Analyzer — Buyer's Guide

Which Interceptor Is Right for You?

The UTS7000A delivers professional-grade signal analysis from 2 Hz to 40 GHz with real-time spectrum analysis, 100% Probability of Intercept (POI), and -167 dBm/Hz sensitivity. Every model shares the same core engine, display, and build quality. The differences: how high in frequency and how wide a real-time bandwidth you need.

What Every Model Shares

Starting Frequency

2 Hz — 4,500× lower than typical 9 kHz analyzers

Sensitivity (DANL)

-167 dBm/Hz typical — best in class

100% POI

Guaranteed signal capture — no transient escapes

Phase Noise

< -110 dBc/Hz @ 1 GHz, 10 kHz offset

Sweep Points

Up to 100,001

Display

11.6" multi-touch HD (1920×1080)

Connectivity

LAN (GigE), USB 3.0, GPIB optional, SCPI

Warranty

5 years — parts, labor, return shipping

Measurement quality is identical across all models. You're choosing frequency range and real-time bandwidth.

Decision 1: Choose Your Frequency Range

All models start at 2 Hz — you're choosing the upper limit. Pick the lowest that covers your needs.

UTS7013A

13.6 GHz

Best for: Wi-Fi 6/6E, sub-6 GHz 5G, IoT, Bluetooth, EMC, power electronics

UTS7026A

26.5 GHz

Best for: 24 GHz automotive radar, K-band satellite, microwave backhaul

UTS7032A

32 GHz

Best for: 5G mmWave n257/n258, Ka-band satellite uplinks

UTS7040A

40 GHz

Best for: Full 5G mmWave incl. n260, 77 GHz radar sub-harmonic, Q-band

Frequency Quick-Reference

Application	Key Frequencies	Min. Model
Power electronics / motor drives	2 Hz – 100 MHz	UTS7013A
EMC pre-compliance (CISPR, FCC)	9 kHz – 6 GHz	UTS7013A
Wi-Fi 6/6E, Bluetooth, IoT	2.4 / 5 / 6 GHz	UTS7013A
5G NR sub-6 (n77/n78/n79)	3.3 – 5 GHz	UTS7013A
Ku-band satellite	10.7 – 12.75 GHz	UTS7013A
24 GHz automotive radar	24.0 – 24.25 GHz	UTS7026A
K-band satellite / backhaul	18 – 26.5 GHz	UTS7026A
5G mmWave n257/n258	26.5 – 29.5 GHz	UTS7032A
Ka-band satellite uplinks	27.5 – 31 GHz	UTS7032A
5G mmWave n260 (39 GHz)	37 – 40 GHz	UTS7040A
77–81 GHz radar (sub-harmonic)	38.5 – 40.5 GHz	UTS7040A
Q-band satellite	33 – 40 GHz	UTS7040A

Tip: Frequency range cannot be upgraded after purchase. If needs may grow, step up one model.

Decision 2: Standard or Narrowband?

Standard (Upgradeable)

Ships with 40 MHz RTSA bandwidth. Upgradeable to 85, 160, or 255 MHz via options B85/B160/B255.

Choose if you work with wideband signals (Wi-Fi 80/160 MHz, 5G NR >20 MHz, wideband radar, multi-carrier satellite) or want future upgrade flexibility.

Narrowband (-NB)

Fixed at 20 MHz RTSA bandwidth. Cannot be upgraded.

Choose if you primarily work with narrowband signals (single LTE ≤20 MHz, IoT channels, CW, component test, EMC pre-compliance) and want a lower initial investment.

Bandwidth Options (Standard Models Only)

Option	BW	Use Case
Standard	40 MHz	Wi-Fi 20/40 MHz, LTE ≤20 MHz, IoT, EMC
B85	85 MHz	Wi-Fi 80 MHz, 5G carrier aggregation, FMCW radar
B160	160 MHz	Wi-Fi 6E 160 MHz, wideband 5G NR, satellite transponders
B255	255 MHz	Maximum capture, multi-carrier, widest 5G NR

Important: -NB models cannot be upgraded. If wider bandwidth is possible in the future, start with a standard model.

Complete Model Comparison

Model	Freq Range	RTSA BW	Upgr?	Ideal For
UTS7013A	2 Hz – 13.6 GHz	40 MHz (→255)	Yes	Wireless R&D, EMC, IoT, 5G sub-6
UTS7013A-NB	2 Hz – 13.6 GHz	20 MHz fixed	No	Narrowband wireless, EMC, component test
UTS7026A	2 Hz – 26.5 GHz	40 MHz (→255)	Yes	24 GHz radar, K-band, microwave
UTS7026A-NB	2 Hz – 26.5 GHz	20 MHz fixed	No	Narrowband K-band, CW radar
UTS7032A	2 Hz – 32 GHz	40 MHz (→255)	Yes	5G mmWave n257/n258, Ka-band
UTS7032A-NB	2 Hz – 32 GHz	20 MHz fixed	No	Narrowband mmWave, Ka-band carriers
UTS7040A	2 Hz – 40 GHz	40 MHz (→255)	Yes	Full 5G mmWave, 77 GHz radar, Q-band
UTS7040A-NB	2 Hz – 40 GHz	20 MHz fixed	No	Narrowband mmWave, 77 GHz sub-harmonic

Software Options

All options work with every model (standard and -NB). Software can be added any time via licensing. Browse all options in the UTS7000A Options collection.

Option	Name	What It Does
EMI	EMI Measurement	Quasi-Peak/Avg/RMS detectors, 100+ limit lines (CISPR, FCC, EN, MIL-STD), auto scan
NR	5G NR Demod	5G NR demodulation, EVM, constellation per 3GPP
FDD-LTE	FDD-LTE Demod	FDD-LTE modulation analysis per 3GPP TS 36.104
TDD-LTE	TDD-LTE Demod	TDD-LTE with switching pattern and time-slot measurements
VSA	Vector Signal Analysis	General-purpose demod: PSK, QAM, FSK, ASK, custom
I/Q	I/Q Analysis	Raw I/Q capture and export (MATLAB, CSV)
PNM	Phase Noise	Dedicated phase noise analysis, one-button measurement
AMA	Analog Mod Analysis	AM/FM/PM demod, modulation depth/deviation, SINAD/THD
AMK	Advanced Measurement	Enhanced measurement functions beyond standard modes

Hardware Options — Preamplifiers

Option	Description	Compatible With
P13	Internal preamp, 13.6 GHz	UTS7013A / -NB
P26	Internal preamp, 26.5 GHz	UTS7026A / -NB
P32	Internal preamp, 32 GHz	UTS7032A / -NB
P40	Internal preamp, 40 GHz	UTS7040A / -NB

Recommended Configurations

EMC Pre-Compliance Lab

UTS7013A + EMI option

2 Hz covers conducted emissions from the lowest frequencies; 13.6 GHz handles radiated. EMI option adds quasi-peak/average detectors and 100+ limit lines. Add P13 preamplifier for maximum radiated sensitivity.

Wi-Fi 6E / IoT Development

UTS7013A + B160

All Wi-Fi bands (2.4/5/6 GHz) with 160 MHz real-time BW for full Wi-Fi 6E channel analysis. 100% POI captures every burst and hop.

5G NR Sub-6 GHz R&D

UTS7013A + B255 + NR option

255 MHz captures widest 5G NR carriers with guaranteed POI. NR option provides EVM, constellation, and 3GPP-compliant measurements.

5G mmWave Development

UTS7032A or UTS7040A + B255 + NR

UTS7032A covers n257/n258. Step to UTS7040A for n260 (37–40 GHz). Full 255 MHz handles wideband mmWave carriers.

Automotive Radar

UTS7026A or UTS7040A

UTS7026A covers 24 GHz ISM radar. UTS7040A provides 77–81 GHz sub-harmonic analysis at 38.5–40.5 GHz.

Satellite Communications

UTS7032A or UTS7040A + VSA

Covers Ku, K, Ka-band. VSA enables custom satellite demodulation. UTS7040A extends into Q-band.

Power Electronics

UTS7013A-NB

2 Hz starting frequency analyzes switching harmonics, motor drive emissions, and inverter performance from fundamental through high-order harmonics. Narrowband is typically sufficient.

General RF Lab / Education

UTS7013A (standard)

Most versatile entry: 2 Hz to 13.6 GHz, 40 MHz RTSA, upgradeable bandwidth. Add software options as needs evolve.

Why Choose the Interceptor-Series?

2 Hz Starting Frequency

Most analyzers start at 9 kHz. The UTS7000A starts at 2 Hz — enabling power electronics analysis and complete system characterization from DC through RF in one instrument.

100% Probability of Intercept

Every model guarantees 100% POI. Transient interference, frequency-hopping signals, and intermittent emissions are captured with certainty. Critical for EMC and wireless debug.

Professional Sensitivity

-167 dBm/Hz DANL matches or exceeds premium-brand analyzers — enabling weak signal detection and spurious emission hunting without a premium price.

5-Year Warranty

Parts, labor, and return shipping for 5 years — two years longer than industry standard. No registration or extended warranty purchase required.

FAQ

Can I upgrade frequency range after purchase?

No. Frequency is hardware-determined and fixed. If uncertain, select the next higher model.

Can I upgrade bandwidth on a -NB model?

No. -NB models have fixed 20 MHz architecture. Choose a standard model to preserve the upgrade path to 85/160/255 MHz.

Can software options be added later?

Yes. All software options can be added any time through licensing.

What OS does the UTS7000A run?

Ubuntu Linux standard; Windows 10 optional. Both support SCPI remote control over LAN and USB.

Suitable for automated test systems?

Yes. Full SCPI remote programming over LAN (GigE), USB 3.0, and optional GPIB.

Purchasing restrictions?

No restrictions for commercial applications. Defense/aerospace contractors on classified programs may have separate procurement requirements.

What's in the 5-year warranty?

Parts, labor, and return shipping. Standard on every unit — no registration required.

Professional signal analysis from 2 Hz to 40 GHz — choose the Interceptor that fits your mission.

Country/region

The Research Bench Bundle

MSO5104HD1 GHz 4Ch 12-Bit Mixed Signal Oscilloscope

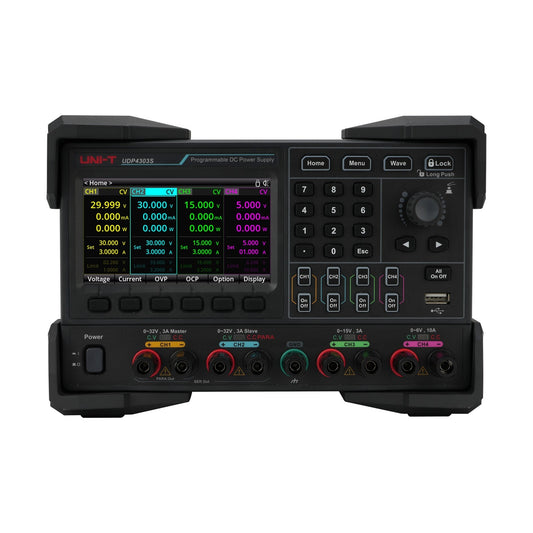

UDP4303S4Ch 297W 32V/10A Programmable Linear DC Power Supply

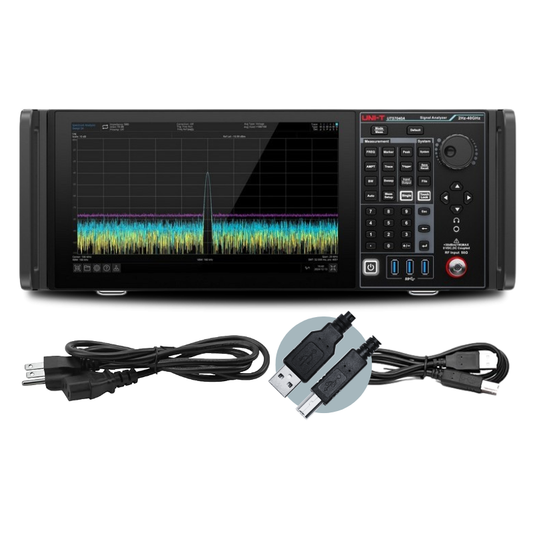

UTS7013A13.6 GHz Interceptor-Series Signal Analyzer

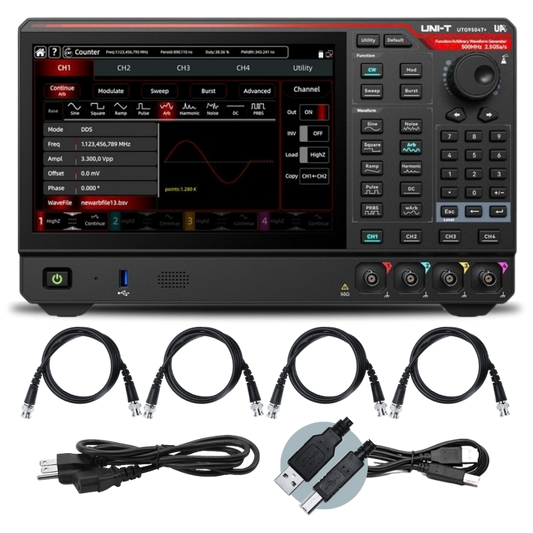

UTG9504T+500 MHz 4Ch Elite-Series Arbitrary Waveform Generator

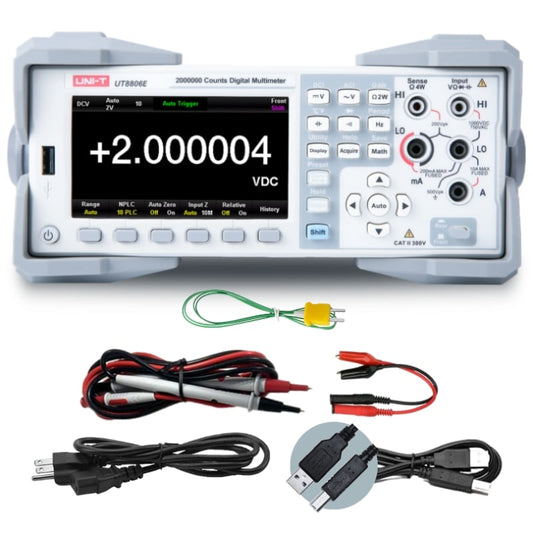

UT8806E6.5 Digit Performance-Series Bench Digital Multimeter
