Description

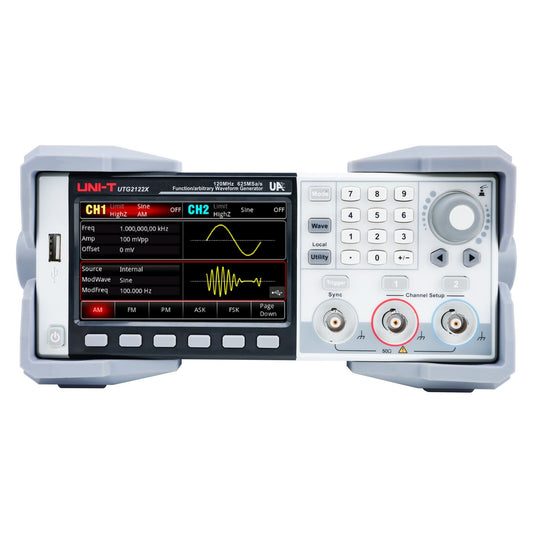

The Uni-Trend UTG2122X Advanced-Series arbitrary waveform generator is an affordable and stable 120MHz source for your test bench.

Top Specifications

120MHz, 2 channels, 1.25GS/s, Memory Depth: 64Mpts, 4.3in display, USB. Modulations: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM, DSB-AM
Register for up to 15% EDU Discount
Want to be alerted when the UTG2122X is available? Get on the waitlist with the link below. We'll let you know when it becomes available.
Thank you for your inquiry

Notify me when available

Name should not be empty
Your email address is not valid.
Your phone number is not valid.
Message content should not be empty.

Experience Precision and Versatility with the Uni-T UTG2122X Arbitrary Waveform Generator



Key Specifications

▪ Frequency Range: 1μHz - 120MHz (Other models - UTG2062X: 60MHz, and UTG2082X: 80MHz)
▪ Channels: 2
▪ Sampling Rate: 1.25GSa/s
▪ Vertical Resolution: 16-bits
▪ Low Distortion <0.07% (DC - 20kHz, 1Vpp)
▪ Waveforms: Sine, Square, Pulse, Ramp, 200 built-in Arbitrary, Harmonic, Expression, PRBS, Noise, DC
▪ Modulations: 15 analog and digital modulations
▪ 4.3-Inch Touch Screen Display
▪ 5-Year Warranty

Support frequency sweep and burst output
Square/Pulse wave: 1μHz - 30MHz/40MHz/50MHz
Arbitrary waveform length 8pts - 64Mpts, can output low jitter waveform point by point
Support channel copying, following, and stacking settings
Arbitrary wave forms can be generated by the free PC-based waveform editor
7-bit hardware frequency counter: 100mHz - 200MHz
Supports SCPI programmable instrument standard commands
Sync Signal
Interfaces: USB Host/Device, LAN, 10MHz Ext In, 10MHz Ext Out, Ext. Analog Mod In, Ext Mod/Trigger Out, Sync Out

Uni-T UTG2122X Top Features

  • High-Frequency Capability: With a remarkable maximum output frequency of 120MHz, the two-channel Uni-T UTG2122X arbitrary waveform generator offers a plethora of basic waveforms, including sine waves, square waves, ramps, pulses, harmonics, noise, DC signals, expressions, and arbitrary waveforms. Use it to generate high-frequency signals for RF testing and research applications.

  • 16-Bit Vertical Resolution: The 16-bit vertical resolution in this function generator elevates precision and accuracy to a whole new level. It's the ideal choice for engineers and researchers working on critical and high-precision projects, reducing signal distortion, and enabling realistic simulations of analog signals. Use it to simulate complex analog circuits with precision.
  • Expression Output: The Uni-T UTG2122X arbitrary waveform generator introduces an expression output function that allows for complex waveform calculations. By combining numbers, operational characters, class symbols, and free variables, you can craft intricate output waveforms tailored to your needs. For instance, you can express output as Vout = f(x), with expressions like f(x) = (x-1) * x * (x+1). Utilize this feature for mathematical modeling and waveform synthesis in research and development.
  • Versatile Modulation Functions: Dive into a world of modulation possibilities with multiple analog and digital modulation functions. These include AM, FM, PM, PWM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, and QAM. Use modulation functions to analyze the performance of communication systems and modulation schemes.

  • Extensive Built-In Arbitrary Waveforms: The Uni-T UTG2122X arbitrary waveform generator comes loaded with an extensive library of signal shapes and waveform options, providing you with a diverse range of signals to work with. With over 200 different signal shapes, you have the flexibility to create unique and intricate waveforms. Employ these waveforms to simulate real-world signals in testing and validation processes.
  • Customize Your Arbitrary Signal with Up to 64Mpts: Take advantage of free downloadable software to create and customize your waveforms effortlessly. This feature allows you to tailor your signals precisely to your unique requirements. Use it to generate complex, customized waveforms for semiconductor device testing.
  • Efficient Channel Coupling: Efficiency is key with the channel coupling feature. When you adjust the frequency, amplitude, or phase of one channel, the other channel automatically synchronizes, simplifying your testing process. Use this feature for differential signal generation and balanced circuit testing.
  • Advanced Sweep Functionality and Harmonic Output: Explore sweeping possibilities with linear, logarithmic, and Step scan types. Additionally, the built-in 16th harmonic output function enhances your signal generation capabilities, providing harmonic-rich waveforms for your experiments. Utilize harmonic-rich waveforms for RF signal distortion analysis.


Ready to elevate your testing and experimentation to new heights? The Uni-T UTG2122X arbitrary waveform generator is your ticket to precision, versatility, and reliability. Don't miss the opportunity to enhance your work and achieve outstanding results. Act now and make the Uni-T UTG2122X an essential addition to your toolkit. Purchase yours today and experience the power of cutting-edge waveform generation!
