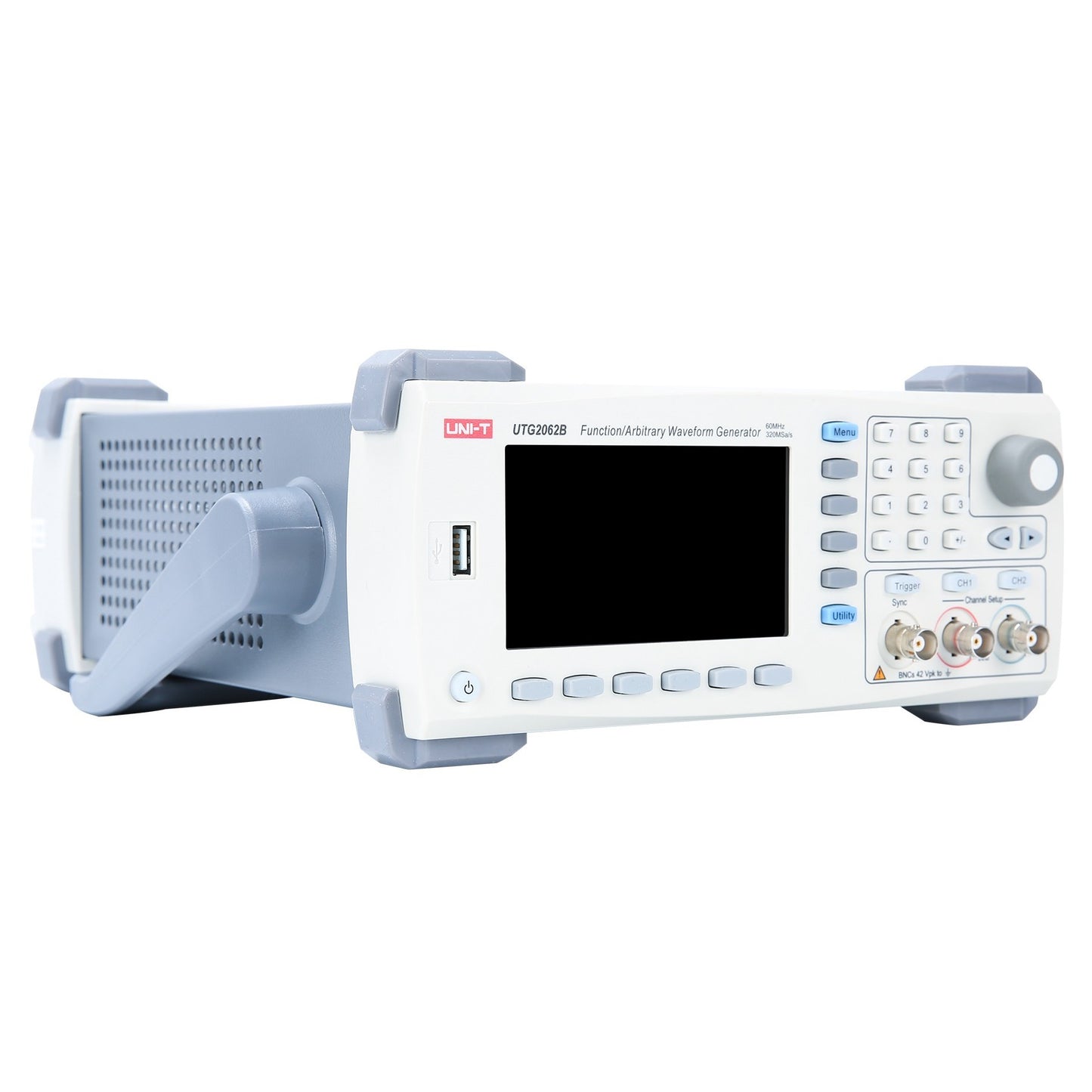

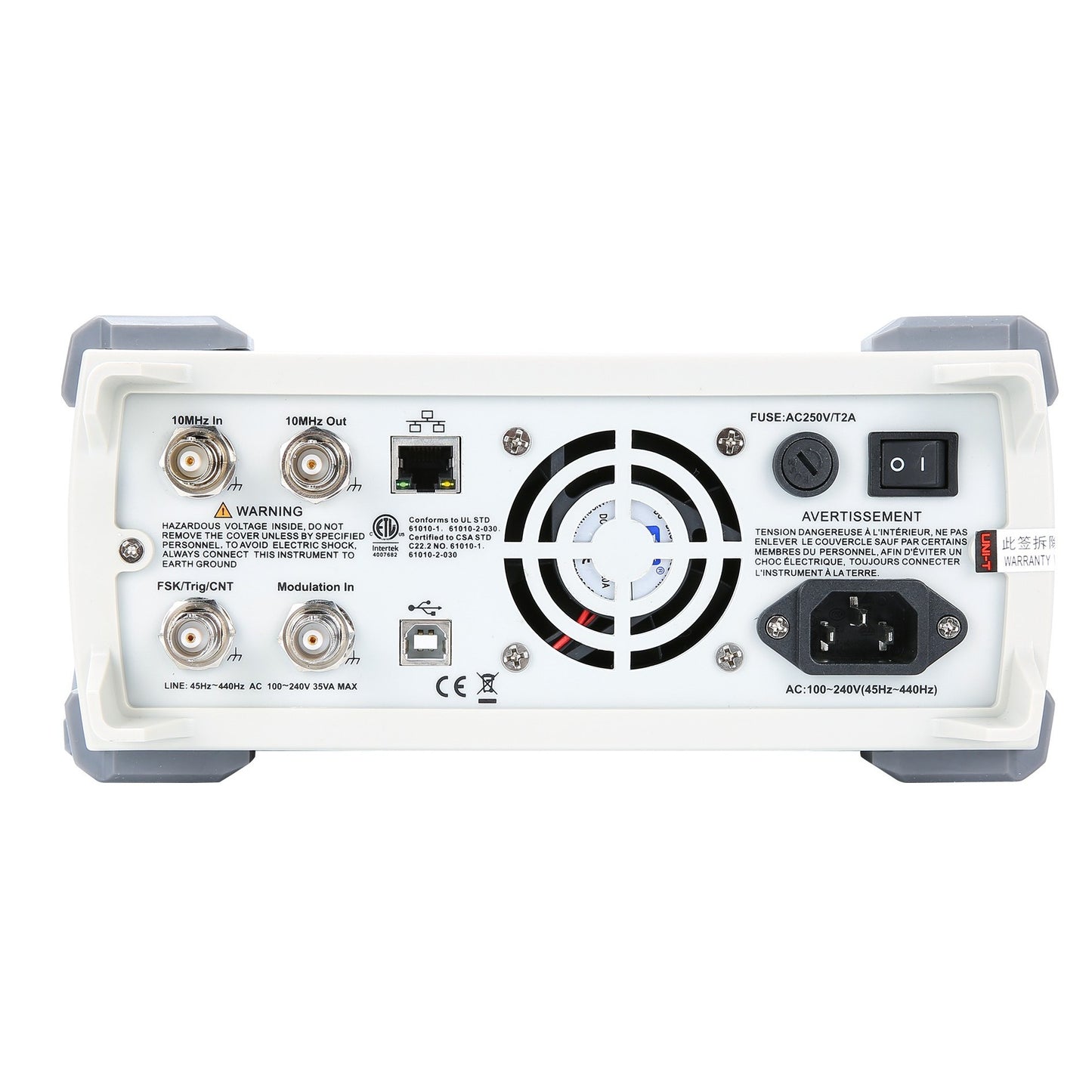

UTG2062B 60MHz 2Ch Advanced-Series Arbitrary Waveform Generator

$519.00

26 items in stock

Description

The Uni-Trend UTG2062A Advanced-Series aribtrary waveform generator is an affordable and stable 60MHz source for your test bench.

Top Specifications

60MHz, 2 channels, 320MS/s, Memory Depth: 16Mpts, 4.3in display, USB. Modulations: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM, DSB-AM
Register for 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

ACCESSORIES

Experience Precision and Versatility with the Uni-T UTG2062B Arbitrary Waveform Generator

Uni-T UTG2000B Arb Waveform Functions
Uni-T UTG2000B Arb Waveform Functions

Engineers seeking top-tier signal fidelity and reliable waveform generation need not look any further than the Uni-T UTG2062B arbitrary waveform generator. With an impressive feature set, including frequencies up to 60MHz, 16-bit resolution, and an expansive 16Mpts arbitrary waveform length, this instrument excels at reproducing waveforms with exceptional fidelity and minimal jitter. It's your gateway to meeting the demands of complex and extensive applications, both now and in the future.

Uni-T UTG2062B Top Specifications:

  • Max. Output Frequency: Reach a remarkable 60 MHz for versatile signal generation.
  • Sample Rate: Achieve precision with a rapid 320 MSa/s sampling rate.
  • Vertical Resolution: Enjoy industry-leading 16 bits of vertical resolution for unparalleled accuracy.
  • Uni-T UTG2000B Modulation Functions
    Uni-T UTG2000B Modulation Functions
  • Channels: Harness the power of 2 independent channels.
  • Arbitrary Wavelength: Tailor your waveforms with an impressive 16Mpts of arbitrary waveform length.

60MHz Maximum Output Frequency:

With a maximum output frequency of 60MHz, the two-channel Uni-T UTG2062B arbitrary waveform generator offers a plethora of basic waveforms, including sine waves, square waves, ramps, pulses, harmonics, noise, DC signals, expressions, and arbitrary waveforms. Your experimentation possibilities are virtually limitless.

16-Bit Vertical Resolution:

The 16-bit vertical resolution in this function generator elevates precision and accuracy to a whole new level. It's the ideal choice for engineers and researchers working on critical and high-precision projects, reducing signal distortion, and enabling realistic simulations of analog signals.

Expression Output:

Uni-T UTG2000B Modulation Functions
Uni-T UTG2000B Modulation Functions

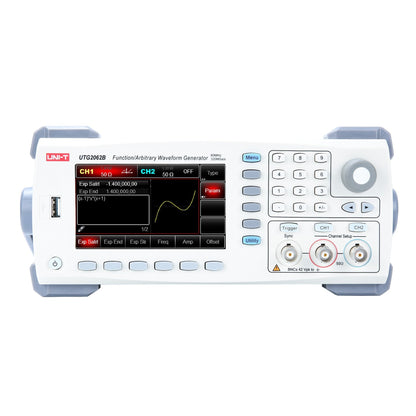

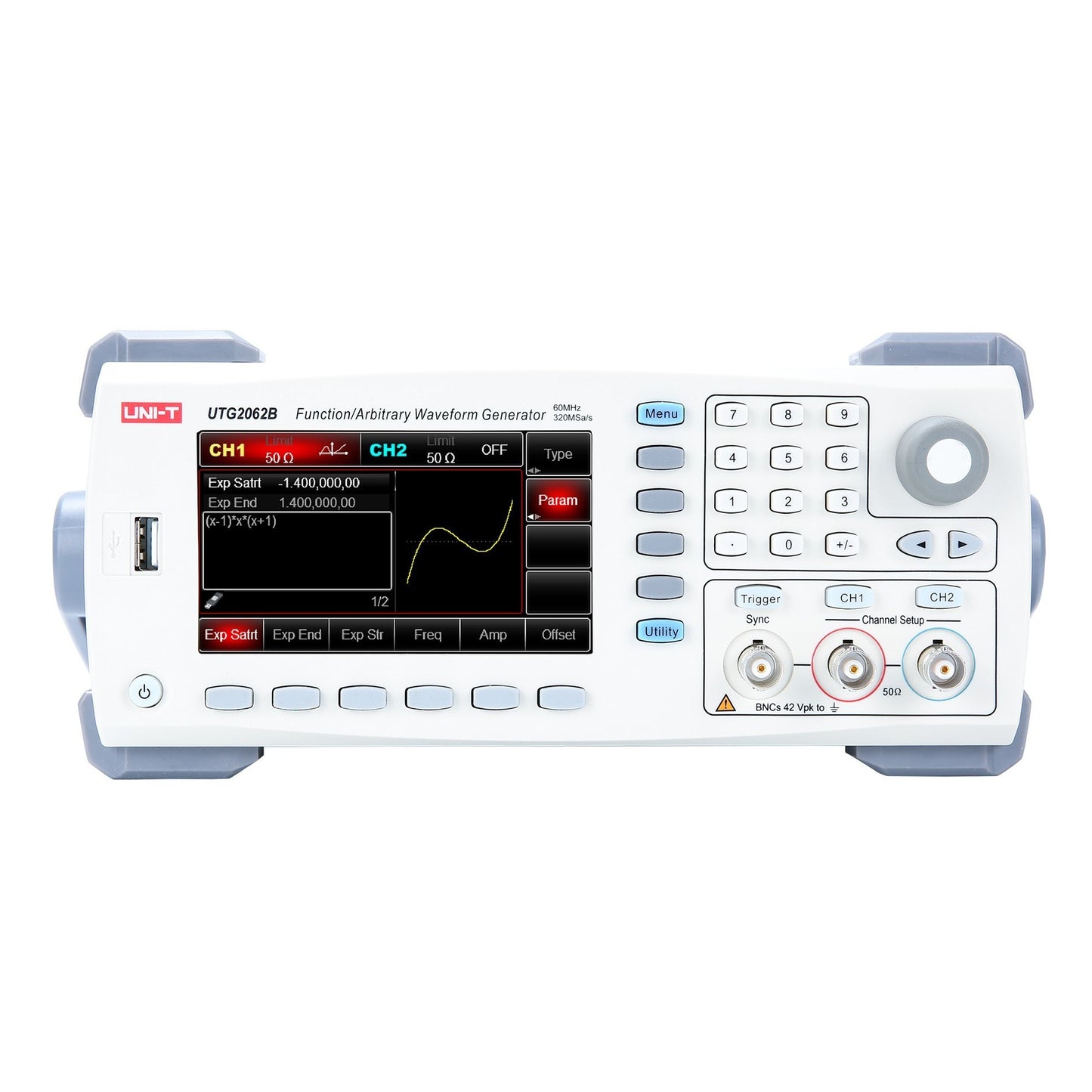

The Uni-T UTG2062B arbitrary waveform generator introduces an expression output function that allows for complex waveform calculations. By combining numbers, operational characters, class symbols, and free variables, you can craft intricate output waveforms tailored to your needs. For instance, you can express output as Vout = f(x), with expressions like f(x) = (x-1) * x * (x+1).

Multiple Modulation Functions:

Dive into a world of modulation possibilities with multiple analog and digital modulation functions. These include AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, and QAM. This versatility empowers you to explore various dimensions in your testing and experimentation.

Built-In 200+ Arbitrary Waveforms:

The Uni-T UTG2062B arbitrary waveform generator comes loaded with over 160 different signal shapes and waveform options, providing you with a diverse range of signals to work with.

Customize Your Arbitrary Signal with Up to 16Mpts:

Uni-T UTG2000B Channel Coupling Function
Uni-T UTG2000B Channel Coupling Function

Take advantage of free downloadable software to create and customize your waveforms effortlessly. This feature allows you to tailor your signals precisely to your unique requirements.

Channel Coupling:

Efficiency is key with the channel coupling feature. When you make adjustments to the frequency, amplitude, or phase of one channel, the other channel automatically synchronizes, simplifying your testing process.

Sweep Function and Harmonic Output:

Explore sweeping possibilities with linear and logarithmic scan types. Additionally, the built-in 16th harmonic output function enhances your signal generation capabilities.

Uni-T UTG2000B Sweep Output Functions
Uni-T UTG2000B Sweep Output Functions

Ready to elevate your testing and experimentation to new heights? The Uni-T UTG2062B arbitrary waveform generator is your ticket to precision, versatility, and reliability. Don't miss the opportunity to enhance your work and achieve outstanding results. Act now and make the Uni-T UTG2062B an essential addition to your toolkit. Purchase yours today and experience the power of cutting-edge waveform generation!

FeatureSpecification
Model Number UTG2062B
Frequency 60MHz
Channels 2Ch
Refresh Rate 320MSa/s
Memory Depth 16Mpts
Vertical Resolution 16 Bits
Display Size (in) 4.3in
Warranty 3 years
Shipping Dimmensions (L x W x H) 15 in x 13 in x 13 in
Shipping Weight 10 lb
Documents English download guide, multi-language safety manual, calibration report (COC)

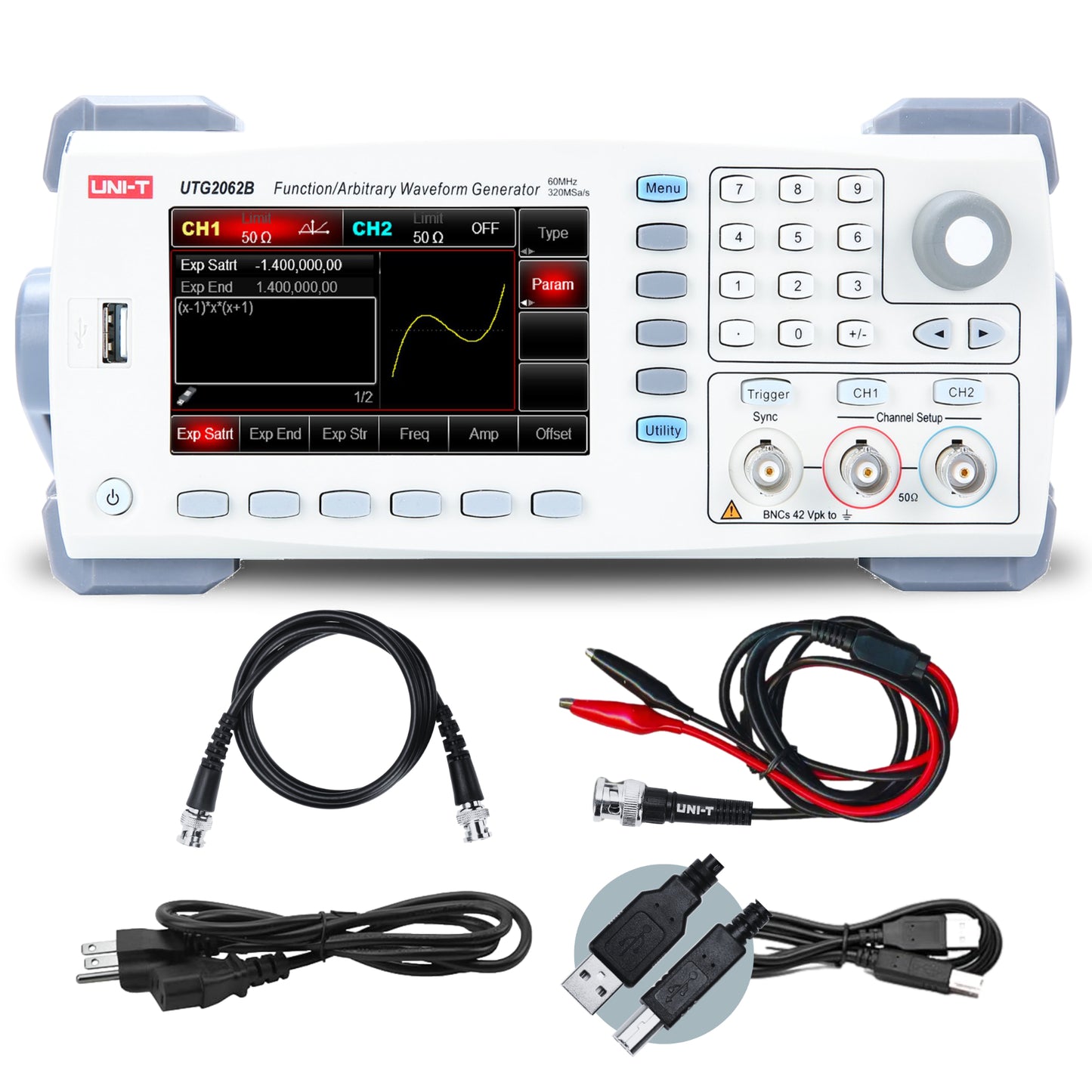

Included Accessories Power cord, USB2.0 printing cable, BNC straight-through cable, BNC to alligator clip cable
approvals
DATA SHEET
USER MANUAL
PROGRAMMING MANUAL
Not Currently Available. Contact us with questions.

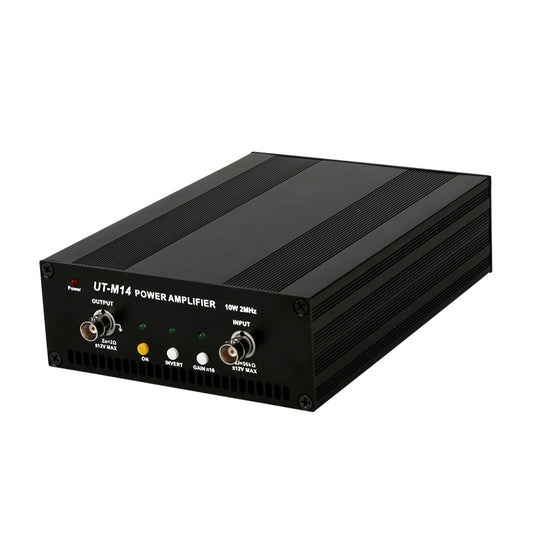

Need to increase the output of your Uni-Trend UTG-series Waveform Signal Generator? The UT-M14 is perfect for this.
