UPO1202CS 200MHz 2Ch DSO

UPO1202CS 200MHz 2Ch DSO
Uni-T UPO1202CS 200MHz 2Ch DSO Isometric Image
Uni-T UPO1202CS 200MHz 2Ch DSO Back Image
UPO1202CS 200MHz 2Ch DSO
approvals
$339.00
Save {price}%

26 items in stock

Description

The UPO1202c is widely used in the fields of electronic and electrical design, debugging, education, and industrial design

Top Specifications

200MHz, 1 GSa/s, 2 CH, Memory Depth: 56 Mpts, 500,000 wfm/s, 7in display
Register for up to 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

ACCESSORIES

Elevate Your Engineering Insights with the Uni-T UPO1202CS Digital Phosphor Oscilloscope

Step into Advanced Oscilloscope Technology

Uni-T UPO1202CS Oscilloscope Web Control feature
Uni-T UPO1202CS Oscilloscope Web Control feature

Introducing the Uni-T UPO1202CS Digital Phosphor Oscilloscope – a leap forward in oscilloscope technology, perfectly suited for the dynamic needs of electrical engineering professionals, academic instructors, and industrial design experts. This state-of-the-art instrument is engineered to redefine the standards of electronic and electrical design, troubleshooting, and teaching.

Key Specifications

  • Bandwidth: 200MHz
  • Analog Channels: 2
  • Real-Time Sample Rate: 1GSa/s
  • Max. Memory Depth: 56Mpts
  • Waveform Capture Rate: 500,000wfms/s

Enhanced Features for Superior Performance:

    • Upgraded Bandwidth for Extensive Analysis: The UPO1202CS comes equipped with an impressive 200MHz bandwidth, catering to more demanding measurement requirements.
Uni-T UPO1202CS Oscilloscope FFT Sampling Point feature
Uni-T UPO1202CS Oscilloscope FFT Sampling Point feature
  • Dual Analog Channels for Versatile Measurements: Two analog channels offer the flexibility needed for a wide range of applications.
  • Peak Real-Time Sampling Rate: Achieve superior data acquisition with a 1GSa/s real-time sample rate.
  • Expansive Memory Depth: A 56Mpts memory depth ensures comprehensive waveform observation and analysis.
  • Rapid Waveform Capture Rate: With the ability to capture 500,000 waveforms per second, miss no critical data.

Innovative Features for Enhanced Data Interpretation

  • Advanced Digital Signal Processing: This technology ensures swift data handling and high-speed waveform capture, streamlining your analysis process.
  • Ultra Phosphor Technology for Deeper Insights: View the layered afterglow of signal effects, offering a multidimensional perspective on waveform data.
  • Efficient Abnormal Event Capture: Utilize the Fast Acquire Technology to seamlessly detect and analyze irregular events like signal jitters and noise.

Remote Accessibility and User-Friendly Interface

Seamless Web Control: Manage your oscilloscope effortlessly through a web-based interface, compatible with both desktop and mobile platforms, bypassing the need for additional software.

Cutting-Edge Functionalities for In-Depth Analysis

Uni-T UPO1202CS Oscilloscope Bus Decoding feature
Uni-T UPO1202CS Oscilloscope Bus Decoding feature
  • Robust FFT Sampling Point: The 1Mpts FFT sampling capability allows for intricate frequency domain analysis, with adjustable spectrum analyzer settings for tailored inspections.
  • Multi-Scope Display for Comprehensive Analysis: Easily interpret waveforms from various clock sources, enhancing waveform parameter evaluation.
  • Serial Bus Trigger and Real-Time Hardware Decoding: Benefit from instantaneous decoding and minimal latency, ensuring continuous waveform clarity and detailed event logging.

State-of-the-Art Storage and Visualization Features

  • Generous Storage Depth: The 56M sampling points per channel aid in capturing extensive waveform data, even over prolonged durations.
  • Unparalleled Capture Rate: Leverage a top-tier capture rate, effectively reducing signal omission for precise abnormal signal detection.
  • Sophisticated Gray Level Display: The Ultra Phosphor display enriches waveform visualization, providing a comprehensive view of your data.

Your Gateway to Next-Gen Electrical Engineering: The Uni-T UPO1202CS Digital Phosphor Oscilloscope is more than a tool – it's a gateway to advanced electrical exploration and academic excellence. It combines groundbreaking features with intuitive operation, making it the ideal choice for professionals and educators.

Take the Next Step in Oscilloscope Evolution

Order your Uni-T UPO1202CS Digital Phosphor Oscilloscope today and revolutionize your electrical engineering and educational practices. Embrace the next generation of oscilloscope technology today!

Uni-T UPO1202CS Oscilloscope Capture Rate feature
Uni-T UPO1202CS Oscilloscope Capture Rate feature
FeatureSpecification
Model Number UPO1202CS
Scope Type DSO
Bandwidth 200MHz
Channels 2Ch
Scope Sample Rate 1.0GSa/S
Memory Depth 56Mpts
Refresh Rate 5,000wfms/s
Logic Pod Included false
Signal Generator Function false
Display Size (in) 7in
Touchscreen false
Warranty 3 years
Shipping Dimmensions (L x W x H) 16 in x 9 in x 11 in
Shipping Weight 7 lb
Documents English download guide, multi-language safety manual, calibration report (COC)

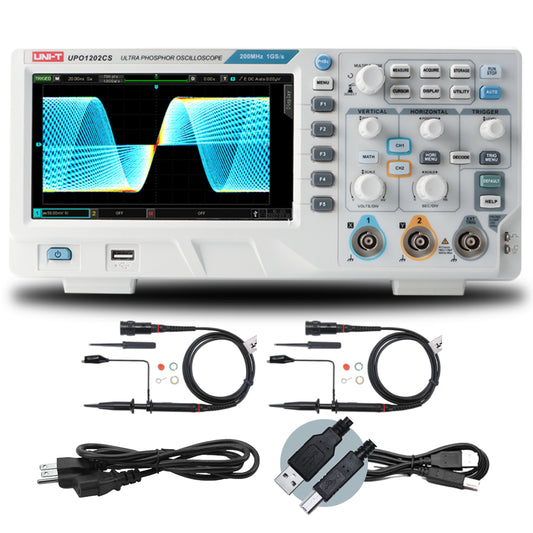

Included Accessories Power cord, USB2.0 printing cable, Oscilloscope probe (UT-P05)*2
