UPO1154HD 12-Bit 150MHz 4Ch High Definition Oscilloscope

Offering 150MHz bandwidth with 4-channel capability, this oscilloscope provides the perfect balance of performance and versatility for general laboratory applications. Its 12-bit resolution and integrated measurement suite deliver professional-grade analysis in a cost-effective package suitable for both educational and professional environments.

150MHz Bandwidth	4Ch Channels
1.25GSa/s Sample Rate	100Mpts Max. Memory Depth
1,000,000wfms/s Waveform Capture Rate	Not Available Digital Channels

$549.00

Save {price}% Contact Us for Lead Time

26 items in stock

Find a Distributor

Guarantee safe & secure checkout

UNI-T UPO1154HD | 150 MHz 4-Channel 12-bit High-Resolution Oscilloscope

Overview

The UNI-T UPO1154HD is the flagship model of the UPO1000HD Series, offering 150 MHz bandwidth across four analog channels with 12-bit vertical resolution and deep 100 Mpts memory. Whether you're debugging multi-rail power systems, correlating sensor outputs, or capturing high-speed digital transitions, the UPO1154HD delivers unmatched clarity and confidence. With Ultra Phosphor 3.0 technology, built-in power analysis, protocol decoding, and a responsive 7" touchscreen, this oscilloscope is a complete signal analysis platform in a compact USB-C powered form factor.

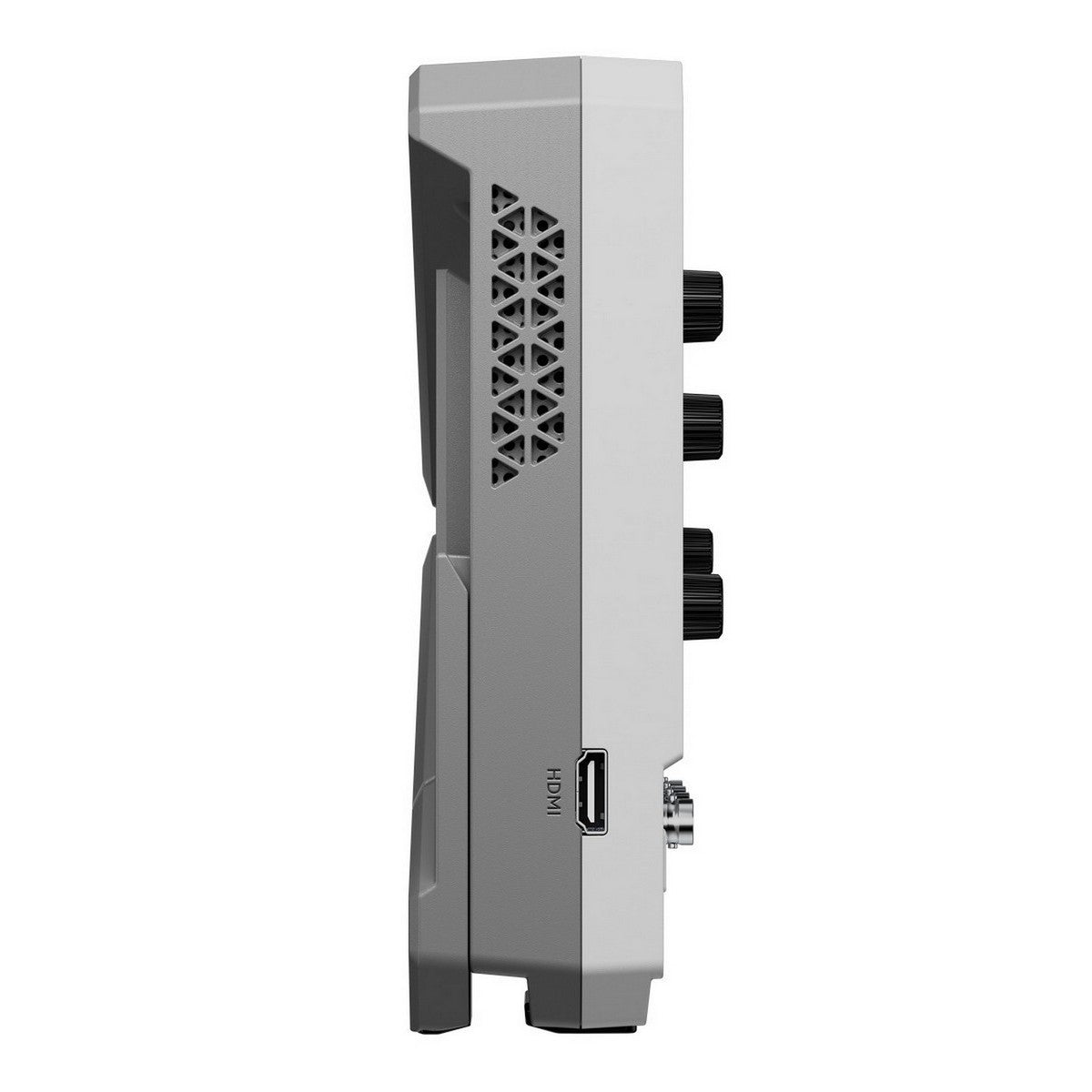

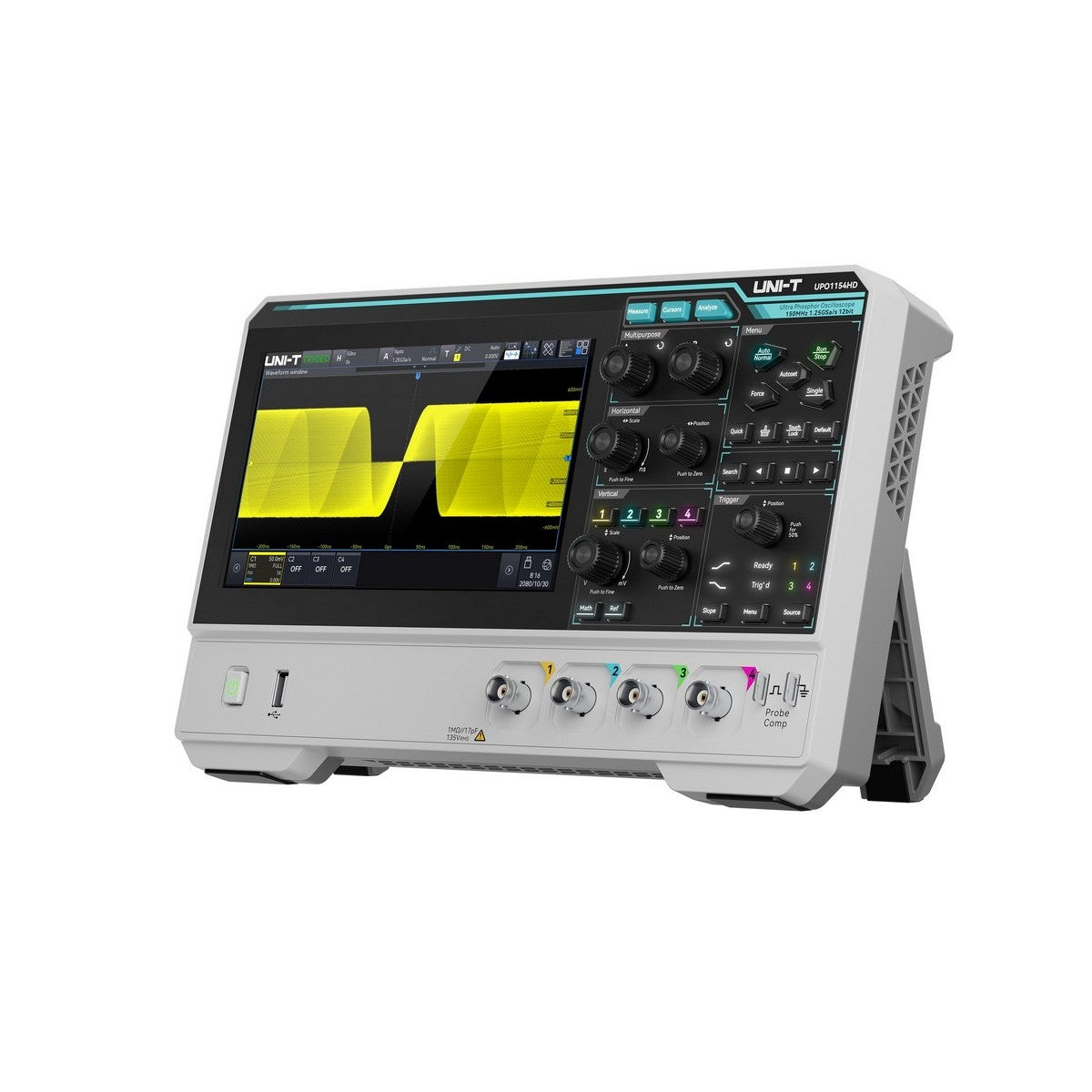

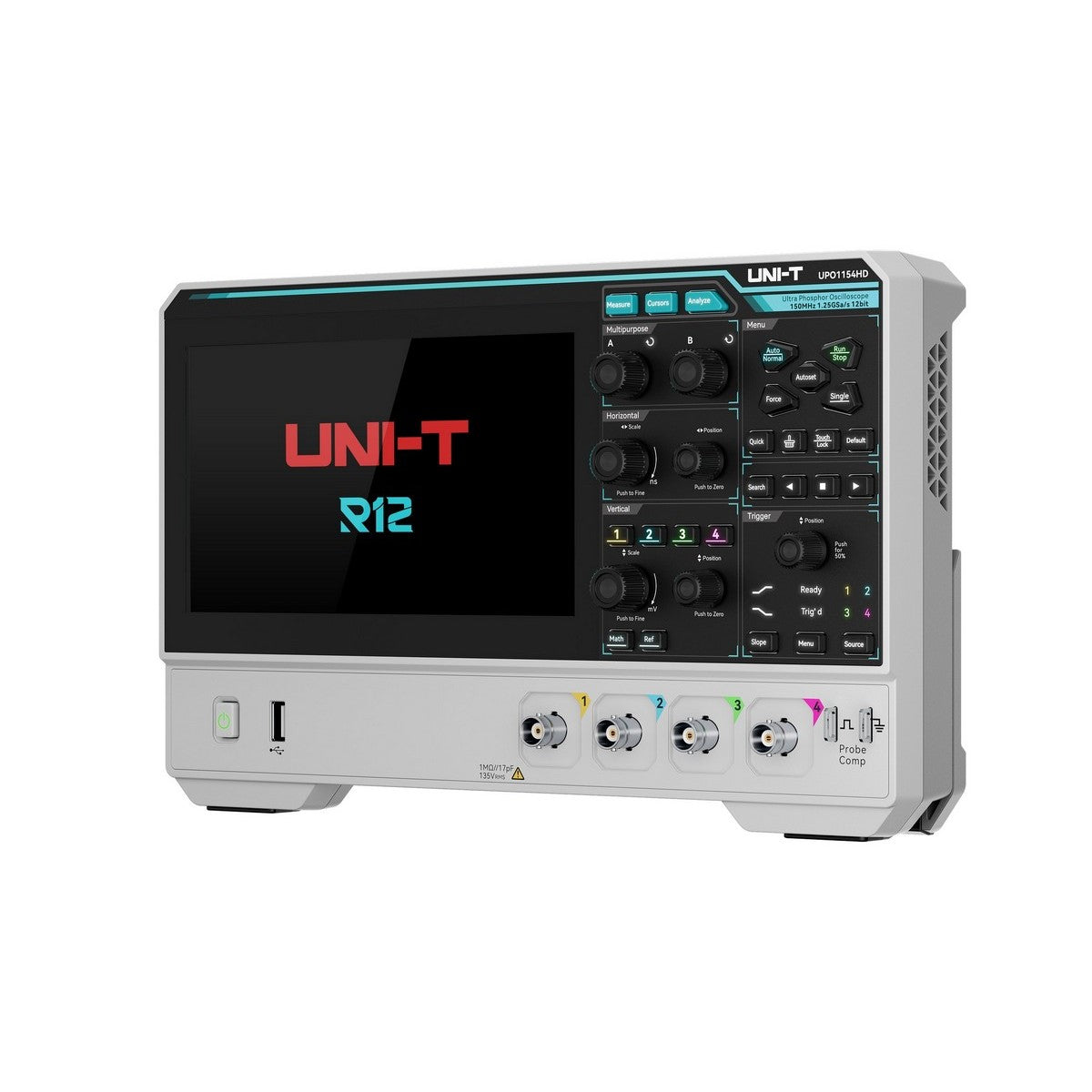

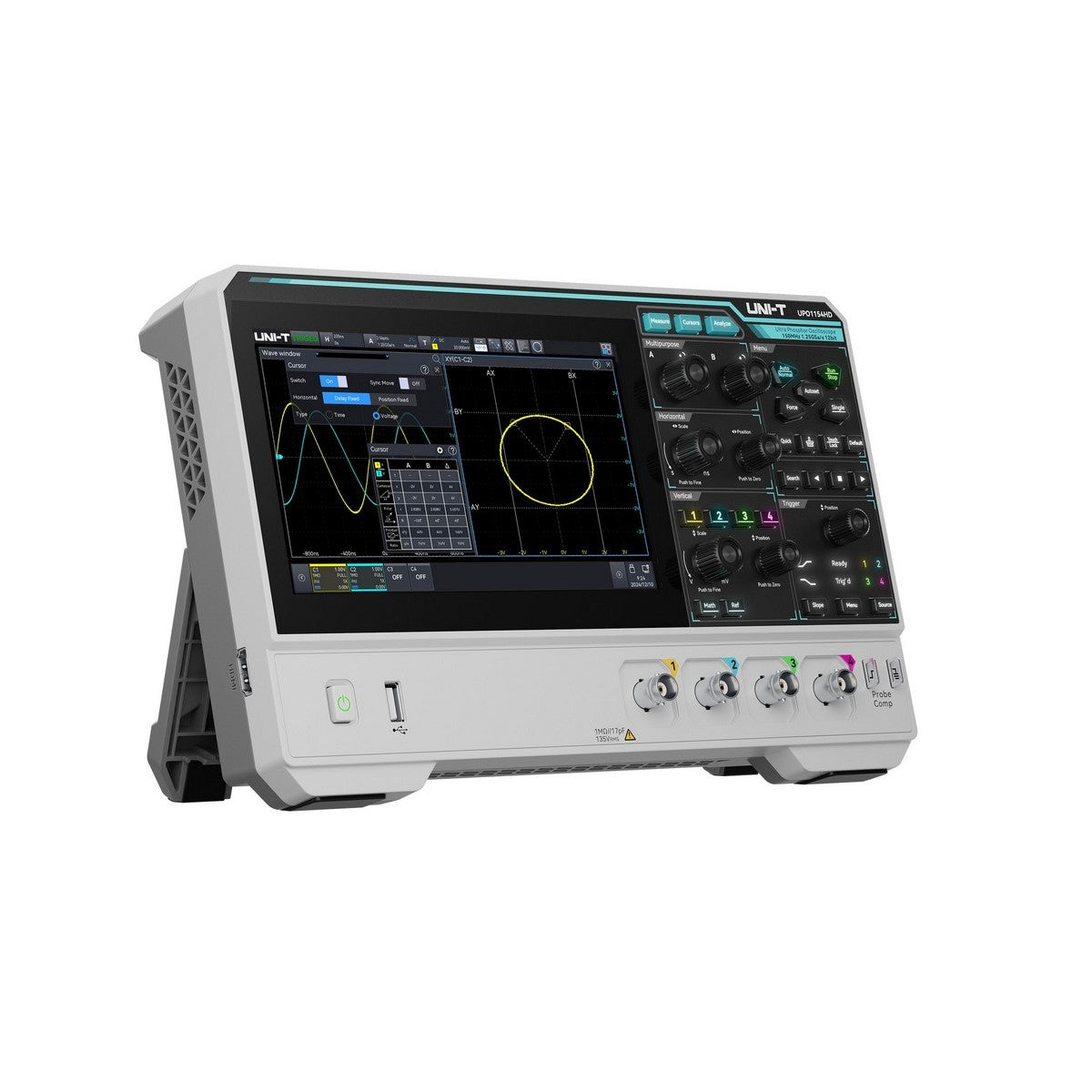

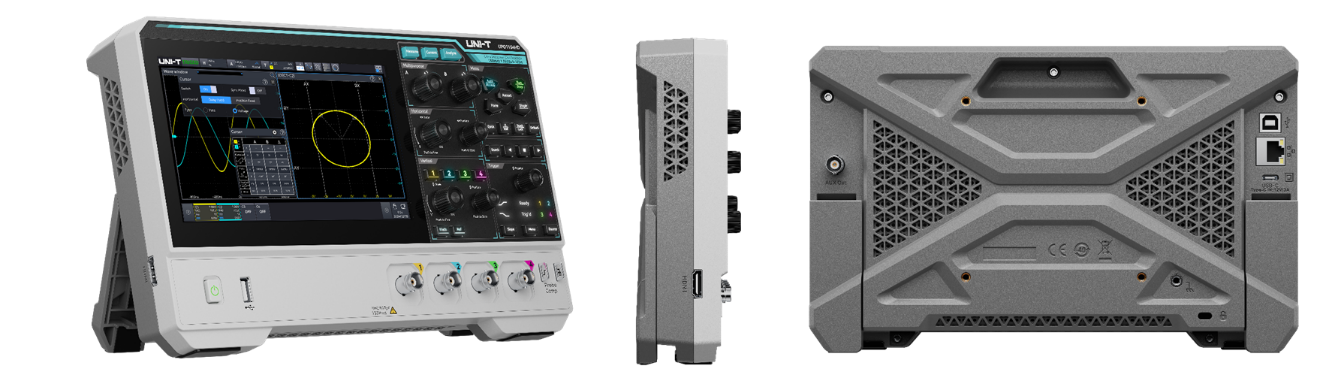

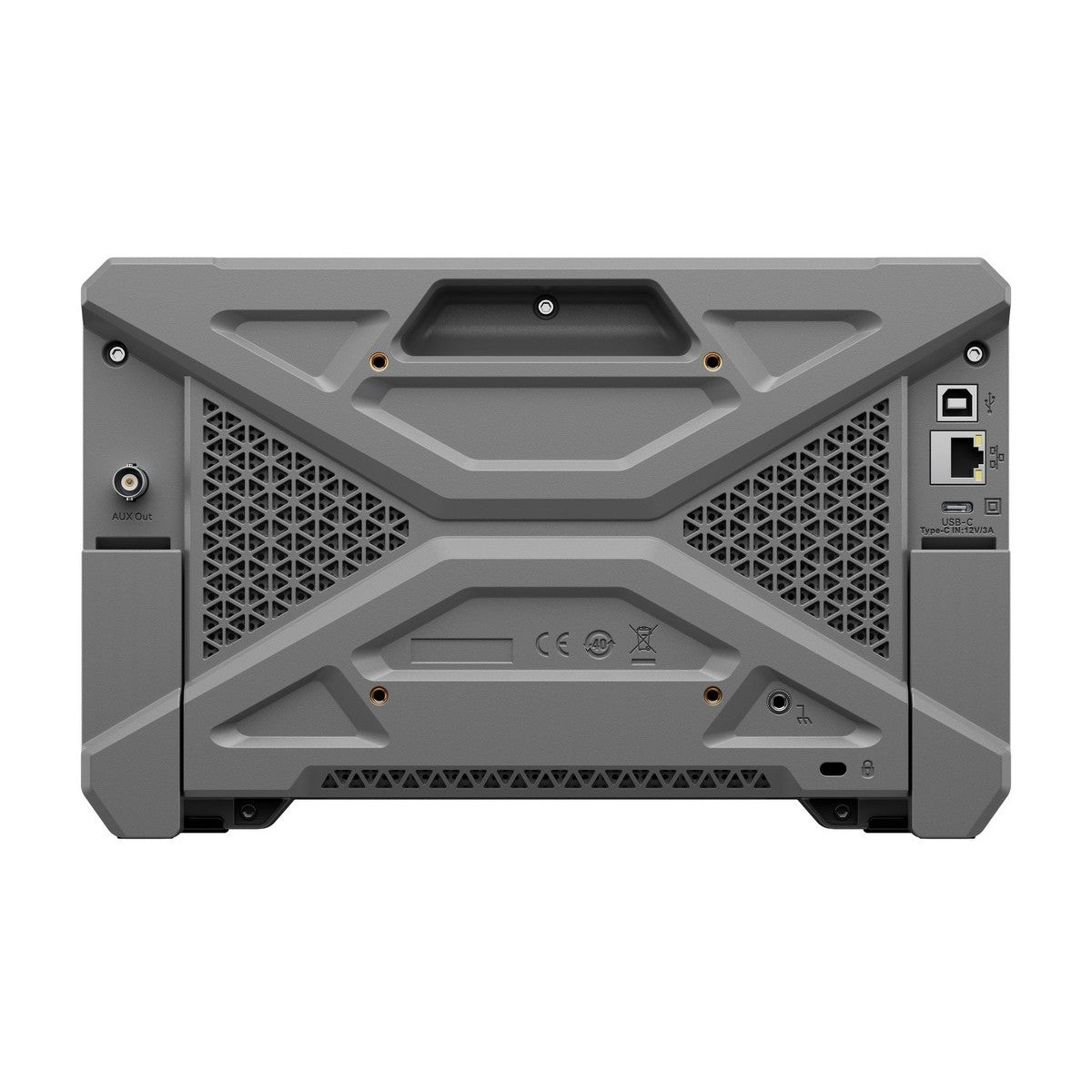

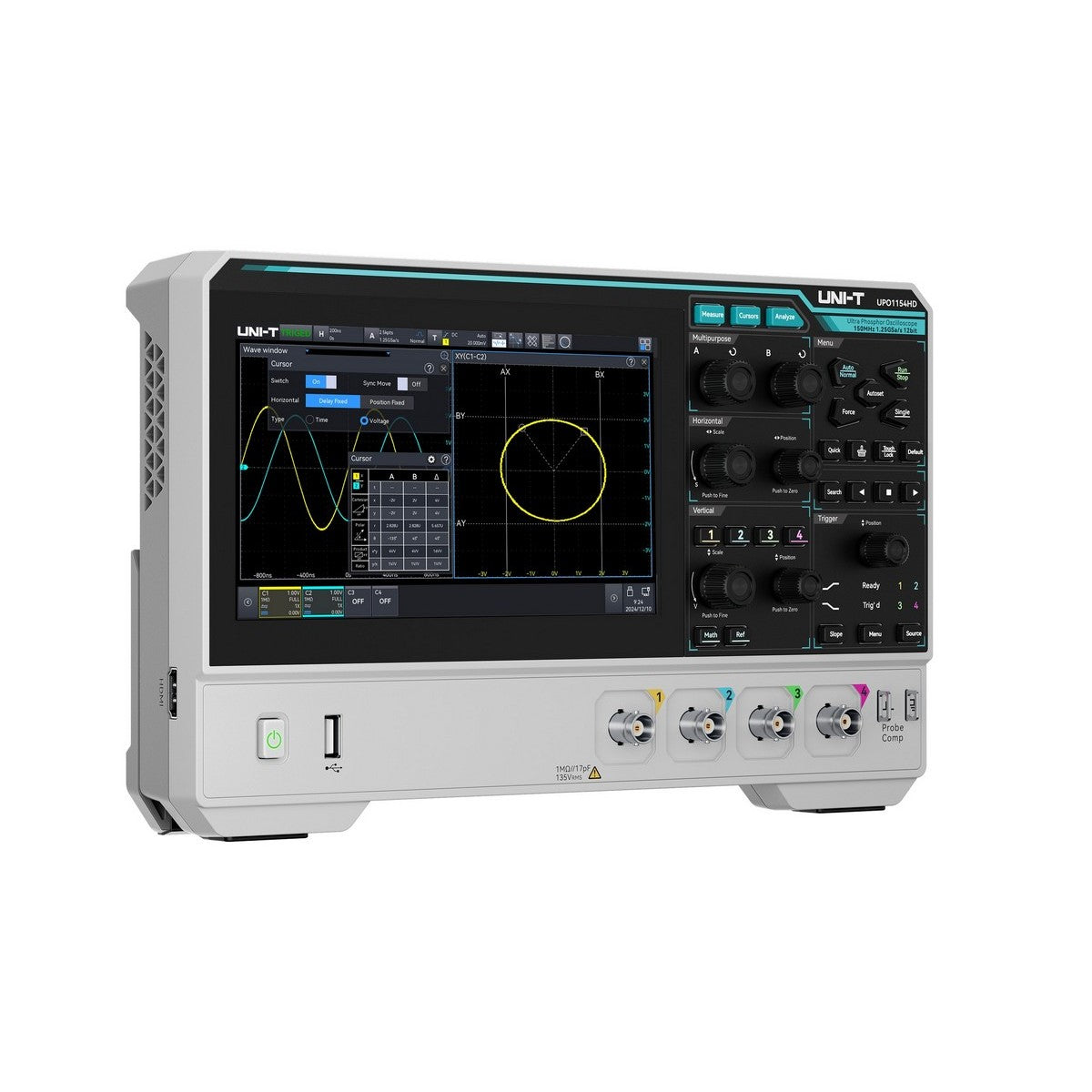

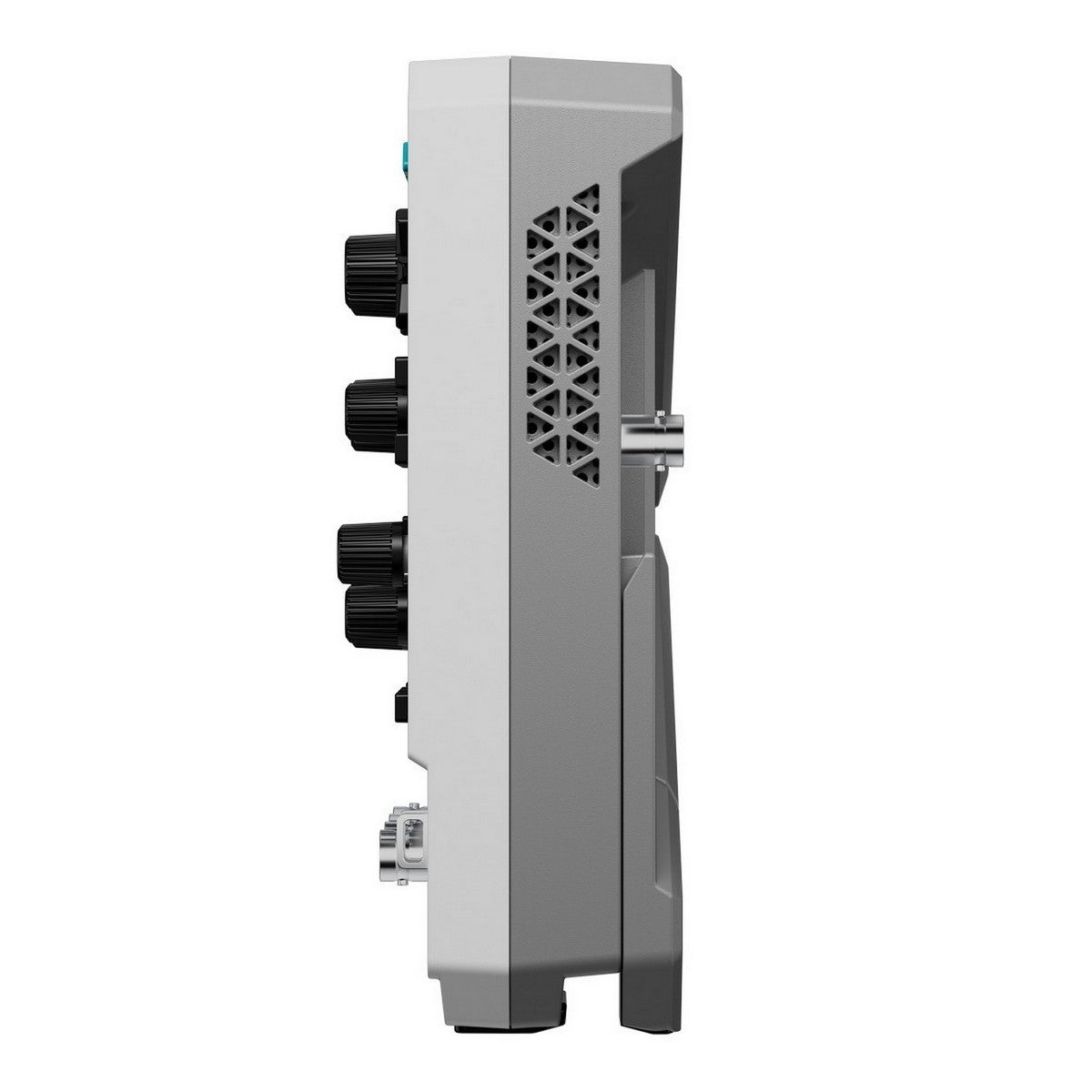

UPO1154HD Multi-Angle View — Four-channel, high-resolution performance with full connectivity, touchscreen control, and portable flexibility

Key Features

150 MHz Bandwidth – Capture fast signals and high-speed switching with precision
4 Analog Channels – Simultaneous acquisition across complex designs or multi-rail power systems
12-bit Vertical Resolution – Delivers 16× more detail than standard 8-bit scopes
1.25 GSa/s Sample Rate – High-speed sampling across all channels
100 Mpts Memory Depth – Capture long events and zoom in with full fidelity
Ultra Phosphor 3.0 – 256-color grading with up to 1,000,000 wfms/s waveform capture rate
Power Analysis Suite – Built-in tools for ripple, SOA, startup, harmonics, and switching loss
1M-point FFT – Visualize EMI, clock harmonics, and noise spectra with waterfall mode
Protocol Decoding – Decode UART, I²C, SPI, CAN, and LIN with time correlation
6-in-1 Integration – Oscilloscope, DVM, frequency counter, spectrum & protocol analyzers, and power suite

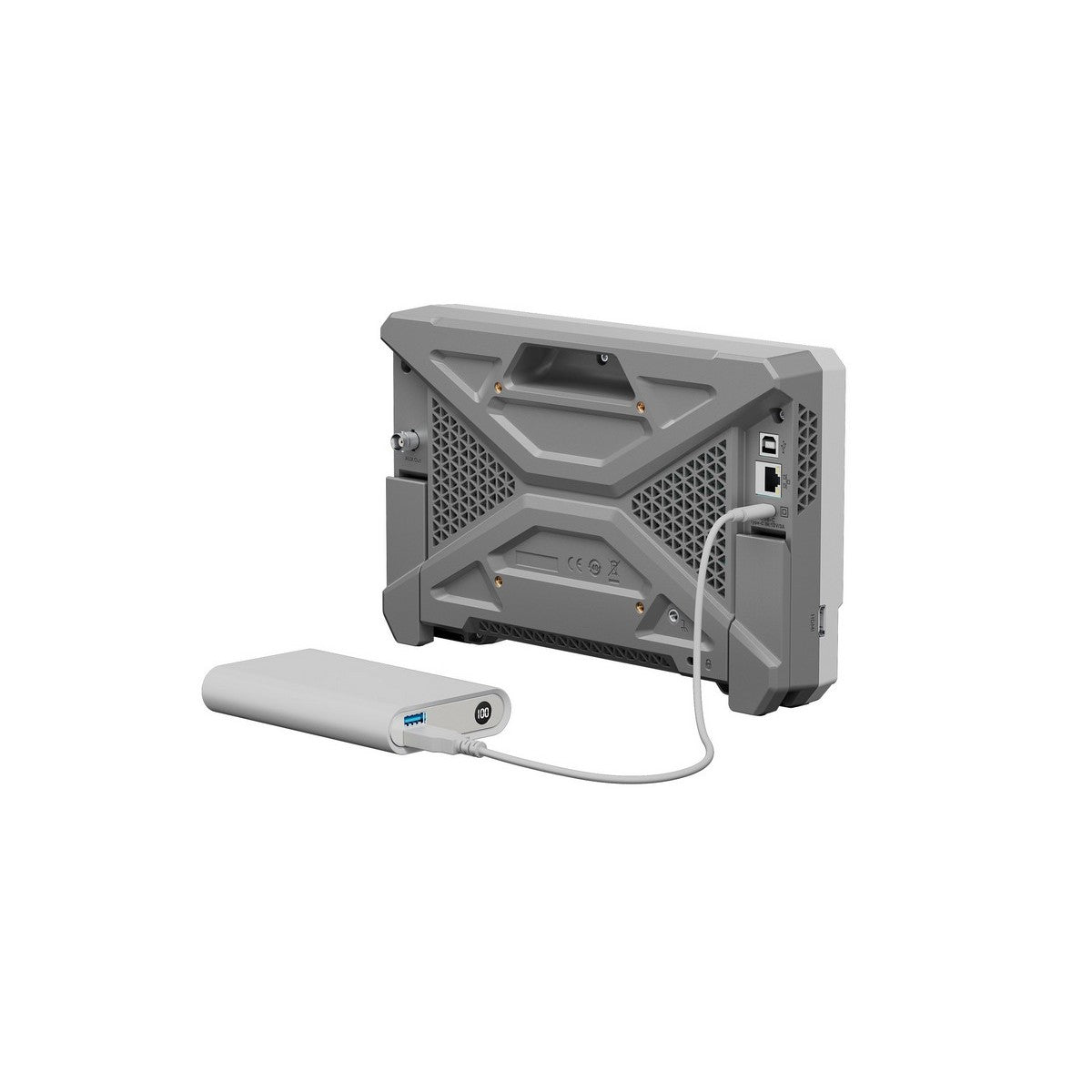

USB-C PD Input – Flexible power delivery from benchtop or battery
LAN, USB & HDMI – Built-in SCPI automation, web control, and external display support

Waveform Visualization with Ultra Phosphor 3.0

With Ultra Phosphor 3.0, the UPO1154HD renders waveforms with up to 256 intensity levels for visualizing complex signal dynamics. Detect anomalies, measure jitter, and identify timing issues across multiple channels in real-time. The scope achieves up to 1,000,000 wfms/s in sequence mode to capture elusive events with clarity.

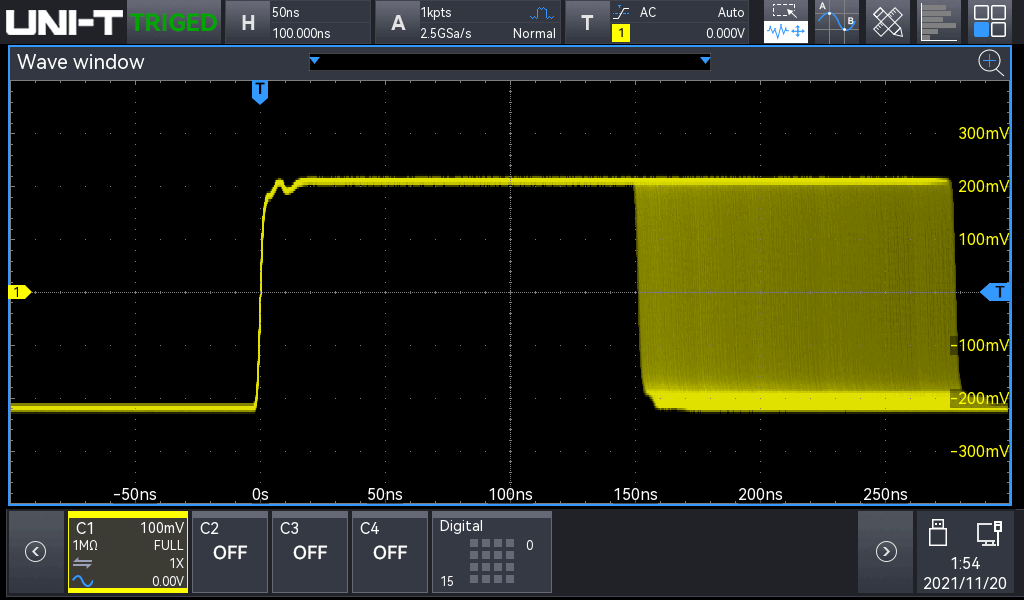

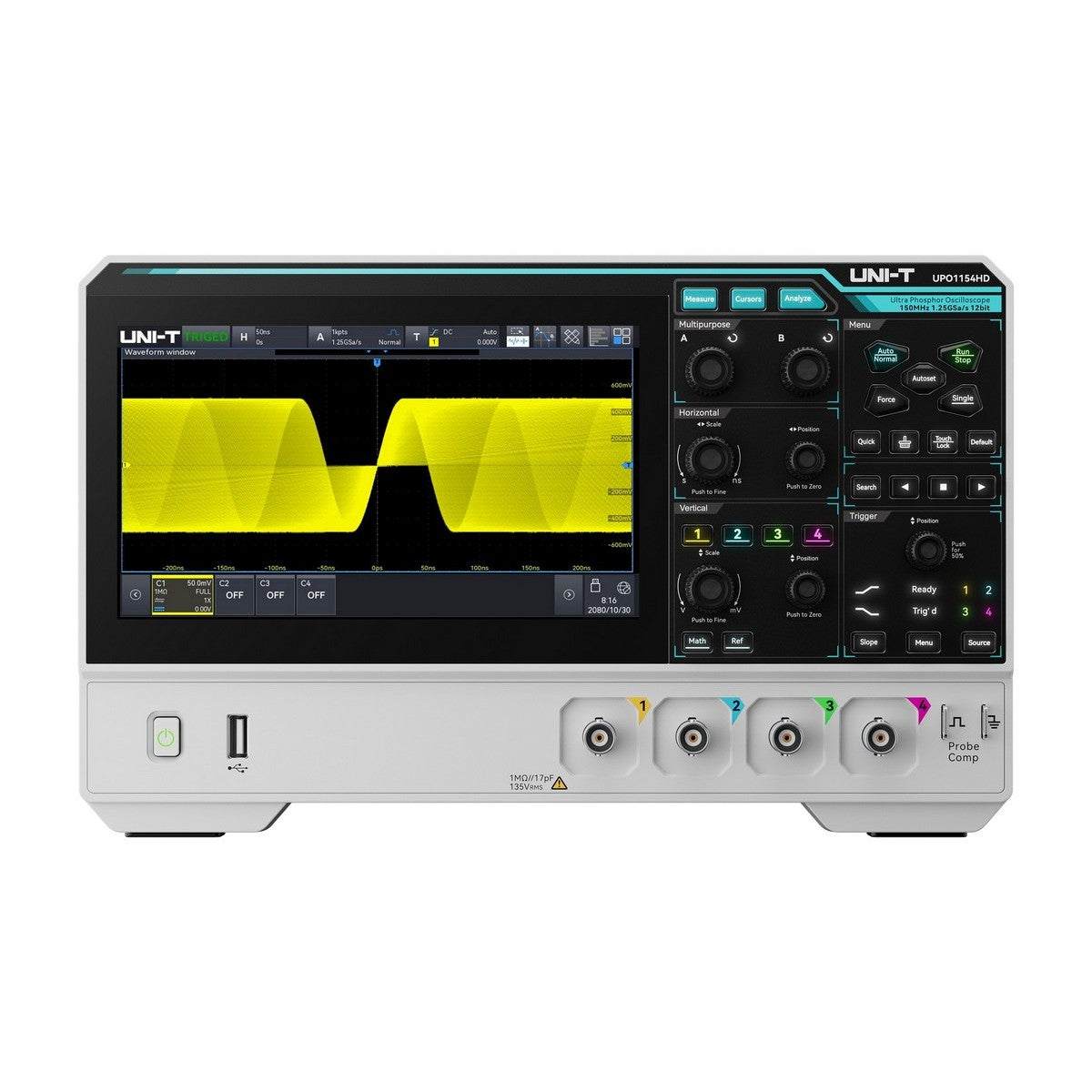

Ultra Phosphor Visualization — Real-time rendering reveals waveform intensity and activity with full color grading

Power and Spectrum Analysis

Engineers working with power converters, embedded systems, or analog amplifiers will benefit from ripple measurements, startup profiling, and harmonic analysis. With 1M-point FFT, waterfall view, and peak/marker tools, the UPO1154HD gives frequency-domain clarity without an external spectrum analyzer.

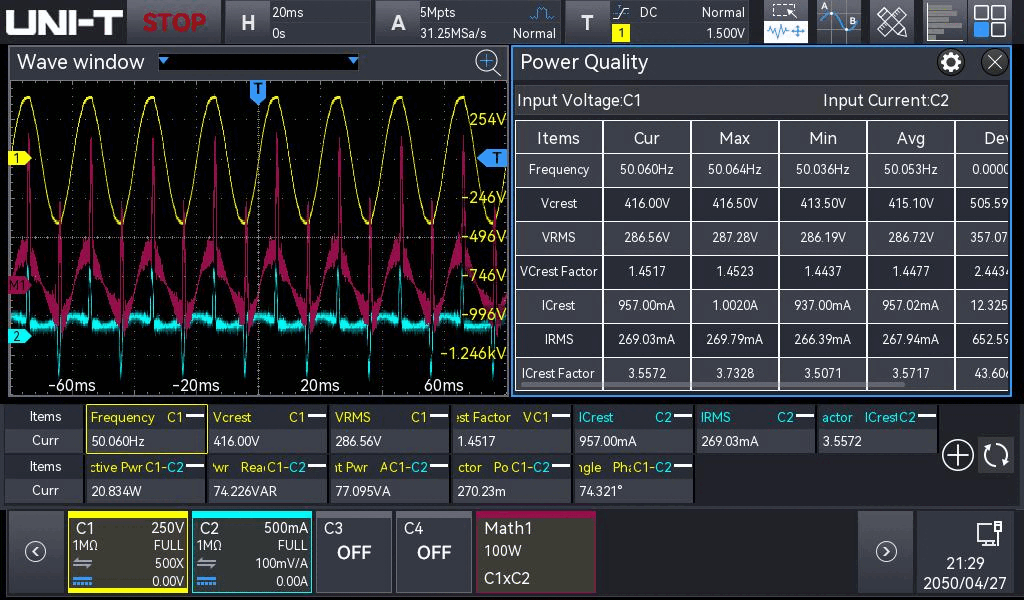

Power Analysis — Power suite tools simplify switching analysis and help ensure energy efficiency

Applications and Use Cases

Multi-Rail Power Supply Validation – View all rails at once and correlate startup timing and ripple
Embedded System Debug – Trace I²C, UART, and analog sensor responses across multiple channels
Automotive & Industrial Systems – Decode CAN/LIN protocols with synchronized analog insight
Analog Design Verification – Use high resolution to characterize op amps, filters, and analog signal chains

Measurement and Math Tools

Access 56 auto measurements, including timing, frequency, and voltage characteristics. Up to 21 parameters can be displayed simultaneously, with trend graphs and statistics. Apply math operations (+, −, ×, ÷), filters, FFT, and user-defined formulas to interpret results quickly and clearly.

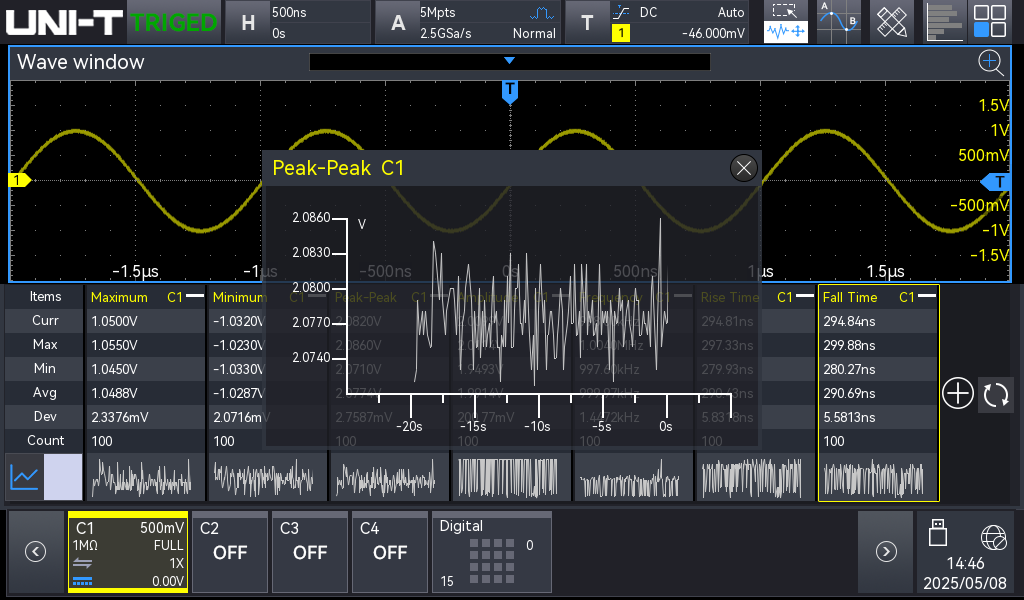

Measurement Parameters — Visualize measurement data across 4 channels with real-time statistical views

Protocol Decoding and Mixed-Signal Triggering

Built-in protocol support for UART, SPI, I²C, CAN, and LIN lets you trigger and decode serial buses directly. The UPO1154HD overlays digital decode onto analog traces with correlated markers for streamlined embedded debugging.

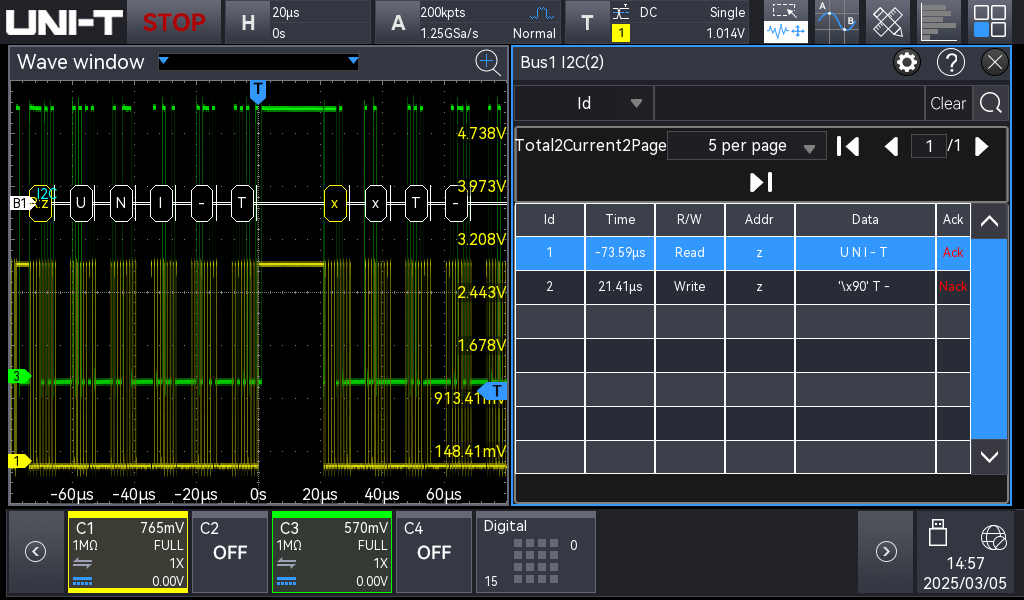

Protocol Decode — Decode serial protocols inline and correlate bus activity with waveform events

Product Comparison

Model	Bandwidth	Channels	Memory
UPO1154HD	150 MHz	4	100 Mpts
UPO1152HD	150 MHz	2	100 Mpts
UPO1084HD	80 MHz	4	100 Mpts
UPO1082HD	80 MHz	2	100 Mpts

Technical Specifications

Parameter	UPO1154HD Specification
Bandwidth	150 MHz
Channels	4 analog
Sampling Rate	1.25 GSa/s (1CH), 625 MSa/s (2CH), 312.5 MSa/s (4CH)
Vertical Resolution	12-bit (16-bit with ERES)
Memory Depth	100 Mpts
Capture Rate	Up to 1,000,000 wfms/s
Display	7" 1024×600 capacitive touchscreen
Interfaces	USB Host/Device, LAN, HDMI, AUX Out
Power	USB-C PD (≥12 V/3 A)
Weight	1.56 kg

Package Contents

UPO1154HD Oscilloscope
4 × UT-P05 Passive Probes (200 MHz)
USB 2.0 Cable (UT-D14)
Type-C PD Power Adapter
User Manual & Calibration Certificate

Optional Accessories

UT-ISOT Isolation Transformer
UT-DF01 Deskew Fixture
UT-P21 High Voltage Probe (15 kV)
UT-P4030D High-Frequency Current Probe (100 MHz)
UT-P4150 Current Probe (150 A/30 A, 12 MHz)

Frequently Asked Questions

Can I use all four channels at full memory depth?

Yes. The UPO1154HD supports full 100 Mpts memory depth on all four channels with dynamic sample rate adjustment.

Does protocol decoding work while using all channels?

Yes. Protocol decoding operates independently and is synchronized across all four analog channels.

Can I export waveform data or screenshots?

Yes. Data and images can be saved via USB or accessed remotely through the web interface or SCPI.

What is the power input requirement?

The scope operates from a 12 V/3 A USB-C PD input, compatible with most benchtop or portable chargers.

Is remote automation supported?

Yes. The UPO1154HD supports SCPI over USB and LAN, as well as browser-based remote control.

Warranty & Support

All UNI-T UPO1000HD Series oscilloscopes include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your UPO1000HD for a free, 2-year warranty extension.

Master Your Signals

When your work demands bandwidth, resolution, and multiple synchronized channels, the UNI-T UPO1154HD delivers. Its combination of deep memory, real-time insight, and integrated analysis makes it the ultimate compact scope for serious engineering tasks.

Order the UNI-T UPO1154HD now and get full-channel visibility without compromise.

Feature	Specification
Model Number	UPO1154HD
Scope Type	DSO
Bandwidth	150MHz
Channels	4Ch
Scope Sample Rate	1.25GSa/s
Memory Depth	100Mpts
Refresh Rate	1,000,000wfms/s
Vertical Scale @1MΩ	500μV/div to 10V/div
# Automatic Measurements	56
Included Bus Protocols	RS232 UART I2C SPI RS422 RS485 CAN LIN CAN-FD Audio
Optional Bus Protocols	None
Logic Pod Included	Not Available
Signal Generator Function	Not Available
Frequency Meter	6-bit
Display Size (in)	7in
Touchscreen	Yes
Warranty	3 years
Certifications	CE/cETLus
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Oscilloscope probe (UT-P05)*4
Standard Accessories	Power cord, USB2.0 printing cable

2025_Catalog_th — UNI-T 2025 Instruments Catalog

2025_SelectionGuide_th — UNI-T 2025 Instruments Selection Guide
