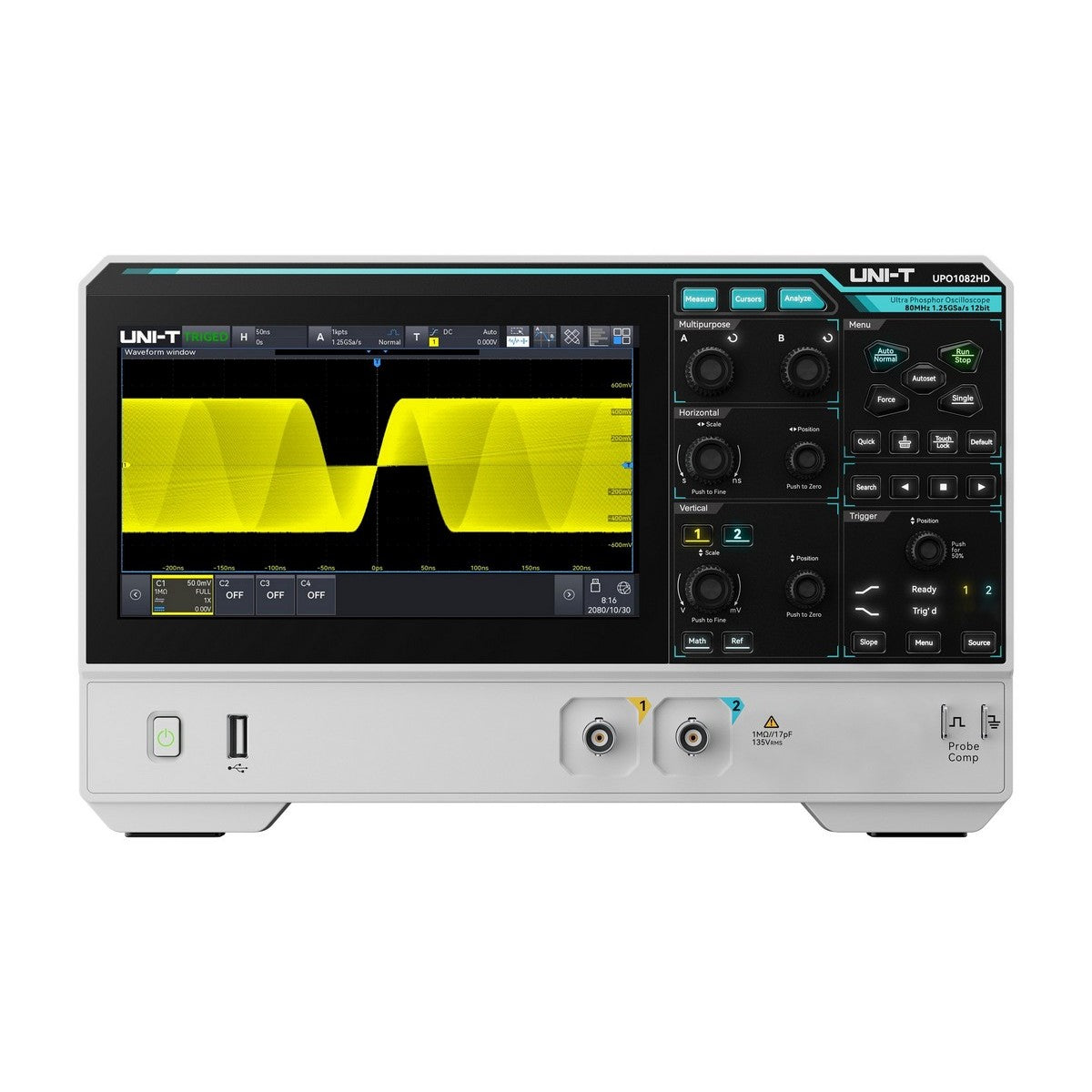

UPO1082HD 12-Bit 80MHz 2Ch High Definition Oscilloscope

This entry-level 80MHz dual-channel model combines affordability with professional 12-bit resolution for basic measurement applications. Its compact design and comprehensive feature set make it perfect for educational institutions and technicians requiring reliable performance at an accessible price point.

80MHz Bandwidth	2Ch Channels
1.25GSa/s Sample Rate	100Mpts Max. Memory Depth
1,000,000wfms/s Waveform Capture Rate	Not Available Digital Channels

$329.00

Save {price}%

26 items in stock

Find a Distributor

Guarantee safe & secure checkout

UNI-T UPO1082HD | 80 MHz 12-bit High-Resolution Oscilloscope

Overview

The UNI-T UPO1082HD is a compact, high-resolution oscilloscope offering 80 MHz bandwidth and 12-bit ADC precision. Designed for professionals and educators, it features 100 Mpts memory depth, 1.25 GSa/s sample rate, and a 7-inch capacitive touchscreen with gesture support. Engineers can visualize waveform subtleties with Ultra Phosphor 3.0's 256-level intensity grading and capture rate up to 1M wfms/s. Six integrated instruments, protocol decoding, power analysis, and advanced triggering tools make this scope a flexible solution for embedded, analog, and power electronics.

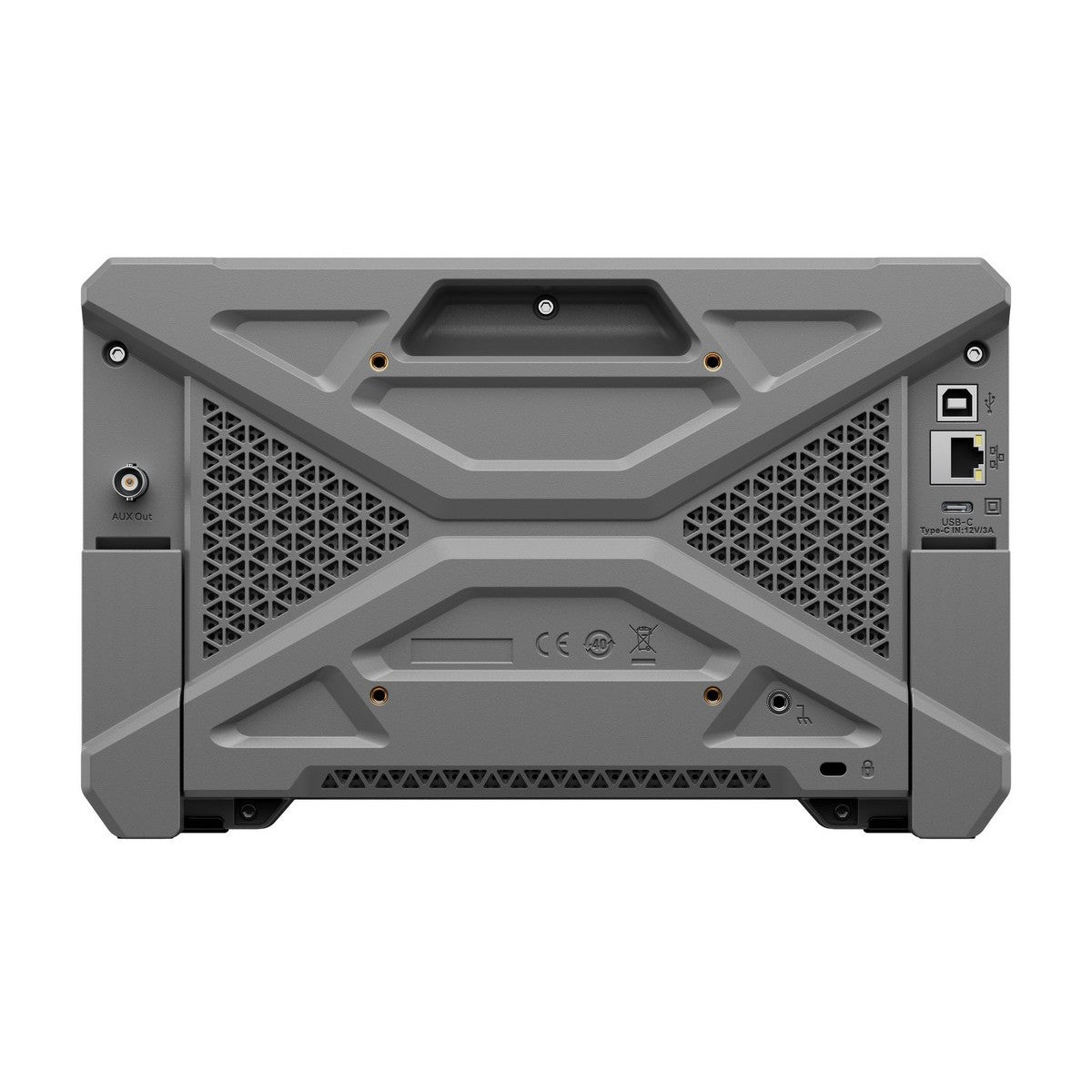

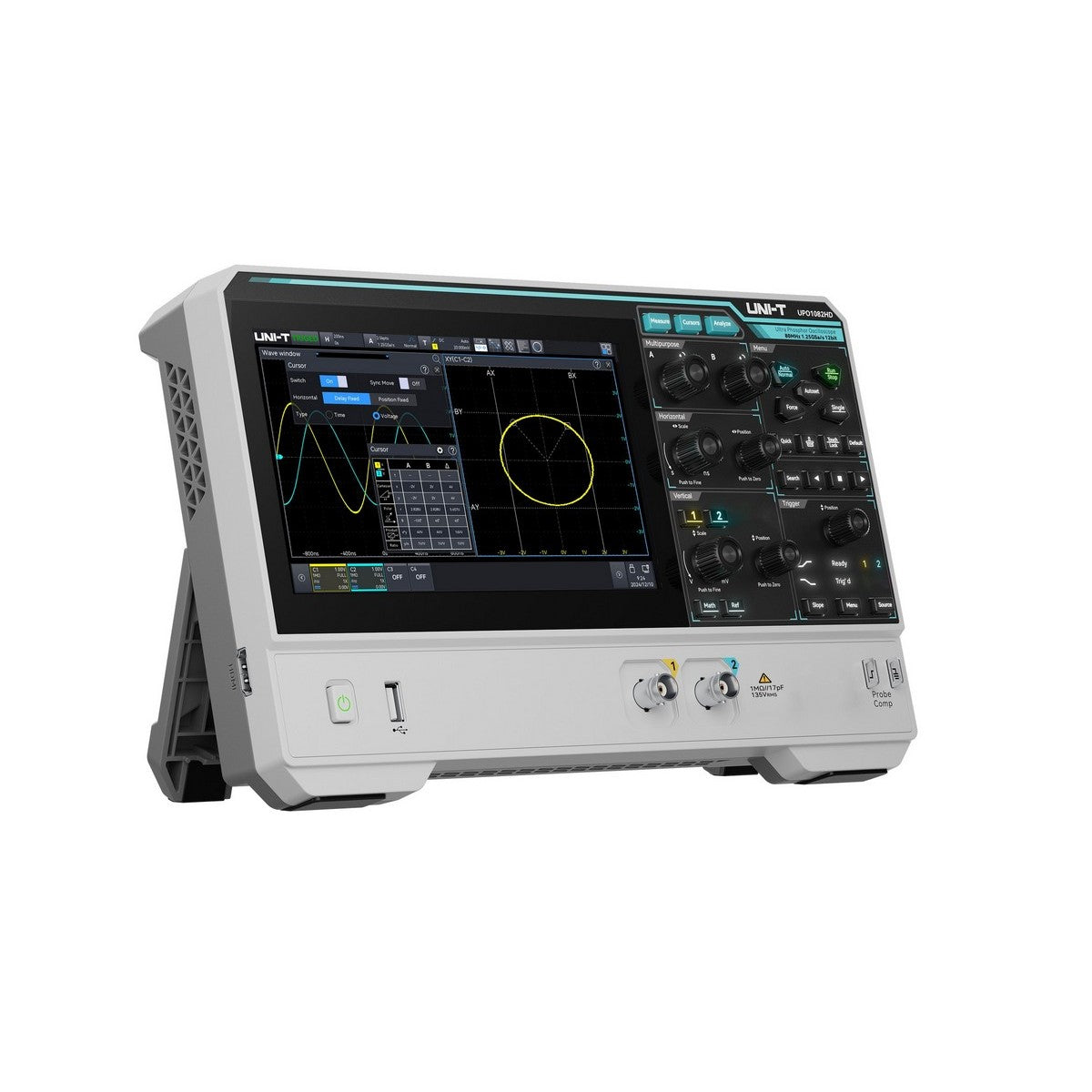

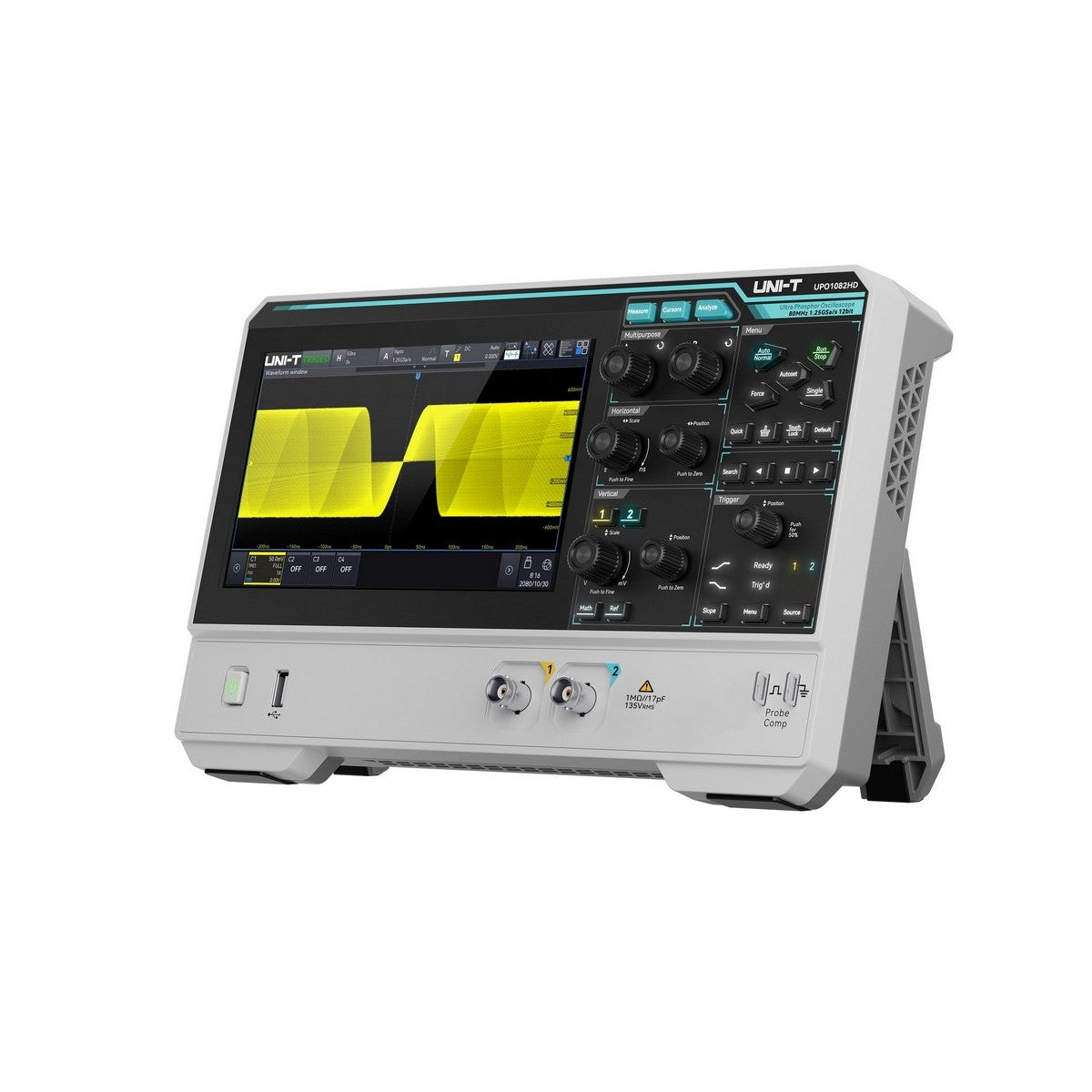

UPO1082HD Multi-Angle View — Compact, lightweight design with rear VESA mount, USB host/device ports, HDMI output, and Type-C PD input

Key Features

12-bit High Resolution – Offers 4096 quantization levels for enhanced signal detail
80 MHz Bandwidth – Optimized for power validation, analog sensor signals, and embedded systems
1.25 GSa/s Sample Rate – Clean signal capture of rapid transitions and glitches
2 Analog Channels – Streamlined setup for common test scenarios
Ultra Phosphor 3.0 – 100,000 wfms/s standard, 1,000,000 wfms/s in sequence mode with 256-color intensity display
6-in-1 Instrument Integration – Includes oscilloscope, DVM, spectrum analyzer, frequency counter, protocol analyzer, and power analyzer
Protocol Decoding Built-In – UART, I²C, SPI, CAN, LIN with time-correlated waveform display
100 Mpts Memory Depth – Allows long-duration captures with high fidelity
Advanced FFT – 1M-point FFT with 4 traces, peak/marker tools, waterfall view
Power Analysis Tools – Ripple, startup time, Rds(on), SOA, switching loss, and harmonics
Type-C PD Power Input – Power from wall or portable charger
SCPI & LAN/Web Control – Automate test routines or access remotely via browser

Visual Signal Analysis with Ultra Phosphor 3.0

The UPO1082HD uses Ultra Phosphor 3.0 technology to visualize waveforms with exceptional clarity. With 256-color intensity grading and fast waveform updates, it reveals transient glitches, timing violations, and amplitude anomalies that are often hidden. In sequence mode, the oscilloscope achieves a waveform capture rate of 1,000,000 wfms/s—ideal for hunting rare events and validating burst sequences.

Ultra Phosphor Visualization — Ultra Phosphor 3.0 displays waveform density using 256-level color grading and high capture rates

Complete Power and Spectrum Analysis

The built-in power analysis package supports ripple measurements, harmonic content, switching loss, SOA boundaries, startup time, and more. The 1M-point FFT with peak markers and waterfall mode provides deep frequency-domain insights. Engineers can troubleshoot EMI, measure filter response, and verify PSU behavior directly from the scope.

Streamlined Bench Integration

With USB Host/Device, LAN, HDMI, and Type-C PD power, the UPO1082HD fits easily into any lab or field setup. It supports VESA wall mounting and can be controlled remotely via browser or SCPI. At only 1.56 kg, it's easy to transport without sacrificing performance.

USB-C PD Power — USB-C PD port allows flexible, portable power options

Professional Applications

Power Electronics Debugging – Measure ripple, switching loss, startup time, and harmonic distortion using integrated tools
Embedded System Development – Correlate UART/I²C/SPI activity with analog sensor waveforms
Analog Signal Validation – Reveal small voltage variations and transient behaviors with 12-bit clarity
STEM and Engineering Education – Intuitive touchscreen UI, protocol decoding, and multi-domain analysis enhance learning environments

Measurement and Math Capabilities

The UPO1082HD offers over 50 built-in measurements across voltage, time, frequency, and power domains. Engineers can simultaneously display up to 21 automatic measurements with real-time statistics and trend graphs. Math functions include +, −, ×, ÷, FFT, filters, and user-defined formulas. The visual interface makes it easy to isolate waveform segments, apply gates, and export data for further analysis.

Measurement Parameters — Supports 56 types of measurements with statistical summaries and graphing

Protocol Decoding and Triggering

Decode and trigger on standard embedded protocols without external tools. The UPO1082HD supports UART, SPI, I²C, CAN, and LIN decoding out of the box. Time-correlated event markers and trigger options help isolate critical signal interactions for embedded debug and integration tasks.

Protocol Decode — Standard decoding support includes UART, SPI, I²C, CAN, and LIN

Product Comparison

Model	Bandwidth	Channels	Memory
UPO1154HD	150 MHz	4	100 Mpts
UPO1152HD	150 MHz	2	100 Mpts
UPO1084HD	80 MHz	4	100 Mpts
UPO1082HD	80 MHz	2	100 Mpts

Technical Specifications

Parameter	UPO1082HD Specification
Bandwidth	80 MHz
Channels	2 analog
Sampling Rate	1.25 GSa/s (1CH), 625 MSa/s (2CH)
Vertical Resolution	12-bit (16-bit with ERES)
Memory Depth	100 Mpts
Waveform Capture Rate	100,000 wfms/s (1M in sequence)
Display	7” 1024×600 capacitive touchscreen
Connectivity	USB Host/Device, LAN, HDMI, AUX Out
Power Input	USB-C PD (≥12 V/3 A)
Weight	1.56 kg

Package Contents

UPO1082HD Oscilloscope
2 × UT-P05 Passive Probes (200 MHz)
USB 2.0 Cable (UT-D14)
Type-C PD Power Adapter
User Manual & Calibration Certificate

Optional Accessories

UT-ISOT Isolation Transformer
UT-DF01 Deskew Fixture
UT-P21 High Voltage Probe (15 kV)
UT-P4030D High-Frequency Current Probe (100 MHz)
UT-P4150 Current Probe (150 A/30 A, 12 MHz)

Frequently Asked Questions

Can I power the UPO1082HD using a USB power bank?

Yes. The oscilloscope supports USB-C PD and can run from compliant 12 V/3 A portable chargers.

Is protocol decoding included or licensed separately?

It's included out of the box. No license is required for UART, I²C, SPI, CAN, or LIN decoding.

Can I do power analysis with this scope?

Yes. Built-in analysis functions support ripple, harmonics, switching loss, SOA, and more when used with compatible probes.

Does the UPO1082HD support remote access?

Yes. It supports SCPI commands via LAN or USB and includes a web interface for browser-based control.

How many measurements can I display at once?

You can display up to 21 parameters with statistical views and trend charting.

Warranty & Support

All UNI-T UPO1000HD Series oscilloscopes include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your UPO1000HD for a free, 2-year warranty extension.

Ready to Upgrade Your Bench?

The UNI-T UPO1082HD packs advanced visualization, protocol decoding, and power analysis into a compact 12-bit scope that fits any workspace or budget. Whether you're debugging embedded systems, analyzing analog signals, or training future engineers, this scope delivers professional-grade capability at an unbeatable value.

Order the UNI-T UPO1082HD today and see what high-resolution insight really means.

Feature	Specification
Model Number	UPO1082HD
Scope Type	DSO
Bandwidth	80MHz
Channels	2Ch
Scope Sample Rate	1.25GSa/s
Memory Depth	100Mpts
Refresh Rate	1,000,000wfms/s
Vertical Scale @1MΩ	500μV/div to 10V/div
# Automatic Measurements	56
Included Bus Protocols	RS232 UART I2C SPI RS422 RS485 CAN LIN CAN-FD Audio
Optional Bus Protocols	None
Logic Pod Included	Not Available
Signal Generator Function	Not Available
Frequency Meter	6-bit
Display Size (in)	7in
Touchscreen	Yes
Warranty	3 years
Certifications	CE/cETLus
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Oscilloscope probe (UT-P04)*2
Standard Accessories	Power cord, USB2.0 printing cable
