UPO1152HD 12-Bit 150MHz 2Ch High Definition Oscilloscope

This compact 150MHz dual-channel oscilloscope delivers professional 12-bit resolution and seven-in-one functionality in an ultra-portable form factor perfect for field service and education. Type-C power compatibility and comprehensive protocol analysis make it ideal for space-constrained environments without sacrificing measurement quality.

150MHz Bandwidth	2Ch Channels
1.25GSa/s Sample Rate	100Mpts Max. Memory Depth
1,000,000wfms/s Waveform Capture Rate	Not Available Digital Channels

$439.00

Save {price}% Contact Us for Lead Time

26 items in stock

Find a Distributor

Guarantee safe & secure checkout

UNI-T UPO1152HD | 150 MHz 2-Channel 12-bit High-Resolution Oscilloscope

Overview

The UNI-T UPO1152HD is a 12-bit high-resolution oscilloscope designed for engineers who need greater bandwidth for precision signal analysis. With 150 MHz bandwidth, 1.25 GSa/s sample rate, and 100 Mpts memory depth, it offers clean acquisition and deep capture. This 2-channel model integrates power analysis, protocol decoding, and advanced spectrum tools—all powered by UNI-T’s Ultra Phosphor 3.0 engine and delivered in a compact USB-C form factor with a 7" touchscreen.

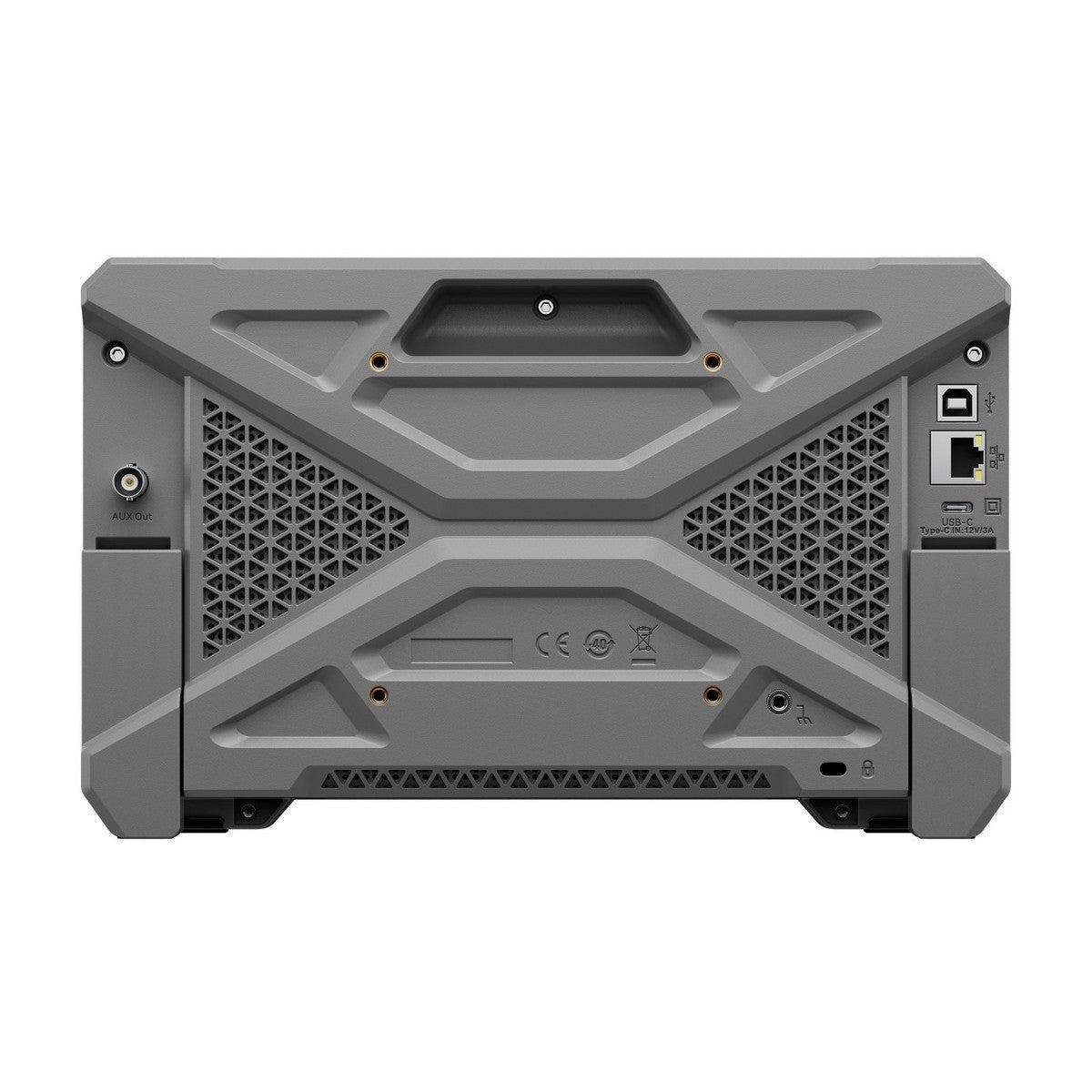

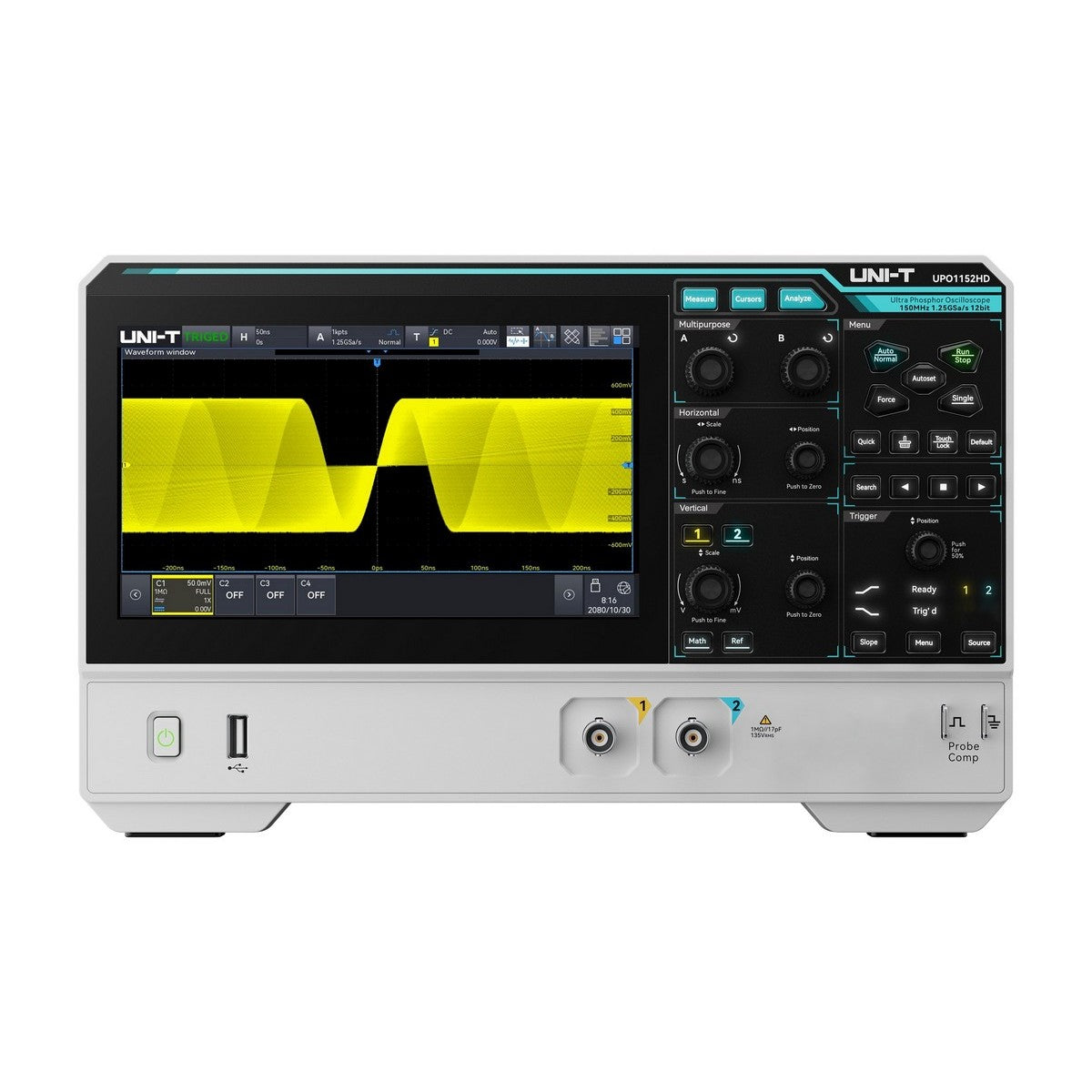

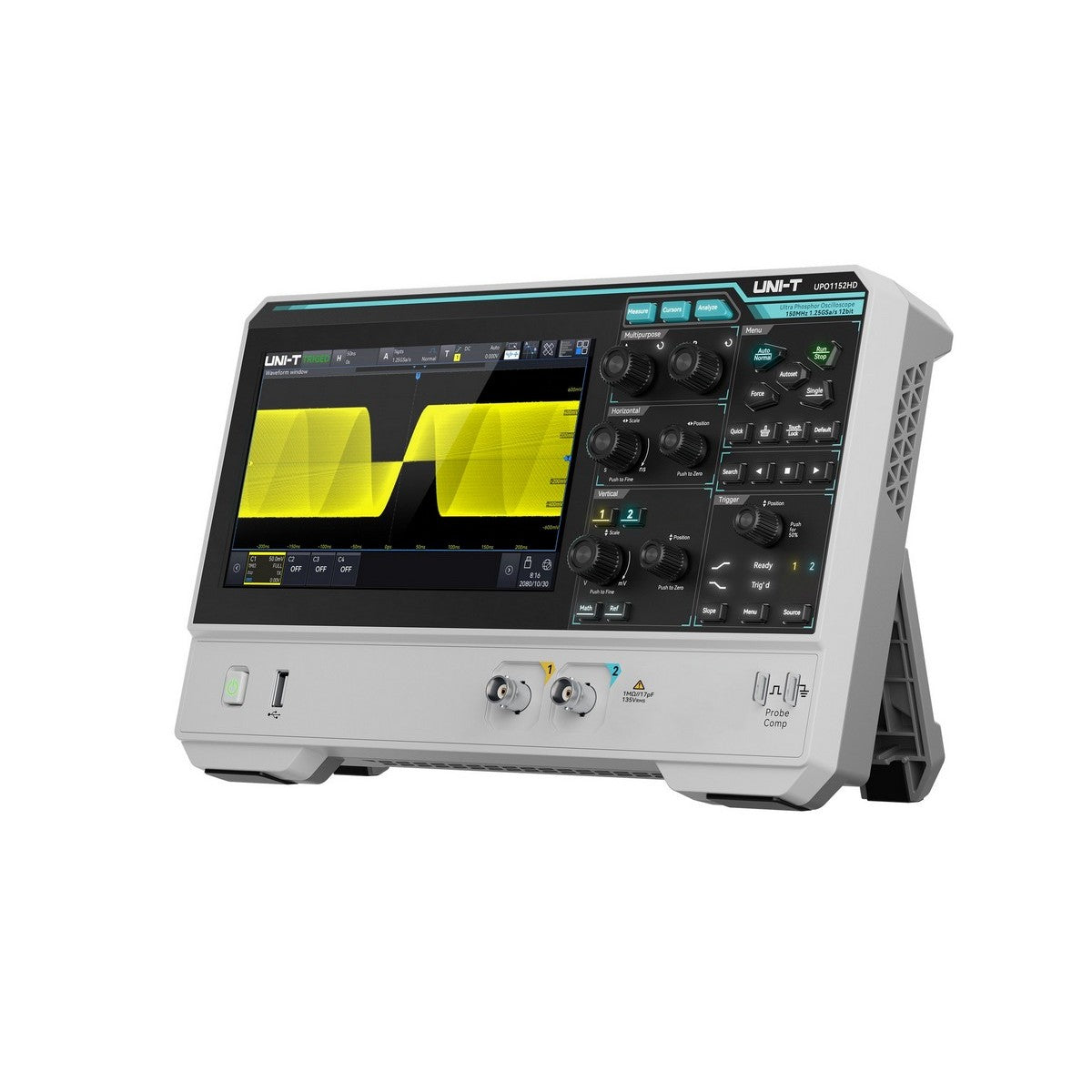

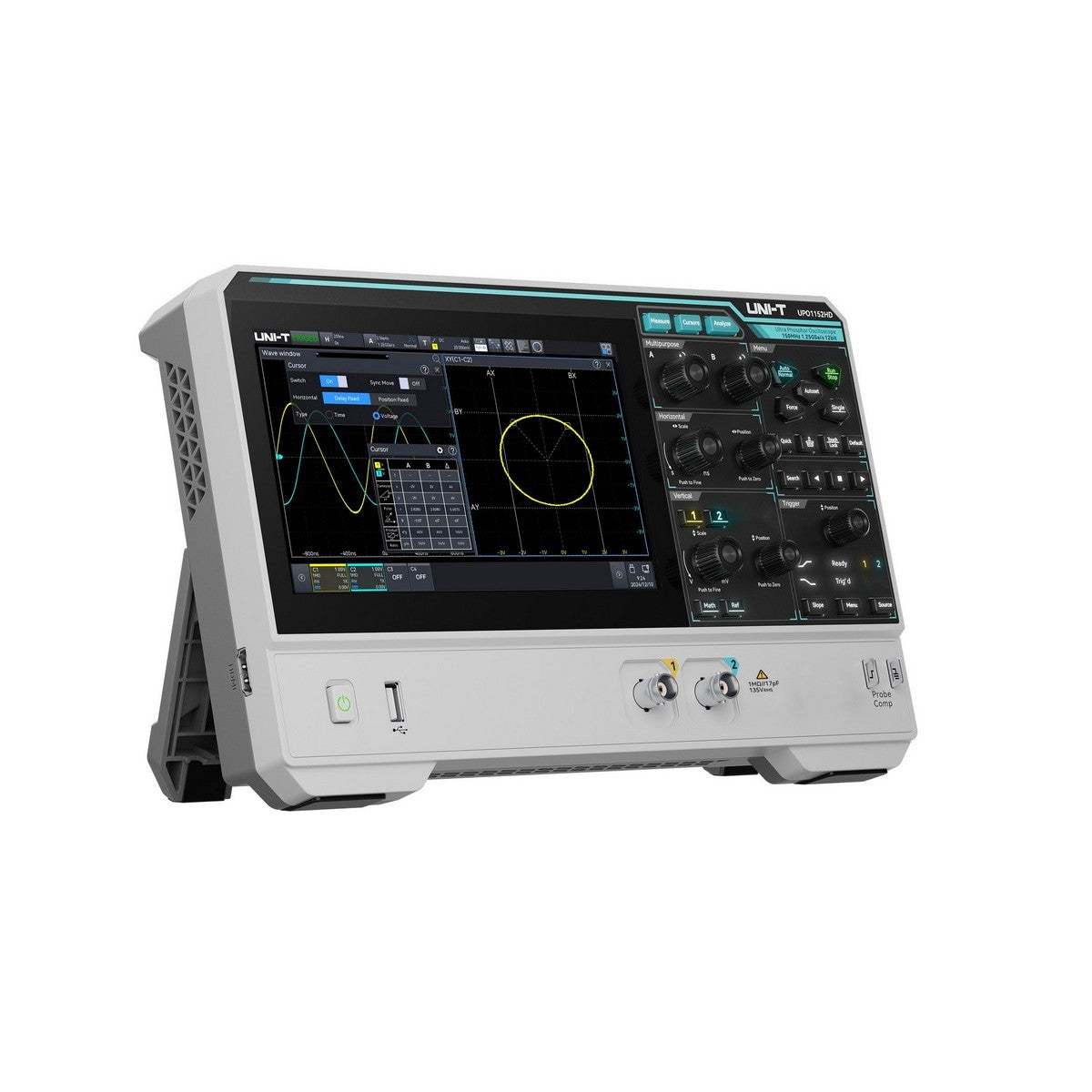

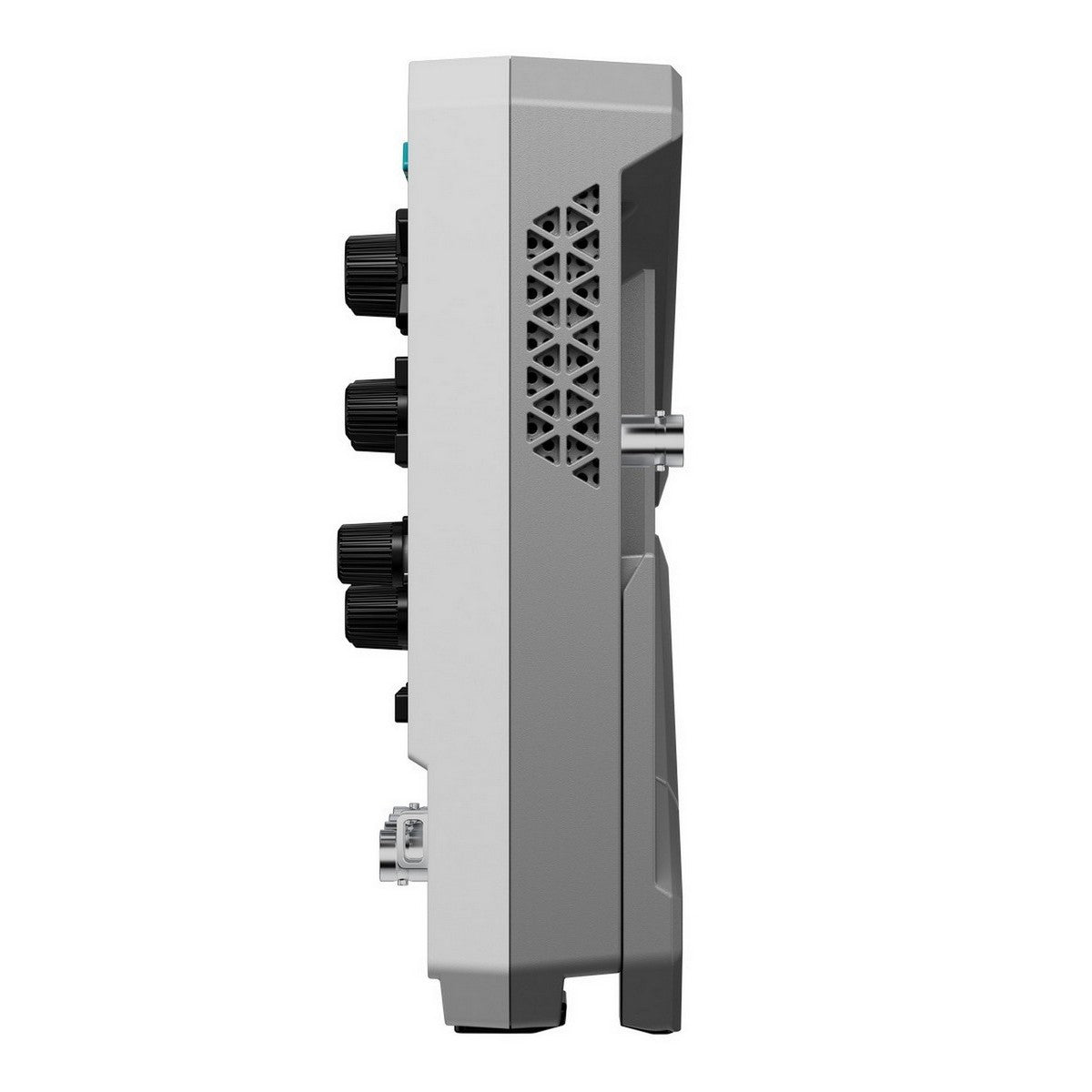

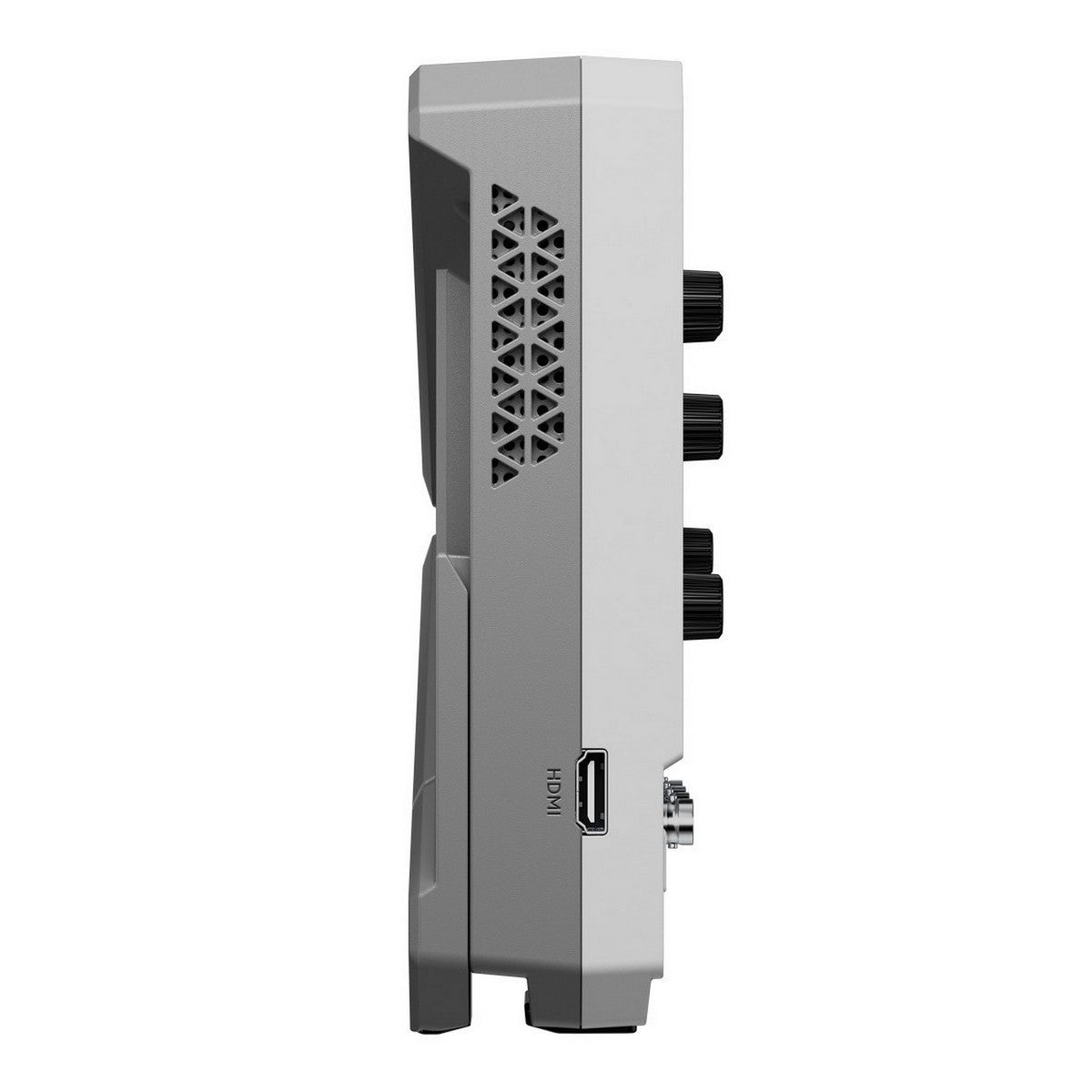

UPO1152HD Multi-Angle View — Compact, high-resolution performance with USB-C PD input, touchscreen, and protocol-ready I/O

Key Features

150 MHz Bandwidth – Ideal for high-speed embedded, analog, and power validation
2 Analog Channels – Streamlined form factor with dual-channel precision
12-bit Vertical Resolution – Capture subtle detail with 16× the resolution of 8-bit scopes
1.25 GSa/s Sample Rate – Supports accurate measurement of fast edges and clocks
100 Mpts Memory Depth – Long waveform capture at full speed and resolution
Ultra Phosphor 3.0 – Up to 1,000,000 wfms/s with 256-color intensity grading
Integrated Power Analysis – Built-in ripple, harmonics, SOA, switching loss, and more
1M-point FFT – Full-spectrum view with waterfall and peak markers
Protocol Decoding – UART, I²C, SPI, CAN, LIN with trigger and event view
6-in-1 Functionality – Oscilloscope, spectrum analyzer, DVM, counter, logic/protocol tools

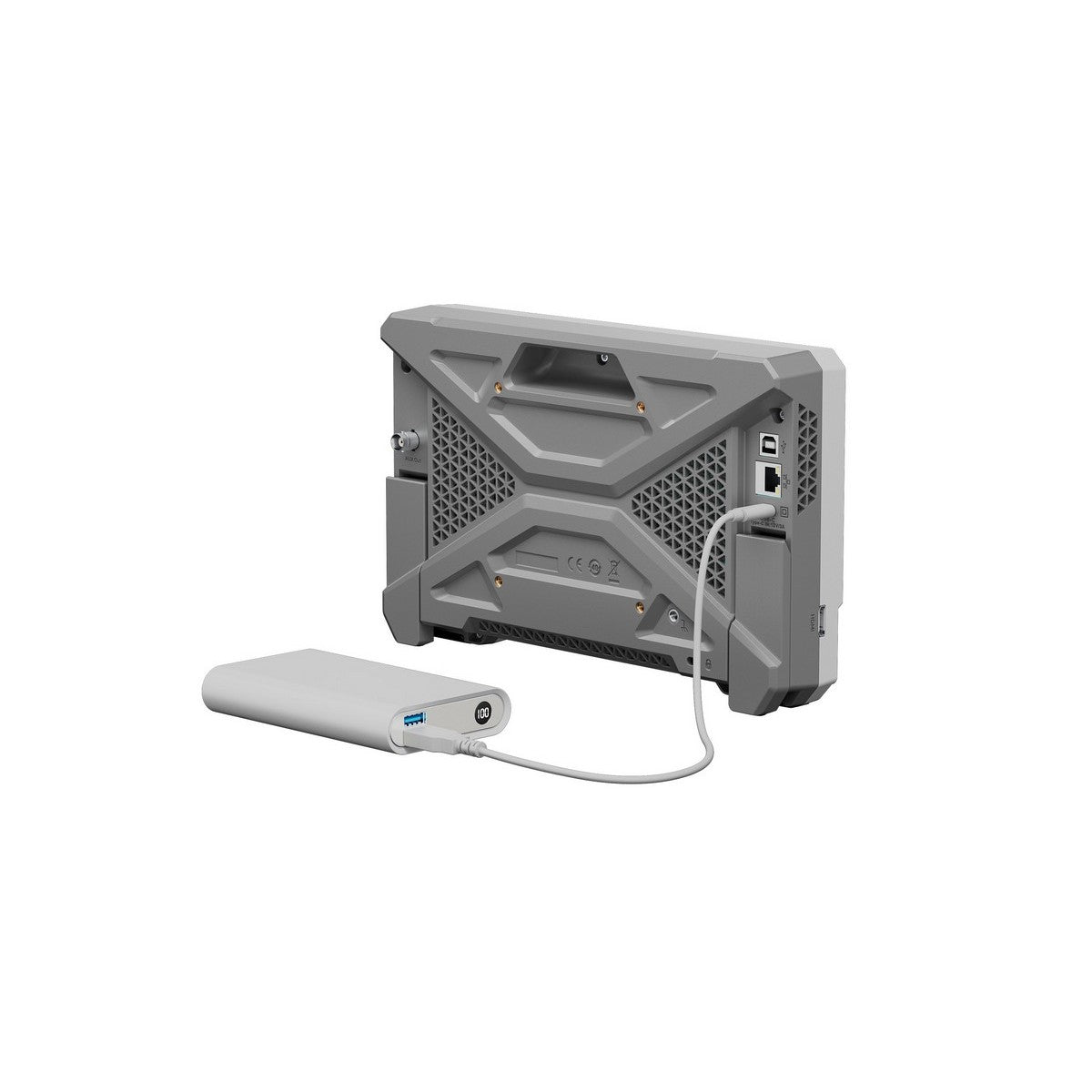

USB-C PD Input – Compatible with portable and benchtop power setups
Remote Access – Control via SCPI, browser, or automated scripts

Waveform Visualization with Ultra Phosphor 3.0

Ultra Phosphor 3.0 delivers fast waveform rendering with 256-level intensity grading. Capture and display even the briefest signal events with up to 1M wfms/s in sequence mode. Ideal for spotting jitter, glitches, and protocol faults hidden from lower-resolution scopes.

Ultra Phosphor Visualization — View waveform density and edge activity with 256-color grading

Power and Frequency Analysis Tools

Built-in tools measure ripple, startup time, switching loss, harmonic distortion, and safe operating area—perfect for validating power supplies, converters, and regulators. Use the 1M-point FFT for full-spectrum signal analysis with peak markers and waterfall display.

Power Analysis — Integrated power analysis modes reveal system behavior under dynamic load

Use Cases and Professional Applications

Switching Regulator Debug – Measure ripple and efficiency, correlate analog and control behavior
Embedded Firmware Validation – Trigger and decode UART/I²C/SPI events with analog signal monitoring
Analog Sensor & Amplifier Design – Examine output precision, signal swing, and drift with 12-bit detail
Automated Testing Labs – Use SCPI and browser interface for remote-controlled testing

Measurements and Math Functions

The UPO1152HD supports 56 automatic measurement types and simultaneous display of up to 21 parameters. Trend graphs and statistical summaries reveal drift and event patterns. Use built-in math functions (+, −, ×, ÷, FFT, filters, expressions) for waveform manipulation and analysis.

Measurement Parameters — Supports 56 measurements with real-time statistics and gating

Protocol Decoding and Triggering

Decode and trigger on popular serial buses without needing external tools. The UPO1152HD supports UART, I²C, SPI, CAN, and LIN with full visualization of decoded frames and time-synchronized markers. Easily debug mixed-signal systems and firmware behavior.

Protocol Decode — Decode UART, I²C, SPI, CAN, and LIN with protocol-aware triggers

Product Comparison

Model	Bandwidth	Channels	Memory
UPO1154HD	150 MHz	4	100 Mpts
UPO1152HD	150 MHz	2	100 Mpts
UPO1084HD	80 MHz	4	100 Mpts
UPO1082HD	80 MHz	2	100 Mpts

Technical Specifications

Parameter	UPO1152HD Specification
Bandwidth	150 MHz
Channels	2 analog
Sampling Rate	1.25 GSa/s (1CH), 625 MSa/s (2CH)
Vertical Resolution	12-bit (16-bit with ERES)
Memory Depth	100 Mpts
Capture Rate	Up to 1,000,000 wfms/s
Display	7" 1024×600 capacitive touchscreen
Interfaces	USB Host/Device, LAN, HDMI, AUX Out
Power	USB-C PD (≥12 V/3 A)
Weight	1.56 kg

Package Contents

UPO1152HD Oscilloscope
2 × UT-P05 Passive Probes (200 MHz)
USB 2.0 Cable (UT-D14)
Type-C PD Power Adapter
User Manual & Calibration Certificate

Optional Accessories

UT-ISOT Isolation Transformer
UT-DF01 Deskew Fixture
UT-P21 High Voltage Probe (15 kV)
UT-P4030D High-Frequency Current Probe (100 MHz)
UT-P4150 Current Probe (150 A/30 A, 12 MHz)

Frequently Asked Questions

Can the UPO1152HD be used for high-frequency power supply testing?

Yes. Its 150 MHz bandwidth and 12-bit resolution are ideal for switch-mode power supply validation.

Are protocol decoders included or licensed separately?

All protocol decoders (UART, SPI, I²C, CAN, LIN) are included at no extra cost.

Is the touchscreen responsive to gloved use?

Yes. The 7” capacitive display is responsive with standard lab gloves.

Does this model support SCPI scripting?

Yes. You can control it via USB or LAN using SCPI commands or the browser-based interface.

What’s the benefit of 12-bit resolution?

It provides 16× greater voltage detail than 8-bit scopes, revealing subtle variations and reducing quantization error.

Warranty & Support

All UNI-T UPO1000HD Series oscilloscopes include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your UPO1000HD for a free, 2-year warranty extension.

Upgrade to High-Resolution Bandwidth

Get more insight with every capture. The UNI-T UPO1152HD gives you 150 MHz of bandwidth, 12-bit vertical precision, and built-in analysis tools—all in a compact, USB-C powered design. It’s the perfect scope for power engineers, analog designers, and embedded developers who need precision without complexity.

Order your UNI-T UPO1152HD today and unlock professional-grade visibility.

Feature	Specification
Model Number	UPO1152HD
Scope Type	DSO
Bandwidth	150MHz
Channels	2Ch
Scope Sample Rate	1.25GSa/s
Memory Depth	100Mpts
Refresh Rate	1,000,000wfms/s
Vertical Scale @1MΩ	500μV/div to 10V/div
# Automatic Measurements	56
Included Bus Protocols	RS232 UART I2C SPI RS422 RS485 CAN LIN CAN-FD Audio
Optional Bus Protocols	None
Logic Pod Included	Not Available
Signal Generator Function	Not Available
Frequency Meter	6-bit
Display Size (in)	7in
Touchscreen	Yes
Warranty	3 years
Certifications	CE/cETLus
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Oscilloscope probe (UT-P05)*2
Standard Accessories	Power cord, USB2.0 printing cable
