UT-PA1000 1 GHz Active single-ended probe

$1,299.00
Save {price}% Contact Us for Lead Time

26 items in stock

Description

The UNI-T UT-PA1000 is a high-precision 1 GHz active single-ended probe designed for high-speed digital signal acquisition and analysis with exceptional accuracy. It features low input capacitance (≤1.3 pF), fast rise time (≤350 ps), and seamless integration with UNI-T oscilloscopes for signal integrity testing and protocol analysis.

Top Specifications

Bandwidth: 1GHz (-3dB); Rise Time: ≤350ps; Input Range: ±4V; Input Capacitance: ≤1.3pF; Compatibility: UNI-T MSO/UPO series oscilloscopes
Register today for a 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

DOCUMENTATION

UNI-T UT-PA1000 Active Single-Ended Probe – 1GHz Bandwidth

Engineered for high-speed digital design, the UNI-T UT-PA1000 is a 1 GHz active single-ended probe designed to capture small signals with exceptional accuracy. Whether you're performing signal integrity analysis, high-speed protocol testing, or bus analysis, the UT-PA1000 offers precision, reliability, and seamless oscilloscope integration—making it ideal for both educational labs and advanced engineering environments.

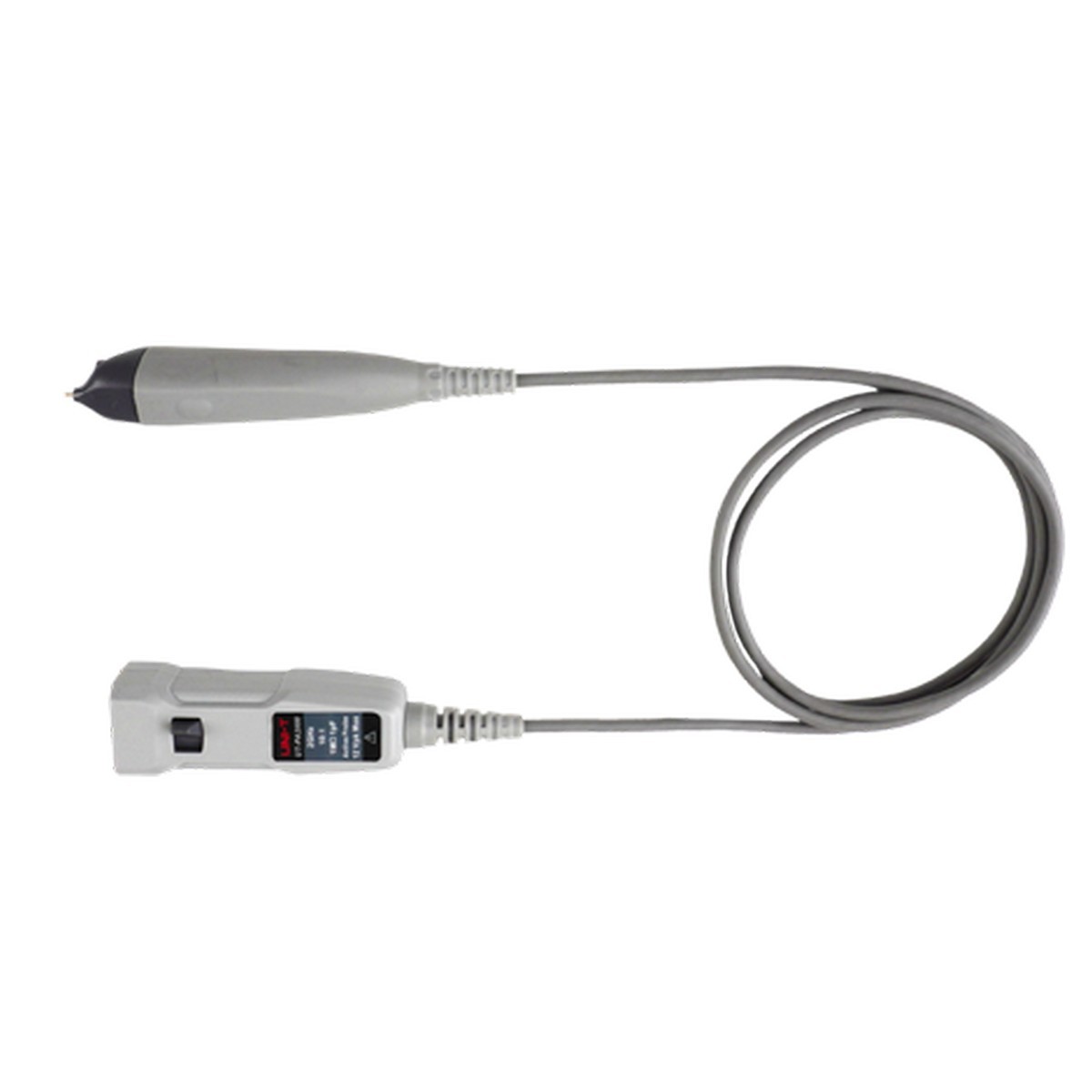

UT-PA1000 Probe

Key Features

  • Bandwidth: 1 GHz (-3 dB)
  • Rise Time: ≤ 350 ps for precise signal capture
  • Input Dynamic Range: ±4 V
  • Input Impedance: 1 MΩ ±1%
  • Input Capacitance: ≤ 1.3 pF
  • Probe Noise: <7 mV ACrms
  • Transmission Delay: ≤ 7 ns
  • Offset Range: ±4 V
  • Output Impedance: 50 Ω
UT-PA1000 Accessory Kit

Smart Probe Controls

The UT-PA1000 includes intuitive front-end buttons that allow users to:

  • Toggle the probe headlight (for dark lab environments)
  • Run/Stop the oscilloscope
  • Clear displayed waveforms
  • Trigger capture manually
UT-PA1000 Probe Controls

Compatible Oscilloscopes

The UT-PA1000 is designed for seamless operation with the following UNI-T series oscilloscopes:

  • MSO7000X / MSO8000HD
  • MSO3000X / MSO3000HD
  • UPO7000L / MSO5000HD

No external power required—draws power directly from supported UNI-T oscilloscopes.

Designed for Performance and Durability

  • Compact probe head ideal for probing small components
  • Low power consumption (0.5 W)
  • Robust 1.2 m probe cable
  • Wide operating environment: 0°C to 40°C, up to 4600m altitude

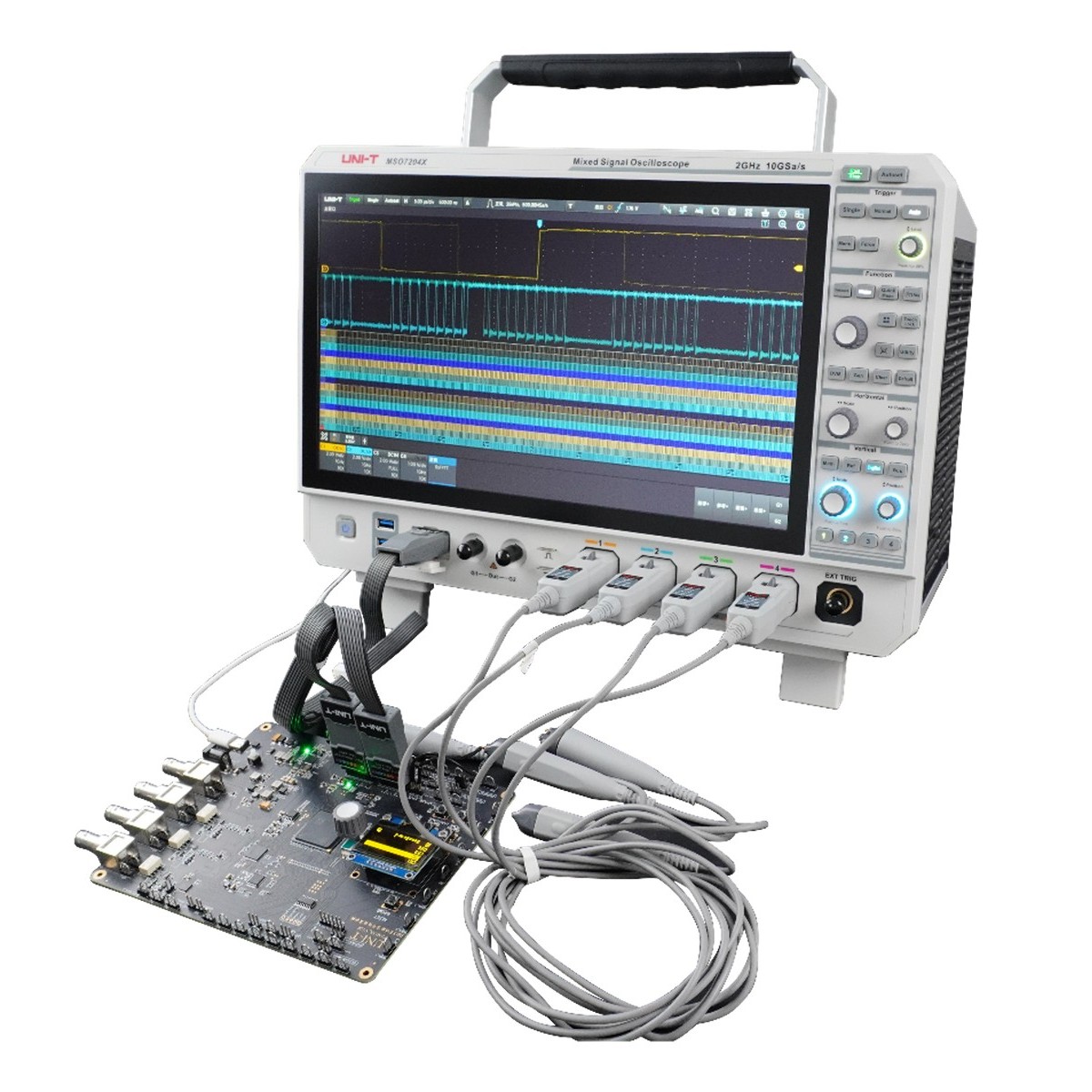

UT-PA1000 Testing Board

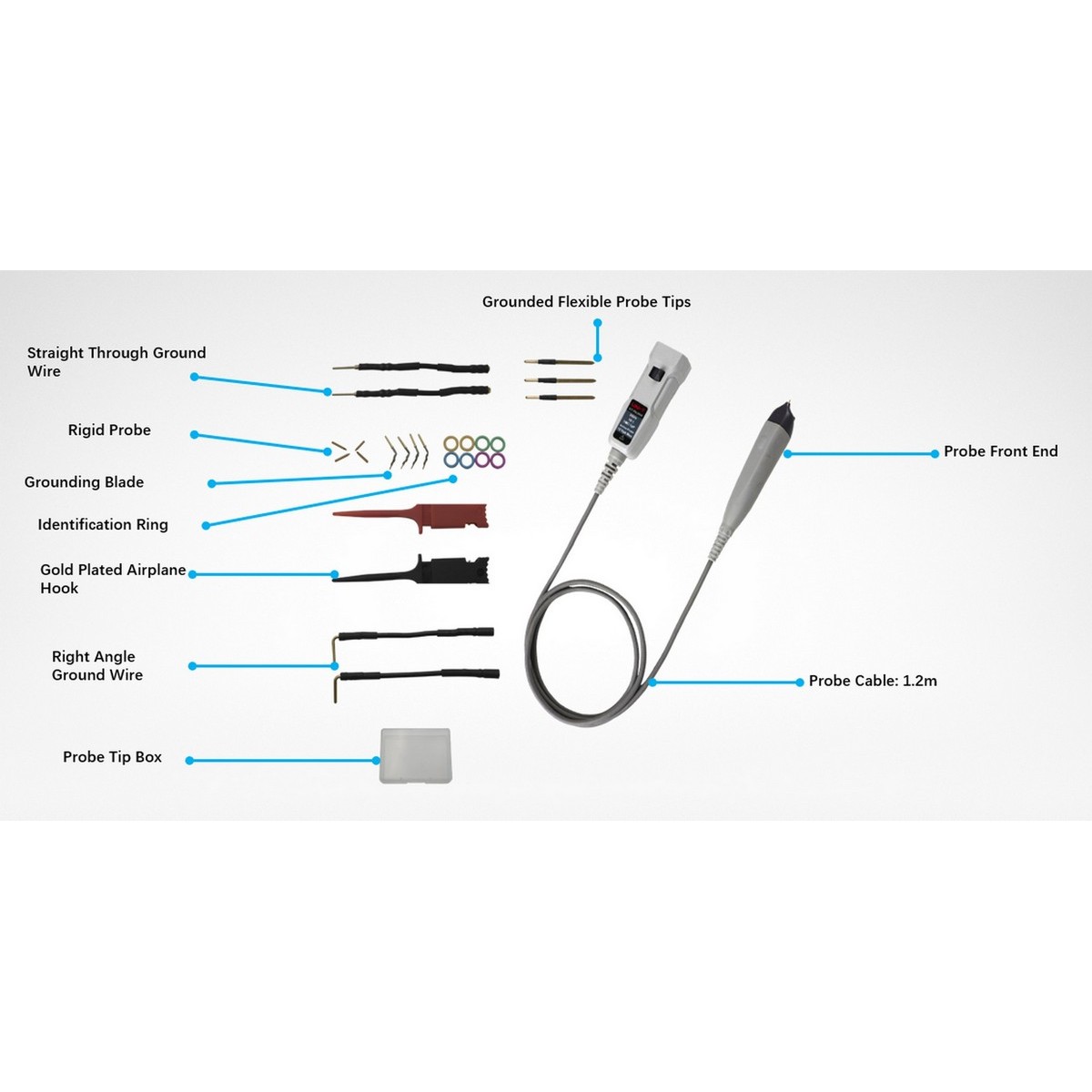

What's Included

  • UT-PA1000 Active Probe
  • Gold-plated hooks (black) x2
  • Ground blade x5
  • Ground flexible tip x2
  • Rigid tips x20
  • Straight-through ground wires x2
  • Right-angle ground wires x2
  • Tip box & accessory box
  • Ceramic tweezers
  • Color ID rings x8

Optional accessories available, including red hooks, offset blades, flexible tips, copper foil grounding, and socket adapters.

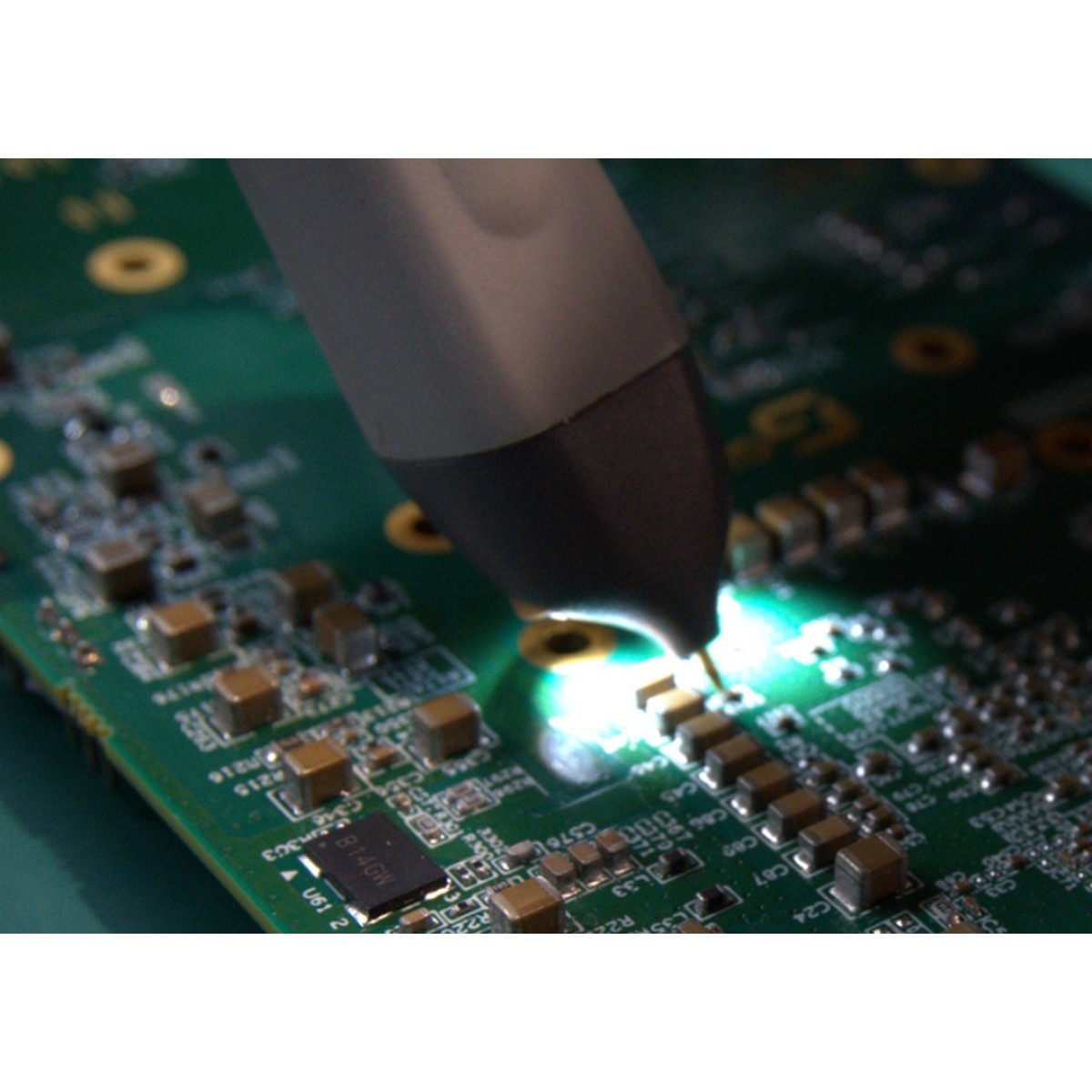

UT-PA1000 Probe Light

Applications

  • High-speed digital signal acquisition
  • Signal integrity analysis
  • Protocol conformance testing
  • Educational training on high-frequency measurement

Warranty

1-year warranty on probe and accessories. Visit instruments.uni-trend.com for registration and support.

Specifications at a Glance

  • Attenuation: 10:1 ±5%
  • Max Input Voltage: ±12 V
  • Operating Humidity: up to 95% RH @ 40°C
  • Weight: <100 g
UT-PA1000 Board Closeup
