UNI-T MSO3054HD vs Keysight DSOX3054T
12-bit resolution and 125× the memory over the 8-bit DSOX3054T.
The MSO3054HD ties the DSOX3054T at 500 MHz and 4 channels, then adds 12-bit resolution against 8-bit and 125× the memory (500 Mpts vs 4 Mpts), a larger display and standard decode, at a small fraction of a Keysight listing about $15,550. Keysight leads on sample rate (5 vs 2.5 GSa/s) and headline capture rate.

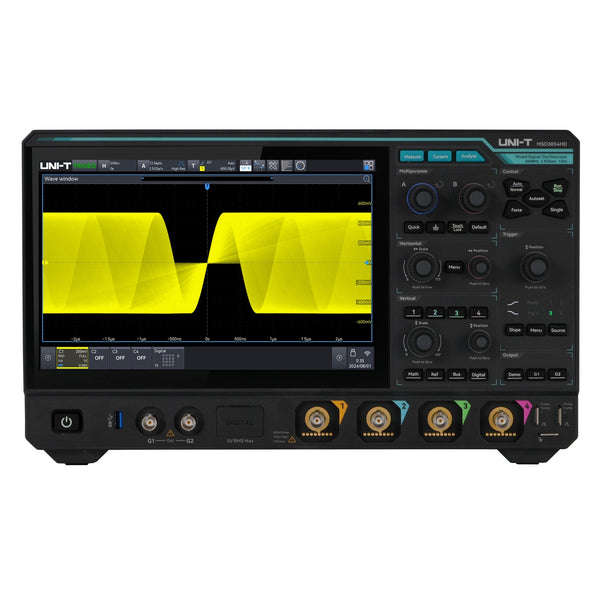

UNI-T MSO3054HD
- ✓ Bandwidth: 500 MHz
- ✓ Analog channels: 4 analog + 16 digital (logic option)
- ✗ Sample rate: 2.5 GSa/s (1-ch); 1.25 GSa/s (4-ch)
- ✓ Memory depth: 500 Mpts
- ✗ Waveform update rate: 500,000 wfms/s (1,500,000 sequence)
- ✓ Warranty: 3+2 years (5 total with registration)
Keysight DSOX3054T
- ✓ Bandwidth: 500 MHz
- ✓ Analog channels: 4 analog + 16 digital (MSO models)
- ✓ Sample rate: 5 GSa/s (4-ch)
- ✗ Memory depth: 4 Mpts
- ✓ Waveform update rate: 1,000,000 wfms/s
- ✗ Warranty: 3 years
~$15,550 (distributor listing, June 2026)
to 500 MHz
Bandwidth
500 Mpts
Memory Depth
2.5 GSa/s
Sample Rate
500,000 wfms/s
Capture Rate
12-bit
Vertical Resolution
12-bit, not 8-bit
A native 12-bit front end (16-bit with ERES) resolves 16× the vertical detail of the DSOX3054T's 8-bit ADC — small signals and ripple the Keysight averages away.
125× the memory
500 Mpts versus the Keysight's 4 Mpts holds vastly longer records at full sample rate — the gap between catching an intermittent fault and missing it.
More instrument, included
A 10.1-inch touchscreen, standard UART/I2C/SPI decode and a 9-in-1 feature set, where Keysight sells decode and analysis as paid licenses on an 8.5-inch display.
A fraction of the price, five-year warranty
A DSOX3054T lists about $15,550; the MSO3054HD matches its 500 MHz with 12-bit resolution instead of 8-bit, a 5-year warranty (3+2) instead of three, and no software subscriptions, ever.
Comprehensive Feature Comparison
| Feature | UNI-T MSO3054HD | Keysight DSOX3054T | Advantage |
|---|---|---|---|
| Bandwidth | 500 MHz | 500 MHz | Equal |
| Analog channels | 4 analog + 16 digital (logic option) | 4 analog + 16 digital (MSO models) | Equal |
| Sample rate | 2.5 GSa/s (1-ch); 1.25 GSa/s (4-ch) | 5 GSa/s (4-ch) | Keysight ✓ |
| Memory depth | 500 Mpts | 4 Mpts | UNI-T ✓ |
| Waveform update rate | 500,000 wfms/s (1,500,000 sequence) | 1,000,000 wfms/s | Keysight ✓ |
| Display | 10.1″ 1280×800 capacitive touch | 8.5″ capacitive touch | UNI-T ✓ |
| Built-in AWG | Dual-channel 50 MHz (option) | Single-channel 20 MHz WaveGen (option) | UNI-T ✓ |
| Serial protocol decode | RS-232/422/485/UART, I2C, SPI standard; CAN, CAN-FD, LIN, FlexRay, SENT, Audio, MIL-STD-1553B, Manchester, ARINC429 optional | Serial decode by paid license | UNI-T ✓ |
| Vertical resolution | 12-bit native; 16-bit with ERES | 8-bit native; HiRes averaging | UNI-T ✓ |
| Warranty | 3+2 years (5 total with registration) | 3 years | UNI-T ✓ |
| Price (USD) | See current price → | ~$15,550 | UNI-T ✓ |
* UNI-T specifications from the MSO1000HD Series datasheet and our live product data. Keysight figures from published manufacturer data and authorized US distributor listings, June 2026.
The bottom line
The MSO3054HD is a 9-in-1 instrument: oscilloscope, 16-channel logic analyzer (option), serial protocol analyzer, spectrum/FFT, frequency counter, 4-digit DVM, Bode-plot analyzer, power analyzer (option) and an optional dual-channel 50 MHz AWG — all on a true 12-bit front end with 500 Mpts of memory standard.
Perfect For:
High-resolution power & analog work
12-bit resolution surfaces ripple, noise and small modulation the 8-bit DSOX3054T cannot, with 500 Mpts for multi-cycle records.
Embedded & serial debug
Standard UART/I2C/SPI plus optional CAN, CAN-FD, LIN, FlexRay and SENT — decode that Keysight charges per license.
Education & multi-bench labs
At roughly a quarter of the DSOX3054T's price, a department can equip several 12-bit HD benches with a 5-year warranty.
Other models in the MSO1000HD Series
MSO3024HD
MSO3024HD — 200 MHz / 4+16 ch, 12-bit, 500 Mpts — the entry point of the HD series.
MSO3034HD
MSO3034HD — 350 MHz / 4+16 ch with the same 500 Mpts deep-memory HD platform.
MSO3054HD
MSO3054HD — 500 MHz top of the MSO3000HD line for higher-bandwidth work.
Frequently Asked Questions
Is the UNI-T MSO3054HD a good alternative to the Keysight DSOX3054T?
It is a strong 12-bit alternative to the 8-bit DSOX3054T: same 500 MHz and channel count, with 12-bit resolution, 125× the acquisition memory, a larger 10.1-inch display and standard decode, at a small fraction of a Keysight listing about $15,550. Keysight leads on sample rate and headline capture rate.
How does the MSO1000HD Series compare with the InfiniiVision 3000T X-Series?
The MSO3000HD Series is a 12-bit, deep-memory family (200–500 MHz, 500 Mpts). The Keysight InfiniiVision 3000T X-Series is 8-bit with a very high update rate and zone trigger. UNI-T leads on resolution, memory and price; Keysight on update rate and brand.
What do I get for the money with the MSO3054HD?
For 12-bit HD debug the MSO3054HD gives you 500 MHz, 4 analog channels with an optional 16-channel logic pod, 500 Mpts of memory, a 10.1-inch touchscreen and standard decode — 12-bit resolution where the DSOX3054T is 8-bit, with a 5-year warranty.
Are UNI-T software options subscriptions?
No. Every UNI-T software option — logic, automotive/aerospace decode, power analysis, the AWG — is a permanent one-time unlock. No annual licenses, no renewal fees, and no features that expire.
Ready to compare on the bench?
Add 12-bit resolution and 125× the memory to a 500 MHz match with the 8-bit DSOX3054T.
View full specifications and current pricing for the UNI-T MSO3054HD →
