UNI-T MSO3034HD vs Rohde & Schwarz RTB2004
True 12-bit, more bandwidth and 25× the memory — versus a 10-bit RTB2004, for less.
The MSO3034HD brings true 12-bit resolution against the RTB2004's 10-bit, more bandwidth (350 vs 300 MHz) and 25× the acquisition memory (500 vs 20 Mpts). Both share a 10.1-inch 1280×800 touchscreen. The R&S counters with brand, build and a global calibration network, at about $3,500 as configured.

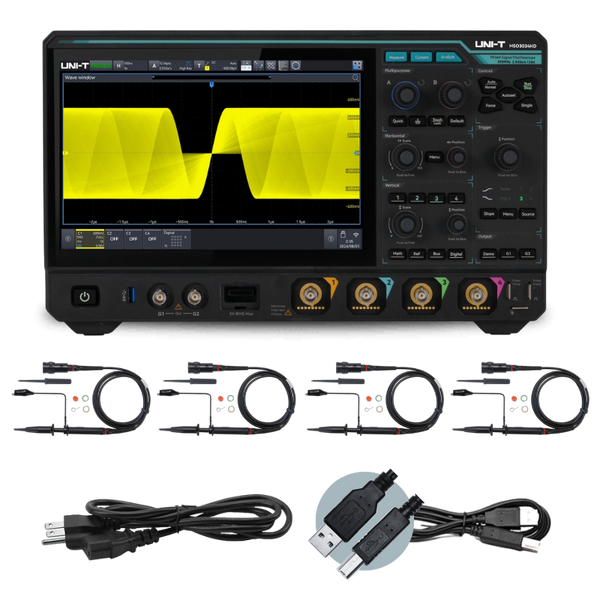

UNI-T MSO3034HD
- ✓ Bandwidth: 350 MHz
- ✓ Analog channels: 4 analog + 16 digital (logic option)
- ✓ Sample rate: 2.5 GSa/s (1-ch); 1.25 GSa/s (4-ch)
- ✓ Memory depth: 500 Mpts
- ✓ Waveform update rate: 500,000 wfms/s (1,500,000 sequence)
- ✓ Warranty: 3+2 years (5 total with registration)
Rohde & Schwarz RTB2004
- ✗ Bandwidth: up to 300 MHz
- ✓ Analog channels: 4 analog + 16 digital (MSO option)
- ✓ Sample rate: 2.5 GSa/s (interleaved)
- ✗ Memory depth: 20 Mpts
- ✗ Waveform update rate: ~50,000 wfms/s
- ✗ Warranty: 3 years (extendable)
~$3,500 (configured) (distributor listing, June 2026)
to 500 MHz
Bandwidth
500 Mpts
Memory Depth
2.5 GSa/s
Sample Rate
500,000 wfms/s
Capture Rate
12-bit
Vertical Resolution
True 12-bit, not 10-bit
A native 12-bit front end (16-bit with ERES) resolves 4× the vertical detail of the RTB2004's 10-bit ADC — the core reason to buy an HD scope.
25× the acquisition memory
500 Mpts versus 20 Mpts means dramatically longer records at full sample rate — the RTB2004's shallow memory fills quickly at high time resolution.
More bandwidth, faster capture
350 MHz versus the RTB2004's 300 MHz ceiling, and roughly 10× the waveform-capture rate for catching intermittent events.
Nine instrument functions, five-year warranty
Scope, optional 16-channel logic, decode, spectrum, 4-digit DVM, 7-digit counter, Bode plot, optional power analysis and an optional dual 50 MHz AWG — with US support and Exclusive 3+2 (5-year) coverage.
Comprehensive Feature Comparison
| Feature | UNI-T MSO3034HD | Rohde & Schwarz RTB2004 | Advantage |
|---|---|---|---|
| Bandwidth | 350 MHz | up to 300 MHz | UNI-T ✓ |
| Analog channels | 4 analog + 16 digital (logic option) | 4 analog + 16 digital (MSO option) | Equal |
| Sample rate | 2.5 GSa/s (1-ch); 1.25 GSa/s (4-ch) | 2.5 GSa/s (interleaved) | Equal |
| Memory depth | 500 Mpts | 20 Mpts | UNI-T ✓ |
| Waveform update rate | 500,000 wfms/s (1,500,000 sequence) | ~50,000 wfms/s | UNI-T ✓ |
| Display | 10.1″ 1280×800 capacitive touch | 10.1″ 1280×800 capacitive touch | Equal |
| Built-in AWG | Dual-channel 50 MHz (option) | Pattern/AWG 25 MHz (option) | UNI-T ✓ |
| Serial protocol decode | RS-232/422/485/UART, I2C, SPI standard; CAN, CAN-FD, LIN, FlexRay, SENT, Audio, MIL-STD-1553B, Manchester, ARINC429 optional | I2C/SPI/UART/CAN/LIN (options) | Equal |
| Brand & calibration network | US-based support; factory-calibrated & tested | R&S metrology pedigree & global cal network | Rohde & Schwarz ✓ |
| Warranty | 3+2 years (5 total with registration) | 3 years (extendable) | UNI-T ✓ |
| Price (USD) | See current price → | ~$3,500 (configured) | UNI-T ✓ |
* UNI-T specifications from the MSO1000HD Series datasheet and our live product data. Rohde & Schwarz figures from published manufacturer data and authorized US distributor listings, June 2026.
The bottom line
The MSO3034HD is a 9-in-1 instrument: oscilloscope, 16-channel logic analyzer (option), serial protocol analyzer, spectrum/FFT, frequency counter, 4-digit DVM, Bode-plot analyzer, power analyzer (option) and an optional dual-channel 50 MHz AWG — all on a true 12-bit front end with 500 Mpts of memory standard.
Perfect For:
Education & teaching labs
A 12-bit, 9-in-1 instrument with a 10.1-inch touch UI and a 5-year warranty equips student benches without the R&S price.
General electronics & embedded debug
Standard UART/I2C/SPI decode plus optional CAN/LIN and 500 Mpts of memory for long captures at full resolution.
Power & signal-integrity work
True 12-bit resolution surfaces small ripple and noise the 10-bit RTB2004 cannot, with deep memory for multi-cycle records.
Other models in the MSO1000HD Series
MSO3024HD
MSO3024HD — 200 MHz / 4+16 ch, 12-bit, 500 Mpts — the entry point of the HD series.
MSO3034HD
MSO3034HD — 350 MHz / 4+16 ch with the same 500 Mpts deep-memory HD platform.
MSO3054HD
MSO3054HD — 500 MHz top of the MSO3000HD line for higher-bandwidth work.
Frequently Asked Questions
Is the UNI-T MSO3034HD a good alternative to the Rohde & Schwarz RTB2004?
It is a strong alternative on specifications and price: the MSO3034HD is a true 12-bit scope with more bandwidth and 25× the memory of the 10-bit RTB2004. What Rohde & Schwarz offers that UNI-T does not is a long metrology track record, premium build and a worldwide service/calibration network. If that ecosystem is essential, the RTB2004 earns its premium; otherwise the MSO3034HD delivers more capability for less.
How does the MSO1000HD Series compare with the RTB2000 Series?
The MSO3000HD Series (12-bit, 200–500 MHz, 500 Mpts) outspecs the 10-bit RTB2000 line (70–300 MHz, 20 Mpts) on resolution, bandwidth and memory. Rohde & Schwarz leads on brand, build and calibration support.
What do I get for the money with the MSO3034HD?
For 12-bit lab and education work the MSO3034HD gives you 350 MHz, 4 analog channels with an optional 16-channel logic pod, 500 Mpts of memory, a 10.1-inch touch UI and nine instrument functions — with a 5-year warranty.
Are UNI-T software options subscriptions?
No. Every UNI-T software option — logic, automotive/aerospace decode, power analysis, the AWG — is a permanent one-time unlock. No annual licenses, no renewal fees, and no features that expire.
Ready to compare on the bench?
True 12-bit resolution, more bandwidth and 25× the memory — for less than the 10-bit RTB2004.
View full specifications and current pricing for the UNI-T MSO3034HD →
