Power Meter Buying Guide: Choosing the Right UNI-T Model for Your Commercial Application

Selecting the appropriate power meter is crucial for ensuring accurate measurements and efficient testing processes across various commercial industries and applications. This guide will help you identify which UNI-T power meter best suits your specific needs based on application requirements, measurement capabilities, and desired features.

Important Note: UNI-T products are manufactured in China. While they offer excellent performance and value for commercial, industrial, and educational applications, they may not be suitable for U.S. Government procurement due to country-of-origin restrictions. This guide focuses on commercial sector applications.

Understanding Your Measurement Needs

Before selecting a power meter, consider these key factors:

• Measurement Parameters: What electrical parameters do you need to measure? (Voltage, current, power, power factor, harmonics, etc.)
• Accuracy Requirements: How precise do your measurements need to be?
• Signal Types: Are you measuring AC, DC, or both?
• Phase Configuration: Single-phase or three-phase systems?
• Measurement Ranges: What are the minimum and maximum values you need to measure?
• Application Environment: Laboratory, production line, field testing, etc.
• Integration Requirements: Do you need remote control capabilities or data export functionality?

Application-Specific Recommendations

Research & Education Applications

Academic and research environments require versatile instruments with high accuracy and comprehensive measurement capabilities.

Recommended Models:

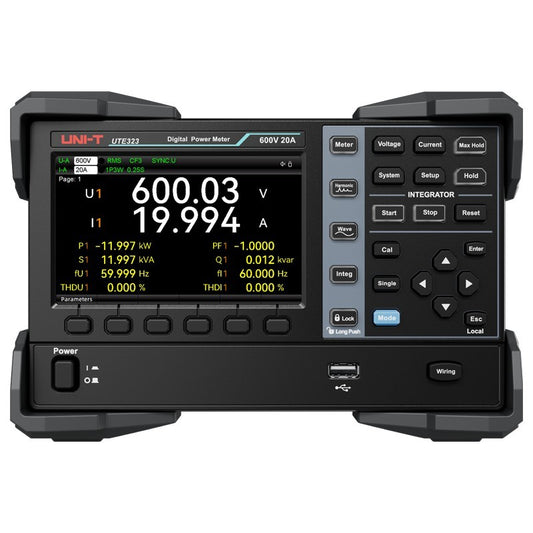

• UTE323 Digital Power Meter - For three-phase power analysis and advanced research requiring waveform visualization
• UTE310 Digital Power Meter - For single-phase laboratory-grade precision with comprehensive measurement functionality

UTE323 Key Features for Research & Education:

• 5-inch TFT LCD with intuitive graphical interface for teaching demonstrations
• Three-phase measurement capability (3P3W, 3P4W configurations)
• 300 kHz bandwidth captures high-frequency components
• 300 kSa/s sampling rate for detailed signal analysis
• Waveform display shows voltage and current simultaneously
• Harmonic measurement up to 50th order (IEC61000-4-7 compliant)
• 0.1% basic accuracy for reliable research data
• Mathematical functions for complex power relationship analysis
• Multiple measurement modes: DC, RMS, VMean
• Comprehensive data storage via USB

UTE310 Key Features for Research & Education:

• 4.3-inch TFT LCD for clear data visualization
• Laboratory-grade 0.1% accuracy
• 300 kHz bandwidth for high-frequency analysis
• 1 MSa/s sampling rate (highest in class)
• Harmonic measurement up to 50th order
• Waveform display for educational demonstrations
• External sensor inputs for expanded measurement range

Industrial Manufacturing & Production Line Testing

Manufacturing environments need reliable, fast, and consistent measurement tools that can be integrated into automated testing systems.

Recommended Models:

• UTE323 Digital Power Meter - For three-phase motor and equipment testing
• UTE9800+ Series - For high-volume production line testing with quick pass/fail decisions

UTE323 Key Features for Production Line Testing:

• Three independent measurement channels for simultaneous testing
• Fast 300 kSa/s update rate improves test efficiency
• Customizable upper and lower limit settings via comparator function
• RS232, GPIB, and LAN communication with SCPI and Modbus protocol support
• Automated test system integration capabilities
• 12-channel D/A output for real-time data acquisition
• Rugged design suitable for industrial environments
• Integral function for cumulative energy measurement during production runs

UTE9800+ Series Key Features for Production:

• Audible and visual alarm indications for pass/fail
• Fast data update rates (0.1s to 5s adjustable)
• RS232 and RS485 communication
• SCPI and Modbus protocol support
• Rugged fall-proof design with silicone-protected corners
• Compact footprint for production line integration

Three-Phase Power Electronics Development

Engineers developing three-phase power electronics, motor drives, and inverters require detailed insight into device performance.

Recommended Model: UTE323 Digital Power Meter

The UTE323 is specifically designed for three-phase power analysis, making it ideal for:

Key Features for Power Electronics Development:

• Three-phase measurement configurations:
  • 1P3W (Single-Phase Three-Wire)
  • 3P3W (Three-Phase Three-Wire)
  • 3P4W (Three-Phase Four-Wire)
  • 3V3A (Three-Voltage Three-Current)
• High sampling rate (300 kSa/s) for capturing transient signals and switching events
• Wide frequency response (0.1Hz to 300kHz) essential for PWM inverter analysis
• High-resolution measurements:
  • Voltage: 1mV resolution
  • Current: 10μA resolution
  • Power: 0.001mW resolution
• Waveform display shows voltage and current on each phase simultaneously
• Harmonic analysis up to 50th order for power quality assessment
• Mathematical operations (A+B, A-B, A×B, A/B, A²/B, A/B²) for efficiency calculations
• Multiple interface options for automated data acquisition (LAN, USB, RS-232/GPIB)

Lighting & Electrical Appliance Testing

The lighting and appliance industries require specific power measurement capabilities for evaluating efficiency, power factor, and harmonic content.

Recommended Models:

• UTE323 Digital Power Meter - For three-phase lighting systems and comprehensive harmonic analysis
• UTE9811+ Series - For single-phase lighting with harmonic measurement
• UTE310 Digital Power Meter - For detailed single-phase analysis with highest precision

UTE323 Key Features for Lighting Testing:

• Three-phase capability for commercial lighting installations
• Power factor measurement across all phases
• Harmonic analysis up to 50th order with IEC61000-4-7 compliance
• Wide current range (2.5mA to 20A) captures both high and low power lighting
• Frequency range (0.1Hz to 300kHz) suitable for LED driver analysis
• Multiple display windows for simultaneous parameter monitoring
• Waveform display helps identify power quality issues
• Integration function measures total energy consumption

UTE9811+ and UTE310 Features:

• Power factor measurement
• Harmonic analysis for compliance testing
• Wide current range for various lighting technologies
• Multiple display windows for simultaneous monitoring

Motor & Industrial Equipment Testing

Motor testing and industrial equipment evaluation often involve three-phase systems and require instruments capable of handling higher power levels.

Recommended Models:

• UTE323 Digital Power Meter - For three-phase motors and industrial equipment
• UTE310H Digital Power Meter - For high-voltage single-phase equipment (up to 1000V)

UTE323 Key Features for Motor Testing:

• Three-phase measurement essential for industrial motors
• Voltage Range: 75mV to 600V per phase
• Current Range: 2.5mA to 20A per phase
• External sensor inputs (EX1: 10V, EX2: 2V) allow use of high-current probes
• Efficiency measurement through mathematical operations (A/B, A²/B)
• Integration function for energy consumption analysis over time
• Harmonic analysis identifies power quality issues affecting motor performance
• Wide bandwidth (300kHz) captures variable frequency drive (VFD) signals
• Temperature coefficient compensation for measurement stability

UTE310H Features:

• Higher voltage range (up to 1000V)
• Higher current capability (up to 50A)
• Suitable for larger industrial equipment

Standby Power Consumption Analysis

Testing standby power modes requires instruments capable of measuring very low current levels with high accuracy.

Recommended Models:

• UTE9806+ Power Meter - Specialized for ultra-low current measurement
• UTE323 Digital Power Meter - When three-phase standby analysis is needed

UTE9806+ Key Features:

• Ultra-low current measurement capability (down to 0.05mA)
• Auto-ranging functionality for capturing varying power states
• High accuracy at low power levels
• Long-term measurement stability

UTE323 Advantages:

• Can measure standby on three-phase equipment
• 10μA current resolution for low-power detection
• Integration function tracks cumulative standby energy
• Multiple measurement modes (DC, RMS, VMean) for various standby scenarios

Multi-Unit or Distributed Testing Applications

For facilities requiring multiple measurement points or distributed testing capabilities.

Recommended Model: UTE323 Digital Power Meter

The UTE323's three independent measurement channels make it particularly cost-effective for applications requiring simultaneous measurements:

Key Advantages:

• Three completely independent measurement channels in one instrument
• Cost savings: One UTE323 can replace three single-channel power meters
• Synchronized measurements across all three channels
• Single interface simplifies data collection and analysis
• Reduced rack space compared to multiple single-channel instruments
• Examples of applications:
  • Input vs. output efficiency measurements on three-phase equipment
  • Three different devices measured simultaneously
  • Three-phase unbalanced load analysis
  • Multi-point energy monitoring in a facility

UNI-T Power Meter Comparison

Single-Phase Power Meters

Three-Phase Power Meters

Application-Specific Model Recommendations

Making Your Selection

When choosing between UNI-T power meters, consider both your current and future measurement needs:

Choose UTE323 if you need:

• Three-phase power measurement (motors, industrial equipment, three-phase lighting)
• Multiple simultaneous measurements (three independent channels)
• Advanced visualization (5-inch color display with waveform graphics)
• High-frequency analysis (300kHz bandwidth for VFDs and switch-mode power supplies)
• Research-grade features at a cost-effective price
• Educational demonstrations requiring clear visual feedback
• IEC61000-4-7 compliant harmonic analysis
• Flexible measurement configurations (1P3W, 3P3W, 3P4W, 3V3A)

Choose UTE310 series if you need:

• Single-phase precision measurements with highest accuracy
• Maximum sampling rate (1 MSa/s for UTE310)
• Higher voltage capability (UTE310H: up to 1000V)
• Higher current capability (UTE310H: up to 50A)
• Single-channel focused analysis
• Compact footprint for space-limited applications

Choose UTE9800+ series if you need:

• Production-oriented features (pass/fail limits, alarms)
• Rugged industrial design
• Basic measurements without need for waveform display
• Lower cost for basic single-phase measurements
• Simple operation with traditional segment display

Commercial Sector Applications & Case Studies

Manufacturing Example: Automotive Component Testing

A tier-one automotive supplier uses UTE323 power meters to test three-phase motors in electric power steering systems. The three independent channels allow simultaneous measurement of motor input power, controller power consumption, and auxiliary system power draw. The 300kHz bandwidth captures PWM signals from the motor controller, while harmonic analysis ensures compliance with automotive EMC standards.

Industrial Example: HVAC Equipment Commissioning

An HVAC contractor uses UTE323 meters for commercial building equipment commissioning. The three-phase capability allows complete analysis of rooftop HVAC units, chillers, and air handlers. The integration function provides cumulative energy consumption data for building automation system verification.

Educational Example: University Power Electronics Laboratory

A major university engineering department equips all power electronics lab stations with UTE323 meters. The large 5-inch display and waveform visualization help students understand three-phase power concepts. The ability to analyze harmonics and measure efficiency reinforces theoretical concepts with hands-on measurements.

Commercial Example: Data Center Power Quality Analysis

A data center operator uses multiple UTE323 units to monitor power quality at critical distribution points. The harmonic analysis identifies sources of electrical noise, while the three-phase measurement capability provides complete visibility into unbalanced loads. The LAN interface enables integration with the facility monitoring system.

Industrial Example: Motor Drive Manufacturing

A motor drive manufacturer uses UTE323 meters on their production test line. The three channels measure input power, motor output power, and brake resistor power simultaneously. Mathematical operations calculate efficiency automatically, while pass/fail limits trigger alerts for out-of-specification units.

Cost-Benefit Considerations

UTE323 Value Proposition:

• Three instruments in one: Three independent measurement channels reduce capital costs
• Research-grade accuracy (±0.1%) at a fraction of competitive prices
• Advanced features: Waveform display, harmonic analysis, and multiple measurement modes
• Future-proof: 300kHz bandwidth and 300kSa/s sampling handle modern power electronics
• Training efficiency: Intuitive touch screen reduces learning curve
• Automation-ready: Multiple communication protocols support Industry 4.0 initiatives

Total Cost of Ownership:

Consider these factors when evaluating total cost:

• Initial purchase price: UTE323 typically costs less than three separate single-channel meters
• Calibration costs: One three-channel instrument vs. three separate instruments
• Rack space: One instrument saves valuable bench or rack space
• Software integration: Single interface simplifies automation programming
• Training time: One instrument interface reduces operator training requirements
• Spare parts inventory: Standardizing on one model reduces spare parts needs

Technical Support & Resources

UNI-T provides comprehensive technical support for commercial customers:

• Application engineers available for measurement consulting
• Online knowledge base with application notes and tutorials
• SCPI programming guides for test automation
• Modbus register maps for industrial control systems
• Software drivers for LabVIEW, Python, MATLAB
• Calibration services with ISO/IEC 17025 accredited certificates
• Extended warranty options for production environments

Conclusion

By matching your specific application requirements to the capabilities of each UNI-T power meter model, you can ensure you select the instrument that will deliver the most accurate, efficient, and valuable measurements for your commercial testing needs.

The UTE323 represents UNI-T's most advanced three-phase power measurement solution, offering research-grade performance, comprehensive analysis capabilities, and exceptional value for commercial, industrial, and educational applications. For organizations requiring three-phase power analysis, multi-channel measurement, or advanced visualization features, the UTE323 provides capabilities typically found only in instruments costing several times more.

For single-phase applications requiring the highest precision and sampling rates, the UTE310 series delivers laboratory-grade performance with flexible configuration options.

For production environments focused on throughput and basic pass/fail testing, the UTE9800+ series provides robust, reliable measurements with industrial-grade construction.

Important Reminder: While UNI-T instruments provide excellent performance and value for commercial applications, they are manufactured in China and may not be suitable for U.S. Government procurement. Commercial organizations should verify that their specific purchasing requirements allow for Chinese-manufactured test equipment before making procurement decisions.
