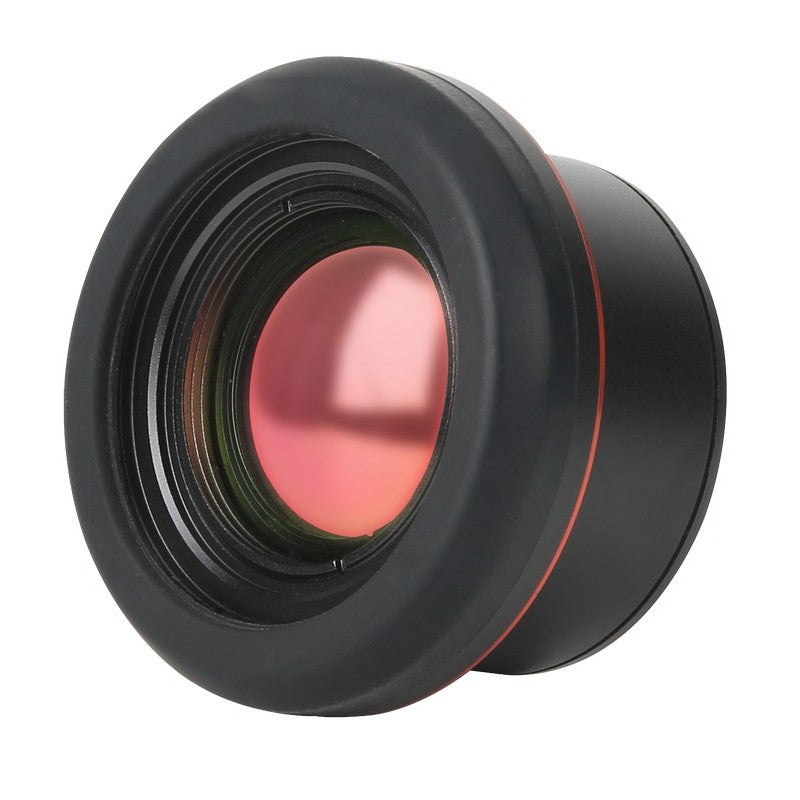

UT-Z044 Telephoto Lens for UNI-T UTI760X Thermal Imager

UNI-T UT-Z044 Telephoto Lens for UTi760X Thermal Camera

Precision Distance Imaging for Safety and Detail

The UNI-T UT-Z044 Telephoto Lens extends the reach of your UTi760X thermal camera system, enabling safe, detailed thermal inspection of distant targets while maintaining exceptional measurement accuracy. With its 36mm focal length and narrow 12° x 9.6° field of view, this lens delivers twice the magnification of the standard lens, allowing you to identify thermal anomalies and measure temperatures on equipment that's physically inaccessible, elevated, or hazardous to approach. The superior 0.33 mrad spatial resolution ensures precise component-level temperature measurement at extended distances, making it indispensable for utility infrastructure, high-voltage systems, elevated equipment, and any application where maintaining safe standoff distance is critical.

Key Features

• 36mm Telephoto Focal Length: 2x magnification over standard lens for distance work
• F/1.0 Fast Aperture: Maximum thermal sensitivity for distant target imaging
• 12° x 9.6° Narrow Field of View: Precise targeting of distant equipment
• 0.33 mrad Superior Spatial Resolution (IFOV): Best detail resolution in standard UTi760X lens lineup
• 1m (3.3 ft) Minimum Focus Distance: Optimized for medium to long-range inspection
• Enhanced Safety Capability: Inspect hazardous equipment from safe distances
• Automatic Lens Recognition: Seamless UTi760X system integration
• Professional Construction: Rugged design for demanding field environments

Superior Resolution for Distance Diagnostics

The UT-Z044 Telephoto Lens delivers the highest spatial resolution in the standard UTi760X lens lineup at 0.33 mrad, enabling accurate temperature measurement of small components at distances where other lenses would lack sufficient detail. This exceptional resolution allows you to identify individual electrical connections, bearing housings, transformer bushings, and other critical components from safe working distances. The 36mm focal length provides natural 2x magnification compared to the standard lens, effectively bringing distant targets closer while maintaining the UTi760X's measurement accuracy specifications.

The narrow 12° x 9.6° field of view concentrates the UTi760X's 640x512 detector array on smaller target areas, maximizing pixel density for detailed component analysis. This focused perspective eliminates extraneous background information, making thermal anomalies easier to identify and document. The F/1.0 aperture ensures the lens gathers maximum thermal radiation even from distant targets, maintaining the camera's exceptional 35mK thermal sensitivity for reliable detection of subtle temperature differences.

Professional Applications

Utility and High-Voltage Infrastructure

Utility technicians and electrical contractors rely on the UT-Z044 for:

• Overhead transmission line connection inspection from ground level
• Substation transformer bushing and termination assessment
• High-voltage disconnect switch thermal monitoring
• Utility pole-mounted equipment diagnostics
• Power line insulator condition evaluation
• Distribution system predictive maintenance from safe distances

Industrial Elevated Equipment Monitoring

Industrial maintenance professionals use the UT-Z044 for:

• Overhead crane electrical system inspection
• Elevated motor and drive assessment without scaffolding
• High-bay lighting and electrical distribution surveys
• Rooftop HVAC equipment thermal monitoring
• Process piping and steam line distant inspection
• Overhead conveyor system bearing diagnostics

Building and Infrastructure Assessment

Building inspectors and facility managers depend on the UT-Z044 for:

• Roof-mounted equipment thermal evaluation from ground level
• Upper-story window and facade inspection
• Building envelope assessment of tall structures
• Chimney and stack thermal profiling
• Solar panel installation performance verification
• Multi-story building electrical system surveys

Emergency Response and Safety Inspections

Emergency responders and safety professionals utilize the UT-Z044 for:

• Fire investigation from safe standoff distances
• Hazardous material container temperature monitoring
• Emergency electrical system assessment without approach
• Structural fire damage evaluation
• Post-incident equipment condition verification
• Rescue operation thermal surveillance

Technical Specifications

Understanding Telephoto Performance and Resolution

The UT-Z044's narrow 12° x 9.6° field of view concentrates imaging power on distant targets. At typical inspection distances, the coverage areas are:

• At 5m (16.4 ft): Captures approximately 1.05m x 0.84m (41.3" x 33.1")
• At 10m (32.8 ft): Captures approximately 2.10m x 1.69m (82.7" x 66.5")
• At 20m (65.6 ft): Captures approximately 4.20m x 3.37m (165" x 133")
• At 30m (98.4 ft): Captures approximately 6.30m x 5.06m (248" x 199")

The exceptional 0.33 mrad spatial resolution provides the finest detail available in standard UTi760X lenses. With the 640x512 detector:

• At 5m (16.4 ft): Each pixel represents approximately 1.65mm (0.065")
• At 10m (32.8 ft): Each pixel represents approximately 3.3mm (0.13")
• At 20m (65.6 ft): Each pixel represents approximately 6.6mm (0.26")
• At 30m (98.4 ft): Each pixel represents approximately 9.9mm (0.39")

This superior resolution enables accurate temperature measurement of electrical connections, mechanical components, and building elements at extended distances where standard lenses would lack sufficient detail for reliable diagnostics.

Lens Comparison Guide

Frequently Asked Questions

When should I choose the Telephoto Lens instead of the Standard Lens?

Choose the UT-Z044 Telephoto Lens when working with elevated equipment, hazardous systems requiring safe standoff distances, or any situation where you need detailed component-level inspection beyond the effective range of the standard lens. It's essential for overhead power lines, rooftop equipment, high-voltage systems, tall building facades, and industrial installations where physical access is restricted. The telephoto lens is also valuable when you need maximum spatial resolution for small component temperature measurement at medium distances of 5-30 meters (16-98 feet).

What are the safety advantages of using a telephoto lens for electrical inspections?

The UT-Z044 enables safe inspection of energized electrical equipment from distances that maintain proper arc flash boundaries and electrical safety clearances. You can perform detailed thermal assessment of high-voltage connections, transformer bushings, overhead lines, and substation equipment while maintaining NFPA 70E compliance and OSHA electrical safety standards. This capability protects technicians from electrical hazards while still providing the thermal detail needed for accurate predictive maintenance and failure prevention. The telephoto perspective also keeps inspectors away from elevated work hazards when assessing overhead systems.

How does the spatial resolution compare to using digital zoom with the standard lens?

The UT-Z044's optical telephoto design delivers true 0.33 mrad spatial resolution using the full 640x512 detector array, providing genuine detail that cannot be replicated with digital zoom. Digital zoom simply enlarges existing pixels without adding real information, degrading image quality and measurement accuracy. The telephoto lens doubles the effective magnification while maintaining full thermal sensitivity and measurement precision, ensuring you can accurately measure small targets at distance. For professional diagnostics requiring reliable temperature data, optical telephoto performance is essential.

Can I use the Telephoto Lens for general inspection work?

Yes, while optimized for distance work, the UT-Z044 can serve as a general-purpose lens when you need maximum detail resolution. Its 1m (3.3 ft) minimum focus distance allows use at moderate working distances, and the narrow field of view helps isolate specific components or equipment sections for detailed analysis. Many professionals use the telephoto lens for precision electrical connection assessment, small mechanical component monitoring, and situations where eliminating background clutter improves thermal anomaly identification. However, for close-quarters work or broad area surveys, the standard or wide-angle lenses are more efficient.

What is the warranty period for the UT-Z044 Telephoto Lens?

UNI-T provides a 1-year warranty on the UT-Z044 Telephoto Lens, covering manufacturing defects and component failures under normal use conditions. This warranty ensures your investment in professional thermal imaging accessories is protected.

Why Choose the UT-Z044 Telephoto Lens?

The UT-Z044 Telephoto Lens is an essential accessory for thermal imaging professionals who regularly inspect elevated equipment, high-voltage systems, or any application requiring safe standoff distances. Its 36mm focal length and superior 0.33 mrad spatial resolution deliver twice the magnification and detail of standard lenses, enabling accurate component-level diagnostics at distances where approach is impractical or hazardous. The narrow 12° x 9.6° field of view concentrates imaging power on specific targets, making thermal anomalies easy to identify and document.

Whether you're a utility technician inspecting overhead power infrastructure, an industrial maintenance professional monitoring elevated equipment, a building inspector evaluating tall structures, or a safety specialist conducting hazardous area assessments, the UT-Z044 Telephoto Lens provides the reach, resolution, and safety capability your demanding applications require. Its combination of distance performance and measurement accuracy makes it a critical tool for any professional thermal imaging program.

Support and Warranty

UNI-T stands behind the UT-Z044 Telephoto Lens with comprehensive technical support and a 1-year warranty. Our dedicated support team is available to assist with lens selection, application questions, and warranty service.

Professional Distance Imaging for Safe, Accurate Diagnostics

The UNI-T UT-Z044 Telephoto Lens delivers exceptional distance imaging capability and superior spatial resolution for professional thermal inspection work. With its 36mm focal length, 12° x 9.6° field of view, industry-leading 0.33 mrad spatial resolution, and F/1.0 aperture, it provides the magnification, detail, and safety standoff distance needed for utility infrastructure assessment, elevated equipment monitoring, and hazardous system diagnostics across demanding industrial environments.

Order Your UT-Z044 Telephoto Lens Today and Extend Your Thermal Imaging Reach with Professional Precision
