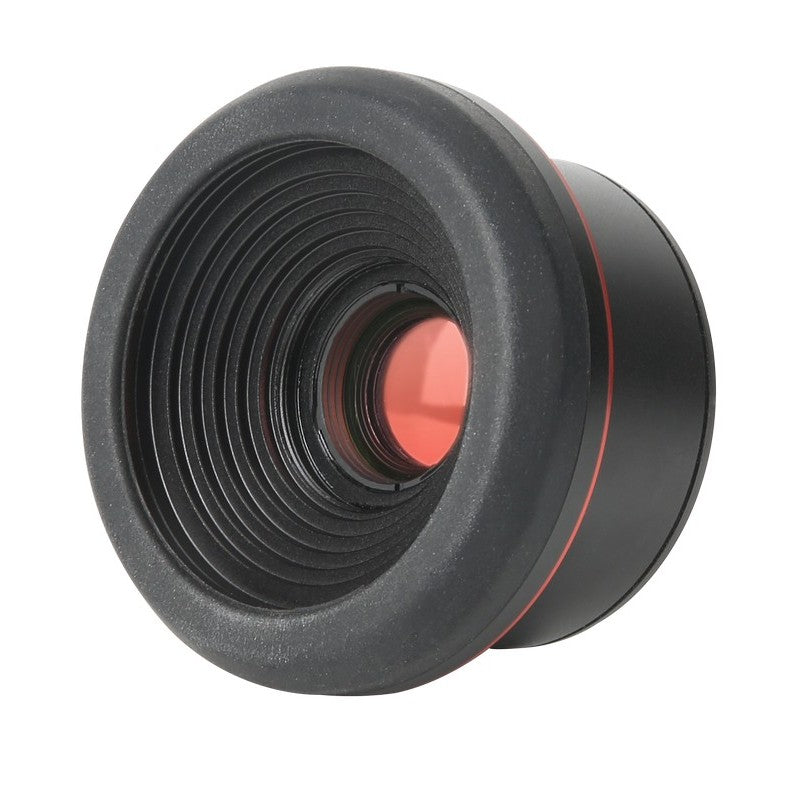

UT-Z042 Standard Lens for UNI-T UTI760X Thermal Imager

UNI-T UT-Z042 Standard Lens for UTi760X Thermal Camera

Versatile Performance for Everyday Thermal Imaging

The UNI-T UT-Z042 Standard Lens is the included lens for the UTi760X professional thermal camera system, offering an ideal balance of field of view, resolution, and working distance for general-purpose thermal inspection work. With its 18mm focal length and F/1.0 aperture, this lens delivers exceptional thermal image clarity across a 24° x 19.3° field of view, making it the go-to choice for standard building inspections, electrical diagnostics, and mechanical system evaluations. Whether you're conducting routine facility maintenance or detailed equipment assessments, the UT-Z042 provides the versatility and performance needed for professional thermal imaging applications.

Key Features

• 18mm Focal Length: Optimal balance between coverage and detail for most applications
• F/1.0 Fast Aperture: Maximum light gathering for superior thermal sensitivity
• 24° x 19.3° Field of View: Ideal coverage for standard inspection distances
• 0.66 mrad Spatial Resolution (IFOV): Excellent detail capture for accurate diagnostics
• 0.15m (5.9 inches) Minimum Focus Distance: Close-up inspection capability when needed
• Automatic Lens Recognition: Seamless integration with UTi760X system
• Professional Build Quality: Durable construction for demanding field use
• Standard Equipment Included: Ships with every UTi760X thermal camera

Optimal Balance for Professional Applications

The UT-Z042 Standard Lens represents the ideal compromise between field of view and detail resolution, making it the most versatile lens in the UTi760X system. Its 24° x 19.3° field of view provides sufficient coverage to survey entire equipment panels or building sections from comfortable working distances, while the 0.66 mrad spatial resolution ensures you can identify hot spots, temperature anomalies, and component-level issues with confidence. The F/1.0 aperture maximizes thermal sensitivity, allowing the UTi760X's 35mK NETD sensor to deliver exceptional image quality even in challenging measurement conditions.

With a minimum imaging distance of just 0.15m (5.9 inches), the UT-Z042 adapts to varying inspection scenarios without requiring lens changes. This capability is particularly valuable when moving between overview assessments and detailed component inspections, maintaining consistent image quality across the full focus range. The 18mm focal length provides natural perspective that matches typical inspection viewing angles, making it intuitive for both experienced thermographers and technicians new to thermal imaging.

Professional Applications

Electrical Systems Inspection

Electrical maintenance professionals rely on the UT-Z042's balanced performance for:

• Distribution panel thermal surveys from safe working distances
• Transformer and switchgear monitoring
• Motor control center inspections
• Bus bar connection verification
• Circuit breaker temperature assessment
• Load balance analysis across three-phase systems

Building Envelope Assessment

Building inspectors and energy auditors use the UT-Z042 for:

• Insulation defect identification
• Air leakage detection around windows and doors
• Moisture intrusion investigation
• HVAC distribution system evaluation
• Roof membrane integrity assessment
• Thermal bridging identification in building structures

Mechanical Equipment Diagnostics

Maintenance technicians depend on the UT-Z042 for:

• Bearing temperature monitoring on rotating equipment
• Pump seal and coupling inspection
• Compressor performance evaluation
• Steam trap verification
• Hydraulic system leak detection
• Process equipment thermal profiling

HVAC System Evaluation

HVAC technicians utilize the UT-Z042 for:

• Supply and return air temperature distribution
• Ductwork insulation assessment
• Heat exchanger performance verification
• Refrigerant line inspection
• Coil temperature uniformity checks
• Zone control system validation

Technical Specifications

Understanding Field of View and Spatial Resolution

The UT-Z042's 24° x 19.3° field of view determines how much area you can capture in a single thermal image. At typical working distances, this translates to practical coverage areas:

• At 1m (3.3 ft): Captures approximately 0.42m x 0.34m (16.5" x 13.4")
• At 3m (9.8 ft): Captures approximately 1.26m x 1.01m (49.6" x 39.8")
• At 5m (16.4 ft): Captures approximately 2.10m x 1.69m (82.7" x 66.5")
• At 10m (32.8 ft): Captures approximately 4.20m x 3.37m (165" x 133")

The 0.66 mrad spatial resolution (IFOV) determines the smallest detail size that can be measured accurately. With the UTi760X's 640x512 detector, this means:

• At 1m (3.3 ft): Each pixel represents approximately 0.66mm (0.026")
• At 5m (16.4 ft): Each pixel represents approximately 3.3mm (0.13")
• At 10m (32.8 ft): Each pixel represents approximately 6.6mm (0.26")

This spatial resolution ensures accurate temperature measurement of electrical components, mechanical parts, and building elements at standard inspection distances.

Lens Comparison Guide

Frequently Asked Questions

Is the UT-Z042 Standard Lens included with the UTi760X thermal camera?

Yes, the UT-Z042 Standard Lens is included as standard equipment with every UTi760X thermal camera. This listing is for purchasing a replacement lens or an additional unit for backup purposes. The lens ships ready to use with automatic recognition by the camera body.

What is the optimal working distance for the UT-Z042 Standard Lens?

The UT-Z042 performs optimally at working distances between 0.5m (1.6 ft) and 10m (32.8 ft), covering the majority of industrial inspection scenarios. For most electrical panel and mechanical equipment inspections, the ideal range is 1-5 meters where the lens provides excellent detail while maintaining safe working distances. The 0.15m minimum focus distance allows close-up work when necessary, while the field of view remains practical for distance work up to 15-20 meters for larger targets.

How does the spatial resolution affect measurement accuracy?

The UT-Z042's 0.66 mrad spatial resolution ensures that each detector pixel covers a small area of the target, enabling accurate temperature measurement of individual components. For reliable temperature readings, the target should occupy at least 3x3 pixels in the thermal image. This means minimum measurable target sizes of approximately 2mm at 1 meter, 10mm at 5 meters, and 20mm at 10 meters. The Standard Lens provides sufficient resolution for most electrical connections, bearing housings, and mechanical components at typical inspection distances.

Can I switch between lenses during an inspection?

Yes, the UTi760X system supports interchangeable lenses with automatic recognition. When you attach a different lens, the camera automatically detects the lens model and adjusts its measurement algorithms accordingly. This allows you to start an inspection with the UT-Z042 Standard Lens for overview work, then switch to the UT-Z044 Telephoto Lens for distant targets or the UT-Z043 Wide-Angle Lens for confined spaces, maintaining measurement accuracy across all lens configurations.

What is the warranty period for the UT-Z042 Standard Lens?

UNI-T provides a 1-year warranty on the UT-Z042 Standard Lens, covering manufacturing defects and component failures under normal use conditions. This warranty ensures your investment in professional thermal imaging accessories is protected.

Why Choose the UT-Z042 Standard Lens?

The UT-Z042 Standard Lens offers the most versatile performance profile in the UTi760X lens system, making it the ideal choice for 80-90% of thermal inspection applications. Its balanced field of view provides sufficient coverage for efficient scanning while maintaining the spatial resolution needed for accurate component-level diagnostics. The close minimum focus distance adds flexibility for detailed work without requiring lens changes, while the 18mm focal length delivers natural perspective that makes thermal anomalies easy to interpret.

Whether you're an electrical contractor performing predictive maintenance, a building inspector conducting energy audits, an HVAC technician troubleshooting system performance, or a maintenance professional monitoring mechanical equipment, the UT-Z042 Standard Lens provides the reliable performance and measurement accuracy your work demands. Its inclusion as standard equipment with the UTi760X reflects its role as the foundation lens for professional thermal imaging.

Support and Warranty

UNI-T stands behind the UT-Z042 Standard Lens with comprehensive technical support and a 1-year warranty. Our dedicated support team is available to assist with lens selection, application questions, and warranty service.

Professional-Grade Thermal Imaging Optics

The UNI-T UT-Z042 Standard Lens delivers exceptional versatility and measurement accuracy for professional thermal inspection work. With its 24° x 19.3° field of view, 0.66 mrad spatial resolution, F/1.0 aperture, and 0.15m minimum imaging distance, it provides the balanced performance needed for comprehensive facility diagnostics, electrical system evaluation, and mechanical equipment monitoring across diverse industrial environments.

Order Your Replacement UT-Z042 Standard Lens Today for Continued Professional Thermal Imaging Performance
