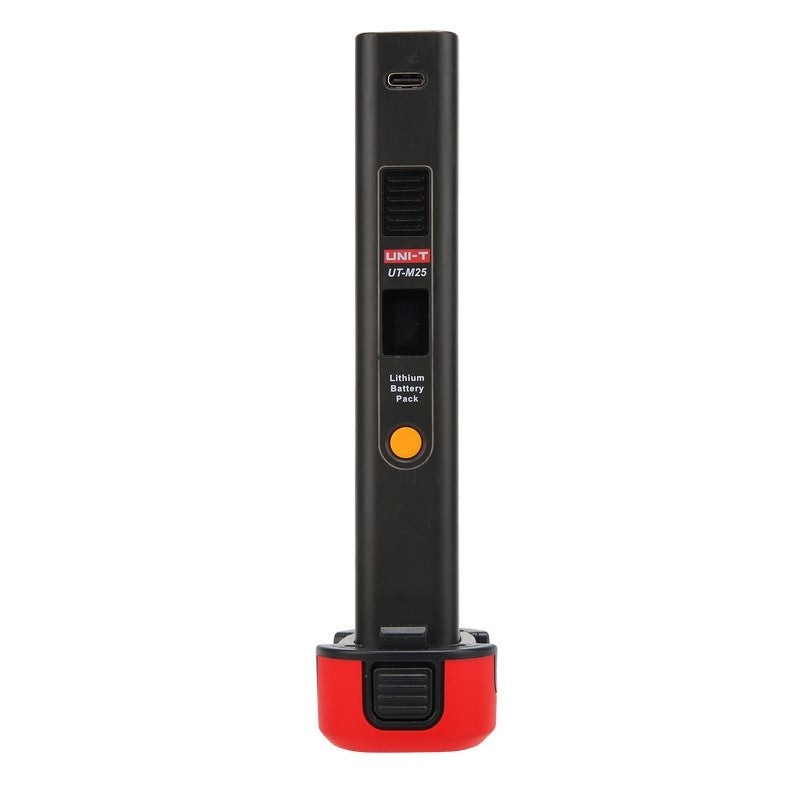

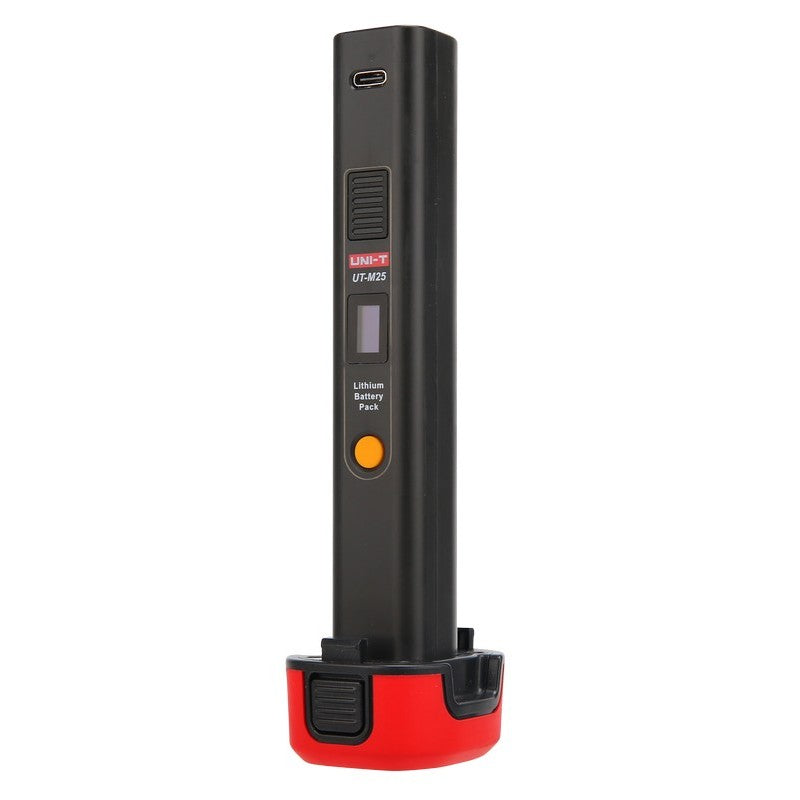

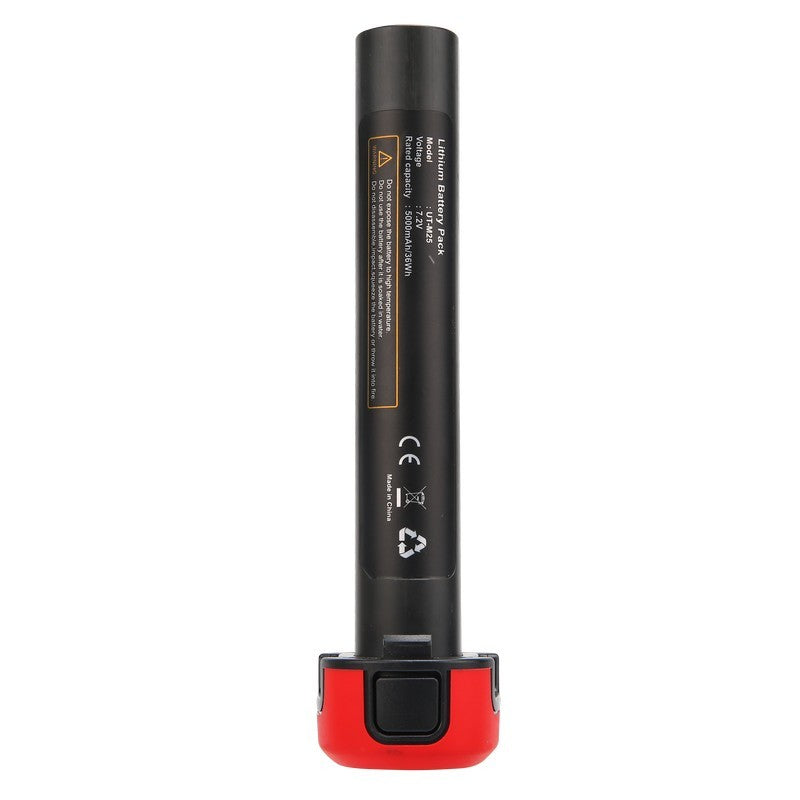

UNI-T UT-M25 Rechargeable Battery Pack for UTi760X Thermal Camera
Extended Runtime Power Solution for Professional Thermal Imaging
The UNI-T UT-M25 is a high-capacity 7.2V/5000mAh rechargeable lithium-ion battery pack designed specifically for the UTi760X professional thermal camera system. Delivering up to 5 hours of continuous operation per charge, this detachable battery pack ensures uninterrupted thermal imaging during extended inspections, facility surveys, and all-day field work. The intelligent battery design supports both in-camera Type-C charging and independent external charging, allowing you to charge spare batteries while continuing to use the camera. With fast charging capability reaching 90% capacity in just 2.5 hours, the UT-M25 keeps your thermal imaging workflow moving efficiently without lengthy downtime.
Key Features
-
5000mAh High Capacity: Up to 5 hours of continuous thermal imaging operation
-
7.2V Lithium-Ion Technology: Reliable, long-lasting rechargeable power
-
Detachable Design: Quick battery swaps for unlimited runtime
-
Dual Charging Options: In-camera Type-C charging or independent external charging
-
Fast Charging Capability: 90% charge in 2.5 hours with power-off or external charging
-
Type-C Charging Interface: Modern, reversible charging connection
-
PD3.0 Support: Compatible with 5V/3A and 9V/3A charging standards
-
Intelligent Power Display: Real-time battery level indication on camera
Professional Runtime for Extended Field Work
The UT-M25 battery pack's 5000mAh capacity provides substantial operating time for professional thermal imaging applications. With up to 5 hours of continuous use, you can complete comprehensive facility surveys, full-day equipment inspections, or extended troubleshooting sessions without interruption. The UTi760X thermal camera ships with two UT-M25 battery packs as standard equipment, providing up to 10 hours of total runtime when alternating between fully charged batteries. This dual-battery configuration ensures you always have a fresh battery ready while one is in use.
The detachable design allows instant battery swaps in the field, maintaining continuous workflow during critical inspections. Simply slide the depleted battery out of the camera body and insert a fresh one - the entire exchange takes just seconds. For professionals conducting multi-day field assignments or working in remote locations, additional UT-M25 batteries provide the extended runtime needed to complete work without access to charging infrastructure. The 7.2V lithium-ion technology delivers consistent power output throughout the discharge cycle, ensuring stable camera performance from full charge to low battery indication.
Versatile Charging Solutions
The UT-M25 supports two convenient charging methods to fit different workflow requirements:
-
In-Camera Type-C Charging: Connect the UTi760X directly to power using the Type-C port on the camera body. The battery charges while installed in the camera, ideal for overnight charging or when you have a single battery
-
Independent External Charging: Remove the UT-M25 from the camera and charge it separately using a standard USB-C charger (available separately). This allows you to charge spare batteries while continuing to use the camera with another battery pack
The fast-charging capability reaches 90% capacity in just 2.5 hours when using power-off charging (camera turned off) or independent external charging. This rapid recharge minimizes downtime between inspection sessions, allowing you to quickly prepare batteries for the next day's work. The Type-C charging interface supports USB Power Delivery 3.0 (PD3.0) standard with 5V/3A or 9V/3A input, providing compatibility with modern USB-C chargers and power banks commonly used for smartphones and laptops.
Professional Applications
Extended Facility Surveys
Facility managers and inspectors rely on UT-M25 batteries for:
- Comprehensive multi-building thermal assessments requiring hours of continuous operation
- Large industrial facility predictive maintenance surveys
- Complete building envelope evaluations from foundation to roof
- All-day energy audit documentation
- Manufacturing plant equipment thermal screening
- Multi-site inspection routes without returning to vehicles for charging
Utility and Infrastructure Inspection
Utility technicians depend on UT-M25 extended runtime for:
- Full-day transmission line patrol and inspection
- Substation equipment comprehensive thermal surveys
- Distribution system right-of-way assessments
- Telecommunications tower site inspections at remote locations
- Solar farm array performance documentation
- Wind turbine site evaluation and monitoring
Emergency Response and Investigation
Emergency responders utilize spare UT-M25 batteries for:
- Extended structural fire investigation requiring hours of thermal documentation
- Search and rescue operations with prolonged thermal scanning
- Disaster assessment of multiple affected structures
- Hazmat incident prolonged monitoring from safe distances
- Emergency electrical system troubleshooting
- Post-event damage evaluation across large areas
Research and Documentation
Researchers and documentation specialists use multiple UT-M25 batteries for:
- Time-lapse thermal imaging requiring continuous multi-hour operation
- Thermal performance testing of building systems over extended periods
- Process optimization studies with long-duration thermal monitoring
- Academic research requiring uninterrupted data collection
- Comprehensive thermal mapping of large structures or sites
- Quality control documentation in manufacturing environments
Technical Specifications
| Specification |
Value |
| Model Number |
UT-M25 |
| Battery Type |
Rechargeable Lithium-Ion |
| Voltage |
7.2V |
| Capacity |
5000mAh |
| Operating Time |
≥5 hours per charge (continuous use) |
| Charging Time |
90% capacity in 2.5 hours (power-off or independent charging) |
| Charging Interface |
Type-C (USB-C) |
| Charging Method |
In-camera Type-C charging / Independent external charging |
| Charging Voltage/Current |
5V/3A or 9V/3A (PD3.0 support) |
| Design |
Detachable and rechargeable |
| Power Display |
Intelligent battery level indication on UTi760X camera |
| Compatibility |
UTi760X Thermal Camera System |
| Standard Quantity |
2 batteries included with UTi760X camera |
Understanding Battery Performance
The UT-M25's 5-hour runtime is based on typical thermal imaging use with moderate feature utilization. Actual operating time varies based on usage patterns:
-
Maximum Runtime Mode: Basic thermal imaging with minimal feature use, display brightness reduced, WiFi/Bluetooth disabled can extend runtime beyond 5 hours
-
Standard Operation: Normal thermal imaging with standard feature usage, moderate display brightness, occasional WiFi connectivity provides the rated 5-hour operation
-
Intensive Use: Continuous video recording, maximum display brightness, constant WiFi streaming, and extensive image storage will reduce runtime to 4-4.5 hours
-
Cold Weather Operation: Operating in temperatures below 0°C (32°F) may reduce battery capacity by 10-20%, with more significant reduction in extreme cold
The lithium-ion technology provides excellent charge retention, with minimal self-discharge when stored. Fully charged UT-M25 batteries maintain most of their capacity for several weeks when not in use, ensuring spare batteries are ready when needed.
Battery System Comparison
| Configuration |
Single UT-M25 |
Standard 2x UT-M25 |
Extended 4x UT-M25 |
| Total Capacity |
5000mAh |
10000mAh |
20000mAh |
| Total Runtime |
≥5 hours |
≥10 hours |
≥20 hours |
| Best For |
Basic inspections, short surveys |
Full-day field work (standard configuration) |
Multi-day remote work, extended projects |
| Charging Strategy |
Overnight charging required |
Charge one while using the other |
Rotate multiple batteries for continuous operation |
Frequently Asked Questions
How many UT-M25 batteries come with the UTi760X camera?
The UTi760X thermal camera includes two UT-M25 battery packs as standard equipment, providing up to 10 hours of total operating time. This dual-battery configuration allows you to charge one battery while using the other, ensuring continuous operation for full-day field work. This product listing is for purchasing additional replacement batteries or extra units for extended runtime requirements.
Can I charge the UT-M25 battery while using the camera?
Yes, you can charge the UT-M25 while it's installed in the UTi760X camera by connecting a Type-C cable to the camera's charging port. The camera can operate while charging, though for fastest charging (90% in 2.5 hours), it's recommended to power off the camera during charging. Alternatively, you can use an external battery charger to charge spare UT-M25 batteries independently while continuing to use the camera with a different battery pack.
How long does it take to fully charge a depleted UT-M25 battery?
The UT-M25 charges to 90% capacity in approximately 2.5 hours when using power-off charging (camera turned off) or independent external charging with a compatible Type-C charger supporting PD3.0 (5V/3A or 9V/3A). Complete charging to 100% takes approximately 3 hours. Charging while the camera is powered on and in use will take longer due to the simultaneous power draw. For optimal battery longevity, the charging system uses intelligent charge management to protect the lithium-ion cells.
What should I do if my battery is not holding a charge?
Lithium-ion batteries gradually lose capacity over many charge cycles, typically maintaining 80% capacity after 300-500 full charge/discharge cycles. If your UT-M25 battery is significantly underperforming (less than 3-4 hours runtime when new performance was 5+ hours), it may be reaching end of service life and should be replaced. To maximize battery longevity, avoid storing batteries fully discharged for extended periods, operate and store in moderate temperature conditions when possible, and use appropriate charging voltages. If a relatively new battery suddenly loses capacity, contact UNI-T support as it may be covered under warranty.
Can I use third-party batteries with the UTi760X camera?
UNI-T strongly recommends using only genuine UT-M25 battery packs with the UTi760X thermal camera. The camera's battery management system is specifically calibrated for UT-M25 specifications, and third-party batteries may not provide accurate power level indication, appropriate charging control, or reliable performance. Using non-genuine batteries may void your camera warranty and could potentially damage the camera's power management circuitry. For professional reliability and optimal camera performance, always use authentic UNI-T UT-M25 battery packs.
What is the warranty period for the UT-M25 battery?
UNI-T provides a 1-year warranty on the UT-M25 battery pack, covering manufacturing defects and component failures under normal use conditions. This warranty ensures your investment in professional thermal imaging accessories is protected. Note that batteries are consumable items that naturally degrade with use and charge cycles, so warranty coverage applies to premature failure or manufacturing defects rather than normal capacity reduction from extensive use.
Battery Care and Maintenance
To maximize the service life and performance of your UT-M25 batteries:
-
Storage: Store batteries at approximately 50-60% charge for extended periods. Fully discharged storage can damage lithium-ion cells
-
Temperature: Avoid exposing batteries to extreme temperatures. Store in moderate conditions and allow cold batteries to warm before charging
-
Charging Practices: Use appropriate USB-C chargers with PD3.0 support. Avoid constant trickle charging; remove from charger when fully charged
-
Regular Use: Batteries benefit from regular use and charging. Batteries stored unused for months may lose capacity
-
Contacts: Keep battery contacts clean and free from debris for reliable connection and charging
Why Choose Additional UT-M25 Batteries?
Additional UT-M25 battery packs provide the extended runtime and operational flexibility that professional thermal imaging demands. Whether you're conducting comprehensive facility surveys requiring 8+ hours of continuous operation, working in remote locations without charging access, performing emergency response with unpredictable duration requirements, or simply want the peace of mind that comes with having fresh batteries always available, extra UT-M25 batteries ensure your UTi760X thermal camera never limits your work.
The ability to quickly swap depleted batteries for fresh ones eliminates downtime and keeps your thermal imaging workflow moving efficiently. With fast 2.5-hour charging and dual charging options, you can always have batteries ready for the next inspection. For professional thermographers, facility managers, utility technicians, and anyone relying on thermal imaging for critical work, additional UT-M25 batteries represent essential equipment that protects against the costliest failure - running out of power during important inspections.
Support and Warranty
UNI-T stands behind the UT-M25 battery pack with comprehensive technical support and a 1-year warranty. Our dedicated support team is available to assist with battery questions, charging recommendations, and warranty service.
Extended Power for Professional Thermal Imaging
The UNI-T UT-M25 Rechargeable Battery Pack delivers reliable, long-lasting power for professional thermal imaging applications. With its 5000mAh capacity, 5+ hour runtime, fast charging capability, detachable design, and dual charging options, it provides the extended operating time and workflow flexibility needed for comprehensive facility surveys, utility infrastructure inspection, emergency response, and demanding field work across all professional thermal imaging applications.
Order Your Additional UT-M25 Battery Packs Today and Ensure Uninterrupted Thermal Imaging Performance
