UTE-M01-US Power Meter Test Fixture

American Three-Pronged Plug Adapter for Professional Power Analysis

The UTE-M01-US is a high-performance electrical connector designed specifically for the US market with an American three-pronged plug interface. This specialized test fixture enables quick and accurate power measurements for household appliances, office equipment, and various electrical devices without requiring any wire cutting. When paired with UTE310 series or UTE9800+ series power meters, it creates a complete power analysis solution with enhanced safety features.

Featuring built-in overcurrent protection and streamlined connectivity, the UTE-M01-US is the ideal companion for engineers, technicians, and quality inspectors who need to evaluate power consumption, efficiency, and electrical parameters of US standard devices. The robust design and reliable performance make it an essential tool for both laboratory testing and field applications.

Key Features

  • US Standard Compatibility — Features American three-pronged plug interface (AC 125V 10A rated input) for direct connection of US standard appliances
  • No-Cut Testing — Enables current measurement of electrical equipment without cutting or modifying wires, maintaining device warranty
  • Built-in Overcurrent Protection — Automatically trips the circuit if current exceeds safe limits, protecting both equipment and testing personnel
  • Direct Device Connection — Simply plug your device directly into the test fixture's output socket for immediate power measurement
  • Complete Testing Solution — Includes necessary cables (UT-L0110-BB and UT-L0110-BU) for connecting to UTE300 series power meters
  • US Three-Core Power Cord — Comes with 1.8-meter US standard power cord for optimal connection to power sources

Professional Applications

  • Testing and verification of home appliance power consumption
  • Quality control testing for electronics manufacturers
  • Energy efficiency certification and compliance testing
  • Field service diagnostics for electrical equipment
  • Power consumption analysis for office equipment
  • Educational demonstrations of power measurement principles
  • Standby power consumption monitoring
  • Electrical parameter measurement for product development

Compatible Power Meters

UTE310 Series Digital Power Meters

The UTE310 series represents UNI-T's high-precision digital power meters with a 4.3-inch full-color display, offering superior measurement accuracy and a bandwidth of up to 300kHz. These meters excel in voltage, current, power, and harmonic analysis with extensive math functions and connectivity options.

  • UTE310 Digital Power Meter Standard model featuring 600V/20A measurement range with 0.1% basic accuracy and full harmonic analysis up to the 50th order. Ideal for general-purpose power analysis and energy efficiency testing.
  • UTE310G 1MHz High-Performance Digital Power Meter w/ GPIB Enhanced model with GPIB interface for automated testing systems and extended 1MHz bandwidth for capturing high-frequency components in switching power supplies and inverters.
  • UTE310H HV Digital Power Meter High-voltage variant with expanded voltage range for industrial equipment testing and high-power applications requiring precise measurements at elevated voltages.
  • UTE310HG HV Digital Power Meter w/ GPIB Premium model combining high-voltage capability with GPIB interface, offering maximum flexibility for automated testing in high-power industrial environments.

UTE9800+ Series Smart Digital Power Meters

The UTE9800+ series offers economical and portable power measurement solutions with true RMS measurement capability. These meters feature multi-window displays showing voltage, current, power, power factor, and frequency simultaneously, with comprehensive communication options for system integration.

  • UTE9802+ Digital Power Meter Versatile model supporting AC/DC measurement mode with voltage range of 3.0V~700V and current range of 0.5mA~24A. Particularly suited for AC/DC charging systems, power batteries, and standby power consumption testing.
  • UTE9806+ Digital Power Meter Specialized model with enhanced apparent power measurement and ultra-low current capability (down to 0.05mA), making it perfect for measuring overall power consumption and efficiency in low-power devices.
  • UTE9811+ Digital Power Meter Advanced harmonic analysis model using phase-locked loop (PLL) synchronization with up to 50 times harmonic analysis. Ideal for power quality analysis and compliance testing of electrical equipment.

Technical Specifications

Model UTE-M01-US
Rated Input AC 125V 10A
Cable Accessories UT-L0110-BB (1 pair), UT-L0110-BU (1 pair), US three-core power cord (1.8 meters)
Safety Features Overcurrent protection with automatic trip function

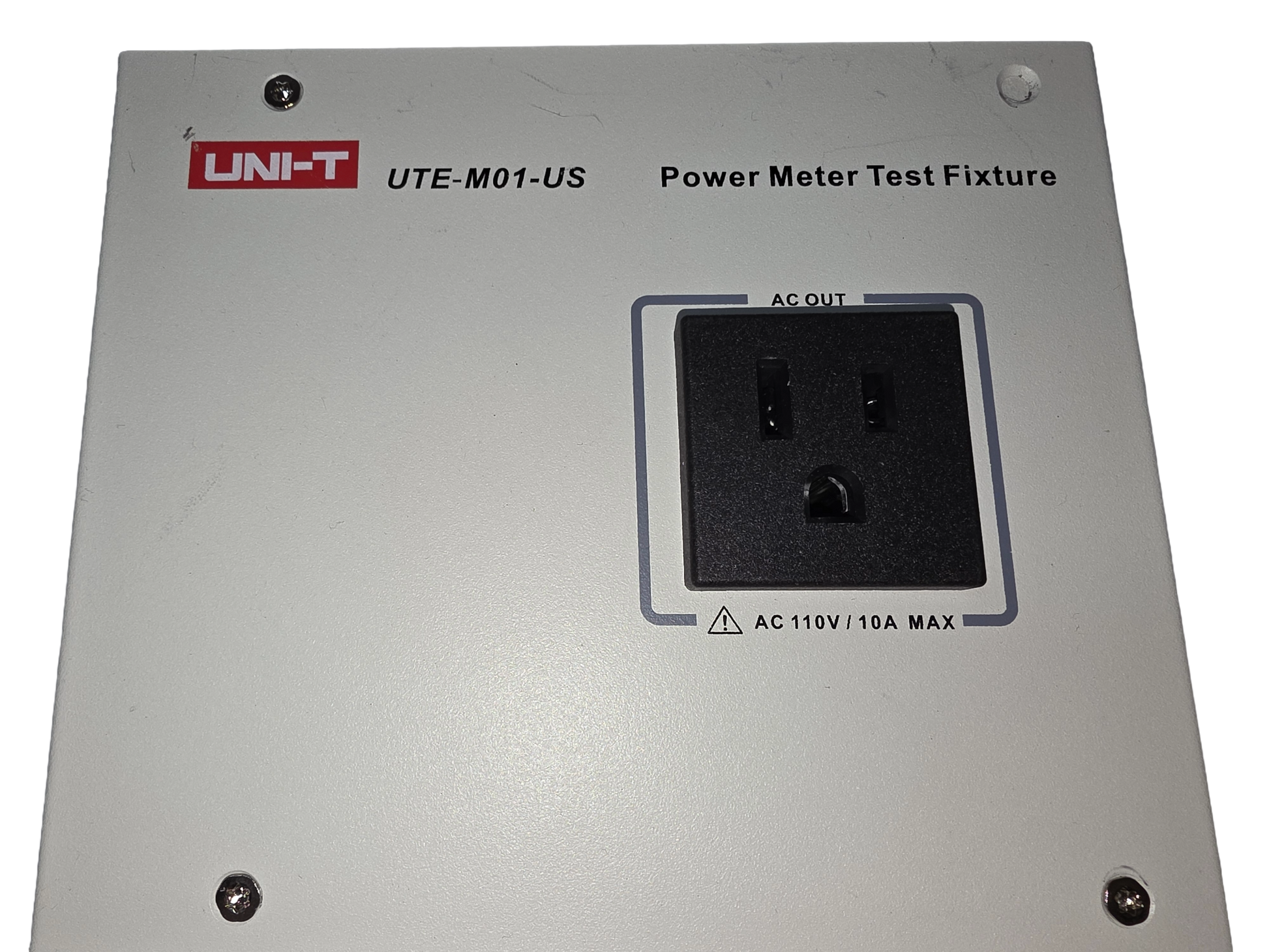

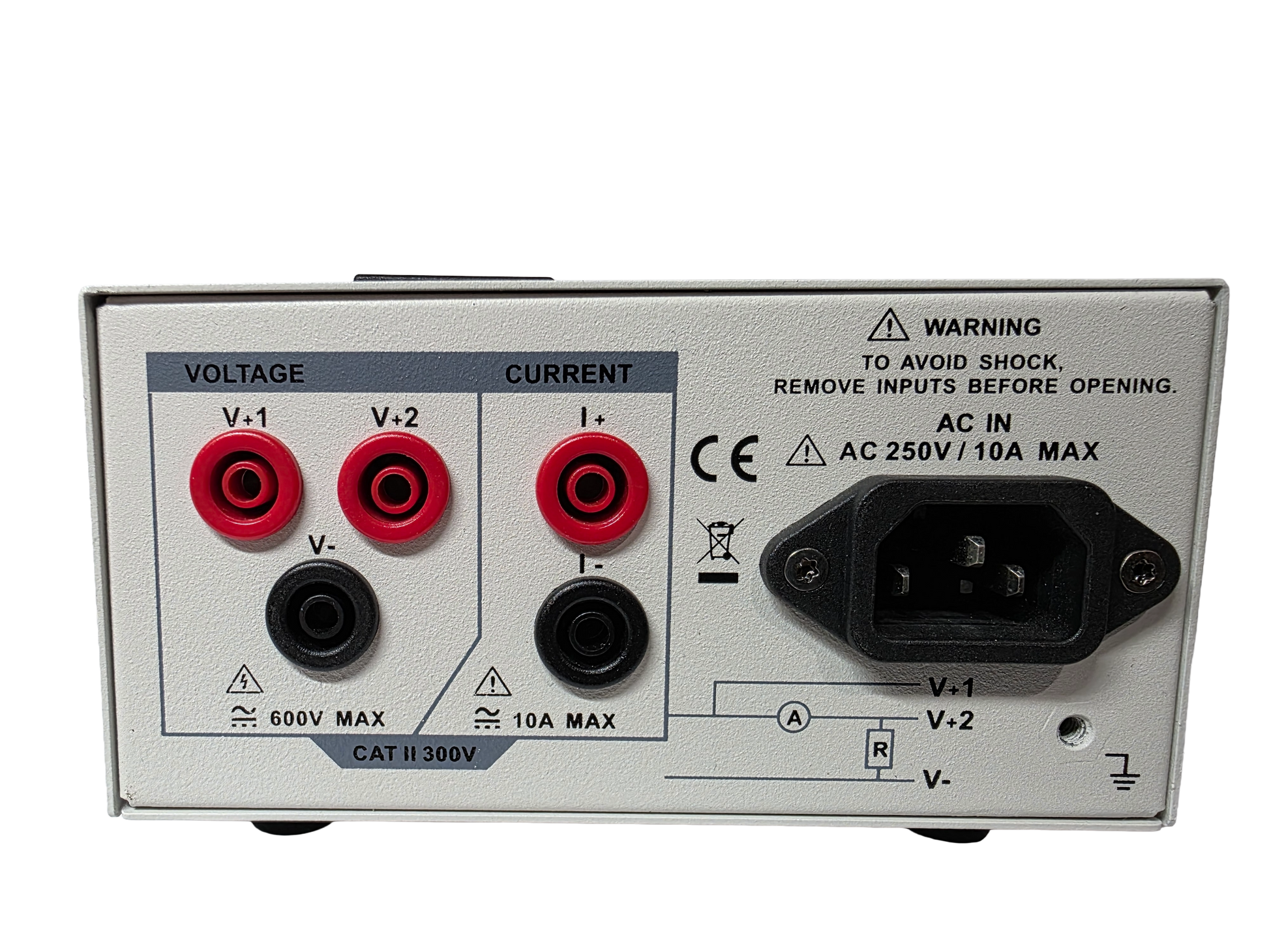

Interface US standard three-pronged socket on top surface, power input jack, voltage and current test interfaces, and grounding screw on rear side

Operation Instructions

  1. Connect the UTE-M01-US to your UTE300 series power meter using the included UT-L0110-BB cable (for voltage) and UT-L0110-BU cable (for current)
  2. Connect your device under test to the AC OUT interface of the UTE-M01-US
  3. Connect power to your power meter
  4. Connect power to the UTE-M01-US through its AC IN interface

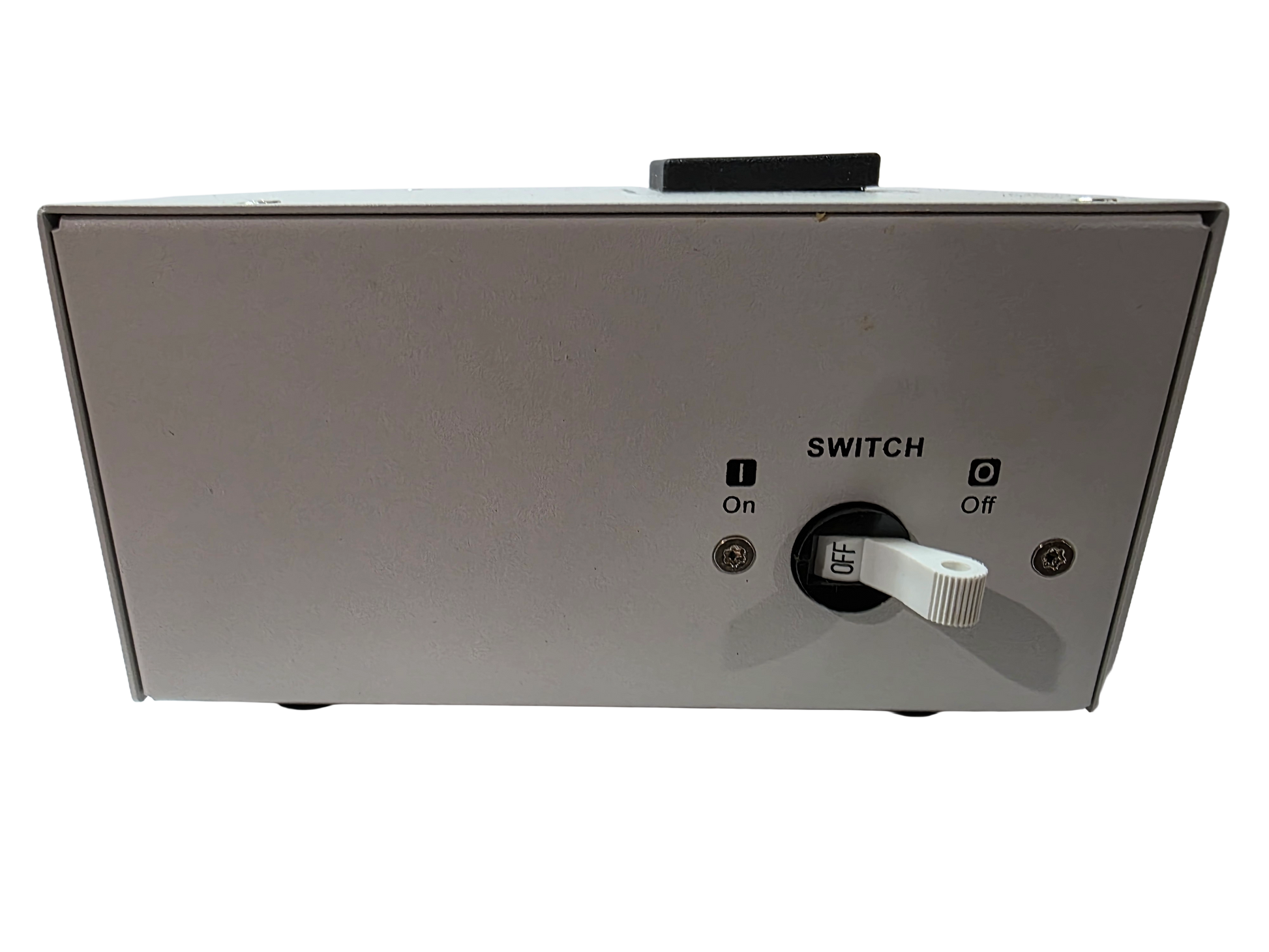

  5. Verify all connections are secure, then toggle the overcurrent protection switch to the ON position
  6. Perform measurements using your power meter's interface

Safety Warning: Always ensure the power is disconnected before making any connections. Never exceed the maximum rated current (10A) to prevent damage to the equipment and safety hazards.

With the UTE-M01-US Power Meter Test Fixture, you can efficiently test and analyze the power consumption and electrical parameters of any US standard electrical device. This specially designed adapter eliminates the need to cut wires or modify your equipment, preserving warranties while providing accurate, real-time measurements. The built-in safety features and robust construction ensure reliable performance in both laboratory and field environments.

Streamline Your Power Testing Today!
