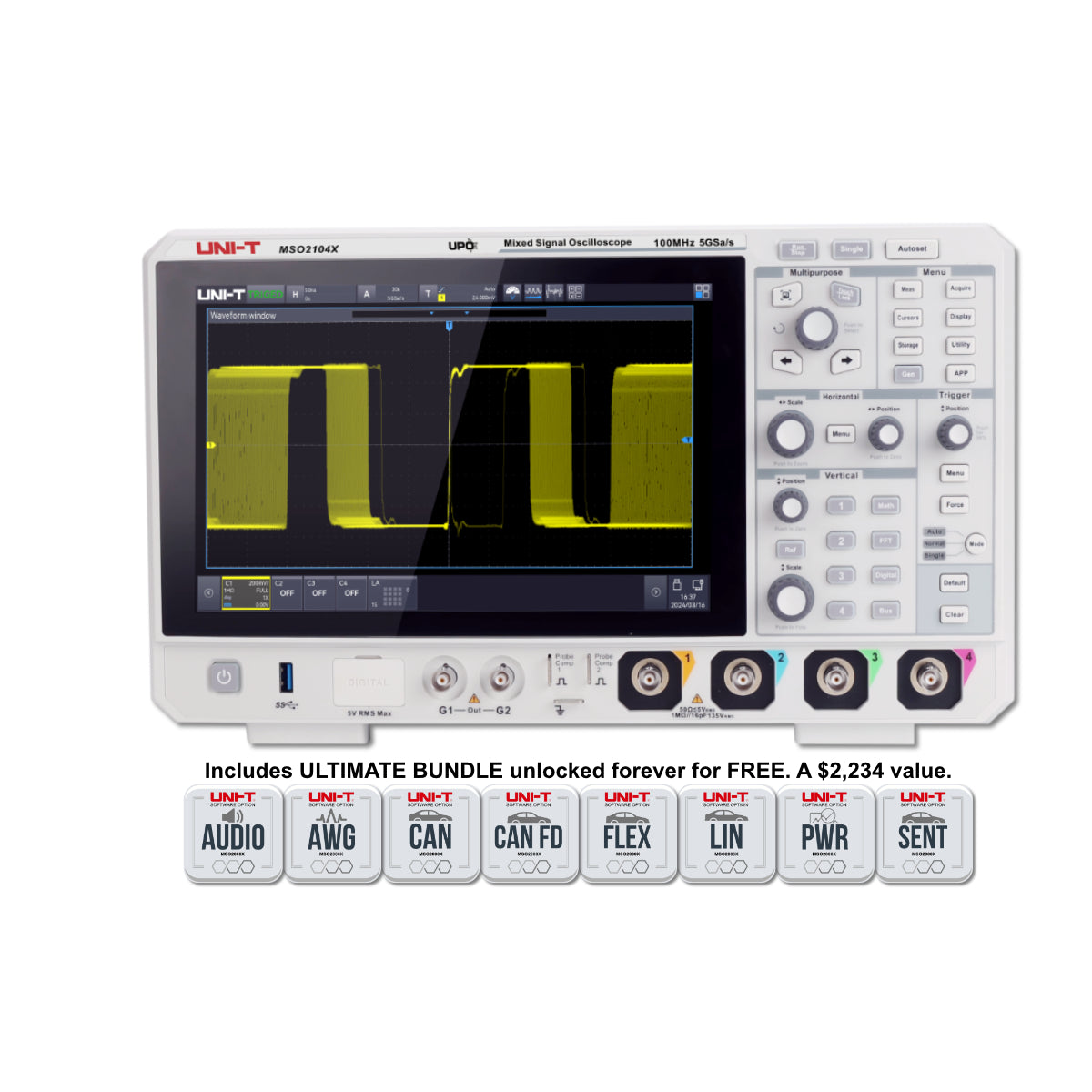

MSO2104X 100MHz 4Ch Mixed Signal Oscilloscope

Give your test bench the X-Factor. This 100MHz, 9-in-one instrument deserves to be the centerpiece of your test rig. Start off with a high-sample rate, deep memory, and an easy-to-use touchscreen. Out of the box the MSO2000X operates as a Digital Phosphor Oscilloscope, Spectrum Analzyer, Digital Voltmeter, High-Precision Frequency Counter, and Protocol Analyzer. Affordably extend it to add a 16Ch Logic Analyzer, 2Ch 50MHz Waveform Generator, Bode Plot Analyzer, and Power Analyzer. Combine all of this with the piece of mind of up to 5 years worry free use with our no-charge warranty extension. All with up to 5 years warranty.

100MHz Bandwidth	4Ch Channels
5.0GSa/s Sample Rate	100Mpts Max. Memory Depth
2,000,000wfms/s Waveform Capture Rate	Optional Digital Channels

$1,499.00

Save {price}%

26 items in stock

Find a Distributor

Guarantee safe & secure checkout

MSO2000X series integrates 9 instrument functions, which includes Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Bode plot Analyzer and Power Analyzer. This oscilloscope offers a cost-effective solution for users.

Bandwidth: 100MHz (also available: MSO2204X: 200MHz, and MSO2304X: 300MHz)
Vertical Resolution: 8-bit, 12-bit ERES
4 Analog Ch/16 Digital Ch, Logic Analyzer SW included (probes optional)
Max Sample Rate: 5GSa/s per channel
Memory Depth: 100Mpts per channel
Max Capture Rate: 500,000 wfms/s per channel (Sequence mode: 2,000,000 wfms/s)
Arb Waveform Generator: Dual Channel 50MHz option
10.1-Inch UltraPhosphor 3 Touchscreen Display
5-Year Warranty

Features and Benefits Summary

Analog channel bandwidth: 100 MHz/200 MHz/300 MHz
Real-time sampling rate of the analog channel is up to 5 GSa/s. The maximum sampling rate of the digital channel is 1.25 GSa/s
4 analog channels, 16 digital channels. Maximum memory depth: 100 Mpts
The maximum waveform capture rate is 500,000 wfms/s (sequence mode: 2,000,000 wfms/s)
9 instrument functions: Digital Oscilloscope, Logic Analyzer (requires UT-M15), Function/Arbitrary Waveform Generator (option), Spectrum Analyzer, Digital Voltmeter, Frequency Counter, Protocol Analyzer, Bode Plot Analyzer and Power Analyzer (option)
Built-in dual-channel 50MHz function/arbitrary waveform generator. Supports loading on-screen oscilloscope data for real-time arbitrary waveform output. Additionally, it includes multiple built-in arbitrary waveforms, enhancing its versatility and functionality.
Bode plot loop test analysis to analyze the system stability
Parameter measurement adds histogram and line graph display
Up to 200,000 frames of uninterrupted hardware real-time waveform recording and analysis, with USB memory export support waveform recording and analysis
Maximum 4 Mpts enhanced FFT, supporting the spectrum analyzer function of frequency setting, waterfall curve, detection setting, and marker
54 kinds of parameter measurement
Multi-channel 7-digit hardware frequency counter, supporting adjustable frequency refresh time and effective digit
4-digit Digital Voltmeter (DVM): DC, AC RMS, and DC+AC RMS
Multiple trigger types: edge, pulse width, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, and code pattern
Protocol trigger and decoding functions. Included: RS232/UART, I2C, SPI. Optional: CAN, CAN-FD, LIN, FlexRay, AUDIO, SENT
Zone triggering for capturing accidental signal and observing complicated signal
Ultra Phosphor 3.0 super phosphor display effect, up to 256 grey display
10.1-inch 1280x800 HD capacitive multi-touch screen, supporting gesture control: click, slide, zoom, edit, and drag
Multiple peripheral interfaces: USB 3.0 Host, USB 3.0 Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI
SCPI (Standard Command for Programmable Instrument)
Built-in Webserver for accessing and controlling the instrument through a browser, supporting PC/Mobile phone device for cross-platform access to the instrument

The 9-in-1 "X-Factor"

Digital Oscilloscope

Bandwidth: 100 MHz/200 MHz/300 MHz
Maximum real-time sampling rate: 5GSa/s
Maximum memory depth: 100 Mpts
4 analog channels, 1 external trigger channel

Logic Analyzer (Option)

16-channel logic analyzer can be used with purchase of a UT-M15 logic analyzer probe (option)
Logic analyzer software already installed
Maximum sampling rate: 1.25 GSa/s
Maximum memory depth: 100 Mpts
Minimum detectable pulse width 800ps
Digital probe provides high 8-bit and low 8-bit signal input port, it simplifies the connection of DUT. When connecting to square pins, UT-M15 can be connected directly to 8x2 square pins 2.54 mm
Logic analyzer probe UT-M15 has great electrical features, the input impedance is 101 Ω±1%, but the capacitive load is only 9.0 pF

Function/Arbitrary Waveform Generator (Option)

50 MHz equivalent performance dual channel output
Sampling rate: 250 MSa/s
Vertical resolution: 16-bit
Built-in multiple standard waves: Sine, square, pulse, ramp, arbitrary, noise, and DC
AM, FM, ASK, FSK, and sweep output

Spectrum Analyzer

Standard enhanced FFT, up to 4 Mpts, 4 channels signal analysis
Frequency range: 0 Hz to 1.25 GHz
Waterfall curve
4 traces and 4 detections
Mark type: Auto, manual, and threshold
Marker point list

Digital Voltmeter

4-digit voltmeter
DC/ACRMS/AC+DCRMS
Limit alarm

High-Precision Frequency Counter

7-digit hardware frequency counter
Adjustable frequency counter refresh time and effective digit
Totalizer

Bode Plot Analyzer

Included with Function/Arbitrary Waveform Generator option
Frequency response analysis
Loop stability analysis
Filter analysis
Amplifier analysis

Protocol Analyzer

9 kinds of trigger protocol and decoding, including computer serial bus, embedded serial bus, automobile, aerospace, and audio
Decoding can be operated in the pause and record modes
Event list and search function

Power Analyzer (Option)

Power quality
Harmonic analysis
Safety operation area*
Ripple wave analysis
Loop analysis

* Power analysis support is subject to the latest firmware on the official website.

Feature	Specification
Model Number	MSO2104X
Scope Type	MSO
Bandwidth	100MHz
Channels	4Ch
Scope Sample Rate	5.0GSa/s
Memory Depth	100Mpts
Refresh Rate	2,000,000wfms/s
Vertical Scale @1MΩ	500μV/div to 10V/div
# Automatic Measurements	54
Included Bus Protocols	RS232 UART I2C SPI RS422 RS485
Optional Bus Protocols	CAN-FD FlexRay SENT Audio
Logic Pod Included	Optional
Signal Generator Function	Optional
Frequency Meter	7-bit
Display Size (in)	10.1in
Touchscreen	Yes
Warranty	3 years
Certifications	CE/cETLus/UKCA
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Oscilloscope probe (UT-P04)*4, BNC straight-through cable (UT-L45), BNC to alligator clip cable (UT-L02A)
Standard Accessories	Power cord, USB3.0 printing cable
