Design. Sourcing the bench supply for higher-current 60V power-electronics work is the first commit. 360 W at 60 V / 15 A with 1 mV / 0.1 mA resolution covers the envelope this work needs, with the four-wire sense and slope-controlled startup that DUT-protective work requires from the first turn-on. Programmable from the front panel or remotely — list mode, slope control, OVP/OCP, and DVM are first-class controls, not buried menu options.

Debug. At validation, the 4½-digit DVM and 512-group list mode replace a second DMM and an external sequencer. Capture power-up profiles, automate sweeps, and record DUT-side voltage drift while sourcing — without leaving the supply's front panel or rebuilding the test harness.

Deploy. Production go/no-go testing runs over LAN with SCPI, Multi-SCPI, or Modbus RTU. The web server gives a shared bench remote access without a host-software install. RS-485 multi-machine networking scales the station as the throughput requirement does. From first prototype to production verification — design, debug, deploy.

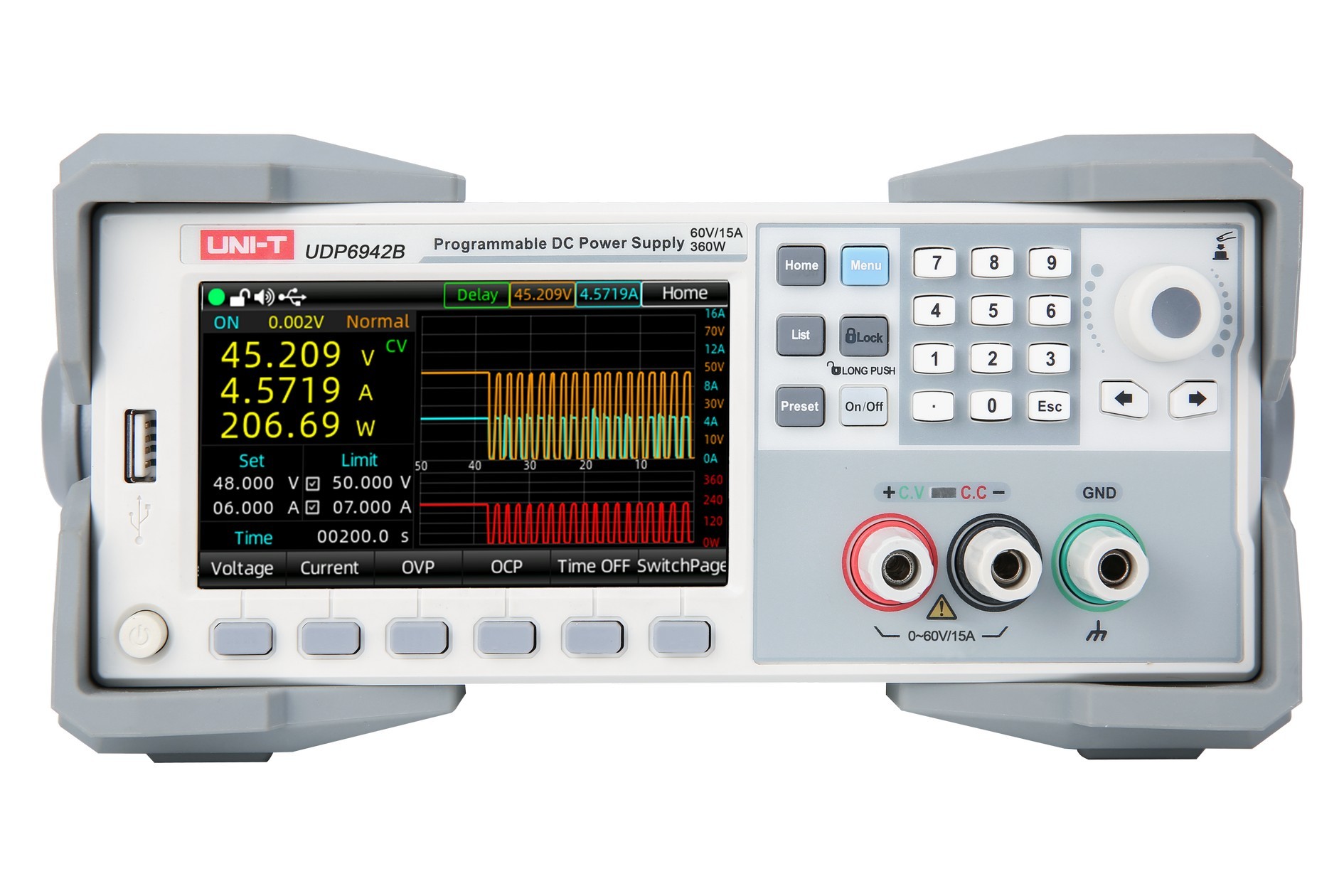

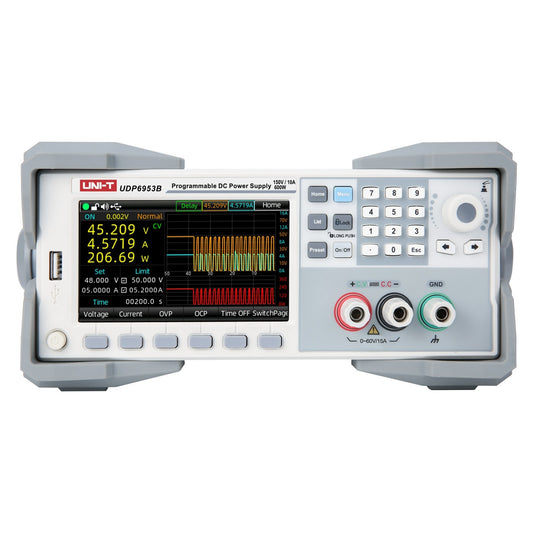

A 4.3-inch true color LCD shows set voltage and current alongside actual output values, with output power computed and displayed in real time. The numeric keypad sets values directly without menu diving; the rotary encoder fine-tunes when a small adjustment is faster than typing. Soft-keys map to the function actually in use — list mode, slope, OVP/OCP, or DVM — instead of burying them in nested menus. Output enable is a dedicated hardware button, always visible, never one click away from a keystroke mistake.

Long test leads drop voltage. At higher currents, the drop is no longer a rounding error — a 10 A draw across a meter of 16 AWG returns roughly 50 mV less to the load than the supply set. The UDP6900 series corrects for this with four-wire remote sense: connect the output's + and − terminals to the load through the current-carrying leads, then run a separate pair from S+ and S− directly to the device under test. The supply servo's regulation point shifts from its own terminals to the load's terminals — and the 1 V SENSE compensation headroom keeps the rail accurate where it actually matters.

Independent over-voltage and over-current thresholds, both set from the front panel. When either limit trips, the supply latches output off and posts the trigger on the LCD — the kind of unambiguous fault state that matters when a DUT failure during overnight characterization could otherwise damage hardware or lose a test run. Thresholds persist across power cycles and survive front-panel lock for unattended operation.

List mode programs up to 512 voltage/current/time groups, executed in sequence — useful for motor-drive bench setups where the supply walks through 12 V, 24 V, and 48 V system levels with controlled timing, for inductive load characterization with current-step profiles, or for solenoid-pulse reliability testing. The delay function programs output on/off sequencing for cycling tests. Files save to Flash or USB in .lst.csv and .dly.csv formats — Excel-editable.

Three configurable slope modes — Normal, Voltage Slope (VSR), and Current Slope (ISR). At 15 A continuous into inductive loads (motor windings, solenoid coils, transformer primaries), current-step transients can damage the DUT or trip the supply's OCP unnecessarily. ISR mode prevents both — ramping current at a configurable rate per second. VSR ramps voltage the same way for capacitive load startup.

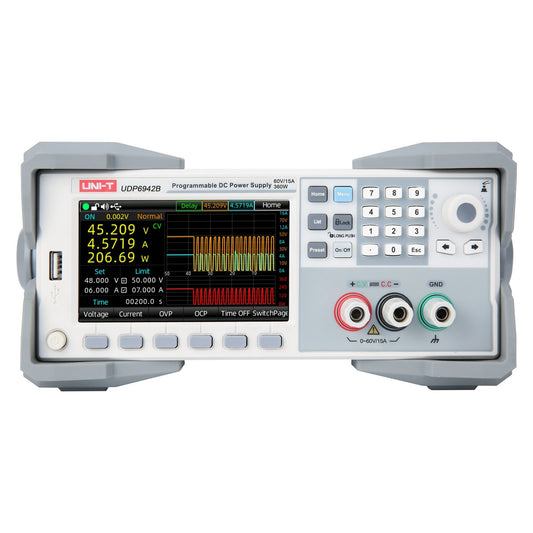

Within the 360 W envelope, the UDP6942B delivers 60 V at 6 A for high-side load testing, 15 A at 24 V for low-voltage motor drive prototyping, or any combination in between. The output reconfigures across the V/I plane through the rated power, not a hardware range switch — making a single supply cover what would otherwise need a two-supply bench for inductive load development.

A built-in 4½-digit voltmeter measures DC voltage on a separate rear-panel pair, displayed alongside the supply's own readbacks on the LCD. For a two-rail bench scenario — measuring the load's regulated DC at the same time the supply is sourcing it — the DVM eliminates a second instrument. Range is 0.001–65.000 V on the 60 V models, up to 160 V on the UDP6933B and UDP6953B.

The main menu structure is shallow by design. Five top-level sections — Monitor, System Settings, User Group, Output Settings, Language — each one or two presses from the front panel. Monitor displays live V/I/P/DVM with per-channel alarms when set conditions deviate. Output Settings configure operating mode, power-up output, and slope. System Settings hold backlight, sound, RS-232/network, and a factory-default restore. The menu hierarchy never exceeds two levels — depth defeats front-panel work, and the UDP6900 doesn't ask the operator to memorize trees.

The UDP6900 series ships with free PC control software — UNI-T's UDP9000 host application, common across the programmable PSU line. Set voltage and current remotely, log readbacks to disk, sequence list and delay programs, and automate complete characterization runs without writing a SCPI parser. For scripted environments, the supply speaks SCPI, Multi-SCPI, and Modbus RTU natively over USB-Device, RS-232, RS-485, or LAN — pick the bus that fits the test station.

RS-485 networking links multiple UDP6900 supplies to a single host. Master/slave configurations enable series-stack for higher voltage or parallel-stack for higher current — useful for multi-rail bench setups or when a single test station needs more total power than one chassis provides. One SCPI session, many supplies, synchronized output.
