UDP6731 360W Basic DC Switching Power Supply 80V/15A

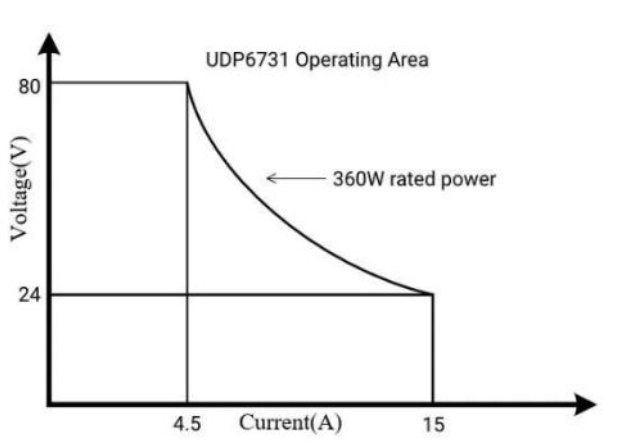

The UDP6700 series is a high-efficiency DC power supply with an impressive output power ratio of 3.0. Its flexible output range covers maximum voltage, current, and power, allowing one unit to replace several smaller power supplies, reducing overall equipment costs.

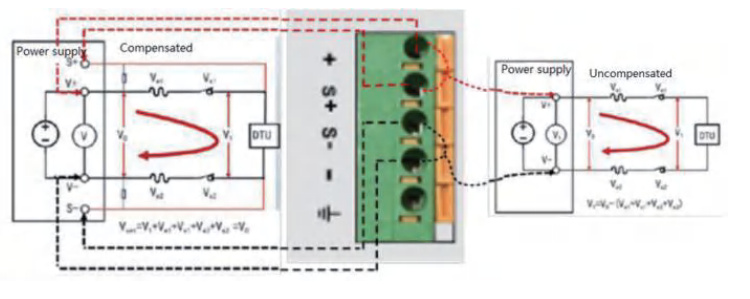

The UDP6700 series features remote compensation terminals (S+ and S-) for connecting directly to the load, ensuring accurate voltage measurements at the load end. This minimizes the impact of voltage drops over long-distance wires, providing reliable and precise testing results.

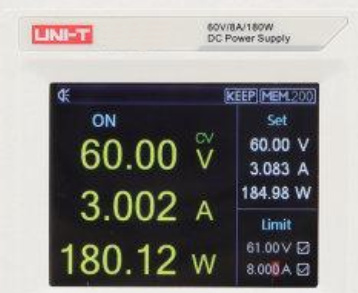

Equipped with a 2.8-inch full-color LCD display, the UDP6700 series offers a clear and detailed view of multiple parameters. It streamlines data monitoring, reducing the need for repetitive readings and enhancing user interaction by allowing customizable settings tailored to your needs.

With RS232 serial interface support and compatibility with the SCPI protocol, the UDP6700 series facilitates remote control and data management. The included PC software allows for easy configuration, monitoring, and statistical analysis, providing valuable insights into operational trends.

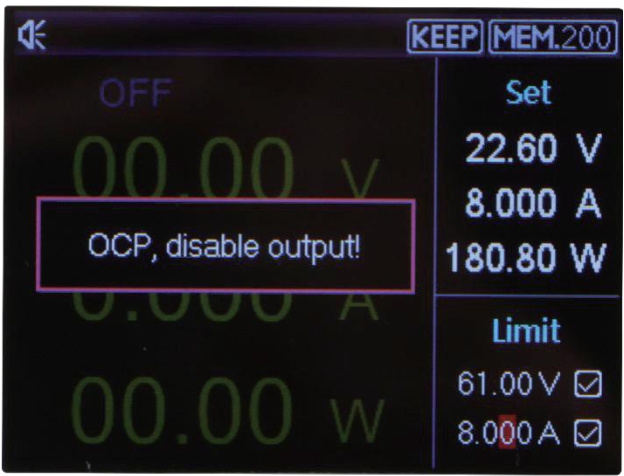

The power supply offers Over Voltage Protection (OVP) and Over Current Protection (OCP) settings, activated by pressing "V" and "A" for long durations. When enabled, these features trigger an alarm and shut off the output to safeguard connected equipment. The built-in intelligent fan adjusts based on system conditions, while Over Temperature Protection (OTP) engages when the instrument overheats, ensuring system longevity.

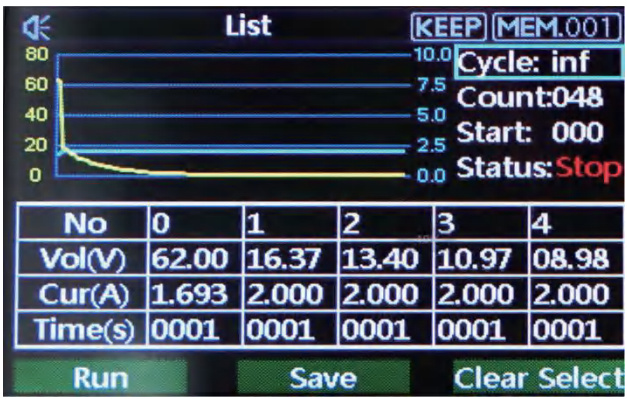

The UDP6700 series includes list and delayer functions, supporting up to 48 editable points. This allows for automatic measurements and customized power delays, enhancing automation for more efficient operations.

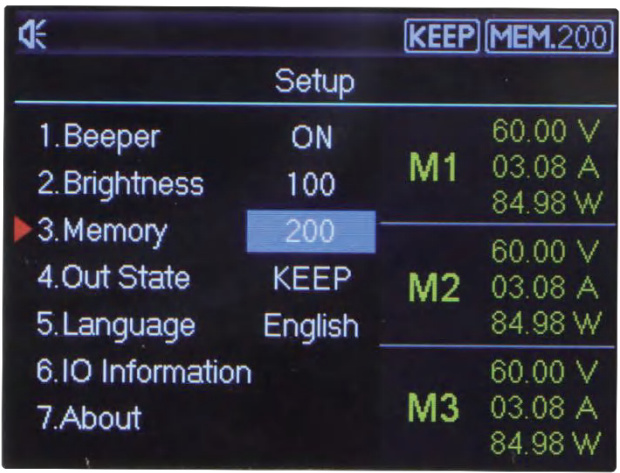

With 600 memory groups (200 in each M1, M2, and M3), the UDP6700 series offers extensive storage for diverse user settings, speeding up configuration and ensuring quick access to frequently used setups.
