MSO3054X | 500 MHz 4Ch Nine-in-One Oscilloscope

MSO3054X | 500 MHz 4Ch Nine-in-One Oscilloscope

$3,599.00
$3,599.00
Sale Sold out
Shipping calculated at checkout.

10 in stock

500 MHz 4-channel mixed signal oscilloscope with 5 GSa/s sample rate, 500 Mpts memory depth. Versatile nine-in-one platform for engineering, production, and field applications.

View full details

MSO3054X | 500 MHz 4Ch Nine-in-One Oscilloscope

Overview

The MSO3054X is a 500 MHz 4-channel nine-in-one oscilloscope platform that integrates a digital oscilloscope, spectrum analyzer, protocol analyzer, arbitrary waveform generator, digital voltmeter, frequency counter, Bode plot analyzer, power analyzer, and pattern generator into a single 10.1-inch touchscreen instrument. It samples at 5 GSa/s with 500 Mpts memory depth and captures waveforms at up to 2,000,000 wfms/s using Ultra Phosphor 3.0 display technology.

Embedded serial protocols (RS-232, UART, I²C, SPI, RS-422, RS-485) are included standard. Automotive protocols (CAN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester) and the AWG, logic analyzer, and power analysis functions are available as optional software licenses.

MSO3000X nine-in-one instrument integration
Nine instruments in one platform
× MSO3000X nine-in-one instrument integration Nine instruments in one platform

Key Features

  • 500 MHz Bandwidth, 4 Analog Channels — Four-channel capture at up to 500 MHz with 5 GSa/s sample rate.
  • 500 Mpts Memory Depth — Deep memory for capturing long signal records without reducing sample rate.
  • 2,000,000 wfms/s Capture Rate — Ultra Phosphor 3.0 display reveals rare glitches, runts, and timing violations.
  • Nine-in-One Integration — Oscilloscope, spectrum analyzer, protocol analyzer, AWG, DVM, frequency counter, Bode plot, power analyzer, and pattern generator.
  • Included Protocol Decoding — RS-232, UART, I²C, SPI, RS-422, RS-485 — included at no additional cost.
  • Optional Protocols — CAN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester available as software licenses.
  • Optional Logic Analyzer — Add 16 digital channels with the UT-M15 logic probe pod.
  • Optional AWG — Dual-channel 25 MHz arbitrary waveform generator for stimulus-response testing.
  • Zone Trigger — Draw a region on screen to trigger when a waveform enters or exits it.
  • 54 Automated Measurements — Time, voltage, frequency, and statistical measurements with real-time tracking.
  • 10.1-inch Capacitive Touchscreen — Multi-gesture navigation with multi-window layout support.
  • Connectivity — USB 3.0, LAN, HDMI, AUX, Gen Out ×2, 10 MHz In/Out.

High-Speed Oscilloscope Engine

The 5 GSa/s sample rate and 500 Mpts memory maintain full waveform fidelity across the 500 MHz bandwidth. The 2,000,000 wfms/s capture rate is among the fastest available, increasing the probability of catching rare anomalies that slower scopes miss. Ultra Phosphor 3.0 uses intensity grading to show signal frequency of occurrence — frequent signals appear brighter, making it intuitive to distinguish normal behavior from intermittent faults.

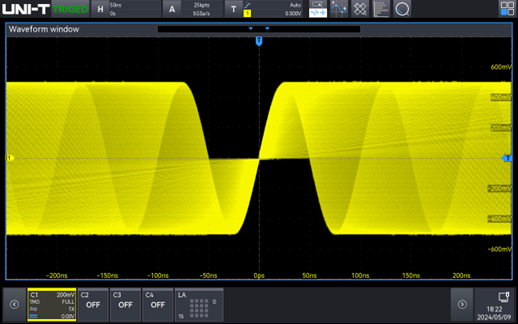

MSO X-series oscilloscope display
High-speed oscilloscope with 2,000,000 wfms/s capture rate
× MSO X-series oscilloscope display High-speed oscilloscope with 2,000,000 wfms/s capture rate

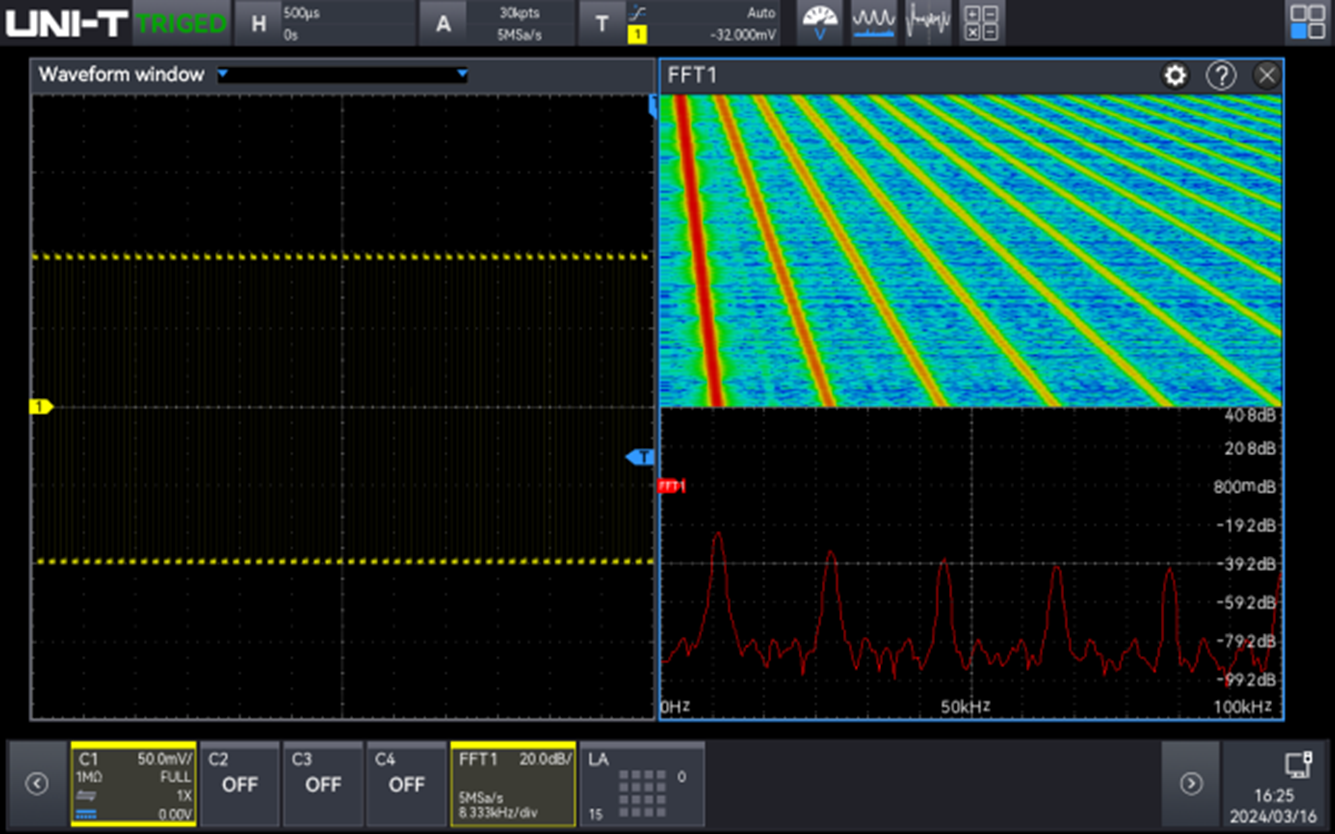

MSO X-series spectrum analyzer mode
Built-in spectrum analyzer with peak table and markers

Built-In Spectrum Analyzer

Switch to frequency domain analysis at the push of a button. The spectrum analyzer provides FFT-based spectral measurement with peak table, markers, and channel power calculations. Use it to identify harmonics, characterize EMI, verify clock signal purity, or analyze modulated signals — all without an external instrument.

× MSO X-series spectrum analyzer mode Built-in spectrum analyzer with peak table and markers

Protocol Analysis and Decoding

The MSO3054X includes RS-232, UART, I²C, SPI, RS-422, RS-485 decoding standard — decoded frames display directly on waveform traces with field-level annotation for immediate correlation between protocol events and analog signal behavior. Additional protocols (CAN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester) are available as optional software licenses.

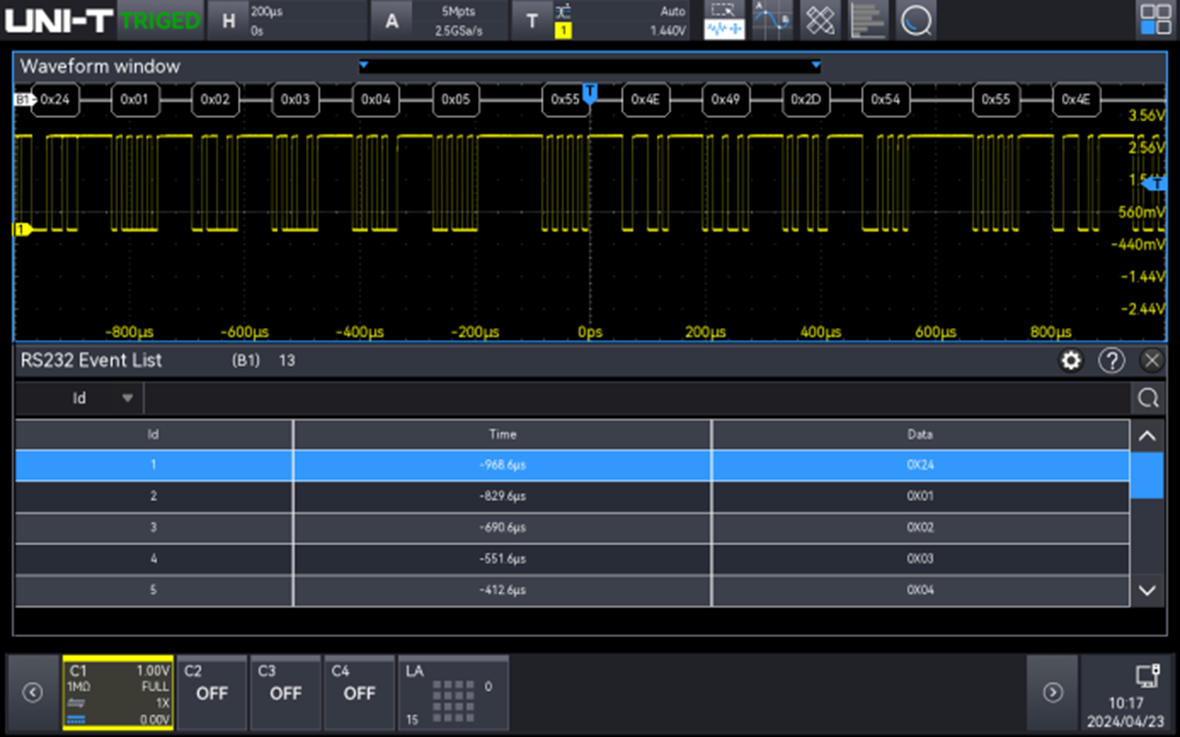

MSO X-series protocol analysis
Serial bus decode with waveform-correlated frame display
× MSO X-series protocol analysis Serial bus decode with waveform-correlated frame display

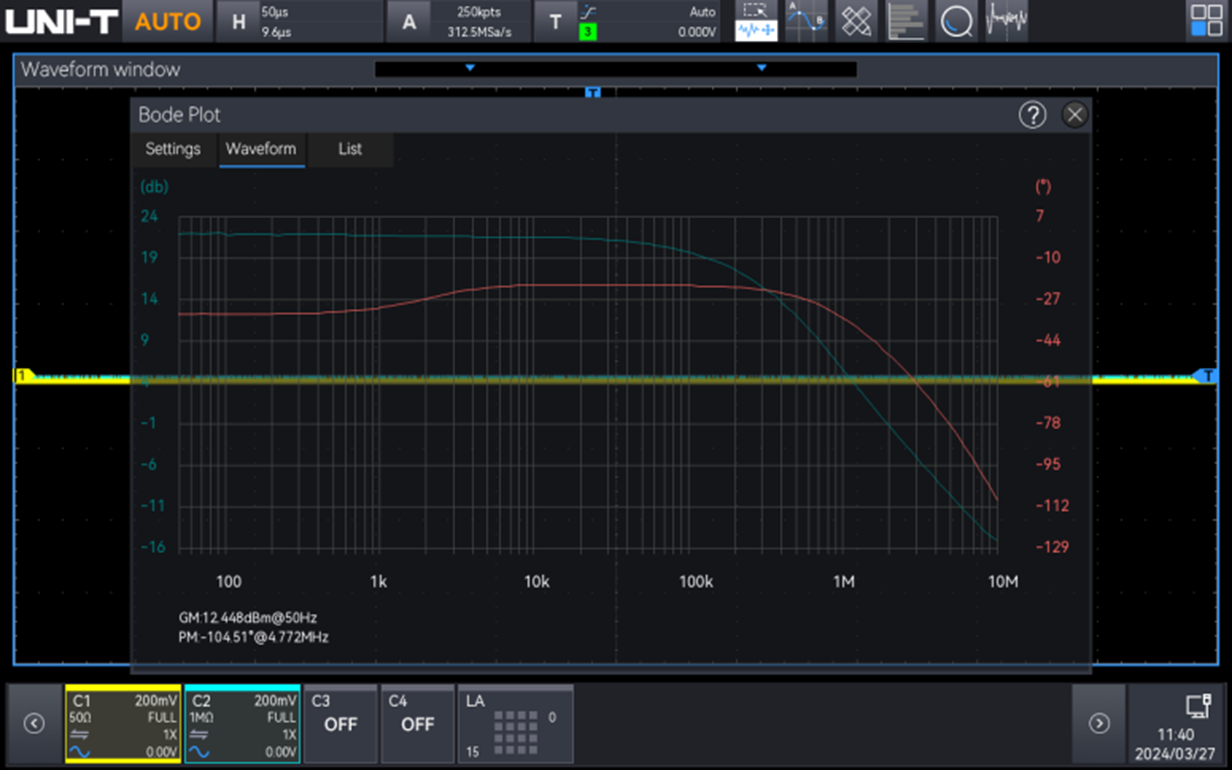

MSO X-series Bode plot analysis
Bode plot for control loop and filter characterization

Bode Plot Analysis

Automated frequency response measurement sweeps a signal source across a frequency range while measuring gain and phase. The result is a Bode plot displayed directly on screen — essential for characterizing power supply control loops, verifying filter rolloff, and measuring amplifier bandwidth. Requires the optional AWG or an external signal source.

× MSO X-series Bode plot analysis Bode plot for control loop and filter characterization

Optional Power Analysis

The power analysis option adds automated switching loss measurement, safe operating area (SOA) visualization, ripple analysis, harmonics and THD measurement, and efficiency calculation. These functions turn the oscilloscope into a power analysis workstation for engineers designing switching power supplies, DC-DC converters, and motor drives.

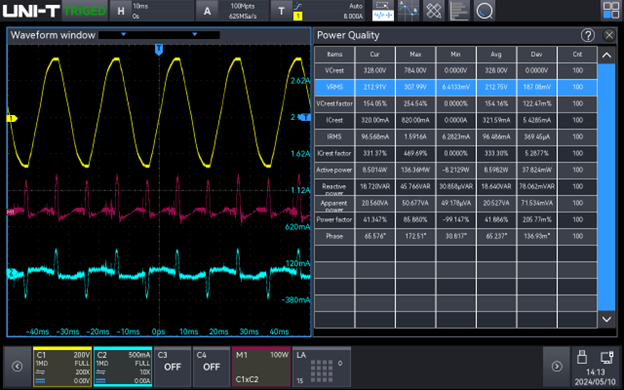

MSO X-series power analysis
Optional power analysis: switching loss, SOA, harmonics, ripple
× MSO X-series power analysis Optional power analysis: switching loss, SOA, harmonics, ripple

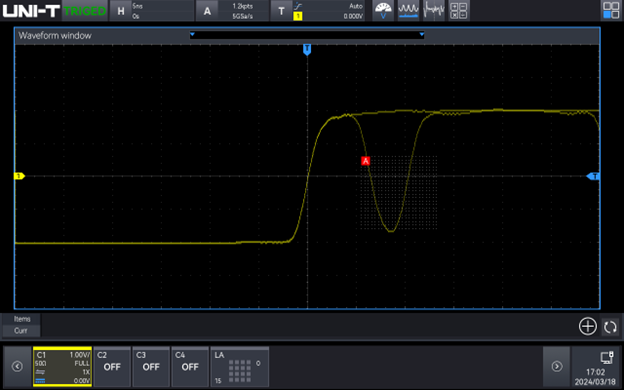

MSO X-series zone trigger
Zone trigger for isolating anomalies by drawing a region on screen

Zone Trigger

Draw a region on the display and trigger when a waveform enters or exits it. Combined with edge, pulse width, slope, runt, video, pattern, and serial protocol triggers, you can isolate virtually any signal condition in complex circuits.

× MSO X-series zone trigger Zone trigger for isolating anomalies by drawing a region on screen

Professional Applications

  • Embedded Systems Development — Correlate analog signals with decoded serial bus traffic. Included protocols cover the most common embedded interfaces; automotive protocols available as upgrades.
  • Power Electronics — Characterize switching behavior with deep memory, analyze control loop stability with Bode plot, and quantify losses with optional power analysis.
  • RF and Communications — Built-in spectrum analyzer for signal characterization, EMI troubleshooting, and modulation analysis.
  • Education and Research — Nine-in-one integration reduces equipment count and cost for teaching labs and research workstations.

Frequently Asked Questions

What protocols are included standard?

RS-232, UART, I²C, SPI, RS-422, RS-485 decoding is included at no additional cost. CAN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester are available as optional software licenses.

Is the AWG included?

No. The arbitrary waveform generator is an optional software license. Once activated, it provides dual-channel 25 MHz output from the Gen Out connectors on the rear panel.

Can I add digital (logic) channels?

Yes. The UT-M15 logic probe pod adds 16 digital channels. You also need the logic analyzer software license for your series.

How does the MSO3000X compare to the other X-series?

The MSO2000X offers 100 Mpts memory at a lower price point. The MSO3000X doubles that to 500 Mpts and adds aerospace/MIL protocol options. The MSO7000X provides 10 GSa/s, 1 Gpts, a 15.6-inch display, and optional jitter/eye analysis for high-speed digital design.

Part of the MSO3000X oscilloscope series. For a more economical option, see the MSO2000X (100 Mpts). For maximum performance, see the MSO7000X (10 GSa/s, 1 Gpts).

Warranty

This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.

The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.
