UT-RB60 VSWR Bridge - Reflection Measurement Solution

Expand Your UTS3000T+ Series Capabilities

The UT-RB60 VSWR Bridge is the essential accessory for engineers and technicians who need accurate reflection measurements with their UTS3000T+ Series spectrum analyzers. This precision instrument transforms your spectrum analyzer into a comprehensive reflection measurement system, enabling critical antenna and transmission line analysis across the entire UTS3000T+ product family.

Key Features

Wide Frequency Coverage

Operating Range: DC to 6 GHz
Compatible with the complete UTS3000T+ series:
- UTS3015T+ (9 kHz to 1.5 GHz)
- UTS3032T+ (9 kHz to 3.2 GHz)
- UTS3036T+ (9 kHz to 3.6 GHz)
- UTS3084T+ (9 kHz to 8.4 GHz)
Covers all major communication bands including cellular, WiFi, Bluetooth, and emerging 5G/6G frequencies

Precision Measurement Capabilities

VSWR (Voltage Standing Wave Ratio) measurement
Return Loss analysis
Reflection Coefficient determination
High accuracy across the entire frequency range

Professional Build Quality

Robust construction for laboratory and field use
Type-N connectors for reliable, low-loss connections
50Ω impedance matching for standard RF systems
Compact, portable design for on-site measurements

Applications

Antenna Testing & Optimization

Measure antenna VSWR across operating bandwidth
Identify resonant frequencies and bandwidth characteristics
Optimize antenna matching for maximum power transfer

Transmission Line Analysis

Verify cable integrity and performance
Locate impedance discontinuities
Assess connector quality and installation

RF System Validation

Component matching verification
Filter and amplifier input/output characterization
Quality control in manufacturing environments

Technical Advantages

Seamless Integration

The UT-RB60 works directly with your UTS3000T+ series analyzer's built-in reflection measurement functions. Simply connect the bridge between your spectrum analyzer and the device under test - no complex setup required.

Advanced Measurement Features

Leverage up to 40,001 sweep points (UTS3000A/UTS3036T+/UTS3084T+ models) for high-resolution analysis
Multi-touch HD control on 10.1-inch capacitive display for intuitive operation
Real-time visualization with multiple trace types and detection modes
Advanced triggering capabilities for capturing intermittent reflections

Cost-Effective Solution

Eliminate the need for expensive dedicated VSWR meters. The UT-RB60 bridge leverages your existing spectrum analyzer investment to provide professional-grade reflection measurements at a fraction of the cost.

System Requirements

Compatible Models: All UTS3000T+ Series Spectrum Analyzers
- UTS3015T+ (9 kHz to 1.5 GHz)
- UTS3032T+ (9 kHz to 3.2 GHz)
- UTS3036T+ (9 kHz to 3.6 GHz)
- UTS3084T+ (9 kHz to 8.4 GHz)
Frequency Range: DC to 6 GHz (bridge limitation)
Impedance: 50Ω nominal
Connectors: Type-N female

What's Included

UT-RB60 VSWR Bridge
Comprehensive user manual with measurement procedures
Calibration guidelines for optimal accuracy

Why Choose the UT-RB60?

Professional Results: Achieve laboratory-grade reflection measurements with your portable spectrum analyzer setup.

Versatile Applications: From antenna development to production testing, the UT-RB60 handles diverse measurement requirements.

Proven Reliability: Built to UNI-T's exacting standards, ensuring consistent performance in demanding environments.

Future-Proof Investment: 6 GHz coverage supports current wireless technologies including WiFi 6E, and provides compatibility across the entire UTS3000T+ analyzer family.

Important Frequency Considerations

Note: While the UT-RB60 bridge operates up to 6 GHz, it can be used with higher-frequency analyzers like the UTS3084T+ (8.4 GHz). For measurements above 6 GHz, the bridge becomes the limiting factor, making it ideal for most commercial wireless applications while maintaining compatibility across the entire UTS3000T+ family.

Transform your UTS3000T+ spectrum analyzer into a complete RF test solution. The UT-RB60 VSWR Bridge delivers the precision reflection measurements you need for professional antenna and transmission line analysis.

Ready to enhance your RF measurement capabilities? Add the UT-RB60 VSWR Bridge to your test equipment arsenal today.

Country/region

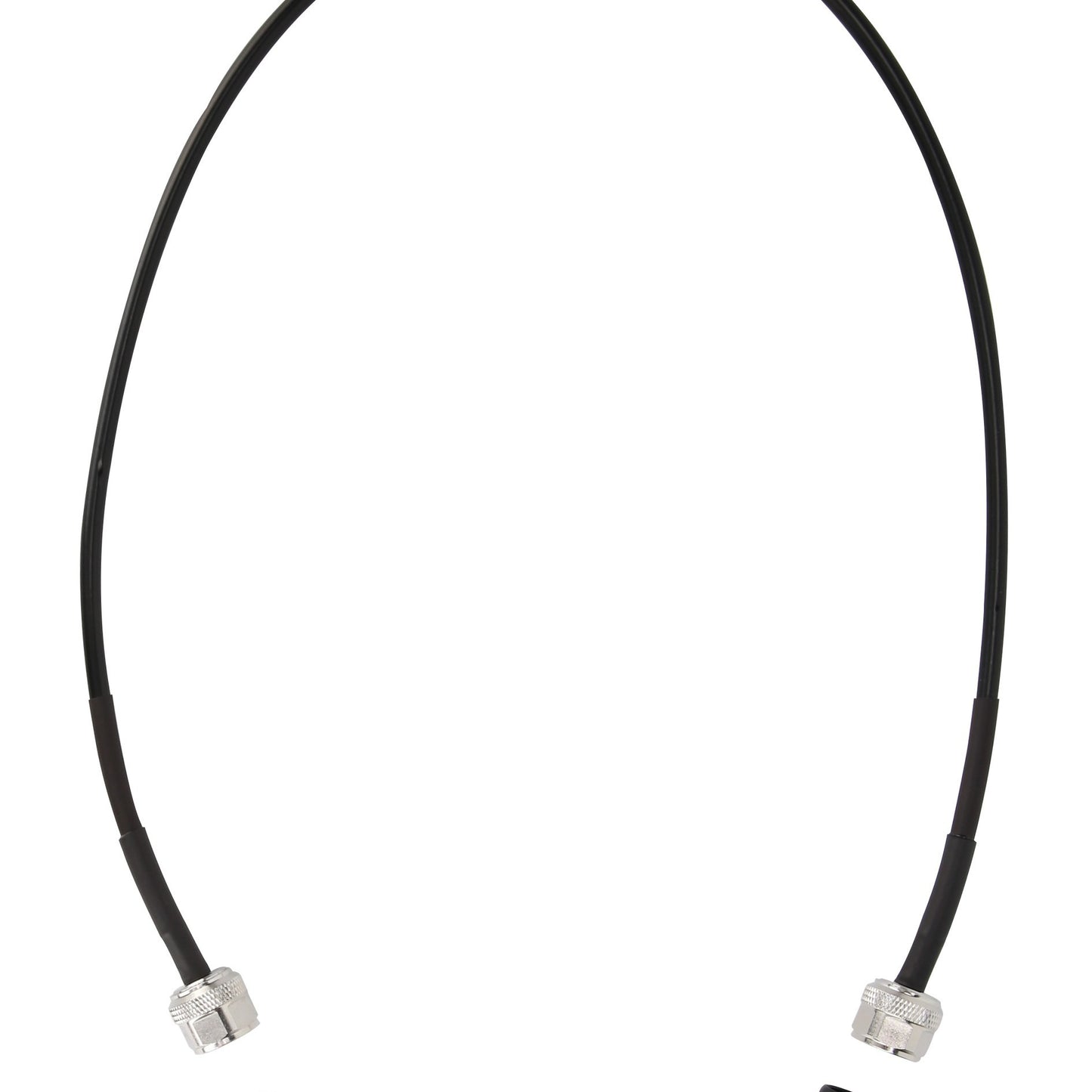

UT-W01-6GHz N-N RF Cable
