UT8803E 3.8 Digit Classic-Series Bench Digital Multimeter

UT8803E 3.8 Digit Classic-Series Bench Digital Multimeter
UT8803E 3.8 Digit Classic-Series Bench Digital Multimeter
Uni-T UT8803E 3.8 Digit Classic-Series Bench Digital Multimeter Isometric Image
Uni-T UT8803E 3.8 Digit Classic-Series Bench Digital Multimeter Back Image
UT8803E 3.8 Digit Classic-Series Bench Digital Multimeter
approvals
Benchtop multimeter for the engineering or R&D team with 3.8 digit display
3.8
Digits
3 rdgs/s
Fastest Test Rate
100Khz
Frequency Response
0.30%
DC Voltage Accuracy
true
Auto Ranging
true
TRMS
$168.00
Save {price}% Contact Us for Lead Time

26 items in stock

Register today for a 10% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

UNI-T UT8803E: Your Ultimate Digital Multimeter Solution

Are you in search of a cutting-edge digital multimeter that combines precision, versatility, and automation? Look no further than the UNI-T UT8803E. This automatic range, portable desktop multimeter is designed to meet the demands of modern electrical testing. With its superior features and high-performance capabilities, it's the ideal instrument for a wide range of applications in the field of electrical engineering.

UNI-T UT8803E Counts
UNI-T UT8803E Counts

UNI-T UT8803E Key Specifications:

  • DC Voltage Range: 600mV to 1000V
  • DC Current Range: 600µA to 20A
  • AC Voltage Range (True-RMS): 600mV to 750V
  • AC Current Range (True-RMS): 600µA to 20A
  • Resistance Range: 600Ω to 60MΩ
  • Capacitance Range: 6nF to 60mF
  • Inductance Range: 600µH to 100H
  • Frequency Measurement Range: 600Hz to 20MHz
  • Duty Cycle Measurement Range: 5% to 95%
  • Temperature Range: -40°F to 1832°F

Key Features:

  • Comprehensive Measurement Capability: The UNI-T UT8803E boasts an impressive array of testing functions, including AC/DC voltage, AC/DC current, resistance, frequency, capacitance, inductance, diodes (LED), thyristors (SCR), and more. It's the universal testing solution that simplifies complex measurements and caters to the diverse needs of users.

    Electrical Engineering Application: Utilize this multimeter to measure voltage and current in AC/DC circuits, assess resistance and capacitance values, and even analyze inductance in electronic components.

UNI-T UT8803E Measurements
UNI-T UT8803E Measurements
  • High-Resolution Display: With its 3⅚ digital display (5999 counts), the UNI-T UT8803E provides high-precision and accurate result displays, ensuring that you receive dependable measurements. The intuitive simulation bar enhances the visibility of measurement results, making your work more efficient.

    Electrical Engineering Application: Achieve precision and reliability in your measurements, allowing you to make informed decisions in your projects.

  • Extreme Value and Reference Value Functions: The UNI-T UT8803E is equipped with maximum and minimum value statistics functions, making it effortless to identify peak outputs in batch production or multiple measurements. Additionally, the reference value mode enables you to set test reference values based on error or deviation, providing you with valuable insights into measurement accuracy.

    Electrical Engineering Application: Easily spot maximum and minimum values in complex systems and fine-tune measurements for greater accuracy.

  • D/Q Parameters Measurement: This digital multimeter goes a step further by allowing you to measure D/Q parameters of capacitance and inductance. Simply press the EQR key during capacitance or inductance measurements to view these parameters, offering valuable reference information.

    Electrical Engineering Application: Assess the quality and performance of capacitors and inductors with precision.

UNI-T UT8803E Analog
UNI-T UT8803E Analog
  • Triode/Thyristor Measurement: The UNI-T UT8803E facilitates the measurement of triode and thyristor characteristics with the assistance of the UT-S03A fixture. This feature streamlines the process and ensures accurate assessment, helping you identify reliable components.

    Electrical Engineering Application: Evaluate the behavior of triodes and thyristors for optimal circuit design and functionality.

  • Remote Viewing Capabilities: Connect the UNI-T UT8803E to your computer and install the driver software to enjoy remote viewing. This innovative feature allows you to monitor historical data and trend charts in real-time, even when you're not physically present in the lab.

    Electrical Engineering Application: Stay connected to your experiments and projects, monitoring critical data from anywhere, and making informed decisions remotely.

UNI-T UT8803E Inductance
UNI-T UT8803E Inductance

Don't miss out on the UNI-T UT8803E, the ultimate solution for professionals seeking precision, versatility, and automation in their measurements. Elevate your electrical testing capabilities and ensure the success of your projects. Act now and make the UNI-T UT8803E an essential part of your toolkit. Purchase yours today!

Feature Specification
Model Number UT8803E
Digits 3.8
Count 5,999
Ranging true
TRMS true
Accuracy 0.30%
Display Size (in) 4.3in
Touchscreen No
Warranty 3 years
Product Dimensions (L x W x H) 13 in x 5 in x 11 in
Product Weight 7 lb
Certifications CE/cETLus
Documents English download guide, multi-language safety manual, calibration report (COC), UT8800 series safety instructions attachment

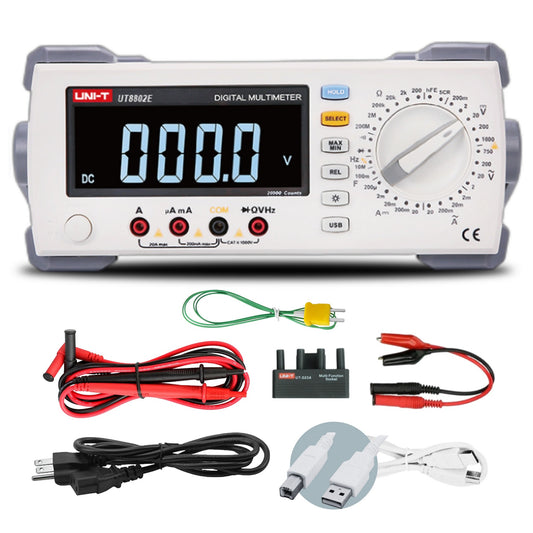

Included Accessories USB printing cable, UT-L41 alligator clip short test cable, multimeter test leads, K-type thermocouple, adapter socket UT-S03A
Standard Accessories Power cord
approvals

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
A
A. Grubbs
Got it! (can't edit my initial comment)

After cleaning up some confusion on shipping address, my meter arrived and is on my bench and in use . The short time I have had it, it works well for me. I like the large size of the display for use on the bench because it can be placed up on the shelf, out of the way, keeping bench work area less cluttered. I bought this to replace a battery powered DMM used on my bench for 2 reasons, the ease of reading, and to not worry about a meter needing battery replacement and the battery leakage (seems to be more often these days) in the meter.

Hi Austin.

I sent you an email regarding our mistake. Hamvention was very busy and I made a mistake with your order. Your order will be shipping shortly.

I hope you will update your review on the unit, since your review was really about me and not the instrument. I truly get it.

Regards,

Pete

P
Patric Mears
Nice meter but bulky

This is a nice, well made multimeter but seems very bulky, A compact bench multimeter would be just the ticket. This one is very deep and takes a lot of bench space.

Hello there! Thank you for your feedback on our UT8803E 3.8 Digit Classic-Series Bench Digital Multimeter. We're glad to hear that you find it to be a nice and well-made product. We understand your concern about its size and we'll definitely take it into consideration for future improvements. Thank you for your suggestion and have a great day!
