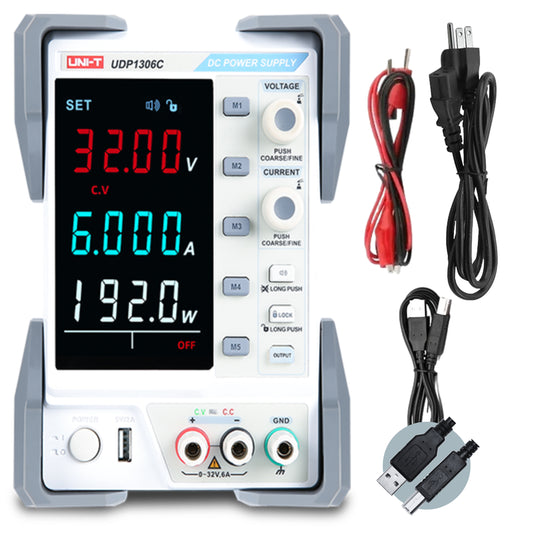

UDP1306C 1Ch Value-Series Linear DC Power Supply

UDP1306C 1Ch Value-Series Linear DC Power Supply
UDP1306C 1Ch Value-Series Linear DC Power Supply
Uni-T UDP1306C 1Ch Value-Series Linear DC Power Supply Isometric Image
Uni-T UDP1306C 1Ch Value-Series Linear DC Power Supply Back Image
UDP1306C 1Ch Value-Series Linear DC Power Supply
UDP1306C 1Ch Value-Series Linear DC Power Supply
UDP1306C 1Ch Value-Series Linear DC Power Supply
Uni-T UDP1306C 1Ch Value-Series Linear DC Power Supply Isometric Image
Uni-T UDP1306C 1Ch Value-Series Linear DC Power Supply Back Image
UDP1306C 1Ch Value-Series Linear DC Power Supply
approvals
An affordable, single-channel linear DC power supply
DC Linear
Type
 1Ch
Channels
202W
Total Power
 32V
Output Voltage
6A
Output Current
 10mV/1mA
Resolution
$229.00
Save {price}%

26 items in stock

Includes 5-Year Warranty*

(click for details) 3 years standard warranty. Get 2 free years when you register your instrument!
Register today for a 10% EDU Discount
Find a Distributor

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

UDP1000-Output

32V/6A Output

Maximum output voltage: 32V Maximum current: 6A Voltage/current display resolution: 10mV/1mA

OVP/OCP/OTP Protection

The user can set the limit of over-voltage/over-current/over-temperature protection. When over-voltage/over-current occurs or the internal heat sink reaches about 212°F (100°C), the power supply will automatically shut down the output and give a prompt message.

UDP1000-Protection
UDP1000-Recall

Five sets of settings to save and recall

M1–M5 five groups of stored values, long press to store, short press to recall, convenient for test work.

Interface function

Remote control DIGITAL I/O interface. Can realize remote control of the output and shutdown of the power supply channel. RS-232 interface, USB Device port, based on SCPI communication command, can communicate with computer.

UDP1000-Interface
Feature Specification
Model Number UDP1306C
Channels 1Ch
Power Supply Type DC Linear
Max V DC 32V
Max A DC 6A
Watts 202W
Max V Resolution 10mV
Max A Resolution 1mA
Programmable true
Max A DC 6A
Max A Resolution 1mA
Touchscreen No
Warranty 3 years
Product Dimensions (L x W x H) 5 in x 13 in x 8 in
Product Weight 17 lb
Certifications CE/cTUVus
Documents English download guide, multi-language safety manual, calibration report (COC)
Included Accessories USB2.0 printing cable, alligator clip test cable (red + black)*2
Standard Accessories Power cord
approvals
DATA SHEETS and MANUALS
Click here to download UDP1306C documents
SOFTWARE/FIRMWARE DOWNLOADS
Click here to download UDP1306C Software and/or Firmware updates
