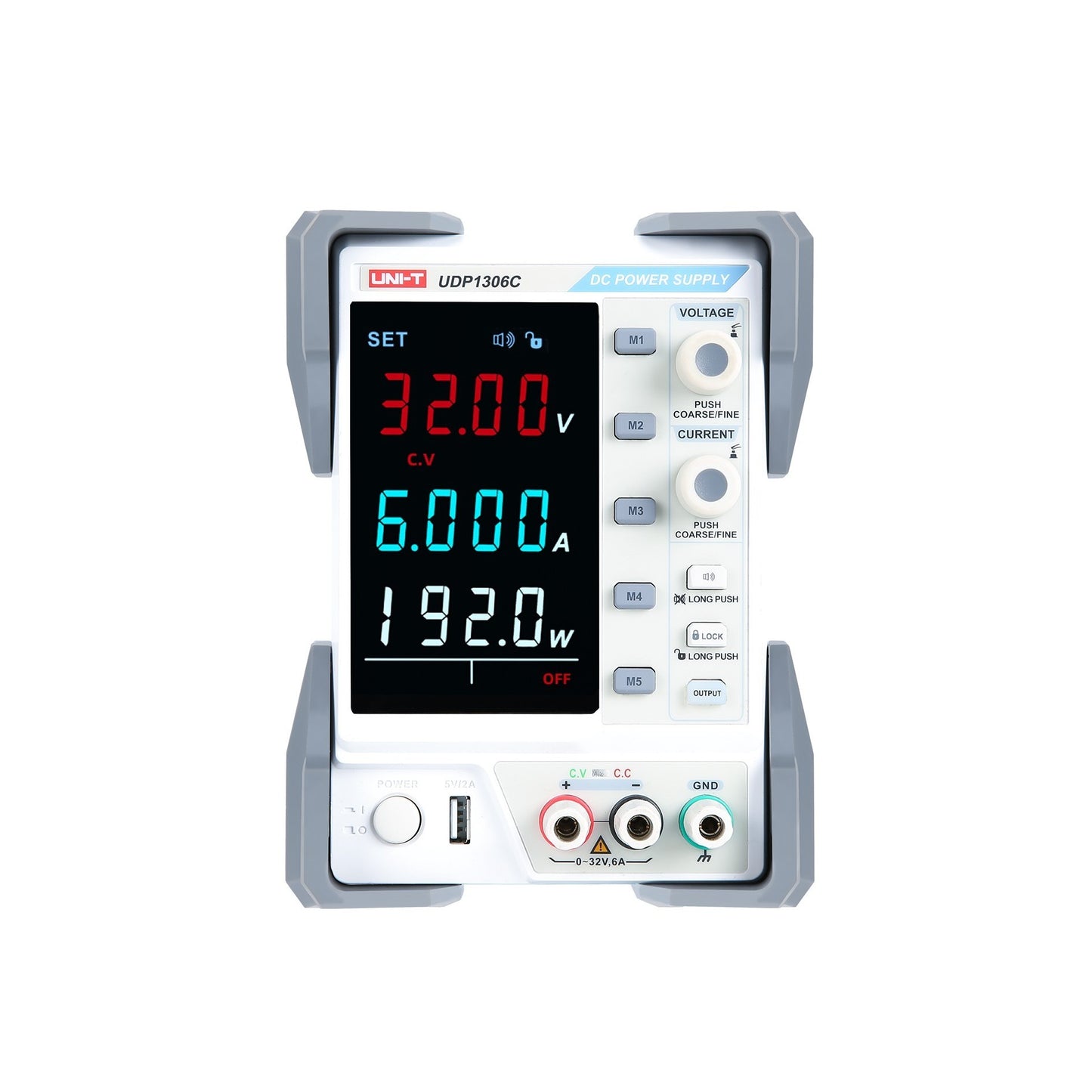

UDP1306C 1Ch Value-Series Linear DC Power Supply

UDP1306C 1Ch Value-Series Linear DC Power Supply

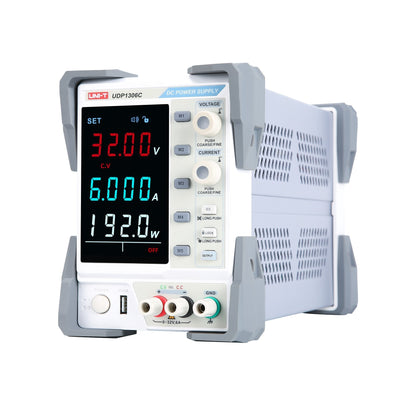

Uni-T UDP1306C 1Ch Value-Series Linear DC Power Supply Isometric Image

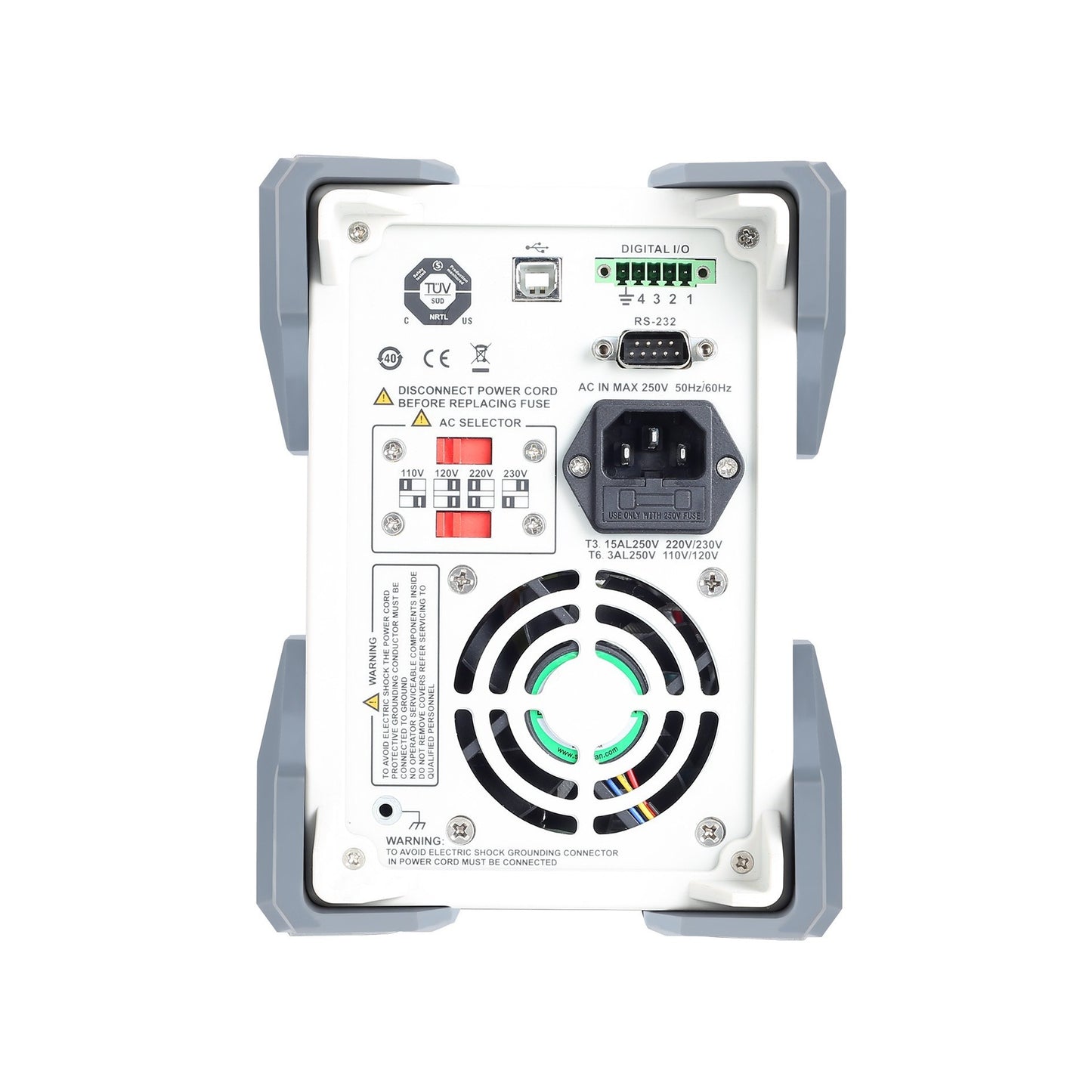

Uni-T UDP1306C 1Ch Value-Series Linear DC Power Supply Back Image
UDP1306C 1Ch Value-Series Linear DC Power Supply
approvals
$229.00
Save {price}%

26 items in stock

Description

An affordable, single-channel linear DC power supply

Top Specifications

1Ch, 0~32V/0~6A, Resolution: 10mV/1mA, Watts: 192W, Accuracy: <0.5%+20mV/<0.5%+10mA, USB/RS232
Register for up to 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

UDP1000-Output

32V/6A Output

Maximum output voltage: 32V Maximum current: 6A Voltage/current display resolution: 10mV/1mA

OVP/OCP/OTP Protection

The user can set the limit of over-voltage/over-current/over-temperature protection. When over-voltage/over-current occurs or the internal heat sink reaches about 212°F (100°C), the power supply will automatically shut down the output and give a prompt message.

UDP1000-Protection
UDP1000-Recall

Five sets of settings to save and recall

M1~M5 five groups of stored values, long press to store, short press to recall, convenient for test work.

Interface function

Remote control DIGITAL I/O interface. Can realize remote control of the output and shutdown of the power supply channel. RS-232 interface, USB Device port, based on SCPI communication command, can communicate with computer.

UDP1000-Interface
FeatureSpecification
Model Number UDP1306C
Channels 1Ch
Max V DC 32VDC
Max A DC 6A
Watts 202W
Max V Resolution 10mV
Max A Resolution 1mA
Programmable true
Warranty 3 years
Shipping Dimmensions (L x W x H) 20 in x 11 in x 13 in
Shipping Weight 21 lb
Documents English download guide, multi-language safety manual, calibration report (COC)

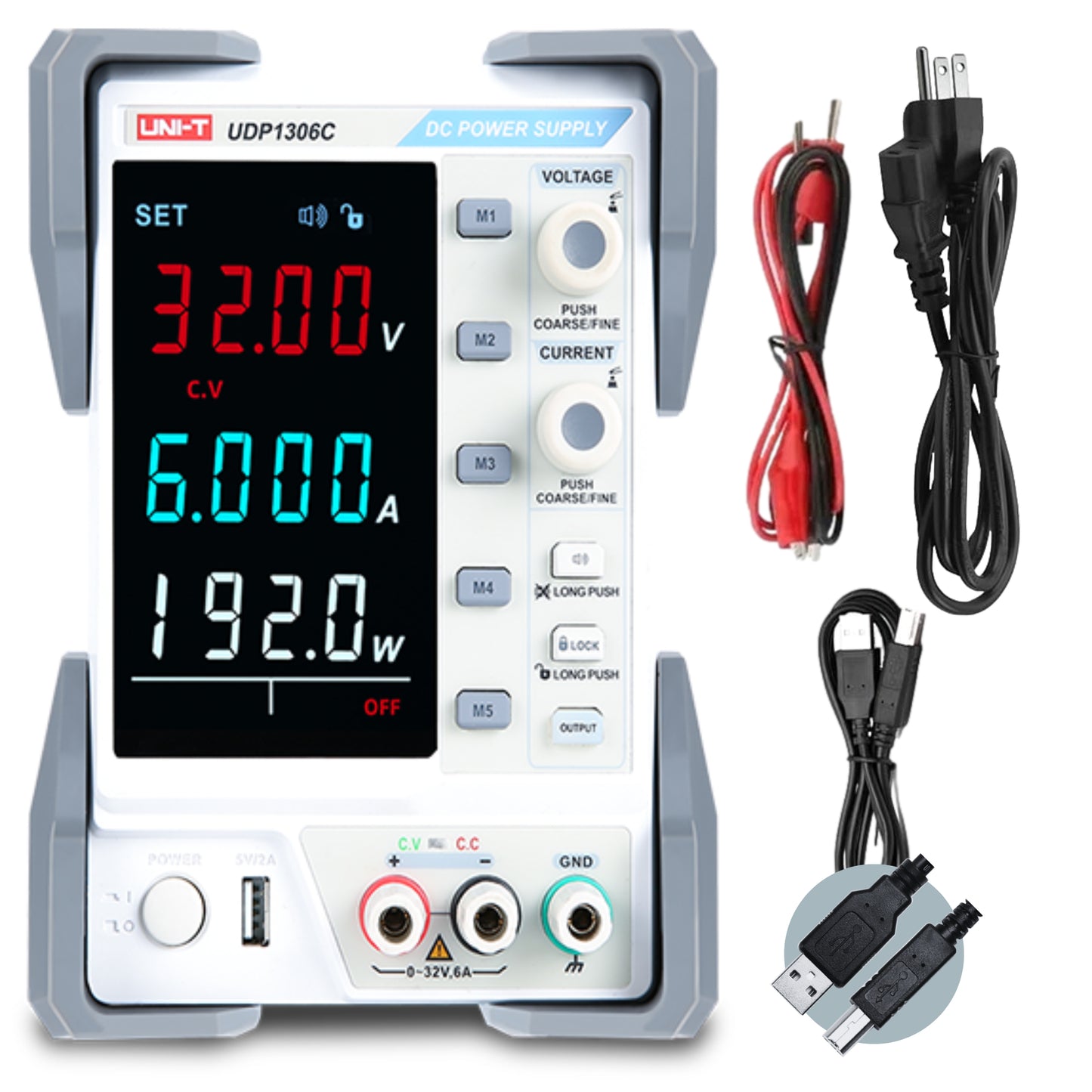

Included Accessories Power cord, USB2.0 printing cable, alligator clip test cable (red + black)*2
