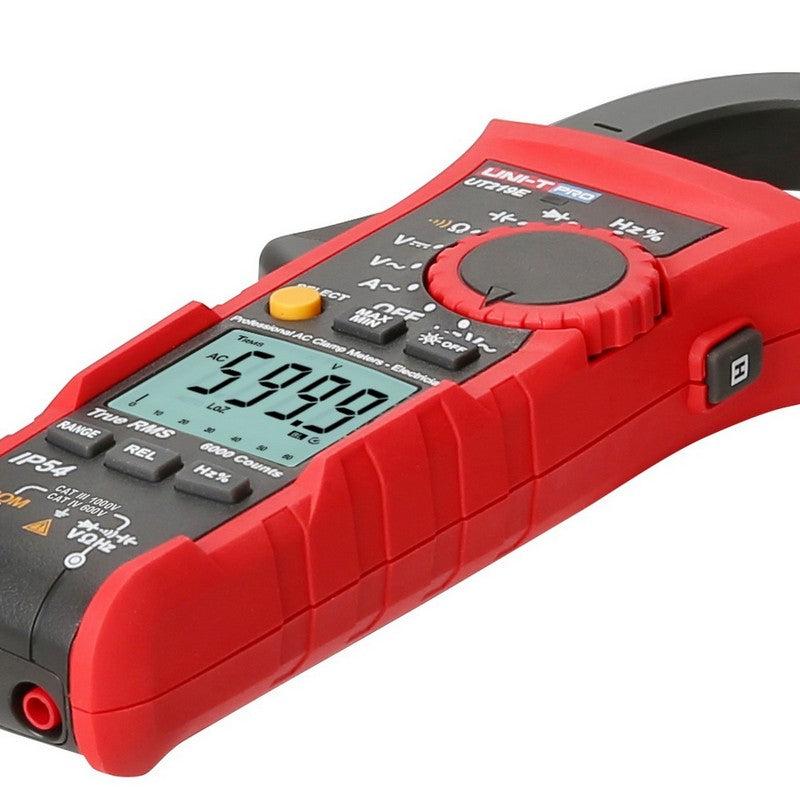

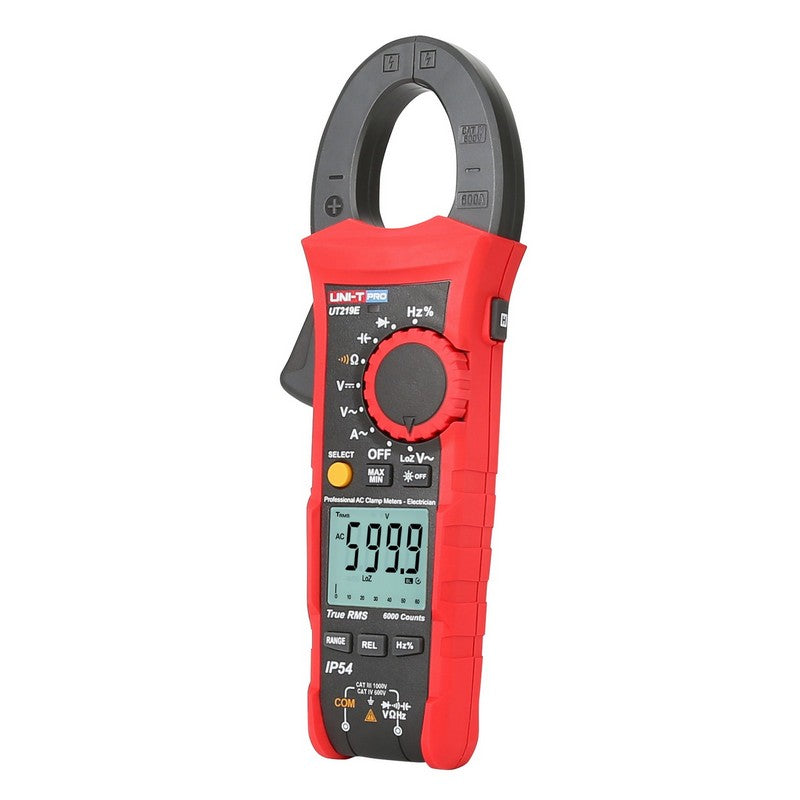

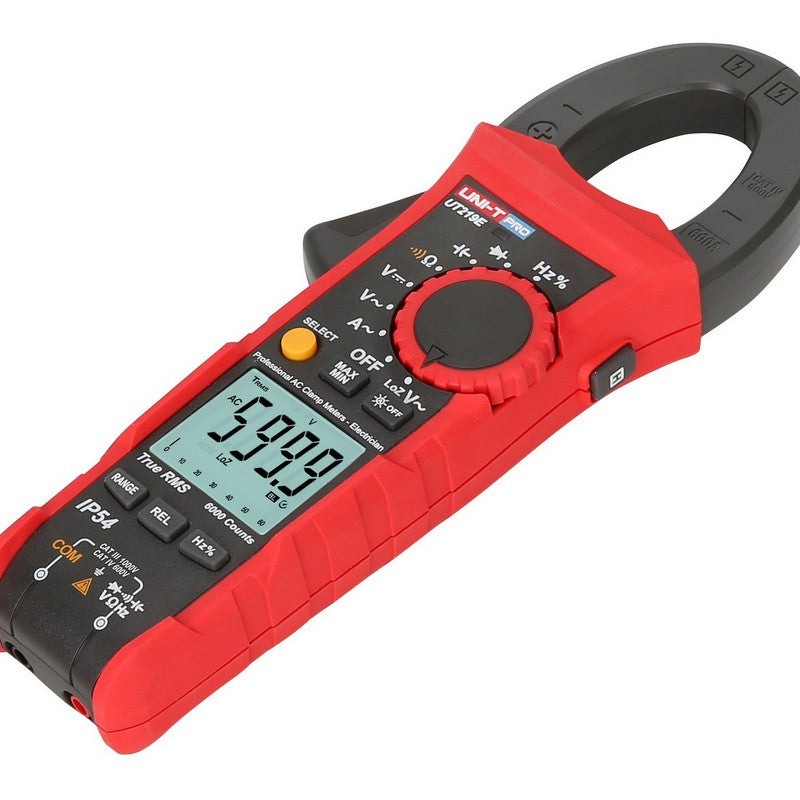

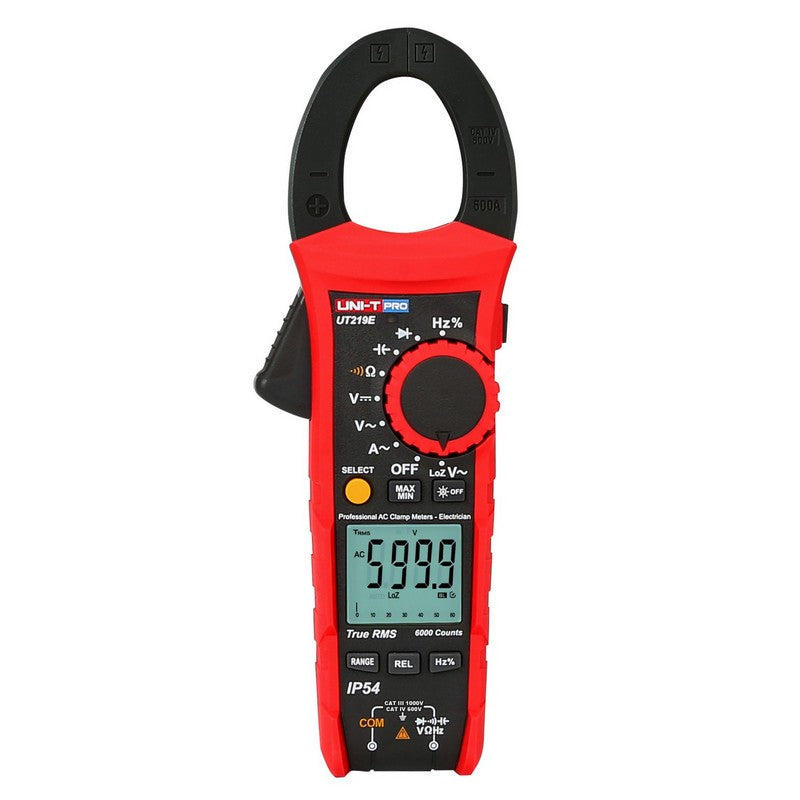

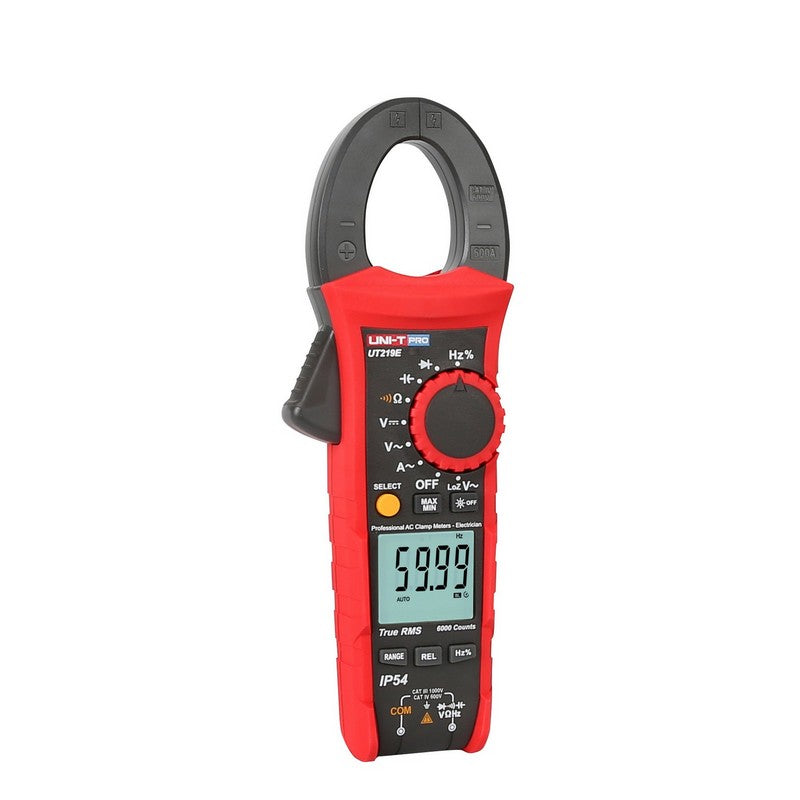

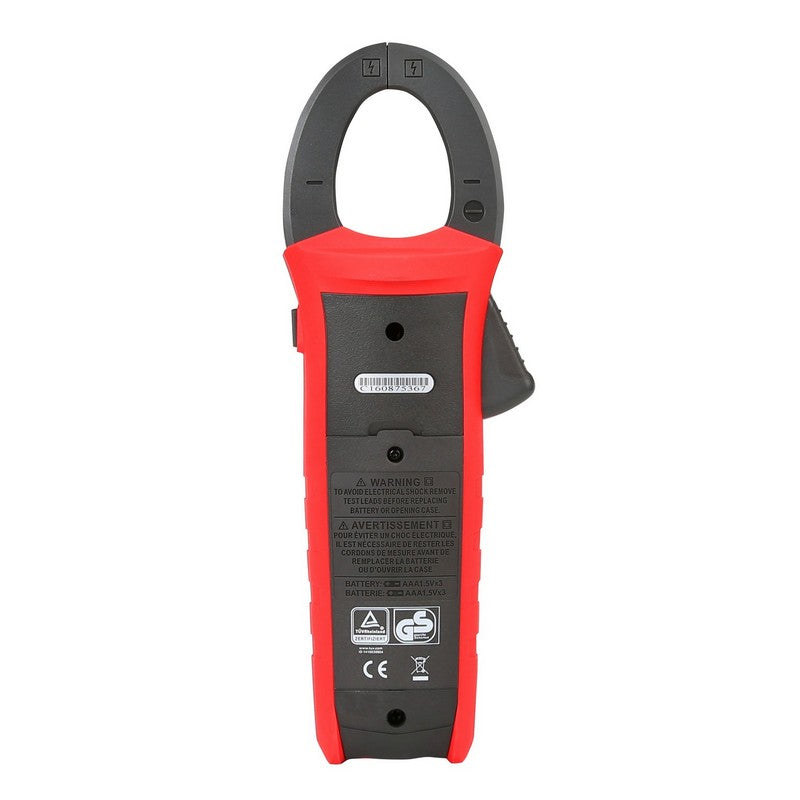

UNI-T UT219E Professional Clamp Meter
Essential Precision for Professional Electricians
The UNI-T UT219E delivers professional-grade electrical measurement in a rugged, reliable package designed for daily field use. Built to withstand harsh environments with IP54 protection and 2-meter drop resistance, this true RMS clamp meter provides the core measurement capabilities electrical professionals need for accurate diagnostics and system verification.
Key Features
-
True RMS Measurement: Ensures accurate readings on modern non-linear loads
-
IP54 Environmental Protection: Dust and water-resistant for harsh work environments
-
2-Meter Drop Test Certification: Rugged durability for daily professional use
-
600A AC/DC Current Measurement: Comprehensive range for most electrical applications
-
1000V AC/DC Voltage Testing: Complete coverage for residential and commercial systems
-
60MΩ Resistance Range: Extensive measurement capability for comprehensive testing
-
Fast 3 Times/Second Sampling Rate: Responsive readings for efficient diagnostics
-
6000 Count Display Resolution: Precise measurements for detailed analysis
-
CAT III 1000V / CAT IV 600V Safety Rating: Professional protection for all environments
-
Auto/Manual Range Selection: Versatile operation for varied applications
UNI-T UT219E Details
Professional-Grade Reliability
The UNI-T UT219E is built for the challenges electrical professionals face daily. With IP54 protection against dust and water splashes, this meter continues to perform reliably in construction environments, outdoor installations, and industrial settings where lesser meters fail. The verified 2-meter drop protection ensures your investment survives the inevitable accidents that occur during fast-paced fieldwork.
This industrial-grade durability extends beyond environmental protection to include electrical safety, with CAT III 1000V and CAT IV 600V ratings that provide confidence when working across residential, commercial, and light industrial applications. The UNI-T UT219E delivers professional protection that matches its measurement capabilities.
Essential Measurement Functionality
The UNI-T UT219E provides the core measurement capabilities professional electricians rely on daily:
-
AC Current: Measure up to 600A with true RMS accuracy
-
DC Current: Comprehensive 600A range plus 2000μA precision measurement
-
AC/DC Voltage: Test up to 1000V for complete system coverage
-
LoZ Mode: 600V low impedance measurement eliminates ghost voltage readings
-
Resistance: Multiple ranges up to 60MΩ for detailed circuit analysis
-
Capacitance: Measure up to 60mF for motor start capacitor testing
-
Frequency: Wide range from 10Hz to 10MHz for comprehensive signal analysis
-
Duty Cycle: 0.1% to 99.9% for pulse width modulation verification
The true RMS measurement technology ensures accuracy on non-sinusoidal waveforms commonly found in modern electronic loads, providing reliable readings where average-responding meters can be significantly inaccurate.
Thoughtful Design for Field Professionals

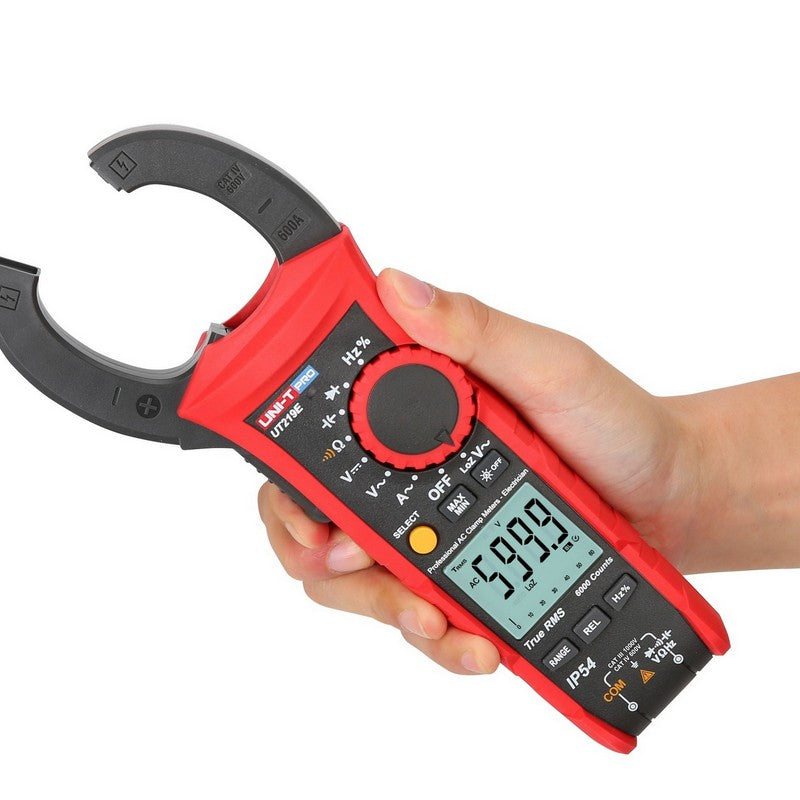

The UNI-T UT219E incorporates practical features that improve efficiency during daily use. The 33mm jaw opening accommodates standard industrial conductors while maintaining precise alignment for accurate current readings. The analog bar graph updates at 10 times per second, providing visual indication of changing values faster than the digital display.
The ergonomic design includes a comfortable grip and intuitive button placement for one-handed operation, while the backlit display ensures readability in poorly lit environments like electrical panels and service rooms. These thoughtful details make the UNI-T UT219E a pleasure to use throughout long workdays.
Professional Applications
Electrical Installation
Electrical contractors rely on the UNI-T UT219E for comprehensive system verification:
- Circuit breaker load verification with AC current testing
- Wire sizing validation through ampacity measurement
- Voltage drop troubleshooting across distribution systems
- Continuity testing for proper circuit connections
- Capacitor verification in lighting and motor applications
Residential Troubleshooting
Residential electricians depend on accurate diagnostics for efficient problem resolution:
- GFCI and AFCI circuit testing
- Appliance current draw measurement
- Voltage stability verification
- Circuit identification and tracing
- Outlet and switch testing
Commercial Maintenance
Maintenance professionals leverage comprehensive capabilities for facility upkeep:
- Motor current analysis
- Control circuit voltage testing
- Preventive maintenance measurement
- Equipment power verification
- Capacitor performance evaluation
HVAC Systems
HVAC technicians utilize specialized functions for system diagnosis:
- Compressor current measurement
- Control voltage verification
- Capacitor testing for start/run components
- Fan motor current analysis
- Thermostat and control signal verification
UNI-T UT219E Technical Specifications
| Measurement |
Range |
Accuracy |
| AC Current (A) |
600A |
±(1.8%+6) |
| DC Current (A) |
600A/2000μA |
- |
| AC Voltage (V) |
1000V |
±(1%+6) |
| DC Voltage (V) |
1000V |
±(0.6%+3) |
| LoZ ACV |
600V |
±(2.5%+6) |
| Resistance (Ω) |
60MΩ |
±(1%+3) |
| Capacitance (F) |
60mF |
±(4%+7) |
| Frequency (Hz) |
10Hz~10MHz/600Hz~40MHz |
±(0.1%+6) |
| Duty Cycle |
0.1%~99.9% |
±(2.6%+7) |
Additional Features
- Display count: 6000
- Jaw opening: 33mm
- AC current frequency response: 40Hz~400Hz
- AC voltage frequency response: 40Hz~400Hz
- Diode test: 12V
- Measurement sampling rate: 3 times/s
- Analog bar sampling rate: 10 times/s
- Analog bar: 31 segment
- Display interface: Single
- True RMS measurement
- Auto/Manual range selection
- Data hold function
- Auto power off
- Low battery indication
- Backlit display
- CAT III 1000V, CAT IV 600V safety ratings
Package Contents
- UNI-T UT219E Professional Clamp Meter
- Test leads
- Batteries (1.5V R03 x 3)
- Carrying bag
- User manual (English, German/French/Spanish optional)
Product Comparison
| Feature |
UNI-T UT219E |
Industry Standard Clamp Meters |
| Display Count |
6000 |
4000-6000 |
| True RMS |
√ |
Not all models |
| Protection Rating |
IP54 |
Often IP40 or lower |
| Drop Test |
2m |
Often 1m or not specified |
| CAT Rating |
CAT III 1000V / CAT IV 600V |
Often lower ratings |
| Warranty |
12 months |
12-24 months |
| Price |
Exceptional value |
Typically 15-30% higher |
Frequently Asked Questions
What is True RMS measurement and why does it matter?
True RMS (Root Mean Square) measurement provides accurate readings regardless of waveform distortion. This is critical when working with modern electronic loads like computers, LED lighting, and variable speed drives that draw non-sinusoidal current. Without True RMS capability, measurements on these devices can be significantly inaccurate, leading to improper circuit sizing and potential safety issues.
How does the IP54 rating benefit field technicians?
The IP54 rating indicates the meter is protected against dust ingress (limited ingress permitted) and water splashes from any direction. For electrical professionals, this means reliable operation in construction environments, outdoor installations in light rain, and industrial settings where exposure to dust and moisture is common. This protection extends the meter's lifespan and ensures measurement reliability in challenging conditions.
What is the advantage of LoZ voltage measurement?
Low impedance (LoZ) voltage measurement eliminates ghost or phantom voltage readings caused by capacitive coupling between adjacent conductors. By providing a low impedance path, the meter can distinguish between actual voltage and induced voltage – particularly valuable when troubleshooting complex installations where ghost voltages commonly cause confusion.
Can the UNI-T UT219E measure both AC and DC current?
The UNI-T UT219E can measure AC current up to 600A, but doesn't support DC current measurement. For applications requiring DC current measurement, please consider our UNI-T UT219M or UT219DS models, which offer comprehensive DC current capabilities.
What is the warranty period for the UNI-T UT219E?
UNI-T provides a 12-month warranty on the UT219E, covering manufacturing defects and component failures under normal use conditions.
Customer Testimonials
"I've been using the UT219E for residential and light commercial work for the past six months, and it's held up perfectly despite daily use in some pretty rough conditions. The True RMS readings are spot-on, and I appreciate the rugged construction." - Anthony M., Residential Electrician
"As a maintenance technician at a manufacturing facility, I needed a reliable meter that could handle industrial environments without breaking the bank. The UT219E delivers exceptional value with professional features and durability that matches meters costing significantly more." - Lakshmi P., Industrial Maintenance Specialist
"The UT219E has become my daily driver for HVAC service calls. The capacitance measurement is perfect for checking run and start capacitors, and the current measurement helps me quickly verify proper system operation." - James W., HVAC Technician
Support and Warranty
UNI-T stands behind the UT219E with comprehensive technical support and a 12-month warranty. Our dedicated support team is available to assist with application questions, measurement techniques, and warranty service.
Essential Professional Performance
The UNI-T UT219E Professional Clamp Meter delivers the core measurement capabilities electrical professionals need with the reliability and durability required for daily field use. Its combination of true RMS accuracy, environmental protection, and comprehensive measurement functions makes it the perfect companion for electrical contractors, maintenance technicians, and HVAC professionals.
