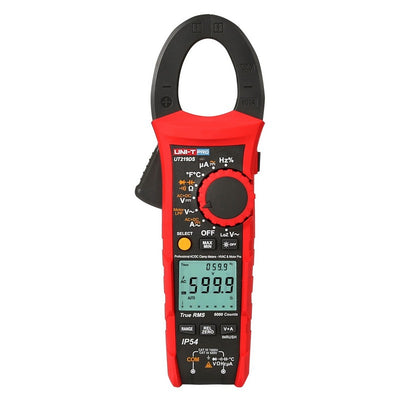

UNI-T UT219DS Professional Clamp Meter

Advanced Dual-Display Diagnostics for Industrial Professionals

The UNI-T UT219DS represents the pinnacle of the UT219 series, combining specialized motor testing features with innovative dual-display capability for simultaneous parameter monitoring. Built on the same rugged platform with IP54 protection and 2-meter drop resistance, this premium clamp meter adds advanced measurement capabilities, faster sampling rates, and sophisticated visualization features for comprehensive electrical diagnostics.

Key Features

• Dual-Display Interface: Monitor voltage and current simultaneously for power analysis
• Enhanced Low Pass Filter: 1kHz with 3dB attenuation for accurate VFD measurements
• V+A Simultaneous Monitoring: Dual parameter display for efficiency testing
• Accelerated 5 Times/Second Sampling: Responsive readings for transient events
• 3-Phase Motor Sequence Testing: Prevent motor damage with proper rotation verification
• 20 Times/Second Analog Bar: Real-time visualization of rapidly changing values
• Temperature Measurement: -40°C to 1000°C range with included temperature probe
• True RMS Measurement: Accurate readings on variable frequency drives and electronic loads
• DC Current Measurement: Up to 600A DC plus 2000μA precision range
• CAT III 1000V / CAT IV 600V Safety Rating: Professional protection for industrial applications

UNI-T UT219DS Details

Advanced Dual-Display Diagnostics

The UNI-T UT219DS transforms electrical diagnostics with its innovative dual-display interface, allowing technicians to simultaneously monitor voltage and current during critical measurements. This unique capability streamlines power analysis, load testing, and system verification by displaying multiple parameters at once, significantly reducing the time required for comprehensive testing.

The accelerated sampling rate of 5 times per second provides more responsive readings for dynamic systems and transient events, while the analog bar graph updates at an impressive 20 times per second for real-time visualization of changing values. This combination of dual-display capability and responsive measurement creates an unparalleled diagnostic experience for industrial professionals.

Comprehensive Motor Testing Suite

Building on the specialized motor features of the UT219 series, the UT219DS offers enhanced capabilities for motor system diagnostics. The 3-phase motor sequence test function provides immediate verification of proper phase rotation, preventing equipment damage during installation and reconnection procedures.

The enhanced low pass filter with 1kHz, 3dB attenuation provides superior filtering for variable frequency drive measurements, eliminating high-frequency noise while preserving essential waveform characteristics for accurate voltage readings. This specialized filtering is critical for proper diagnostics on modern electronic drive systems with complex output waveforms.

Temperature measurement capabilities from -40°C to 1000°C enable comprehensive thermal profiling of motor systems, identifying potential bearing issues, ventilation problems, or electrical hotspots before they cause equipment failure. The included point contact temperature probe provides precise readings at critical measurement points.

Industrial-Grade Construction

The UNI-T UT219DS is engineered for the demanding conditions of industrial environments with IP54 protection against dust and water splashes, ensuring reliable operation in manufacturing facilities, utility installations, and outdoor applications where exposure to harsh conditions is unavoidable.

The verified 2-meter drop protection guarantees your investment survives the physical challenges of industrial fieldwork, while the CAT III 1000V and CAT IV 600V safety ratings provide confidence when working in high-energy environments. This combination of physical durability and electrical safety makes the UT219DS a trusted companion for professional technicians.

Comprehensive Measurement Capabilities

The UNI-T UT219DS provides an extensive range of measurement functions for complete electrical diagnostics:

• AC Current: Measure up to 600A with true RMS accuracy
• DC Current: Complete 600A range plus 2000μA precision measurement
• AC/DC Voltage: Test up to 1000V for comprehensive system coverage
• LoZ Mode: 600V low impedance measurement eliminates ghost voltage readings
• Resistance: Multiple ranges up to 60MΩ for detailed component testing
• Capacitance: Measure up to 60mF for motor start capacitor verification
• Frequency: Accurate measurement from 10Hz to 10MHz
• Temperature: -40°C to 1000°C/-40°F to 1832°F with included contact probe

The true RMS measurement technology ensures accuracy on non-sinusoidal waveforms common in modern electronic equipment, providing reliable readings where average-responding meters produce significant errors.

Professional Applications

Industrial Power Quality Analysis

Industrial electricians rely on dual-display capabilities for comprehensive power verification:

• Simultaneous voltage and current monitoring for load analysis
• Real-time power factor assessment
• Load balancing verification across three-phase systems
• Variable frequency drive output testing with enhanced filtering
• Motor startup current profiling with accelerated sampling

Advanced Motor Diagnostics

Motor specialists utilize enhanced features for comprehensive system analysis:

• 3-phase rotation verification with clear visual indication
• Simultaneous voltage and current monitoring during load testing
• Temperature profiling of critical motor components
• Current balance measurement across phases
• Winding resistance verification with high-resolution display

Manufacturing Equipment Troubleshooting

Maintenance professionals leverage advanced diagnostic capabilities:

• Control system voltage and current correlation
• Power supply loading analysis with dual-parameter display
• Thermal profiling of electrical components
• Real-time current trending with accelerated analog bar
• Circuit response analysis during dynamic operation

Precision Instrumentation Verification

Instrumentation technicians depend on advanced measurement features:

• Sensor and transducer signal verification
• 4-20mA control loop testing with μA precision
• Signal conditioning circuit analysis
• Temperature transmitter calibration verification
• Process control system diagnostics

UNI-T UT219DS Technical Specifications

Additional Features

• 3-phase motor sequence test: 600V capability
• Low pass filter: 1kHz, 3dB attenuation
• V+A dual display functionality
• Display count: 6000
• Jaw opening: 33mm
• AC current frequency response: 40Hz~400Hz
• AC voltage frequency response: 40Hz~1kHz
• Diode test: 3V enhanced range
• Measurement sampling rate: 5 times/s
• Analog bar sampling rate: 20 times/s
• Analog bar: 31 segment
• Display interface: Dual
• True RMS measurement
• Auto/Manual range selection
• Data hold function
• Auto power off
• Low battery indication
• Backlit display
• CAT III 1000V, CAT IV 600V safety ratings

Package Contents

• UNI-T UT219DS Professional Clamp Meter
• Test leads
• Point contact temperature probe
• Batteries (1.5V R03 x 3)
• Carrying bag
• User manual (English, German/French/Spanish optional)

Product Comparison

Frequently Asked Questions

How does the dual-display functionality benefit electrical testing?

The dual-display functionality allows simultaneous monitoring of voltage and current, streamlining power analysis and load testing that would otherwise require multiple measurement steps or instruments. This capability significantly reduces testing time while providing more comprehensive information about system performance, particularly valuable when diagnosing intermittent issues or validating proper operation under varying load conditions.

What advantages does the enhanced low pass filter provide?

The enhanced low pass filter with 1kHz, 3dB attenuation provides superior filtering for variable frequency drive measurements compared to basic filters. This specialized filtering eliminates high-frequency carrier signals while preserving essential waveform characteristics, enabling accurate voltage readings on modern electronic drive systems that operate at higher switching frequencies. The result is more reliable diagnostics on sophisticated motor control systems.

Why are faster sampling rates important for industrial applications?

The accelerated 5 times per second measurement sampling and 20 times per second analog bar update provide more responsive readings for dynamic systems and transient events. These faster refresh rates help capture short-duration phenomena like motor inrush current, load variations, and intermittent faults that might be missed with standard sampling rates. This responsiveness is particularly valuable when troubleshooting complex industrial systems with rapidly changing conditions.

How does the 3-phase sequence test function help prevent equipment damage?

The 3-phase sequence test function verifies proper phase rotation in three-phase systems, which is critical when installing or reconnecting motors. Incorrect phase sequence causes reverse rotation that can damage equipment, break mechanical couplings, and disrupt processes. The UT219DS provides clear indication of proper phase rotation, preventing costly mistakes during installation and maintenance procedures on three-phase equipment.

What is the warranty period for the UNI-T UT219DS?

UNI-T provides a 12-month warranty on the UT219DS, covering manufacturing defects and component failures under normal use conditions.
