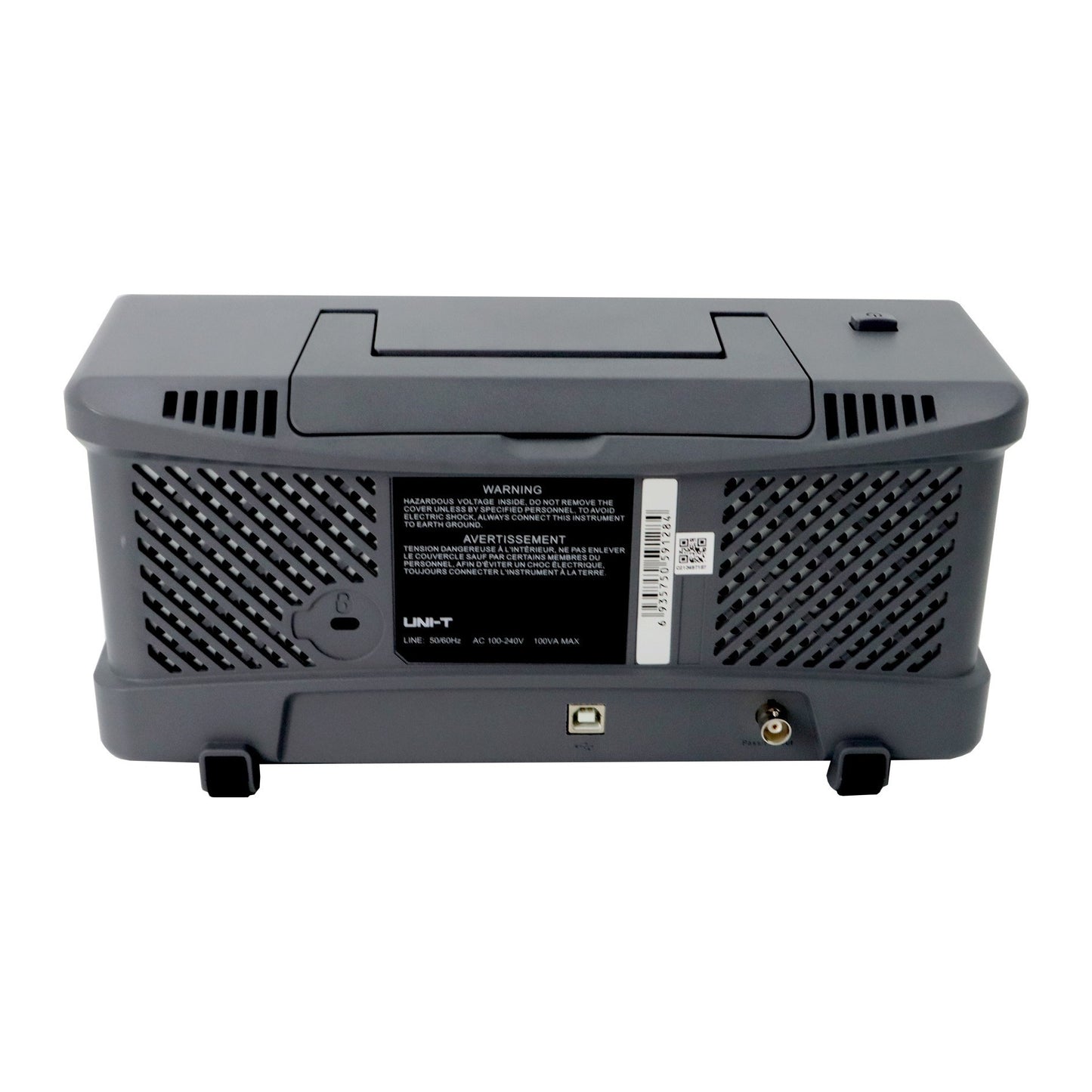

Uni-T UTD2072CL 70MHz 2CH DSO Back Image
UTD2072CL 70MHz 2Ch DSO
Save {price}%

26 items in stock


When you need an affordable way to analyze analog waveforms, the Uni-T UTD2072CL is a great choice!

Top Specifications

70MHz, 2CH, 500MSa/s, Memory Depth: 64kpts, ≥5000wfms/s, 7in display
Register today for a 10% EDU Discount

Guarantee safe & secure checkout






Introducing the Uni-T UTD2072CL Digital Storage Oscilloscope (DSO)

Uni-T UTD2072CL Zoom feature
Uni-T UTD2072CL Zoom feature

For electrical engineers and professors seeking precision and versatility in waveform analysis, meet the Uni-T UTD2072CL Digital Storage Oscilloscope (DSO). This cutting-edge instrument is engineered to meet your demanding requirements and offers an array of features and capabilities that will elevate your waveform analysis tasks to new heights.

Key Specifications

  • Bandwidth: 70MHz
  • Analog Channels: 2
  • Real-Time Sample Rate: 500MSa/s
  • Max. Memory Depth: 64kpts
  • Waveform Capture Rate: 5,000wfms/s
Uni-T UTD2072CL Auto feature
Uni-T UTD2072CL Auto feature

Meet the Uni-T UTD2072CL, a standout digital storage oscilloscope designed for the discerning electrical professional. Featuring a 70MHz bandwidth and two analog channels, this DSO is a powerhouse for detailed electrical analysis. It offers a 500MSa/s real-time sample rate and a substantial 64kpts memory depth, combined with a waveform capture rate of 5,000wfms/s, ensuring both speed and precision in waveform visualization.

The Math Function in the Uni-T UTD2072CL Digital Storage Oscilloscope (DSO) goes beyond basic operations, allowing for intricate waveform analysis crucial for high-level electrical engineering work and academic research. The ZOOM function on its expansive 7-inch screen offers dual display capabilities, providing a comprehensive view of both the overall and specific sections of waveforms, crucial for intricate signal analysis.

With its XY mode, the Uni-T UTD2072CL Digital Storage Oscilloscope (DSO) excels in phase comparison between signals, making it an invaluable tool in laboratories and classrooms. The AUTO Mode feature simplifies operation, automatically configuring the optimal settings for waveform displays. The FFT Spectral Analysis function extends its use to frequency domain analysis, essential for signal integrity checks and harmonic analysis.

The Uni-T UTD2072CL Digital Storage Oscilloscope (DSO) also comes equipped with 34 automatic parameter measurements and a range of trigger options, including Video and Slope Trigger, adapting to a variety of electrical testing needs. Its user-friendly interface and robust functionality make it an ideal choice for professionals and educators seeking precision and versatility in their work.

Uni-T UTD2072CL Parameters feature
Uni-T UTD2072CL Parameters feature

Experience the Future of Waveform Analysis

The Uni-T UTD2072CL Digital Storage Oscilloscope (DSO) empowers electrical engineers and professors with the tools they need for accurate and insightful waveform analysis. Elevate your work and acquire the Uni-T UTD2072CL now from our website to unlock a new level of precision in your electrical engineering endeavors. Your next breakthrough is within reach!

Model Number UTD2072CL
Scope Type DSO
Bandwidth 70MHz
Channels 2Ch
Scope Sample Rate 500MSa/S
Memory Depth 64kpts
Refresh Rate 5,000wfms/s
Vertical Scale @1MΩ 1V/div to 20V/div
# Automatic Measurements 34
Included Bus Protocols None
Optional Bus Protocols
Logic Pod Included Not Available
Signal Generator Function Not Available
Display Size (in) 7in
Touchscreen false
Warranty 3 years
Product Dimmensions (L x W x H) 13 in x 4 in x 6 in
Product Weight 6 lb
Documents English download guide, multi-language safety manual, calibration report (COC)

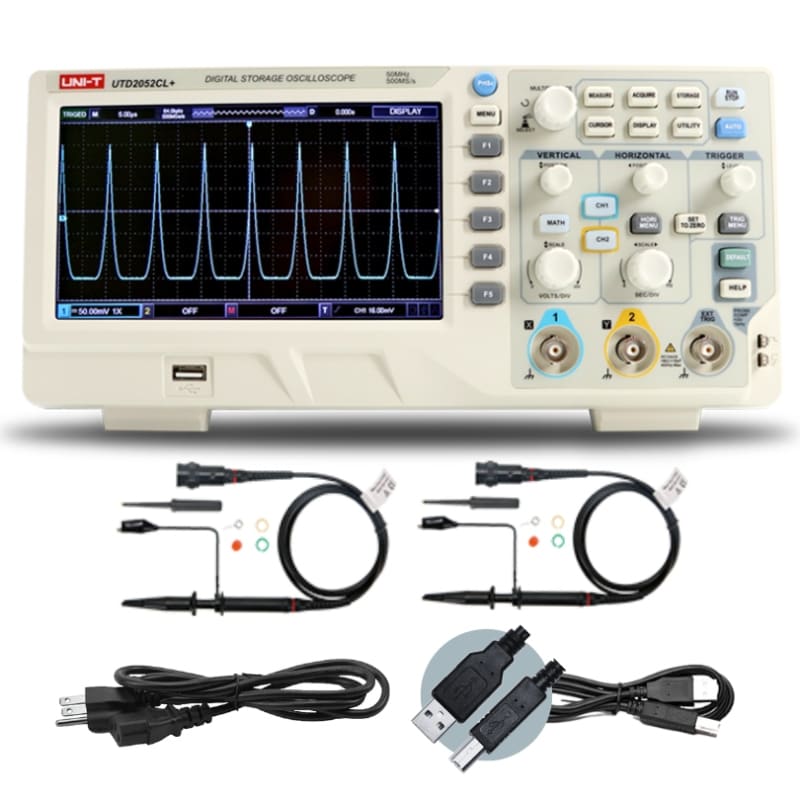

Included Accessories Power cord, USB2.0 printing cable, Oscilloscope probe (UT-P04)*2
