UT-RB60 VSWR Reflection bridge for spectrum analyzer (6GHz)

$299.00
Save {price}%

26 items in stock

Description

The UT-RB60 VSWR Bridge is a precision DC to 6 GHz reflection measurement accessory that transforms any UTS3000T+ series spectrum analyzer into a comprehensive antenna and transmission line test system for VSWR, return loss, and reflection coefficient analysis.

Top Specifications

Type: VSWR Reflection Bridge; Frequency: DC - 6GHz; Compatibility: UTS1000B/T & UTS3000B/T spectrum analyzers; Application: Return loss & VSWR measurements
Register today for a 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

DOCUMENTATION

UT-RB60 VSWR Bridge - Reflection Measurement Solution

Expand Your UTS3000T+ Series Capabilities

The UT-RB60 VSWR Bridge is the essential accessory for engineers and technicians who need accurate reflection measurements with their UTS3000T+ Series spectrum analyzers. This precision instrument transforms your spectrum analyzer into a comprehensive reflection measurement system, enabling critical antenna and transmission line analysis across the entire UTS3000T+ product family.

Key Features

Wide Frequency Coverage

  • Operating Range: DC to 6 GHz
  • Compatible with the complete UTS3000T+ series:
    • UTS3015T+ (9 kHz to 1.5 GHz)
    • UTS3032T+ (9 kHz to 3.2 GHz)
    • UTS3036T+ (9 kHz to 3.6 GHz)
    • UTS3084T+ (9 kHz to 8.4 GHz)
  • Covers all major communication bands including cellular, WiFi, Bluetooth, and emerging 5G/6G frequencies

Precision Measurement Capabilities

  • VSWR (Voltage Standing Wave Ratio) measurement
  • Return Loss analysis
  • Reflection Coefficient determination
  • High accuracy across the entire frequency range

Professional Build Quality

  • Robust construction for laboratory and field use
  • Type-N connectors for reliable, low-loss connections
  • 50Ω impedance matching for standard RF systems
  • Compact, portable design for on-site measurements

Applications

Antenna Testing & Optimization

  • Measure antenna VSWR across operating bandwidth
  • Identify resonant frequencies and bandwidth characteristics
  • Optimize antenna matching for maximum power transfer

Transmission Line Analysis

  • Verify cable integrity and performance
  • Locate impedance discontinuities
  • Assess connector quality and installation

RF System Validation

  • Component matching verification
  • Filter and amplifier input/output characterization
  • Quality control in manufacturing environments

Technical Advantages

Seamless Integration

The UT-RB60 works directly with your UTS3000T+ series analyzer's built-in reflection measurement functions. Simply connect the bridge between your spectrum analyzer and the device under test - no complex setup required.

Advanced Measurement Features

  • Leverage up to 40,001 sweep points (UTS3000A/UTS3036T+/UTS3084T+ models) for high-resolution analysis
  • Multi-touch HD control on 10.1-inch capacitive display for intuitive operation
  • Real-time visualization with multiple trace types and detection modes
  • Advanced triggering capabilities for capturing intermittent reflections

Cost-Effective Solution

Eliminate the need for expensive dedicated VSWR meters. The UT-RB60 bridge leverages your existing spectrum analyzer investment to provide professional-grade reflection measurements at a fraction of the cost.

System Requirements

  • Compatible Models: All UTS3000T+ Series Spectrum Analyzers
    • UTS3015T+ (9 kHz to 1.5 GHz)
    • UTS3032T+ (9 kHz to 3.2 GHz)
    • UTS3036T+ (9 kHz to 3.6 GHz)
    • UTS3084T+ (9 kHz to 8.4 GHz)
  • Frequency Range: DC to 6 GHz (bridge limitation)
  • Impedance: 50Ω nominal
  • Connectors: Type-N female

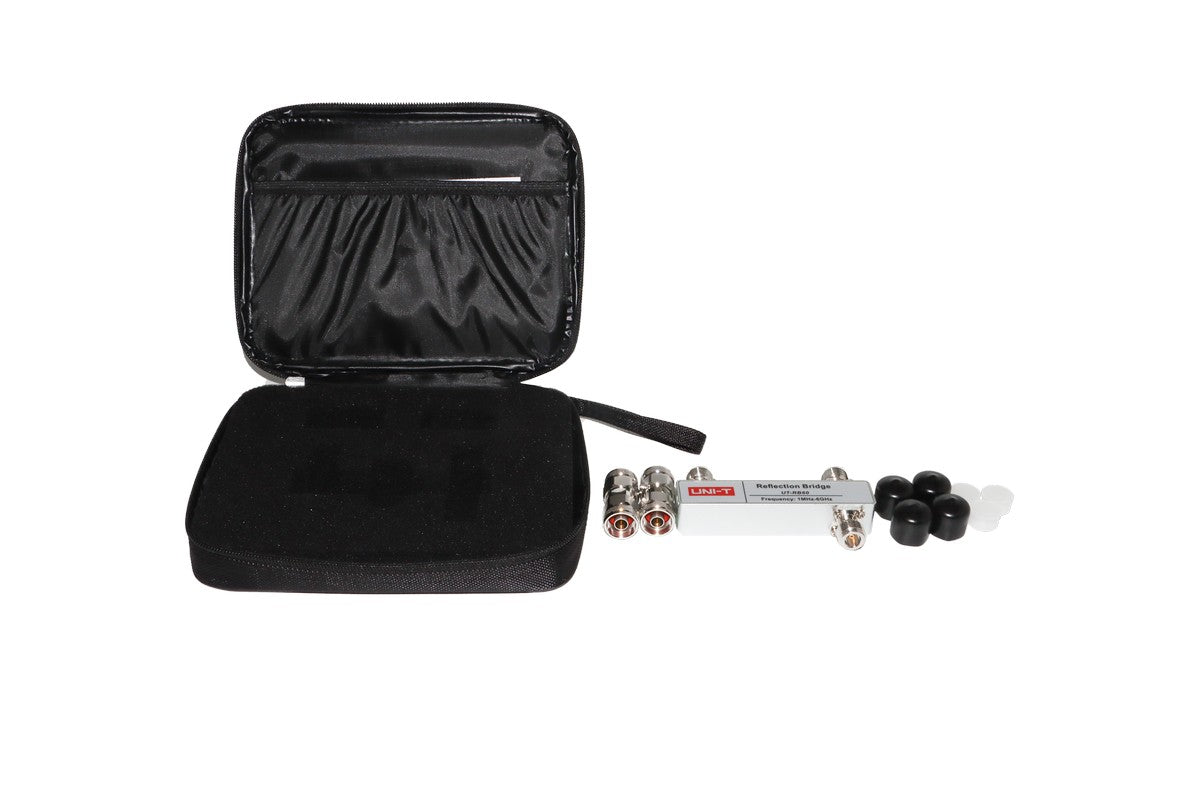

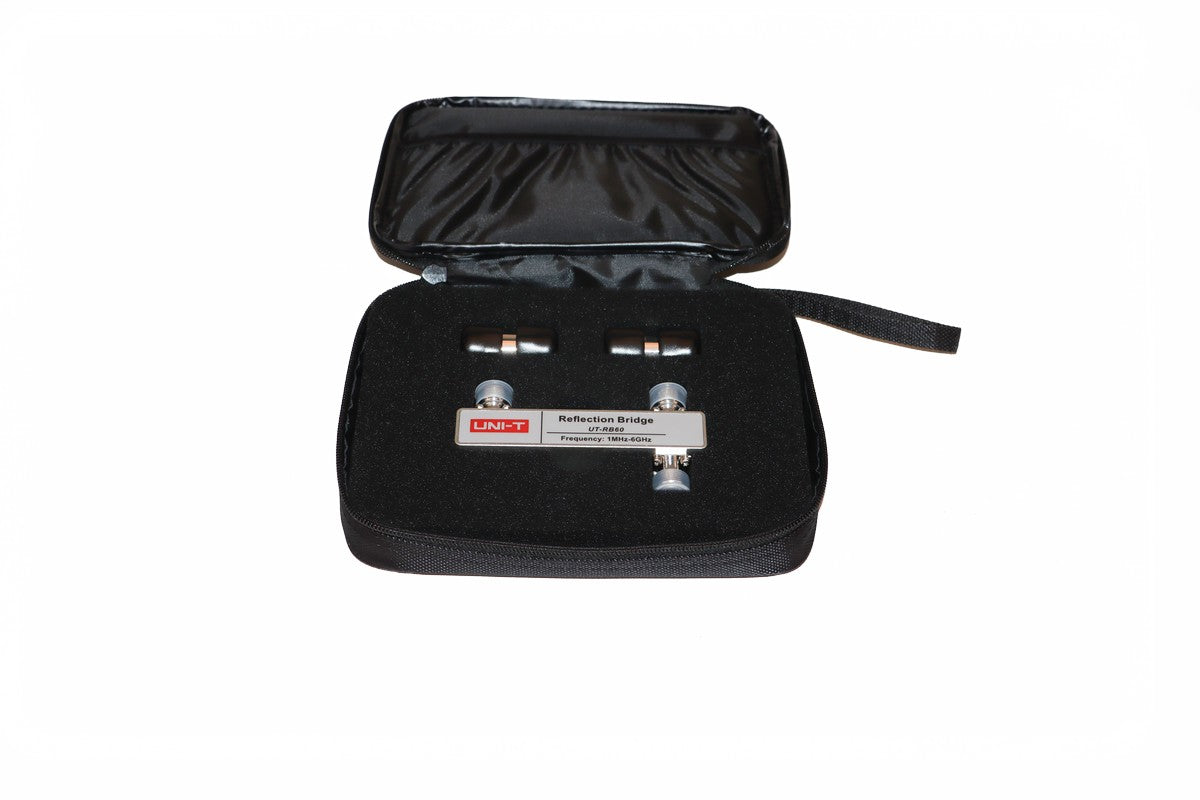

What's Included

  • UT-RB60 VSWR Bridge
  • Comprehensive user manual with measurement procedures
  • Calibration guidelines for optimal accuracy

Why Choose the UT-RB60?

Professional Results: Achieve laboratory-grade reflection measurements with your portable spectrum analyzer setup.

Versatile Applications: From antenna development to production testing, the UT-RB60 handles diverse measurement requirements.

Proven Reliability: Built to UNI-T's exacting standards, ensuring consistent performance in demanding environments.

Future-Proof Investment: 6 GHz coverage supports current wireless technologies including WiFi 6E, and provides compatibility across the entire UTS3000T+ analyzer family.

Important Frequency Considerations

Note: While the UT-RB60 bridge operates up to 6 GHz, it can be used with higher-frequency analyzers like the UTS3084T+ (8.4 GHz). For measurements above 6 GHz, the bridge becomes the limiting factor, making it ideal for most commercial wireless applications while maintaining compatibility across the entire UTS3000T+ family.


Transform your UTS3000T+ spectrum analyzer into a complete RF test solution. The UT-RB60 VSWR Bridge delivers the precision reflection measurements you need for professional antenna and transmission line analysis.

Ready to enhance your RF measurement capabilities? Add the UT-RB60 VSWR Bridge to your test equipment arsenal today.
