    Harness the power of the UNI-T UTS7000A Signal Analyzer and see how much performance your investment can provide!

    Top Specifications

    2 Hz – 40 GHz, RBW: 1 Hz - 3 MHz (10% Steps), 4, 5 MHz, DANL: -166 dBm/Hz, Sweep Points: 100,001, Real-time: 20 MHz (std), Up to 255 MHz (opt), 11.6 in HD Touch Screen, 4U

    Includes 5-Year Warranty*

    (click for details) 3 years standard warranty. Get 2 free years when you register your instrument!
    Register for a 15% EDU Discount
    Want to be alerted when the UTS7000A is available? Get on the waitlist with the link below. We'll let you know when it becomes available.
    Notify me when available
    Thank you for your inquiry

    Notify me when available

    Name should not be empty
    Your email address is not valid.
    Your phone number is not valid.
    Message content should not be empty.

    OVERVIEW

    SPECIFICATIONS

    DOCUMENTATION

    COMING SOON

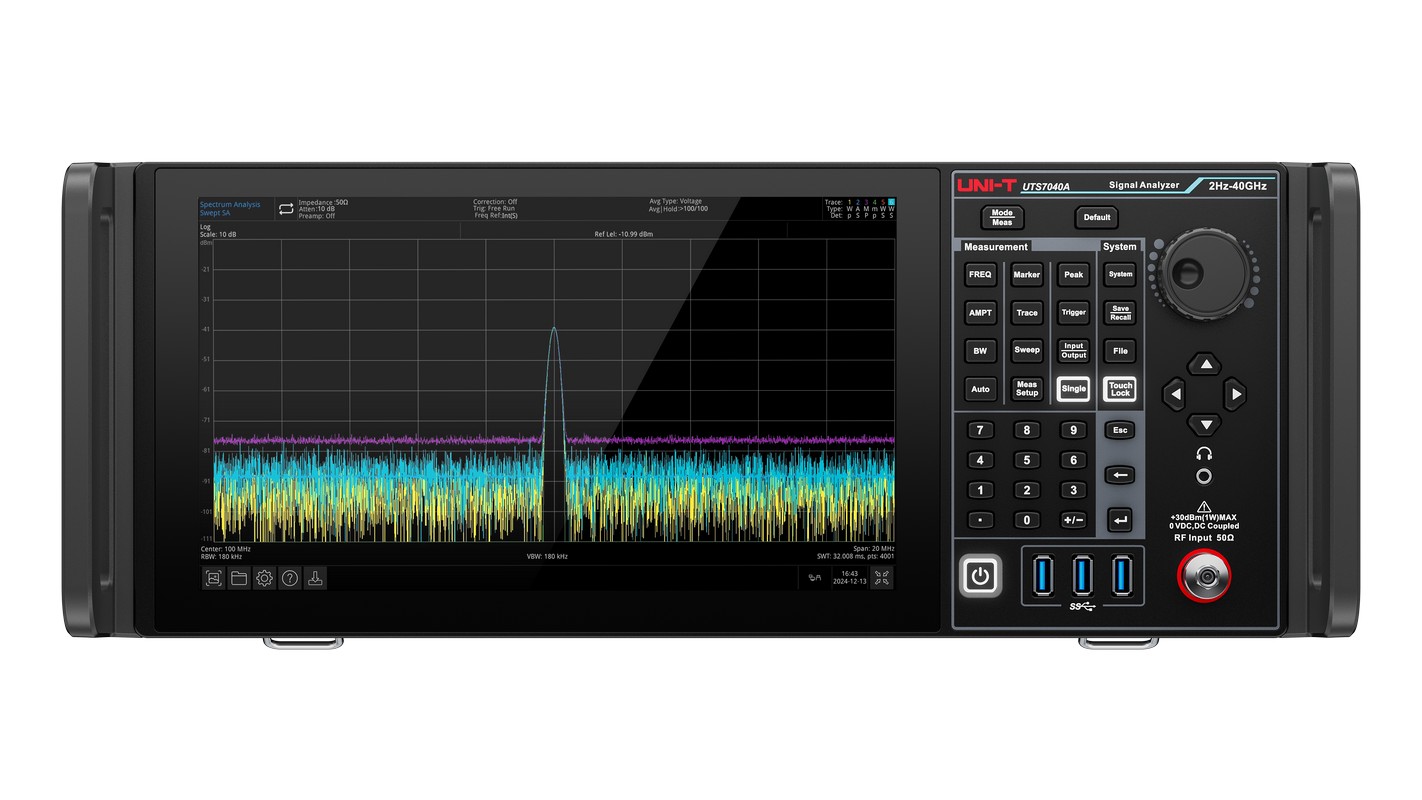

    UTS7000A Signal Analyzer Series

    Advanced RF Analysis from 2 Hz to 40 GHz - Redefining precision for professional engineers

    UTS7000A Signal Analyzer

    Breakthrough Performance Features

    Experience the next generation of signal analysis with cutting-edge capabilities designed for today's most demanding RF applications.

    100,001 Scan Points

    100,001 Scan Points

    Unparalleled signal sampling density provides comprehensive frequency analysis, reducing measurement errors and revealing hidden signal components with unprecedented detail.

    Advanced RBW Control

    Precision RBW Control

    1 Hz to 5 MHz resolution bandwidth with 10% stepping (to 3 MHz) provides 160 selectable RBWs, optimizing the balance between sensitivity and scanning speed for any measurement scenario.

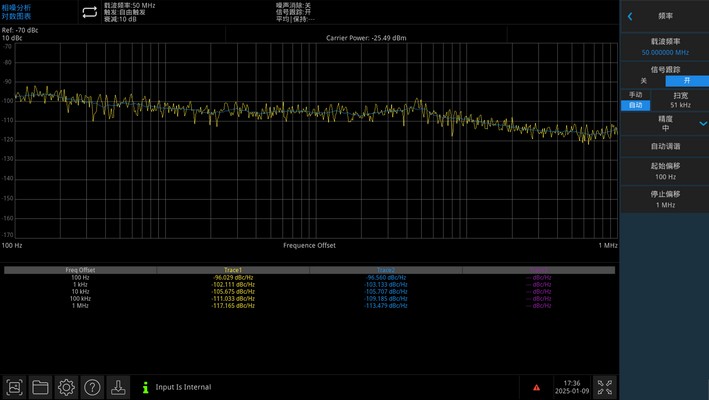

    One-Button Phase Noise

    One-Button Phase Noise

    Instant phase noise measurement and analysis with logarithmic charts and IQ waveform functions. Essential for evaluating signal quality in communications and radar systems.

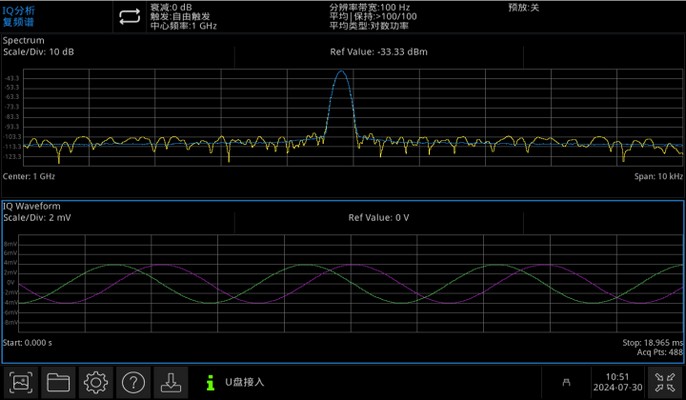

    I/Q Analysis

    Advanced I/Q Analysis

    Hardware-based I/Q data collection accurately restores original baseband signals. Perform comprehensive time and frequency domain measurements on complex modulated signals.

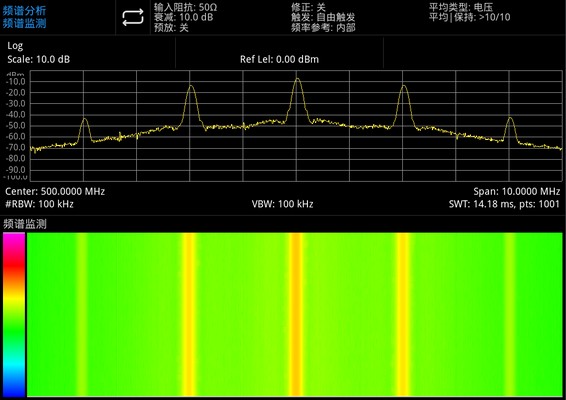

    Spectrum Monitoring

    Real-Time Spectrum Monitoring

    Continuous spectrum surveillance with up to 255 MHz analysis bandwidth. Monitor frequency bands in real-time to detect intermittent signals and interference.

    Digital Modulation Analysis

    Digital Modulation Analysis

    Comprehensive demodulation analysis for QAM, PSK, FSK, ASK, and MSK modulation schemes. Measure EVM, constellation diagrams, and signal quality parameters for modern digital communications.

    Technical Specifications

    2 Hz - 40 GHz
    Frequency Range
    -166 dBm/Hz
    DANL (Typical)
    100,001
    Sweep Points
    255 MHz
    Max Analysis Bandwidth
    < -108 dBc/Hz
    Phase Noise @ 10 kHz
    11.6"
    HD Touchscreen

    Professional Applications

    From 5G communications to automotive electronics, the UTS7000A series delivers precision analysis across diverse engineering disciplines.

    5G/LTE Communications

    Complete FDD/TDD-LTE and 5G NR demodulation analysis for base station testing, signal quality evaluation, and interference detection in modern wireless networks.

    EMI/EMC Pre-Compliance

    CISPR-compliant frequency resolution and detectors with 100+ built-in limit values for efficient electromagnetic interference testing across multiple industry standards.

    Radar & Defense Systems

    Phase noise analysis and signal characterization for radar systems, ensuring optimal performance in critical defense and aerospace applications.

    Automotive Electronics

    Motor control PWM analysis below 10 kHz, power system evaluation, and automotive communication protocol testing for next-generation vehicle systems.

    Research & Development

    Advanced modulation analysis supporting QAM, PSK, FSK, and MSK schemes with comprehensive EVM measurement capabilities for cutting-edge research projects.

    Power & Energy Systems

    Smart grid monitoring below 1 kHz, inverter analysis, and power supply noise characterization for renewable energy and grid infrastructure applications.

    Be First to Experience Advanced RF Analysis

    Join our priority notification list for exclusive early access

    Get notified about availability, pricing, and technical specifications as soon as they're released. Be among the first engineers to experience the future of signal analysis.



    Feature Specification
    Model Number UTS7000A
    approvals
    DATA SHEETS and MANUALS
    Click here to download UTS7000A documents
