COMING SOON!

USG5000V RF Vector Signal Generator 9 kHz– 22 GHz

USG5000V RF Vector Signal Generator 9 kHz– 22 GHz
USG5000V RF Vector Signal Generator 9 kHz– 22 GHz
USG5000V RF Vector Signal Generator 9 kHz– 22 GHz
USG5000V RF Vector Signal Generator 9 kHz– 22 GHz
    USG5000V RF Vector Signal Generator 9 kHz– 22 GHz
    USG5000V RF Vector Signal Generator 9 kHz– 22 GHz
    USG5000V RF Vector Signal Generator 9 kHz– 22 GHz
    USG5000V RF Vector Signal Generator 9 kHz– 22 GHz
    Want to be alerted when the USG5000V is available? Get on the waitlist with the link below. We'll let you know when it becomes available.
    Notify me when available
    Thank you for your inquiry

    USG5000V RF Vector Signal Generator 9 kHz– 22 GHz

    $0.00

    Notify me when available

    Name should not be empty
    Your email address is not valid.
    Your phone number is not valid.
    Message content should not be empty.

    Description

    The USG5000V series is a flagship 2U RF vector signal generator with extended frequency coverage up to 22 GHz, advanced pulse modulation capabilities, and exceptional signal purity, designed for cutting-edge applications including K-band satellite communications, automotive radar, aerospace testing, and next-generation wireless technology development.

    Top Specifications

    Range: 9 kHz–22 GHz, Resolution: 0.001 Hz, Phase Noise: ＜-122 dBc/Hz, Output: -135 dBm–+25 dBm, Mechanical Attenuator (opt)

    Includes 5-Year Warranty*

    (click for details) 3 years standard warranty. Get 2 free years when you register your instrument!
    Register for a 15% EDU Discount
    Want to be alerted when the USG5000V is available? Get on the waitlist with the link below. We'll let you know when it becomes available.
    Notify me when available
    Thank you for your inquiry

    Notify me when available

    Name should not be empty
    Your email address is not valid.
    Your phone number is not valid.
    Message content should not be empty.

    OVERVIEW

    SPECIFICATIONS

    DOCUMENTATION

    🚀 COMING SOON!

    USG5000V Series RF Vector Signal Generator

    Revolutionary 2U RF vector signal generator with extended frequency range up to 22 GHz

    22 GHz
    Max Frequency
    +25 dBm
    Output Power
    150 MHz
    Modulation BW
    70 dB
    On-Off Ratio

    Key Features

    USG5000V Phase Noise Performance

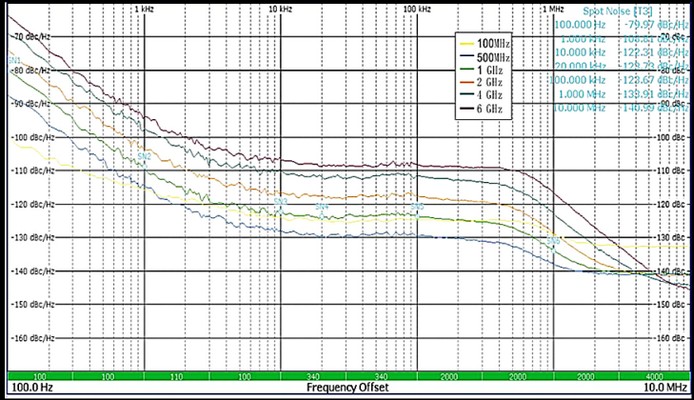

    🎯 Exceptional Phase Noise

    Superior phase noise performance of <-122 dBc/Hz@20 kHz (1 GHz) ensures clean, stable signals for sensitive RF measurements and receiver testing. Critical for high-performance applications requiring excellent signal purity.

    USG5000V Vector Modulation

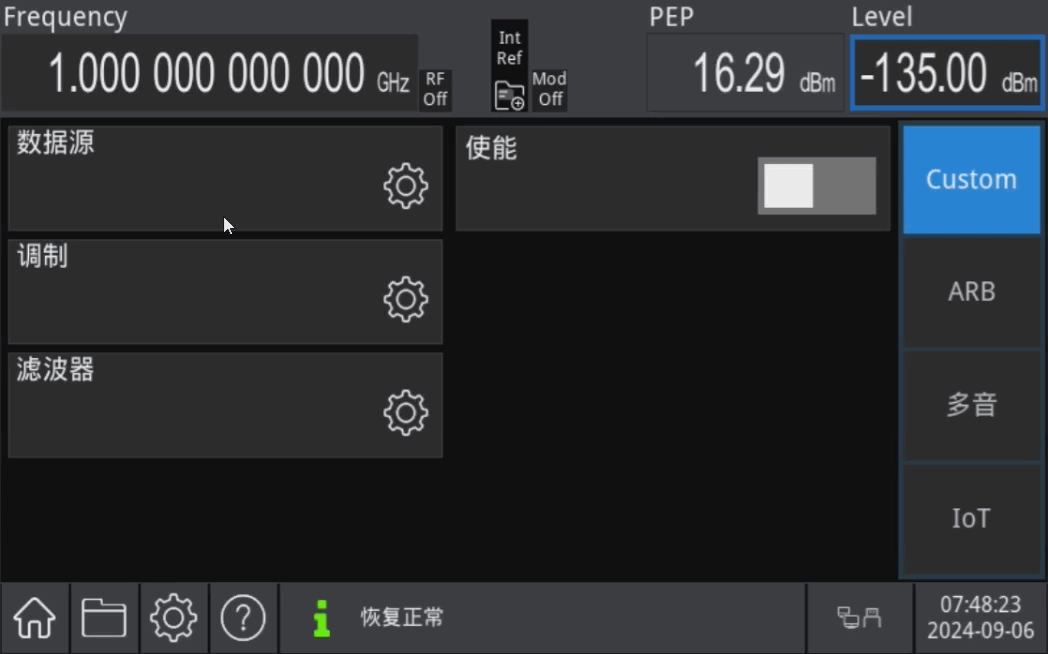

    📊 Rich Vector Modulation

    Comprehensive modulation schemes including QAM (16QAM to 512QAM), PSK (BPSK, QPSK, 8PSK variants), ASK (2ASK to 16ASK), and FSK (2FSK to MFSK). Supports modern wireless standards including WLAN, WCDMA, LTE, and 5G/NR.

    USG5000V AWGN White Gaussian Noise

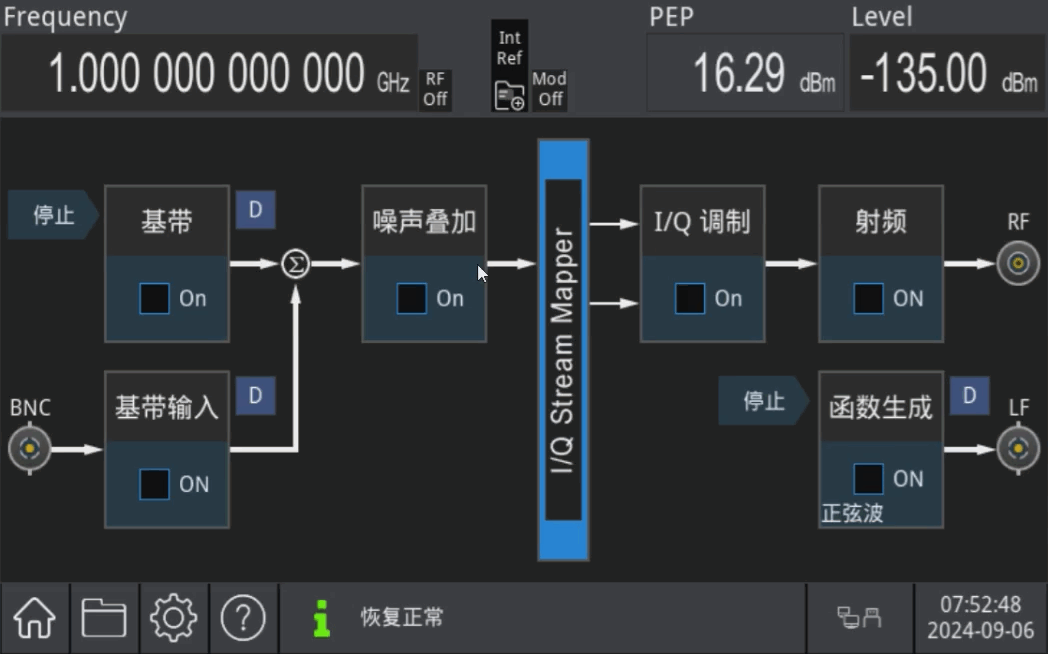

    🌊 AWGN Interference Simulation

    One-click channel interference AWGN capability for realistic testing environments. Superimpose Gaussian white noise to simulate real-world channel conditions, essential for validating receiver performance under noise.

    USG5000V Scanning Methods

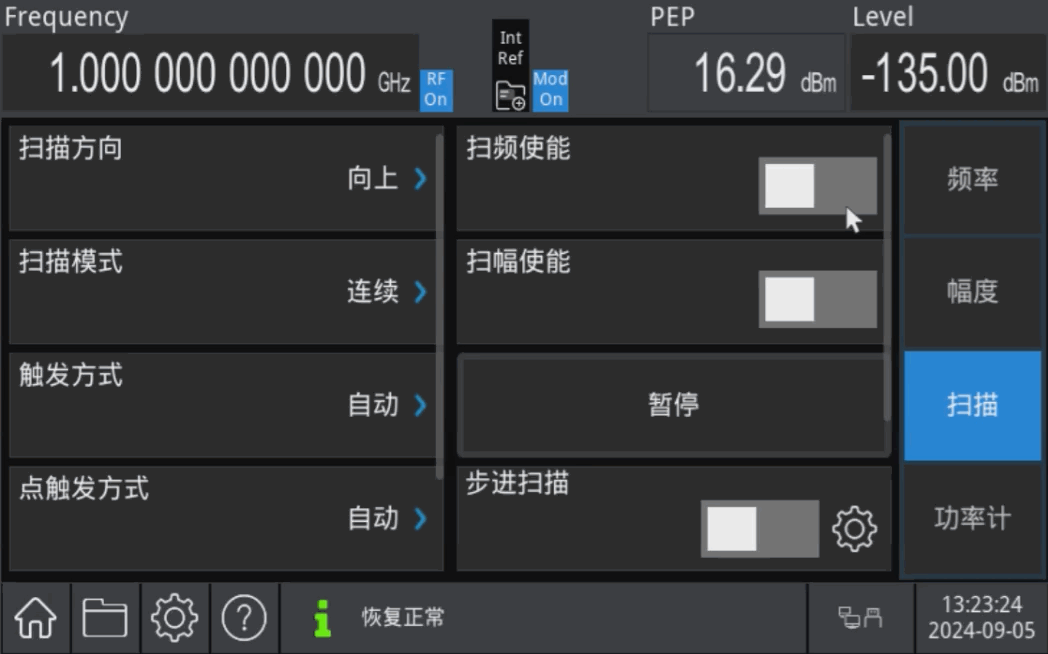

    📈 Multiple Scanning Methods

    Versatile sweep types including frequency, amplitude, and frequency + amplitude sweeps. Scan modes support linear, logarithmic, and customizable list formats for comprehensive device characterization across the full frequency range.

    USG5000V Analog Modulation

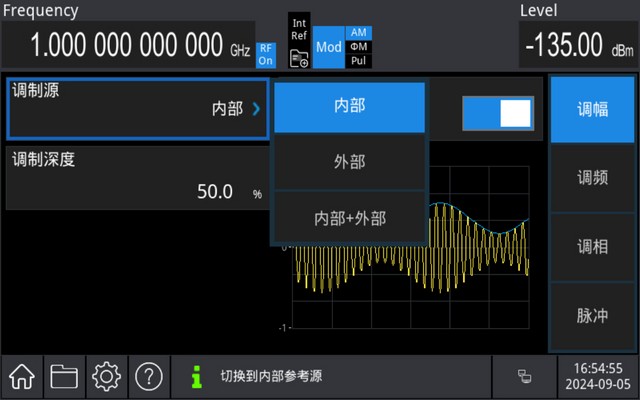

    ⚡ Advanced Pulse & Analog Modulation

    Comprehensive analog modulation (AM, FM, ΦM) and advanced pulse modulation with minimum 20ns pulse width and 70 dB on-off ratio. Supports single pulse, dual pulse, and pulse train modes with customizable sequences.

    USG5000V Function Generator

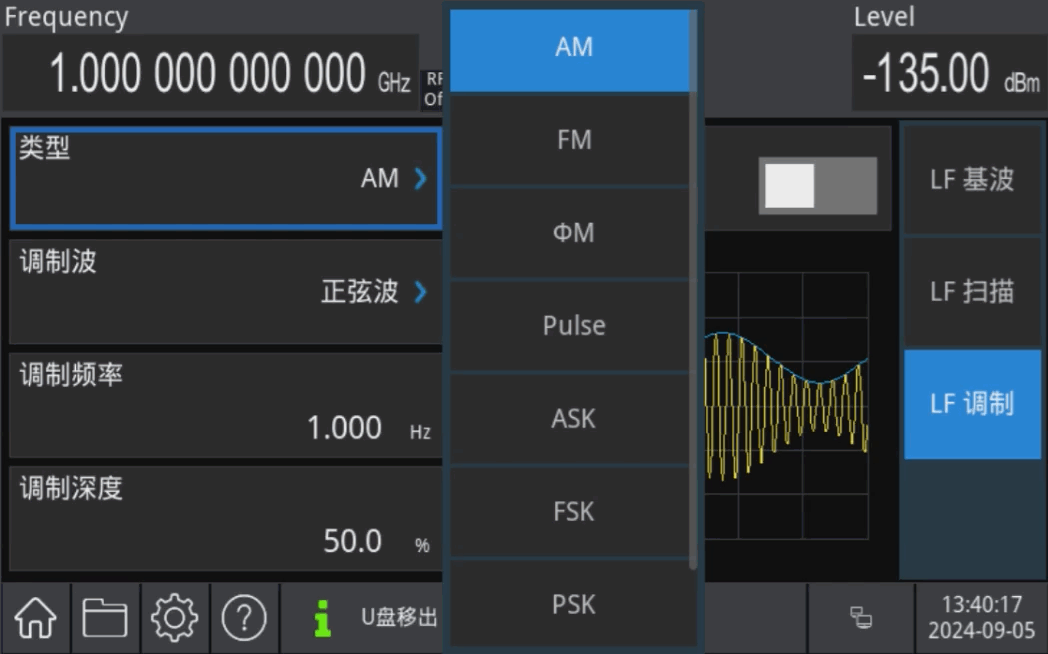

    🔧 Built-in Function Generator

    Integrated function signal generator with maximum 50MHz standard sine wave output. Working modes include fundamental wave, modulation, and scanning, covering complex application scenarios without requiring additional equipment.

    USG5000V Power De-embedding

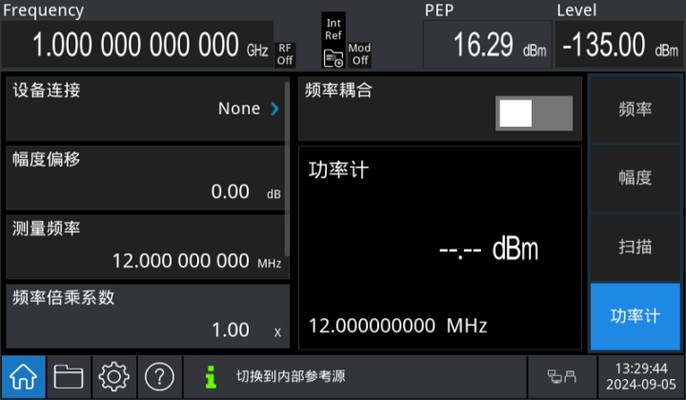

    📏 Power De-embedding

    External power meter kit support with transmission loss flatness correction for fast, accurate measurements with reduced errors. Essential for precise power measurements in complex test setups with cables and fixtures.

    USG5000V Signal Studio Support

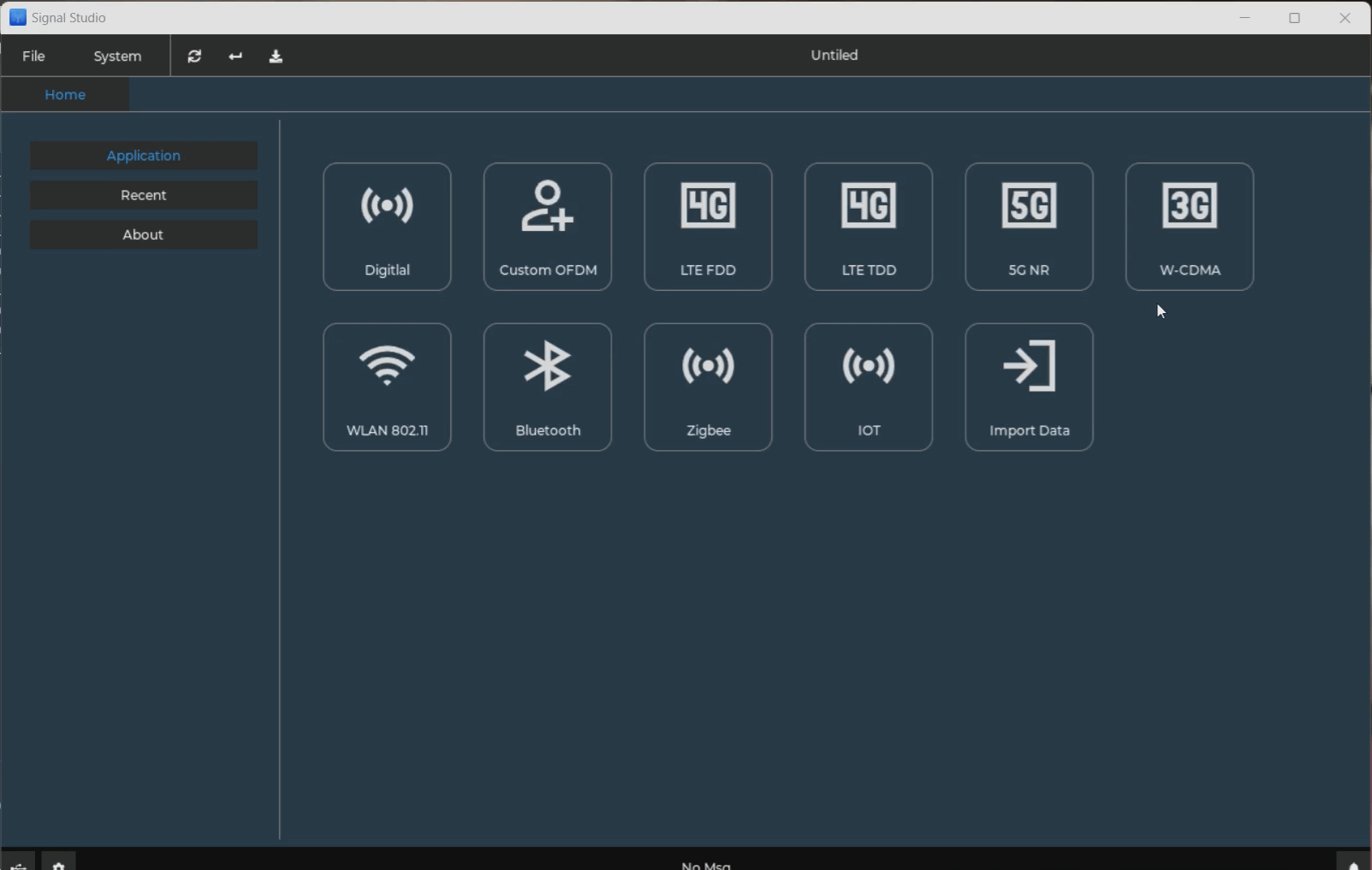

    💻 Signal Studio Integration

    Seamless integration with Signal Studio software for creating dedicated signals in baseband, RF, or microwave frequency bands. Generate complex wireless communication signals of various standards with one-click import capability.

    Professional Applications

    🛰️

    Satellite Communications

    Extended frequency coverage up to 22 GHz supports K-band satellite communications systems testing. Perfect for earth station equipment, VSAT terminals, and satellite transponder verification with the signal purity required for sensitive satellite receivers.

    🚗

    Automotive Radar

    Advanced automotive radar development and testing with precision pulse modulation capabilities. 20ns minimum pulse width and 70 dB on-off ratio meet requirements for next-generation ADAS and autonomous driving radar systems operating in higher frequency bands.

    📡

    5G/NR Testing

    Comprehensive 5G/NR signal generation with support for modern modulation schemes up to 512QAM. Vector signal modulation up to 6 GHz with 150 MHz bandwidth enables thorough testing of 5G devices and base station equipment.

    🔬

    Component Testing

    High-precision testing of microwave components including filters, amplifiers, and receivers. Built-in 110 dB dynamic range programmable attenuator supports minimum -135 dBm output for sensitive component characterization.

    🏭

    Production Testing

    Automated production line integration via USB and LAN interfaces with SCPI programming support. Web remote management enables efficient 24/7 production testing with Signal Studio software for standardized test procedures.

    🛡️

    Defense & Aerospace

    Military communications and electronic warfare systems development with precise pulse modulation and exceptional phase noise performance. Extended frequency range supports advanced radar and communication systems in defense applications.

    Model Specifications

    Model Screen CW Frequency Range IQ Frequency Range Phase Noise Output Power Mechanical Attenuator
    USG5022V-P 5" capacitive touch 9 kHz–22 GHz 9 kHz–6 GHz <-122 dBc/Hz -135 dBm–+25 dBm ✓
    USG5014V-P 5" capacitive touch 9 kHz–14 GHz 9 kHz–6 GHz <-122 dBc/Hz -135 dBm–+25 dBm ✓
    USG5022V 5" capacitive touch 9 kHz–22 GHz 9 kHz–6 GHz <-122 dBc/Hz -135 dBm–+25 dBm —
    USG5014V 5" capacitive touch 9 kHz–14 GHz 9 kHz–6 GHz <-122 dBc/Hz -135 dBm–+25 dBm —

    Advanced RF Testing Redefined

    The USG5000V series represents the next evolution in RF vector signal generation, combining extended frequency coverage up to 22 GHz with uncompromising signal quality and comprehensive modulation capabilities.

    0.001 Hz
    Frequency Resolution
    110 dB
    Dynamic Range
    20 ns
    Min Pulse Width
    512QAM
    Max Modulation

    Expected Availability: Q4 2025
    Professional applications in 5G, aerospace, automotive radar, and satellite communications

    Feature Specification
    Model Number USG5000V
    approvals
    DATA SHEETS and MANUALS
    Click here to download USG5000V documents
    SOFTWARE/FIRMWARE DOWNLOADS
    Not Currently Available. Contact us with questions.
    2025_Catalog_th
    UNI-T 2025 Instruments Catalog
    2025_SelectionGuide_th
    UNI-T 2025 Instruments Selection Guide
    Want to be alerted when the USG5000V is available? Get on the waitlist with the link below. We'll let you know when it becomes available.
    Notify me when available
    Thank you for your inquiry

    Notify me when available

    Name should not be empty
    Your email address is not valid.
    Your phone number is not valid.
    Message content should not be empty.
