    Description

    The USG3000V series is an advanced 2U RF vector signal generator offering frequency coverage up to 6.5 GHz with exceptional phase noise performance, comprehensive modulation capabilities up to 512QAM, and intuitive touch interface operation, making it ideal for wireless device testing, 5G sub-6 applications, and educational environments.

    Top Specifications

    Range: 9 kHz–6.5 GHz, Resolution: 0.001 Hz, Phase Noise: ＜-122 dBc/Hz, Output: -135 dBm–+25 dBm, Mechanical Attenuator (opt)

    Includes 5-Year Warranty*

    (click for details) 3 years standard warranty. Get 2 free years when you register your instrument!
    Register for a 15% EDU Discount
    Want to be alerted when the USG3000V is available? Get on the waitlist with the link below. We'll let you know when it becomes available.
    Notify me when available
    Thank you for your inquiry

    Notify me when available

    Name should not be empty
    Your email address is not valid.
    Your phone number is not valid.
    Message content should not be empty.

    OVERVIEW

    SPECIFICATIONS

    DOCUMENTATION

    🚀 COMING SOON!

    USG3000V Series RF Vector Signal Generator

    Advanced 2U RF vector signal generator with frequency range up to 6.5 GHz for modern wireless testing

    6.5 GHz
    Max Frequency
    +25 dBm
    Output Power
    150 MHz
    Modulation BW
    70 dB
    On-Off Ratio

    Key Features

    USG3000V Phase Noise Performance

    🎯 Exceptional Phase Noise

    Superior phase noise performance of <-122 dBc/Hz@20 kHz (1 GHz) ensures clean, stable signals for sensitive RF measurements and receiver testing. Excellent signal purity for demanding wireless communication applications up to 6.5 GHz.

    USG3000V Vector Modulation

    📊 Rich Vector Modulation

    Comprehensive modulation schemes including QAM (16QAM to 512QAM), PSK (BPSK, QPSK, 8PSK variants), ASK (2ASK to 16ASK), and FSK (2FSK to MFSK). Perfect for wireless standards including WLAN, WCDMA, LTE, and 5G/NR testing up to 6 GHz.

    USG3000V AWGN White Gaussian Noise

    🌊 AWGN Interference Simulation

    One-click channel interference AWGN capability for realistic testing environments. Superimpose Gaussian white noise to simulate real-world channel conditions, essential for validating receiver performance under noise in wireless systems.

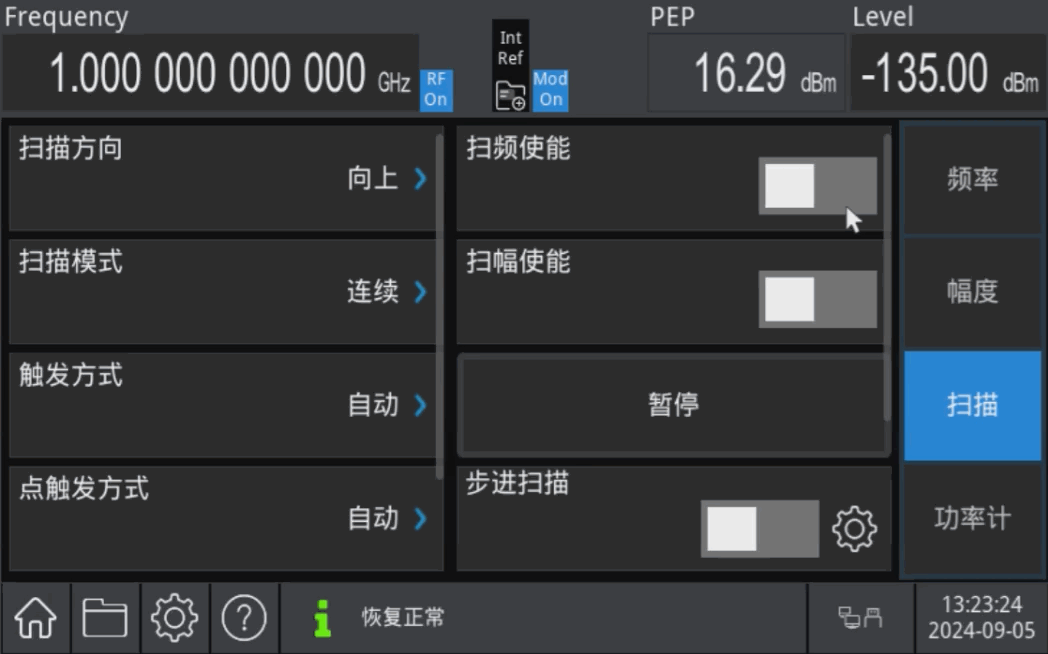

    USG3000V Scanning Methods

    📈 Multiple Scanning Methods

    Versatile sweep types including frequency, amplitude, and frequency + amplitude sweeps. Scan modes support linear, logarithmic, and customizable list formats for comprehensive device characterization across the full 6.5 GHz frequency range.

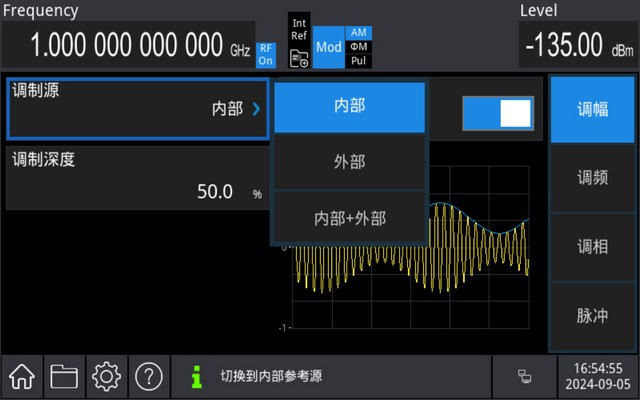

    USG3000V Analog Modulation

    ⚡ Advanced Pulse & Analog Modulation

    Comprehensive analog modulation (AM, FM, ΦM) and advanced pulse modulation with minimum 20ns pulse width and 70 dB on-off ratio. Supports single pulse, dual pulse, and pulse train modes with customizable sequences for diverse testing requirements.

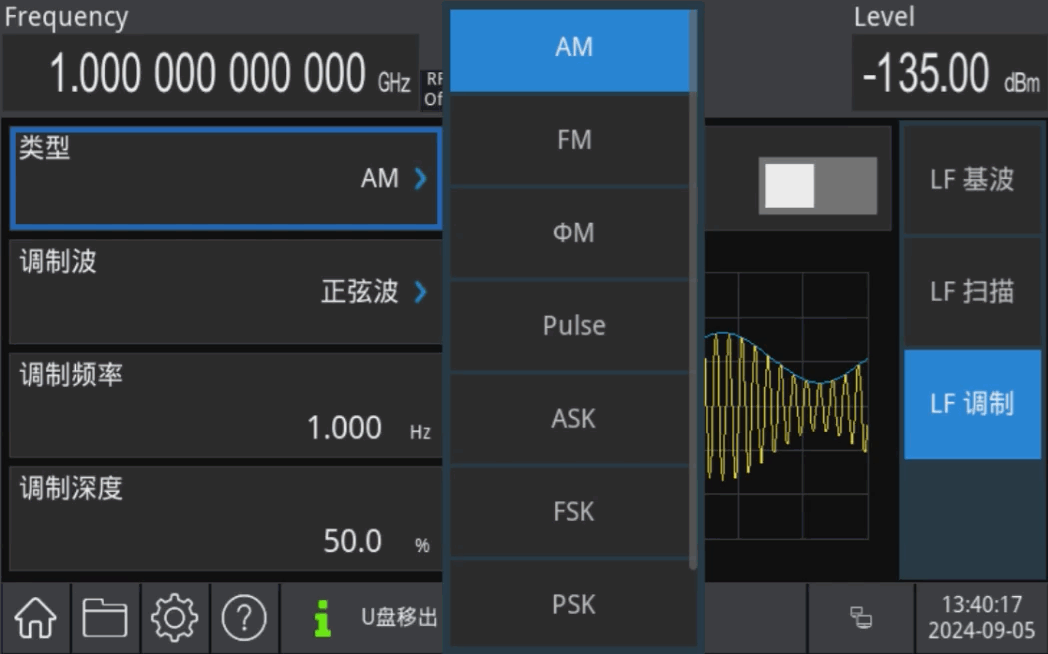

    USG3000V Function Generator

    🔧 Built-in Function Generator

    Integrated function signal generator with maximum 50MHz standard sine wave output. Working modes include fundamental wave, modulation, and scanning, covering complex application scenarios without requiring additional test equipment.

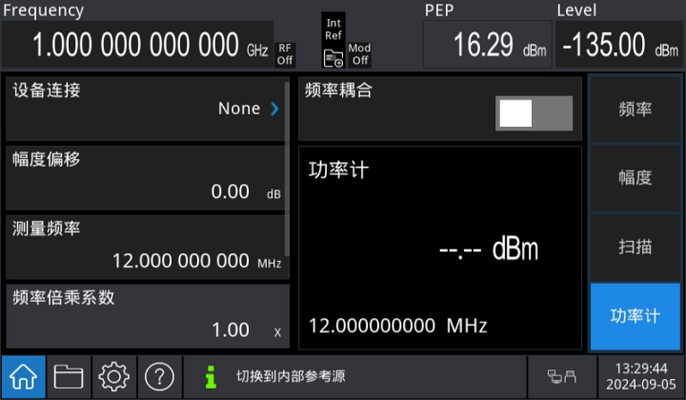

    USG3000V Power De-embedding

    📏 Power De-embedding

    External power meter kit support with transmission loss flatness correction for fast, accurate measurements with reduced errors. Essential for precise power measurements in test setups with cables, fixtures, and adapters.

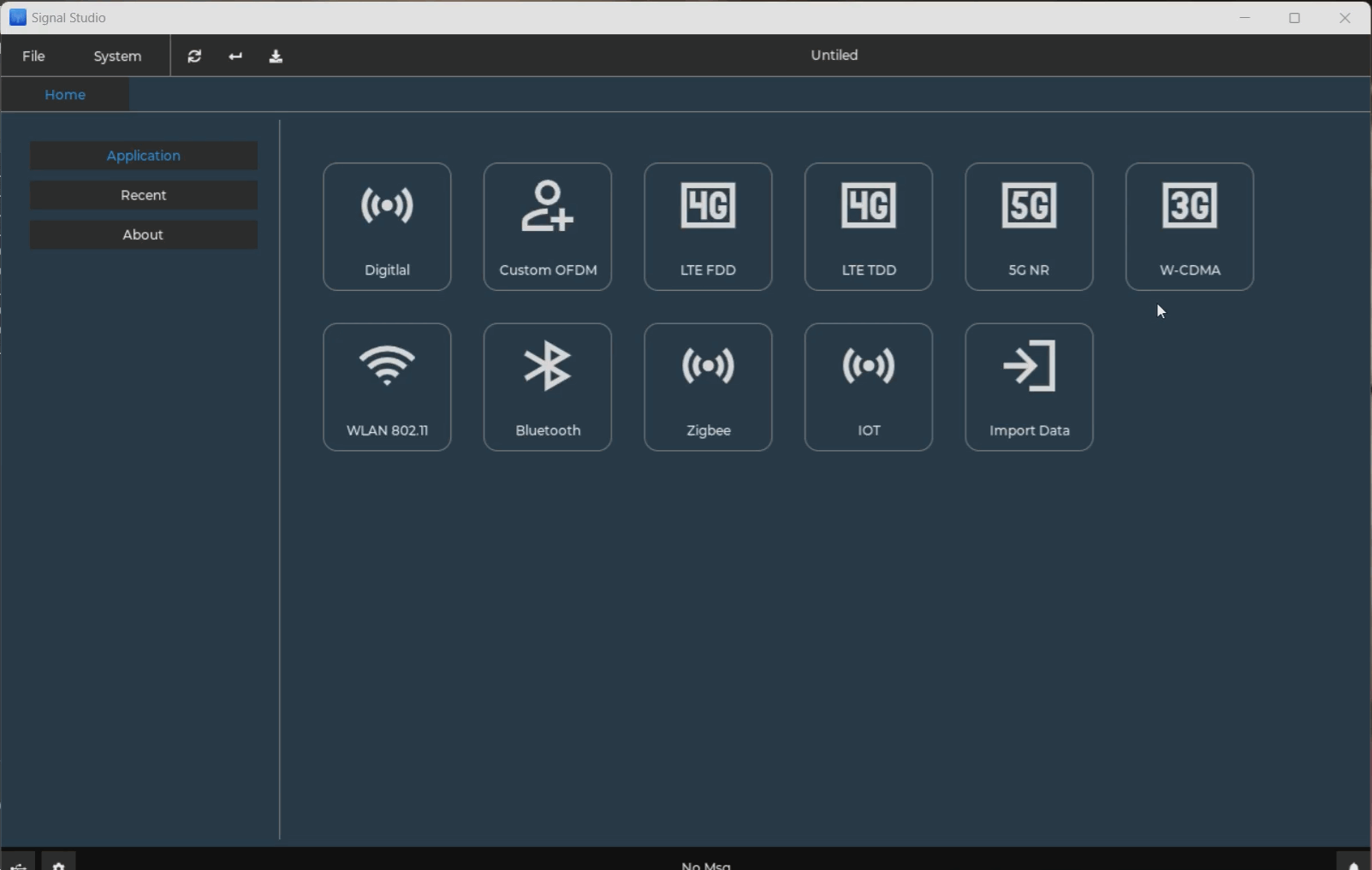

    USG3000V Signal Studio Support

    💻 Signal Studio Integration

    Seamless integration with Signal Studio software for creating dedicated signals in baseband, RF, or microwave frequency bands. Generate complex wireless communication signals of various standards with one-click import to the vector signal generator.

    Professional Applications

    📱

    Wireless Device Testing

    Comprehensive testing of WiFi, Bluetooth, and cellular devices operating up to 6.5 GHz. Perfect for modern wireless standards including WiFi 6/6E, 5G sub-6 GHz bands, and emerging wireless technologies with rich vector modulation capabilities.

    🔬

    Component Development

    High-precision testing of RF components including filters, amplifiers, and receivers up to 6.5 GHz. Built-in 110 dB dynamic range programmable attenuator supports minimum -135 dBm output for sensitive component characterization and validation.

    📡

    5G Sub-6 Testing

    Complete 5G sub-6 GHz signal generation with support for modern modulation schemes up to 512QAM. Vector signal modulation up to 6 GHz with 150 MHz bandwidth enables thorough testing of 5G devices, small cells, and infrastructure equipment.

    🎓

    Education & Research

    Intuitive 5-inch touch interface and comprehensive modulation capabilities make it ideal for RF engineering education and research. Signal Studio integration enables students and researchers to explore complex modulation schemes and wireless standards.

    🏭

    Production Testing

    Automated production line integration via USB and LAN interfaces with SCPI programming support. Web remote management capabilities enable efficient production testing with standardized procedures for wireless device manufacturing.

    🌐

    IoT & Connectivity

    Testing of IoT devices, smart home products, and connected systems operating across multiple frequency bands. Supports various wireless protocols and standards with precise signal generation for interference testing and coexistence validation.

    Model Specifications

    Model Screen CW Frequency Range IQ Frequency Range Phase Noise Output Power Mechanical Attenuator
    USG3065V-P 5" capacitive touch 9 kHz–6.5 GHz 9 kHz–6 GHz <-122 dBc/Hz -135 dBm–+25 dBm ✓
    USG3045V-P 5" capacitive touch 9 kHz–4.5 GHz 9 kHz–4.5 GHz <-122 dBc/Hz -135 dBm–+25 dBm ✓
    USG3065V 5" capacitive touch 9 kHz–6.5 GHz 9 kHz–6 GHz <-122 dBc/Hz -135 dBm–+25 dBm —
    USG3045V 5" capacitive touch 9 kHz–4.5 GHz 9 kHz–4.5 GHz <-122 dBc/Hz -135 dBm–+25 dBm —

    Advanced Wireless Testing Made Simple

    The USG3000V series delivers professional-grade RF vector signal generation up to 6.5 GHz, combining exceptional performance with intuitive operation for modern wireless testing applications.

    0.001 Hz
    Frequency Resolution
    110 dB
    Dynamic Range
    20 ns
    Min Pulse Width
    512QAM
    Max Modulation

    Expected Availability: Q4 2025
    Perfect for wireless device testing, 5G sub-6, component development, and education

    Feature Specification
    Model Number USG3000V
