UNI-T UTL1000S Series DC Electronic Load | Buying Guide
Choosing the Right UTL1000S Electronic Load
The UTL1000S series is a family of four programmable DC electronic loads that share the same platform, the same 15 test modes, the same 4.3-inch TFT display with real-time waveform capability, and the same 50 kHz dynamic mode. Every model in the series delivers capabilities that exceed competing loads in this class — including built-in waveform display, faster transient testing, more test modes, and a longer warranty. The differences come down to two choices: how much power do you need, and how much measurement resolution do you need?
This guide walks you through those decisions so you can select the model that fits your application and budget. If you already know what you need, skip to the comparison table below. If you'd like to understand the tradeoffs first, read on.
Decision 1: How Much Power Do You Need?
All four UTL1000S models share the same maximum voltage (150 V) and maximum current (30 A) ratings. The difference is the power limit — the maximum voltage and current you can use at the same time. Think of voltage and current as the dimensions of a rectangle, and power as the area: every model has the same width and height, but the 400 W models let you fill a much larger portion of that rectangle simultaneously.
200 W Models (UTL1020S & UTL1020S-E)
The 200 W models are the right choice when your devices under test operate within a 200 W envelope. At 30 A, you can load up to about 6.7 V; at 150 V, you can sink up to about 1.3 A. This covers a broad range of applications: USB chargers and adapters (5–20 V), low-voltage DC-DC converters, battery cell testing, LED driver validation, and benchtop power supply verification for designs under 200 W. The 200 W models are also lighter (3.73 kg vs. 4.49 kg) and more affordable, making them an excellent choice for multi-station labs or educational environments where several units are needed.

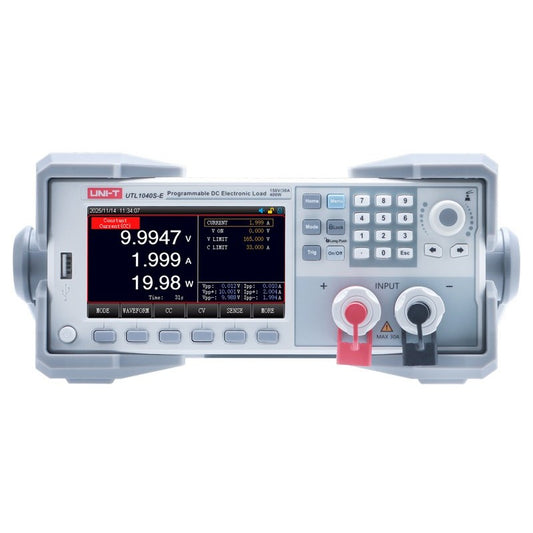

400 W Models (UTL1040S & UTL1040S-E)
The 400 W models double the usable operating area. At 30 A, you can load up to about 13.3 V; at 150 V, you can sink up to about 2.67 A. Choose 400 W when you're testing server power supplies, industrial converters, higher-capacity battery packs (e-bike, UPS, solar storage), multi-output supplies where total load exceeds 200 W, or any DUT where you need simultaneous moderate voltage and moderate current. The 400 W rating also provides 33% more power than the 300 W ceiling common among competing loads in this price range, giving you headroom that most alternatives cannot match.
Decision 2: Standard or Precision Resolution?
Within each power class, you choose between a standard model and a precision ("-E" value) model. Both share identical power ratings, the same 15 test modes, 50 kHz dynamic testing, 500 kHz sampling, waveform display, and all connectivity. The difference is measurement resolution and readback accuracy.
Precision Models (UTL1020S & UTL1040S)
The precision models offer 0.01 mV / 0.01 mA resolution (low range) — ten times finer than the "-E" models and an order of magnitude beyond many competing loads. They also provide tighter readback voltage accuracy at ±(0.02% + 0.03% FS). Choose a precision model when you need to measure small voltage or current changes with confidence: precision voltage reference testing, low-current standby power verification, tight-tolerance production testing with narrow pass/fail windows, or any application where you want to reduce or eliminate the need for an external DMM.
Value Models (UTL1020S-E & UTL1040S-E)
The "-E" models provide 0.1 mV / 0.1 mA resolution (low range), which is equal to or better than most competing loads in this class. For the majority of power supply testing, charger validation, battery discharge characterization, and general bench work, this resolution is more than sufficient. The "-E" models deliver the same feature set — including the waveform display and dynamic testing capabilities that set the UTL1000S platform apart — at a lower price point, making them an outstanding value.
At a Glance: All Four Models Compared
| Feature | UTL1020S-E | UTL1020S | UTL1040S-E | UTL1040S |
|---|---|---|---|---|
| Positioning | 200 W Value | 200 W Precision | 400 W Value | 400 W Flagship |
| Input Power | 200 W | 200 W | 400 W | 400 W |
| Input Voltage | 0–150 V | 0–150 V | 0–150 V | 0–150 V |
| Input Current | 0–30 A | 0–30 A | 0–30 A | 0–30 A |
| Voltage Resolution (Low / High) | 0.1 mV / 1 mV | 0.01 mV / 0.1 mV | 0.1 mV / 1 mV | 0.01 mV / 0.1 mV |
| Current Resolution (Low / High) | 0.1 mA / 1 mA | 0.01 mA / 0.1 mA | 0.1 mA / 1 mA | 0.01 mA / 0.1 mA |
| Readback Voltage Accuracy | ±(0.03% + 0.05% FS) | ±(0.02% + 0.03% FS) | ±(0.03% + 0.05% FS) | ±(0.02% + 0.03% FS) |
| Dynamic Mode | 50 kHz | 50 kHz | 50 kHz | 50 kHz |
| Slew Rate | Up to 3 A/µs | Up to 3 A/µs | Up to 3 A/µs | Up to 3 A/µs |
| Test Modes | 15 | 15 | 15 | 15 |
| Waveform Display | Yes | Yes | Yes | Yes |
| Sampling Rate | 500 kHz | 500 kHz | 500 kHz | 500 kHz |
| Weight | 3.73 kg | 3.73 kg | 4.49 kg | 4.49 kg |
| MSRP (USD) | $439 | $599 | $839 | $999 |
Understanding the Power Envelope
A common question from buyers is: if the 200 W and 400 W models both have the same 150 V and 30 A ratings, why are there different power versions? The answer lies in the operating envelope. Maximum voltage and maximum current define the outer boundaries, but you can never use both simultaneously — the power rating is the real constraint.
Think of it as a budget that you split between voltage and current. On a 200 W model, if you're sinking the full 30 A, the voltage can only be about 6.7 V. On a 400 W model, that same 30 A can run at up to about 13.3 V. The 400 W models give you a much larger usable operating area within the same voltage and current boundaries. If your DUTs deliver moderate voltage and moderate current at the same time — typical of many industrial power supplies and battery systems — the 400 W models provide the headroom you need.
Which Model Fits Your Application?
USB Chargers, Adapters & Low-Voltage Converters
For testing USB-PD chargers, AC-DC adapters, and low-voltage DC-DC converters up to 200 W, the UTL1020S is the ideal choice when you need the finest measurement granularity — its 0.01 mA resolution is valuable for verifying standby power draw on chargers. If you're running general pass/fail testing where 0.1 mA resolution is sufficient, the UTL1020S-E delivers the same test capabilities at a lower cost.
Server PSUs, Industrial Converters & High-Capacity Batteries
For higher-power devices — server power supplies, industrial DC-DC converters, e-bike and UPS battery packs, or multi-output supply testing — the UTL1040S provides 400 W with precision measurement, making it the right choice for design validation where accuracy matters. The UTL1040S-E handles the same 400 W loads at standard resolution, ideal for production testing or general bench verification where the extra measurement precision is not required.
Educational Laboratories
For teaching labs, the UTL1020S-E is typically the best fit. It provides all 15 test modes, the waveform display (which is an exceptional teaching tool for showing students how power supplies behave under load), and the full dynamic testing capability — at the lowest price point in the series. The intuitive 4.3-inch color display also makes it far more approachable for students than the text-only VFD displays on competing loads. For labs with higher-power curriculum requirements, the UTL1040S-E provides the same ease of use at the 400 W level.
Production & Automated Test Lines
For production environments, the key considerations are the resolution needed for your pass/fail limits and the power of your DUTs. All four models support RS-232 with SCPI protocol and HANDLER interface for automated test integration, and all include the 200-step auto list mode for multi-step qualification sequences with pass/fail judging. Choose the power class (200 W or 400 W) that covers your product range, then select precision or value resolution based on your tolerance requirements.
What Every UTL1000S Model Includes
Regardless of which model you choose, you get the full UTL1000S feature set — capabilities that exceed competing loads across the board:
- 4.3-Inch TFT Color LCD — Live waveforms, ripple data, and clear numeric readouts replace the basic VFD text displays on competing loads
- Built-in Waveform & Ripple Measurement — Real-time voltage and current waveforms with Vpp/Ipp, a capability no competing load in this class offers
- 50 kHz Dynamic Mode — 2× to 5× faster transient testing than typical competing loads (10–25 kHz)
- 3 A/µs Maximum Slew Rate — 2× to 3× faster current transitions than competing loads (1–1.5 A/µs)
- 15 Test Modes — Four more than the 11 modes typical of competing loads, including OVP, OCP, time, short circuit, load effect, and combination
- 200-Step Auto List — More than double the 84–100 steps typical of competing loads, with pass/fail judging and CSV export
- 500 kHz Synchronous Sampling — Accurate capture of switching artifacts at typical converter frequencies
- Battery Test with Discharge Curves — Dedicated mode with graphical charge/discharge curve recording and capacity measurement
- CR-LED Mode — Realistic LED driver testing with constant-resistance LED emulation
- RS-232, HANDLER, USB Host, Remote Sense — Full connectivity for bench and production use
- Over-power, Over-current, Over-voltage, Over-temperature Protection — Comprehensive safety for your DUT and the instrument
- 5-Year Warranty (3+2) — Register free to extend coverage to 5 years, up to 67% longer than the 3-year industry standard
How Does the UTL1000S Series Compare to the Competition?
The UTL1000S series was designed to outperform established competitors in this price class on the specifications that matter most for real-world testing. Here's how the platform stacks up against typical competing electronic loads:
| Specification | UTL1000S Series | Typical Competing Loads |
|---|---|---|
| Display | 4.3" TFT LCD with waveforms | VFD text display (numbers only) |
| Waveform & Ripple | Built-in (Vpp, Ipp) | Not available |
| Dynamic Mode | 50 kHz | 10–25 kHz |
| Maximum Slew Rate | 3 A/µs | 1–1.5 A/µs |
| CV/CC Accuracy | ±(0.03% + 0.05% FS) | ±(0.05% + 0.02–0.05% FS) |
| Test Modes | 15 | 11 |
| Auto List Steps | 200 | 84–100 |
| Input Impedance | 300 kΩ | 150 kΩ |
| Max Power (Single Channel) | Up to 400 W | Up to 300 W |
| Warranty | 5 years (3+2 with free registration) | 3 years |
Quick Selection Guide
Need 200 W or less?
Best precision: UTL1020S ($599) — 0.01 mV / 0.01 mA resolution with tighter readback accuracy. Best for precision voltage reference testing, low-current characterization, and tight-tolerance production work.
Best value: UTL1020S-E ($439) — Same 15 test modes, waveform display, and 50 kHz dynamic testing at 0.1 mV / 0.1 mA resolution. Ideal for general bench testing, charger validation, education labs, and applications where standard resolution is sufficient.
Need more than 200 W?
Best precision: UTL1040S ($999) — 400 W flagship with 0.01 mV / 0.01 mA resolution. The ultimate combination of power and measurement precision for demanding design validation and high-power production testing.
Best value: UTL1040S-E ($839) — Full 400 W capacity with the complete feature set at 0.1 mV / 0.1 mA resolution. Delivers 33% more power than typical 300 W competing loads with better specifications across the board.
Frequently Asked Questions
If the 200 W and 400 W models both have the same 150 V and 30 A ratings, why would I pay more for 400 W?
Maximum voltage and maximum current are the outer boundaries of the operating envelope — you can never use both at their maximum simultaneously. The power rating determines how much of that envelope you can actually use. At 30 A, a 200 W model limits you to about 6.7 V, while a 400 W model allows up to about 13.3 V. If your DUTs deliver moderate voltage and moderate current at the same time, the 400 W model provides the larger usable operating area you need.
What's the real-world difference between 0.01 mA and 0.1 mA resolution?
For most power supply testing, charger validation, and battery discharge work, 0.1 mA resolution is more than adequate — it matches or exceeds competing loads in this class. The 0.01 mA resolution on the precision models matters when you're measuring very small current changes: standby power draw on chargers (often in the low milliamp range), leakage current measurements, or production testing with very tight pass/fail windows. If you're unsure, the "-E" value models are an excellent starting point — you can always step up to a precision model later if your application demands it.
Can I use the UTL1000S for automated production testing?
Yes. All four models include RS-232 with SCPI protocol for remote control, a HANDLER interface for pass/fail signaling to production equipment, and a 200-step auto list mode with programmable pass/fail judging. List profiles can be saved to USB for easy deployment across multiple test stations. The combination of automated sequencing, pass/fail output, and comprehensive protection makes the UTL1000S series well-suited for production environments.
Do I really need the waveform display, or is that a gimmick?
The built-in waveform display is one of the most practical features on the UTL1000S — it's genuinely useful, not decorative. When testing switching power supplies, you can see output ripple directly on the load's display without connecting an oscilloscope. During dynamic testing, you can observe voltage overshoot, undershoot, and recovery time visually. For battery testing, the discharge curve is plotted in real time. This is a capability no competing load in this class offers, and it reduces the number of instruments you need on the bench. In educational settings, it's particularly valuable because students can immediately see the relationship between load changes and power supply behavior.
How does the 5-year warranty work?
The UTL1000S series comes with a standard 3-year warranty against defects in material and workmanship — matching the industry standard. When you register your instrument for free on the UNI-T website, coverage extends to a full 5 years (3+2). That's up to 67% longer protection than competing manufacturers offer, at no additional cost. Accessories carry a separate 1-year warranty.
What comes in the box?

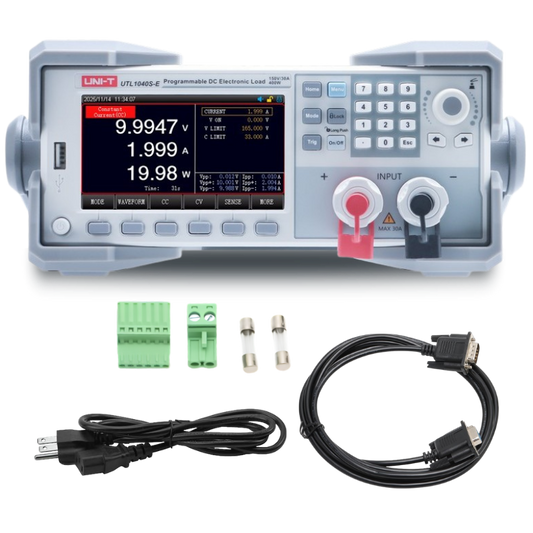

Every UTL1000S model ships with: the programmable DC electronic load, an AC power cord (country-specific), a plug-in terminal block (5.08-2P), a spring-pressed screw-free plug-in terminal block (2.54-6P), two fuses, and an RS-232 data cable. Test leads are not included and should be selected based on the maximum current of your application.
