Unleash the Power of Precision with the UNI-T MSO2104-S Mixed Signal Oscilloscope (MSO)

Experience the pinnacle of measurement and analysis with the UNI-T MSO2104 Mixed Signal Oscilloscope (MSO). Built on UNI-T's original Ultra Phosphor technology, this multifunctional, high-performance oscilloscope combines ease of use with exceptional technical prowess and an array of functional features. Whether you're involved in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R&D, or education, the MSO2104 is your go-to tool.

Key Specifications:

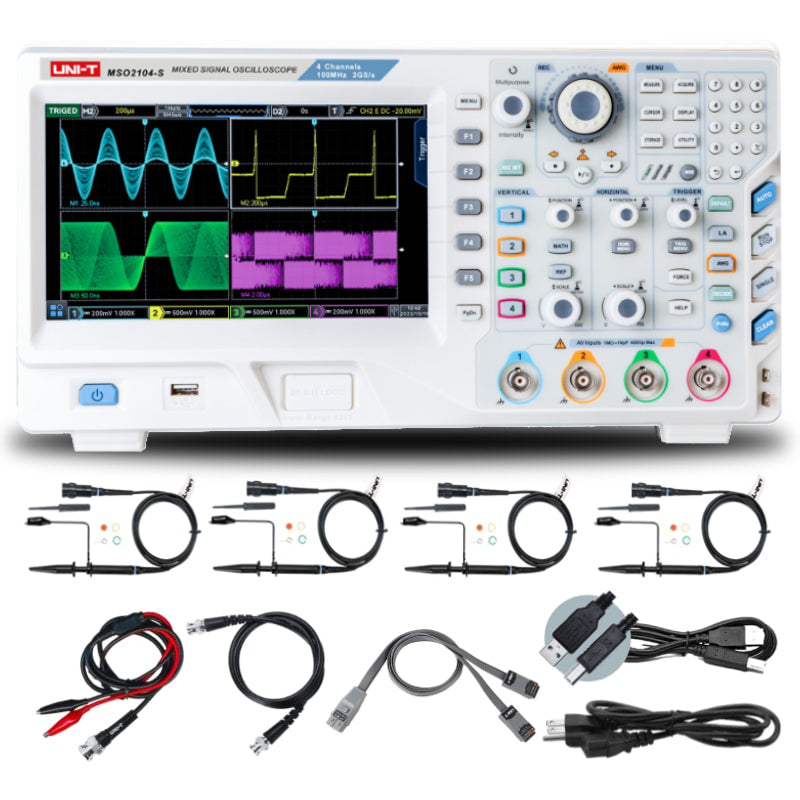

• BANDWIDTH: 100MHz
• ANALOG CHANNELS: 4
• DIGITAL CHANNELS: 16 (UT-M15 Logic probe included)
• FUNCTION GENERATOR: 50MHz ARB Included
• REAL-TIME SAMPLE RATE: 2GSa/s
• MAX. MEMORY DEPTH: 56Mpts



• WAVEFORM CAPTURE RATE: 1,000,000wfms/s
• DISPLAY: 8in Multi-point Capacitive Touchscreen

Versatile Performance: Designed for general design, debugging, and testing needs across various fields, the UNI-T MSO2104-S Mixed Signal Oscilloscope ensures you complete your measurement tasks swiftly and accurately.

Enhanced Channel Capacity: Featuring four analog channels, the UNI-T MSO2104-S Mixed Signal Oscilloscope allows you to measure multiple signals simultaneously. Ideal for debugging circuits, monitoring serial protocols, and video signal analysis, it's your trusted companion when you need to see several signals happening at once.

Built-in AWG: The UNI-T MSO2104-S Mixed Signal Oscilloscope boasts a dual-channel function arbitrary waveform generator capable of producing sine waves, square waves, ramp waves, pulse waves, arbitrary waves, noise, and DC signals. It reaches a maximum sine wave frequency output of 50MHz.

User-Friendly Interface: The UNI-T MSO2104-S Mixed Signal Oscilloscope boasts an 8-inch touch screen which supports a range of gesture operations, making measurements smoother and more convenient. Coupled with traditional button and knob operation options, this oscilloscope offers an optimized interactive experience.

XY Mode: Quickly measure phase differences between two signals with XY mode cursor measurement.

Advanced FFT Analysis: Leverage the UNI-T MSO2104-S Mixed Signal Oscilloscope’s FFT (Fast Fourier Transform) mathematical operations to convert time-domain signals into frequency-domain signals. Analyze harmonic content, measure distortion in measurement systems, explore noise features in DC power supplies, and delve into vibration analysis.

Rich Trigger Functions: Capture and display your signals of interest accurately with a wide array of advanced trigger options, including edge, pulse width, video, and more.

Ultra High Capture Rate: Innovative digital signal parallel processing technology allows for an ultra-high capture rate of 200,000wfms/s in normal sampling and 1,000,000wfms/s in Fast Acquire mode, ensuring efficient capture of occasional signals with the UNI-T MSO2104-S Mixed Signal Oscilloscope.

Logic Analysis Probe UT-M15: Simplify digital signal analysis with the UT-M15, which includes two 8-channel probes for easy connection to your device under test. It boasts excellent electrical characteristics with an input impedance of 101kΩ and a capacitive load of only 9.0pF.

Robust Logic Analyzer: The UNI-T MSO2104-S Mixed Signal Oscilloscope is perfect for parallel bus analysis, protocol decoding, and precise timing measurements. Features like Rank Selection, Data Bus Setting, Group Setting, and Event Lists enhance your analytical capabilities.

Full Memory Hardware Decoding: Experience lightning-fast decoding thanks to deep storage of 56Mpts, enabling the UNI-T MSO2104-S Mixed Signal Oscilloscope to offer real-time decoding and efficient problem diagnosis.

Enhanced Memory Depth: The UNI-T MSO2104-S Mixed Signal Oscilloscope maintains a high sampling rate across a wider time base range, improving the capture rate of abnormal waveforms.

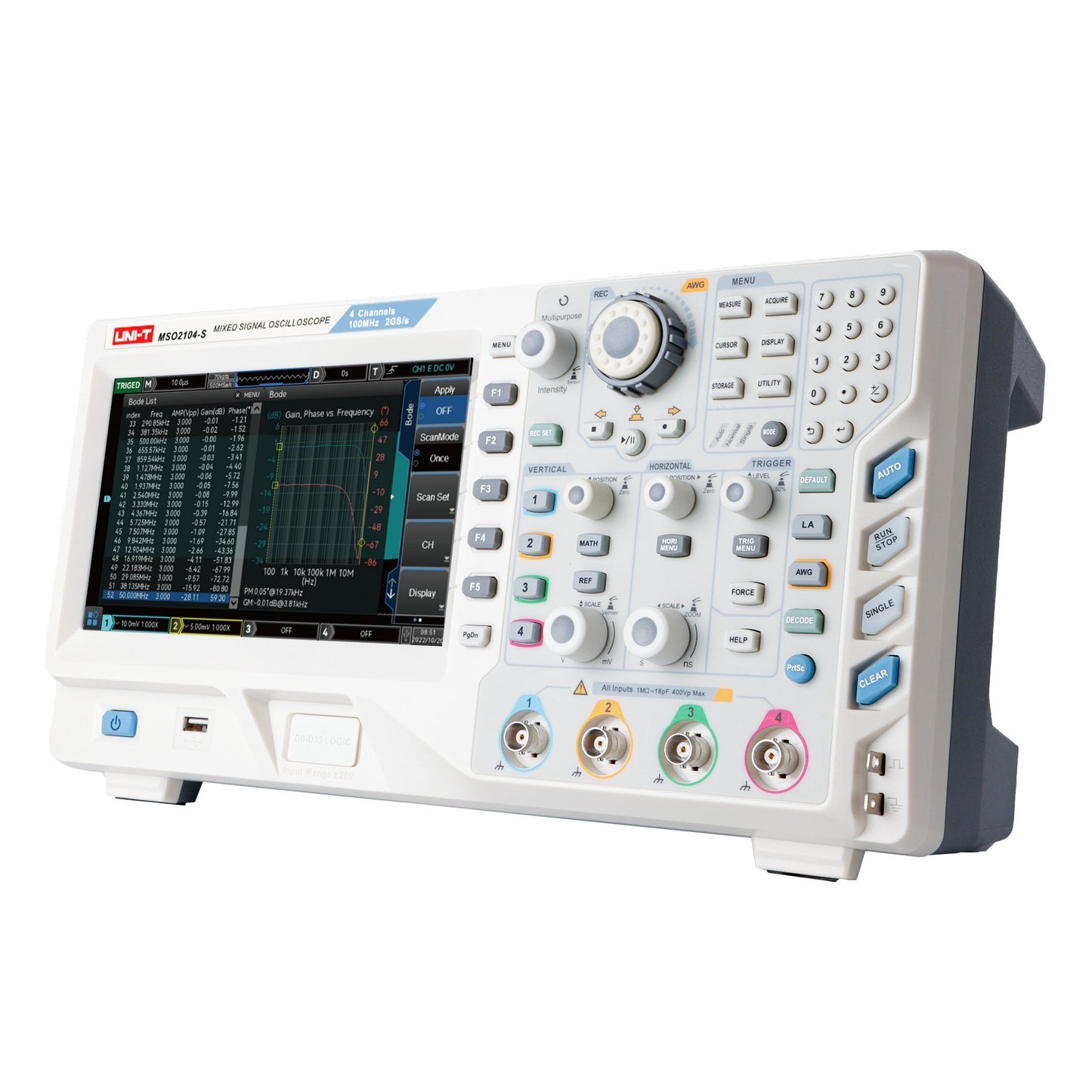

Bode Plot Analysis: Gain insights into the frequency response of your electronic designs, characterizing gain, phase, and frequency with ease using the UNI-T MSO2104-S Mixed Signal Oscilloscope. Perfect for passive filters, amplifier circuits, and switch-mode power supplies.

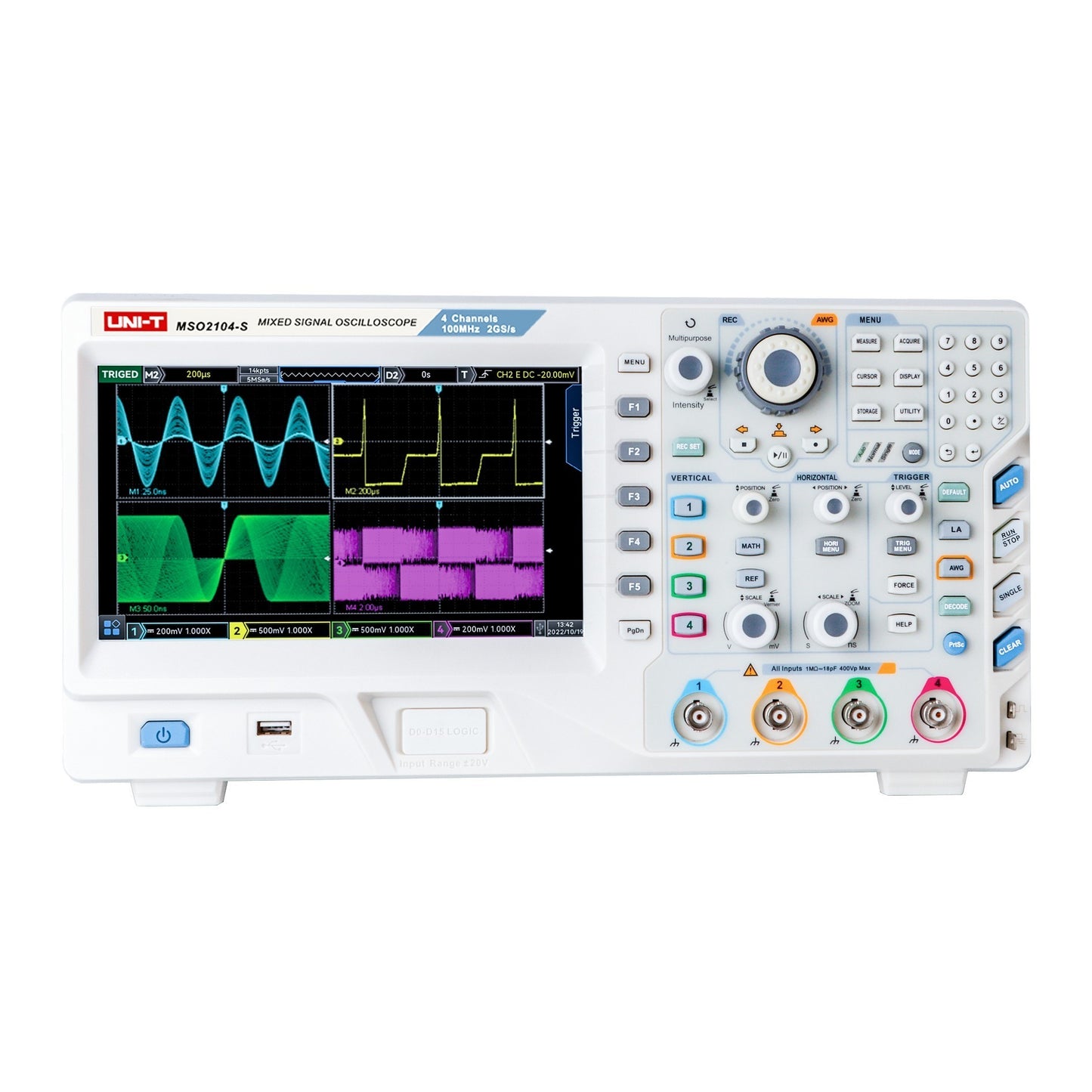

Channel Split Screen: Utilize Multi-Scopes technology for a user-friendly waveform display, allowing customization of each channel with different frequency, amplitude, and waveform settings.

256-Level Grayscale Display: With Ultra Phosphor display technology, use the UNI-T MSO2104-S Mixed Signal Oscilloscope to observe waveform details and occasional abnormalities effortlessly.

Rich Measurement Functions: Benefit from up to 36 automatic parameter measurements, significantly enhancing measurement efficiency and accuracy.

Elevate your precision measurement tasks with the UNI-T MSO2104-S Mixed Signal Oscilloscope (MSO). Make it your go-to tool for mastering the art of measurement and analysis.
