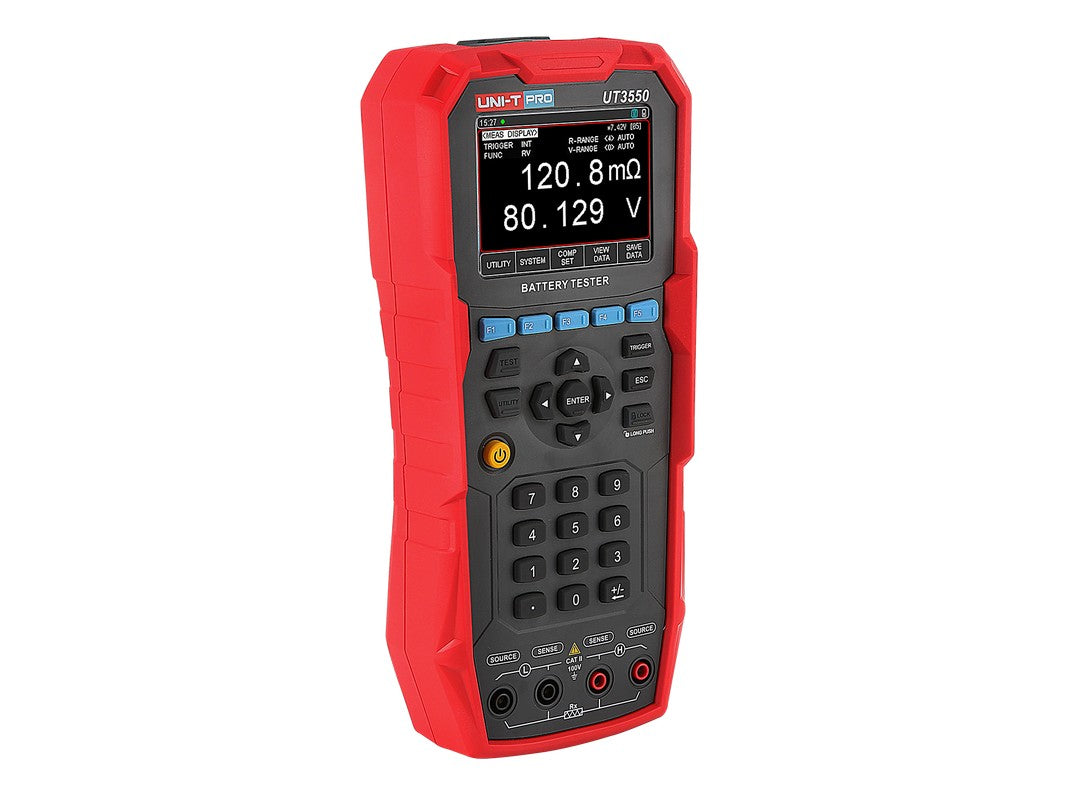

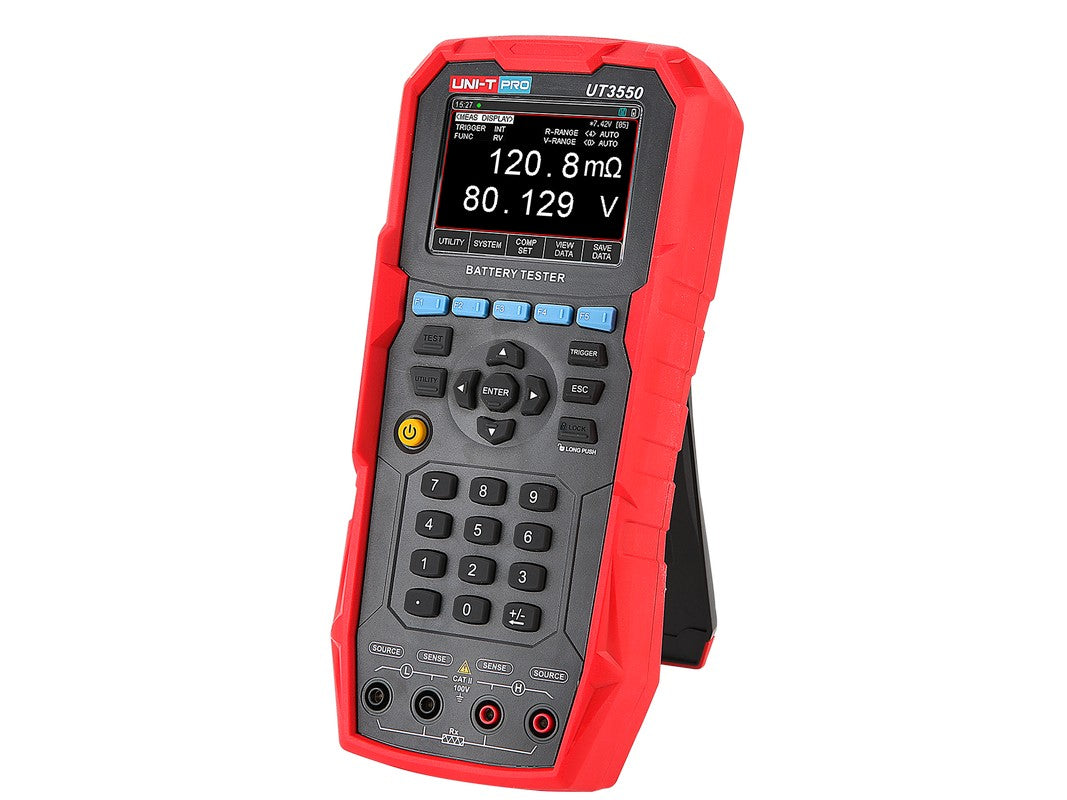

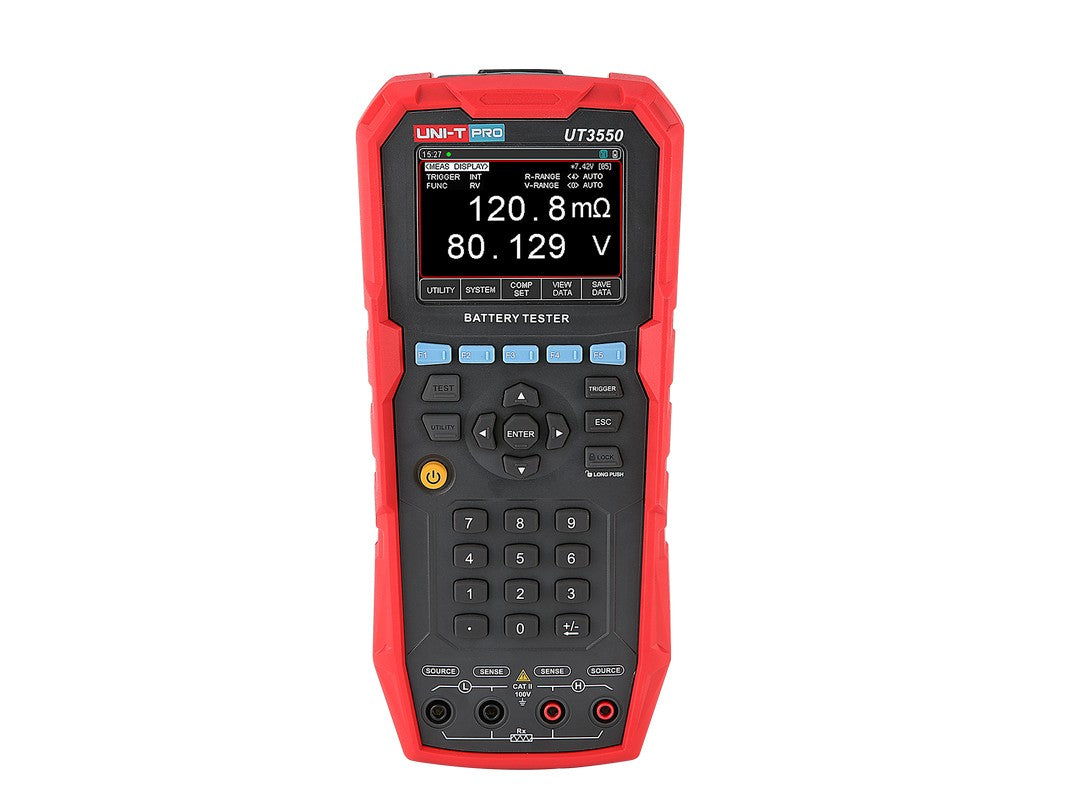

UNI-T UT3550 Battery Tester | Professional-Grade Battery Analysis Solution

Overview

The UNI-T UT3550 Battery Tester delivers exceptional testing precision and versatility for professionals requiring accurate battery performance analysis. Combining the convenience of a handheld instrument with bench-top measurement capabilities, this advanced tester offers industry-leading accuracy of 0.5% for resistance and 0.05% for voltage measurements. With its innovative AC internal resistance test methodology, the UT3550 can evaluate almost all battery types from small consumer cells to large industrial installations, making it invaluable for quality control, maintenance, and troubleshooting applications.

The instrument's dual-display system features a 3.5-inch main LCD and auxiliary 0.96-inch OLED screen, enabling technicians to quickly assess measurement data even in challenging environments. With comprehensive connectivity options including USB Type-C for remote control and data acquisition, the UT3550 seamlessly integrates into both manual inspection workflows and automated testing systems. Engineered for real-world applications with IP65 protection, robust construction, and extended 5-hour battery life, the UNI-T UT3550 delivers the performance, reliability, and efficiency that battery testing professionals demand.

Key Features

• Exceptional Measurement Accuracy - Achieve precise readings with 0.5% accuracy for resistance and 0.05% accuracy for voltage
• Wide Measurement Range - Test resistance from 0.001mΩ to 30.00Ω and voltage from 0.0001V to 100.00V
• AC Internal Resistance Testing - Evaluate almost all battery types using advanced AC measurement technology

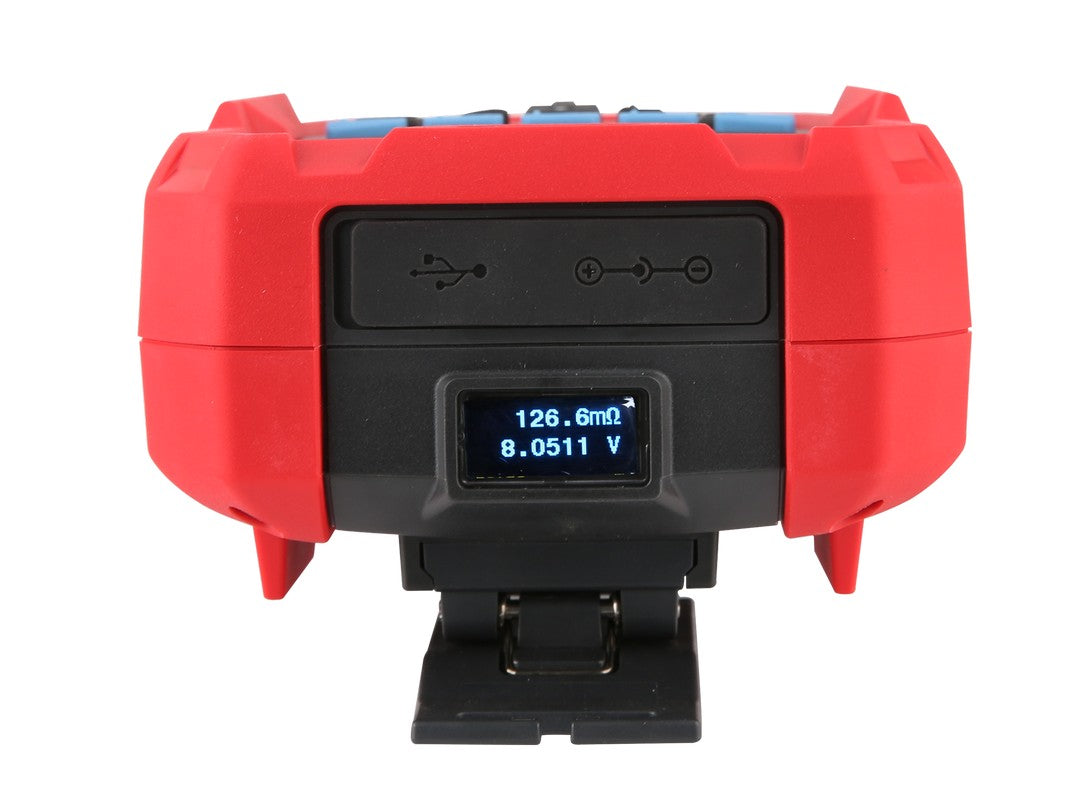

• Dual Display System - 3.5-inch main LCD and 0.96-inch auxiliary OLED for efficient data visualization
• Versatile Comparison Modes - Choose between SEQ (direct reading), PER (percentage), and ABS (absolute) for optimal defect detection
• Online UPS Measurement - Test UPS systems directly without disrupting operation
• Extended Data Recording - Store up to 500 test records with CSV export capability
• Advanced Connectivity - USB Type-C interface for remote control and data acquisition
• SCPI Protocol Support - Integrate into automated testing environments with standardized commands
• Rugged Construction - IP65 protection rating for durability in industrial environments
• Extended Battery Life - Up to 5 hours of continuous operation on a single charge
• Comprehensive Accessories - Complete testing kit including Kelvin test clips and connection cables

UNI-T UT3550 Details

Precision Battery Testing Technology

The UNI-T UT3550 employs sophisticated AC internal resistance measurement technology to deliver exceptional accuracy across diverse battery types. This methodology allows the instrument to achieve precise readings even during battery operation, without impacting system performance or measurement stability. The 0.5% resistance measurement accuracy and 0.001mΩ resolution enable technicians to detect subtle changes in battery condition that might indicate degradation or impending failure. For voltage measurements, the impressive 0.05% accuracy ensures reliable assessment of battery health across the full measurement range from 0.0001V to 100.00V, accommodating everything from individual cells to complex battery strings.

Advanced Comparison and Filtering Capabilities

The UT3550 offers three sophisticated comparison modes designed to streamline quality control processes and quickly identify batteries that fall outside acceptable parameters. The SEQ (direct reading) mode provides straightforward pass/fail evaluation against absolute thresholds, while PER (percentage) mode enables assessment relative to nominal values, ideal for production environments with varying battery specifications. The ABS (absolute value) mode facilitates precise deviation measurement from target values, simplifying the identification of marginal units. The instrument's clear visual and audible indicators (OFF, OK, NG) instantly communicate test results, dramatically improving inspection efficiency and reducing operator error in high-volume testing environments.

Versatile Data Management and Analysis

The UNI-T UT3550 transforms battery testing workflows with comprehensive data management capabilities. The automated recording function allows users to set precise measurement intervals and capture up to 500 sequential test records, enabling extended performance monitoring and trend analysis. Test data can be exported in CSV format via the USB interface, facilitating deeper analysis using external software. The screenshot saving functionality preserves complete measurement displays for documentation and reporting purposes. These capabilities are particularly valuable for applications requiring traceability and performance verification over time, such as warranty validation, production quality assurance, and preventive maintenance programs.

Seamless Integration and Remote Operation

Designed for integration into modern test environments, the UT3550 features a Type-C interface that enables remote control through companion PC software. This capability allows technicians to operate the instrument from a distance, visualize real-time data, and configure test parameters without direct physical interaction. The support for industry-standard SCPI protocol further enhances integration options, making the UT3550 compatible with automated test equipment (ATE) systems and custom test sequences. This remote operation flexibility is especially valuable in hazardous environments, production lines, and facilities where centralized test monitoring improves efficiency and safety.

Professional Applications

Battery Manufacturing and Quality Control

The UNI-T UT3550 provides battery manufacturers with essential test capabilities for ensuring product quality and consistency. Its high-precision resistance measurements detect subtle variations in internal cell construction that might indicate manufacturing defects before they cause field failures. The comparison modes with programmable thresholds enable rapid pass/fail sorting on production lines, while data logging capabilities support statistical process control and trend analysis. Quality engineers can implement standardized test procedures using the remote control capabilities, ensuring consistent testing methodology across multiple inspection stations. These capabilities directly translate to improved product reliability, reduced warranty claims, and enhanced customer satisfaction.

UPS System Maintenance and Troubleshooting

For UPS maintenance professionals, the UT3550 offers the unique ability to measure battery parameters during normal system operation, eliminating the need for costly system shutdowns during routine inspections. The instrument's AC measurement technology provides accurate internal resistance readings even while batteries are online, helping technicians identify weakening cells before they cause system failures. The extended logging capability enables monitoring of battery performance during discharge events or under varying load conditions, providing valuable insights into real-world performance. When integrated with preventive maintenance programs, these capabilities help facility managers maximize UPS reliability while optimizing battery replacement schedules and maintenance costs.

Electric Vehicle Battery Assessment

The UT3550's wide measurement range and high resolution make it ideal for evaluating electric vehicle batteries at various stages of their lifecycle. Service technicians can quickly assess the condition of individual cells or complete battery packs, identifying imbalances or degradation that could affect vehicle performance or range. The portable form factor with extended battery life enables field testing in service centers or mobile repair operations without requiring external power. When used in conjunction with the data logging function, the instrument can characterize battery performance under different conditions, providing valuable diagnostic information for troubleshooting intermittent issues or evaluating overall battery health against manufacturer specifications.

Telecommunications Battery System Verification

For telecommunications infrastructure, where battery reliability directly impacts network availability, the UT3550 provides essential verification capabilities for both installation quality assurance and ongoing maintenance. Technicians can quickly verify new battery installations against manufacturer specifications, ensuring proper connection quality and expected performance characteristics. During routine maintenance, the comparison modes enable rapid identification of deteriorating cells within large battery banks, allowing targeted replacement rather than complete system overhauls. The ruggedized construction with IP65 protection ensures reliable operation in challenging field environments, while the dual display system improves efficiency during tower site inspections where time and accessibility are often limited.

Technical Specifications

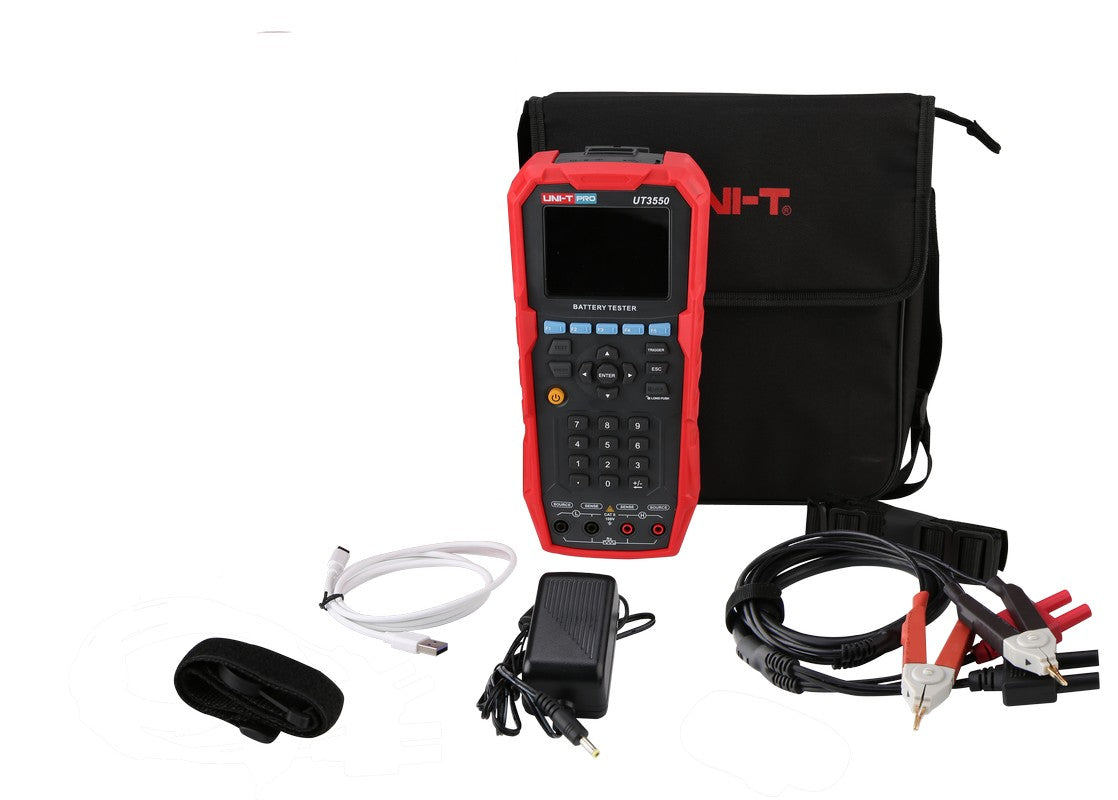

Package Contents

• UNI-T UT3550 Battery Tester
• Power adapter (9V 2000mA)
• Soft carrying case with UNI-T logo
• Shoulder strap
• USB Type-C communication cable
• Magnetic hanging belt
• Kelvin test clips with red and black test leads
• Calibration certificate
• User manual

Frequently Asked Questions

What makes the AC internal resistance test method in the UT3550 superior to DC measurement approaches?

The AC internal resistance test method employed by the UT3550 offers significant advantages over traditional DC measurement approaches. By applying a small AC signal rather than a DC current, the instrument can measure internal resistance while the battery remains in operation, without discharging or altering its state of charge. This methodology yields more consistent results by eliminating polarization effects that can skew DC measurements and provides more representative data about the battery's actual operating condition. The AC method also enables reliable measurement across almost all battery types, including lead-acid, lithium-ion, nickel-metal hydride, and flow batteries, making the UT3550 an exceptionally versatile instrument for diverse testing applications.

How does the comparison functionality improve battery testing efficiency in production environments?

In production environments, the UT3550's advanced comparison functionality dramatically improves testing efficiency through automated pass/fail determination. Quality control personnel can program specific thresholds based on manufacturer specifications, and the instrument instantly categorizes each battery tested as conforming or non-conforming using clear visual indicators and optional audible alerts. The three comparison modes (SEQ, PER, ABS) provide flexibility for different testing scenarios, allowing operators to choose the most appropriate evaluation method for their specific battery type and quality criteria. This automated approach minimizes operator interpretation errors, accelerates testing throughput, and ensures consistent quality standards, ultimately reducing costly returns and warranty claims associated with defective batteries reaching customers.

Can the UT3550 measure batteries while they're actively connected in a system?

Yes, one of the UT3550's key advantages is its ability to measure batteries while they remain connected in active systems, particularly valuable for UPS installations and telecommunications power systems. The instrument's AC measurement technology allows for accurate internal resistance readings without disrupting system operation or requiring costly downtime. This online measurement capability is especially important for critical infrastructure where power interruptions are unacceptable. The test process is non-intrusive and doesn't impact battery performance, allowing maintenance technicians to conduct regular health assessments without disconnecting batteries or shutting down protected equipment, significantly improving maintenance efficiency and system reliability.

How does the data recording feature benefit long-term battery monitoring applications?

The UT3550's data recording feature provides exceptional value for long-term battery monitoring by enabling technicians to capture performance trends and identify gradual degradation patterns. Users can program measurement intervals based on specific monitoring requirements, from rapid sequential measurements for dynamic testing to extended intervals for multi-day assessment. The ability to store up to 500 test records with timestamp information creates a comprehensive performance history that can reveal patterns not apparent in single-point measurements. When exported as CSV files, this data facilitates advanced analysis using external software, enabling detailed performance comparisons against baseline values, statistical evaluation of battery populations, and predictive maintenance planning based on observed degradation rates.

What connectivity options does the UT3550 provide for integration with automated test systems?

The UT3550 offers comprehensive connectivity options designed specifically for integration with automated test systems. The Type-C interface provides a reliable communication channel for remote control and data acquisition, while support for the industry-standard SCPI protocol ensures compatibility with a wide range of test automation platforms. This standardized command structure allows test engineers to incorporate the UT3550 into automated sequences without developing custom communication protocols. When combined with the instrument's external trigger capabilities and programmable comparison thresholds, these features facilitate fully automated battery testing operations where the UT3550 can be controlled programmatically, test results captured automatically, and pass/fail determinations integrated directly into production tracking systems.

How does the dual display system improve field testing productivity?

The UT3550's innovative dual display system significantly enhances field testing productivity by providing technicians with flexible visualization options for different working environments. The 3.5-inch main LCD offers detailed measurement information, test configuration status, and comparison results when detailed analysis is required. Meanwhile, the auxiliary 0.96-inch OLED screen positioned at the top of the instrument shows essential measurement values at a glance, particularly valuable when testing batteries in awkward locations or limited-access installations. When used with the included shoulder strap, this secondary display allows technicians to quickly view readings while keeping their hands free for probe positioning, dramatically improving efficiency during large-scale inspections of battery banks or multi-cell systems.

Customer Testimonials

"As a quality manager at a lithium battery manufacturing facility, the UT3550 has transformed our end-of-line testing process. The comparison modes with programmable thresholds allow our operators to quickly identify cells that don't meet our specifications, and the data logging capability gives us valuable insights into production consistency. We've reduced our defect escape rate by over 40% since implementing these testers." - Wei L., Battery Quality Control Manager

"I maintain UPS systems across multiple data centers, and the UT3550's ability to test batteries without taking systems offline has been a game-changer for our preventive maintenance program. The high-resolution resistance measurements help us identify weakening cells long before they cause problems, and the rugged construction stands up to the demanding field environment. This tester has literally paid for itself by preventing just one potential UPS failure." - James K., Critical Power Systems Technician

"Our telecommunications company uses the UT3550 for both installation verification and routine maintenance of cell tower battery banks. The portability combined with bench-instrument accuracy means we can perform comprehensive testing anywhere, while the extended battery life allows our technicians to complete full site assessments without recharging. The ability to export data in CSV format also simplifies our reporting and documentation requirements." - Aisha M., Telecommunications Infrastructure Specialist

Warranty and Support

The UNI-T UT3550 Battery Tester comes with a comprehensive three-year warranty covering manufacturing defects and component failures under normal use conditions. All included probes and accessories are covered by a one-year warranty. UNI-T provides dedicated technical support through our experienced test and measurement specialists, with responsive service available via phone, email, and our online knowledge base. Calibration services and extended warranty options are available to ensure your instrument maintains peak performance throughout its service life.

Comprehensive Battery Testing Solution for Today's Demanding Applications

The UNI-T UT3550 Battery Tester delivers the precision, versatility, and reliability that battery testing professionals demand. With exceptional measurement accuracy, advanced comparison capabilities, and comprehensive data management features, this instrument provides the insights needed to ensure battery quality, performance, and reliability across manufacturing, maintenance, and troubleshooting applications. Experience the difference that professional-grade battery testing can make in your operations.
