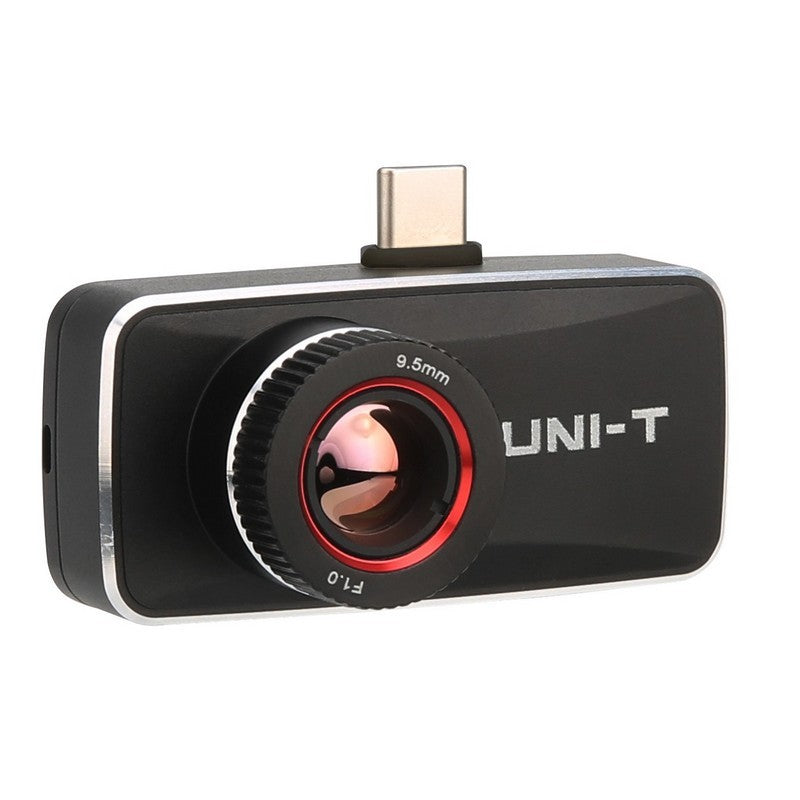

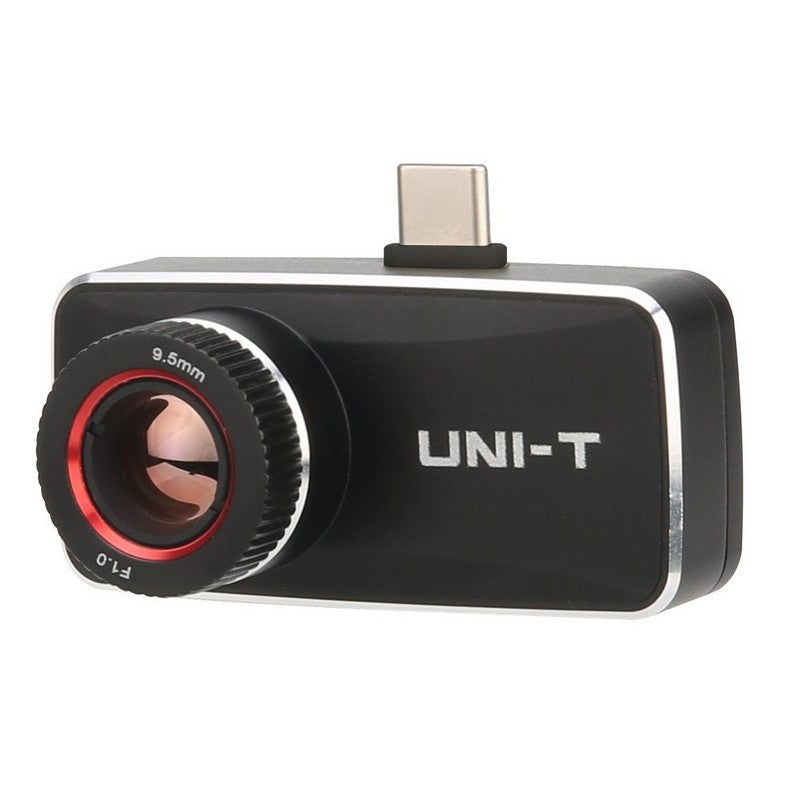

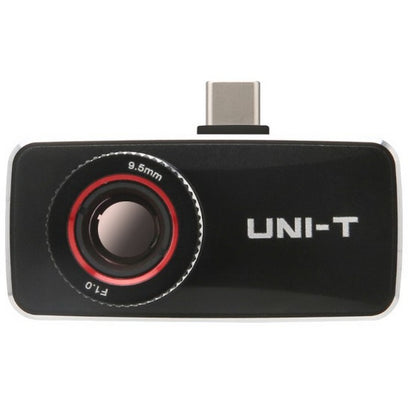

UNI-T UTi740MS Smartphone Thermal Camera
High-Resolution Thermal Imaging with Smartphone Connectivity
The UNI-T UTi740MS is a professional-grade thermal imaging camera that transforms your smartphone into a powerful diagnostic tool. Featuring an exceptional 400×300 pixel IR detector with Super Resolution technology that enhances images to 800×600 pixels, this compact device delivers crisp, detailed thermal images for precise diagnostics. With manual focus capability, high thermal sensitivity (≤45mK), and a wide temperature range (-20°C to 550°C), the UTi740MS provides the performance needed by maintenance professionals, home inspectors, HVAC technicians, and electrical contractors. The plug-and-play USB-C connection and dedicated mobile app make professional thermal imaging more accessible and portable than ever.
Key Features
-
High-Resolution Imaging: 400×300 pixel IR detector with Super Resolution technology enhancing images to 800×600 pixels
-
Superior Thermal Sensitivity: ≤45mK @25°C for detecting subtle temperature differences
-
Manual Focus Capability: Adjustable focus for clear imaging at various distances
-
Wide Temperature Range: Measures from -20°C to 550°C with ±2°C or ±2% accuracy
-
Smartphone Integration: Direct connection to Android and iOS devices via Type-C USB interface
-
Dedicated Mobile App: "Thermal Mobile" app for enhanced analysis and reporting
-
Comprehensive Analysis Tools: 5 Points/1 Line/3 Rectangles/3 Circles measurement options
-
Multiple Isotherm Modes: Auto/Below/Above/Section/Manual modes for targeted analysis
-
Lightweight Design: Approximately 46g with compact dimensions (58mm×27mm×28.6mm)
-
Video Recording: Capture and save thermal videos in MP4 format
-
Battery-Free Operation: Powered directly through smartphone connection
Professional-Grade Thermal Imaging in Your Pocket
The UNI-T UTi740MS delivers exceptional thermal imaging performance in an ultra-portable format. With its 400×300 pixel native resolution and Super Resolution enhancement to 800×600 pixels, it provides four times more detail than standard smartphone thermal cameras. The high thermal sensitivity of ≤45mK allows detection of minimal temperature variations, essential for identifying potential issues before they become critical failures.

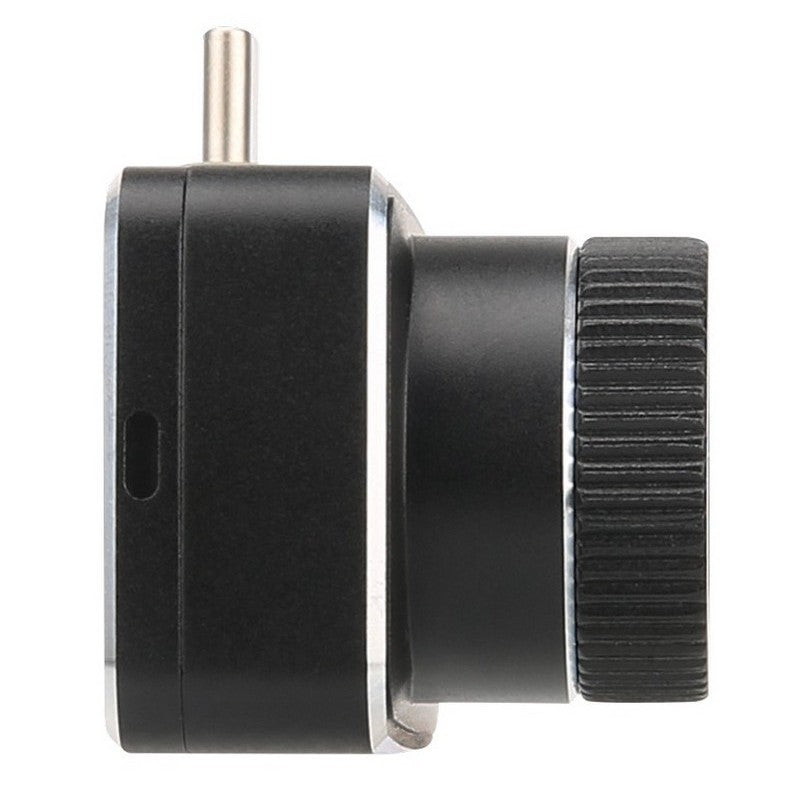

The manual focus design allows technicians to adjust the focal point precisely, ensuring sharp imaging from various distances and across different applications. This capability is critical for accurate temperature readings and detailed thermal analysis across diverse inspection scenarios, from small electronic components to large building structures.
Smartphone Integration for Maximum Portability
Unlike traditional thermal cameras that require dedicated screens and batteries, the UTi740MS integrates directly with your smartphone via USB-C connection, creating a truly portable thermal imaging solution. The plug-and-play design eliminates the need for batteries or charging, while the lightweight construction (just 46g) makes it easy to carry in a pocket or toolkit.
The dedicated "Thermal Mobile" app transforms your smartphone into a professional thermal analysis platform with intuitive controls and comprehensive measurement tools. This integration leverages your smartphone's processing power and display for enhanced analysis and simplified sharing of thermal data, images, and reports with clients or team members.
Comprehensive Measurement Capabilities
The UTi740MS combines essential thermal imaging with specialized measurement functions to deliver complete diagnostic capabilities. Beyond standard temperature visualization, it offers:
- Multiple measurement points and zones for comparative analysis
- Five different isotherm modes for focused temperature range visualization
- High/low temperature tracking and alarms
- Video recording for documenting temperature changes over time
- Professional report generation directly from the app
- Temperature measurement in both industrial mode and elevated skin temperature (EST) screening mode
The dual measurement modes provide versatility for both industrial applications (with standard ±2°C or ±2% accuracy) and human temperature screening applications (with enhanced ±0.5°C accuracy in the 20°C-50°C range), making the UTi740MS a multi-purpose diagnostic tool.
Technical Specifications
| Measurement |
Specification |
| IR Resolution |
400×300 pixels |
| Super Resolution |
800×600 pixels |
| Frame Rate |
25Hz |
| Thermal Sensitivity (NETD) |
≤45mK @25°C |
| Focus |
Manual Focus |
| Lens Focal Length |
9.5mm |
| Field of View (FOV) |
29°(H) × 21.5°(V) |
| Spatial Resolution (IFOV) |
1.26mrad |
| Focusing Distance |
1m (Optimum) |
| Measurement Modes |
Industrial & EST Screening |
| Temperature Range |
-20°C to 550°C |
| Accuracy (Industrial Mode) |
±2°C or ±2% whichever is greater (-10°C to 550°C) |
| Accuracy (EST Mode) |
±0.5°C (20°C to 50°C) |
Additional Features
- On-Screen Analysis: 5 Points/1 Line/3 Rectangles/3 Circles
- Isotherm Modes: Auto/Below/Above/Section/Manual
- HI/LO Temperature Alarm: LCD animation & Buzzer
- HI/LO Temperature Tracking: Yes
- Video Recording: Yes
- Report Generation: Yes
- Connection: USB Type-C
- Image Storage Format: JPG
- Video Storage Format: MP4
- Supported Languages: English, Chinese, French, German, Italian, Spanish, Swedish, Polish, Czech
- Dimensions: 58mm×27mm×28.6mm
- Weight: Approximately 46g

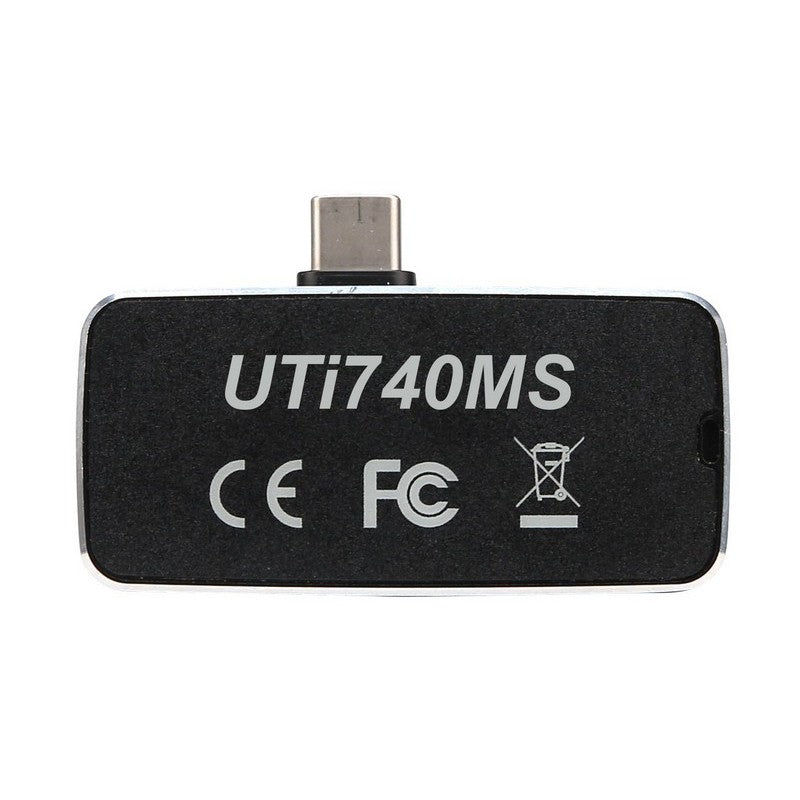

- Certifications: CE, FCC, RoHS
Package Contents
- UNI-T UTi740MS Thermal Camera
- Type-C Extension Cable
- Hand Strap
- Cleaning Cloth
- Cloth Bag
- Quick Start Guide
Professional Applications
Building Inspection
Building inspectors and energy auditors rely on the UTi740MS's high resolution and sensitivity for:
- Identifying insulation gaps and thermal bridges
- Detecting moisture intrusion and leaks
- Evaluating window and door seal effectiveness
- Identifying hidden structural issues
- Documenting building envelope performance
Electrical Inspections
Electricians and maintenance technicians leverage the UTi740MS's precision for:
- Identifying overheating electrical connections
- Locating overloaded circuits
- Evaluating switchgear and transformer performance
- Detecting imbalances in three-phase systems
- Preventing electrical failures through early detection
HVAC Systems
HVAC technicians depend on the UTi740MS's measurement capabilities for:
- Evaluating ductwork efficiency and leakage
- Verifying heating and cooling system performance
- Identifying refrigerant flow restrictions
- Inspecting compressor and condenser operation
- Documenting before/after repair performance
Equipment Maintenance
Maintenance professionals utilize the UTi740MS for:
- Motor bearing temperature monitoring
- Mechanical system inspection
- Belt and pulley alignment verification
- Pump system diagnostics
- Preventive maintenance documentation
EST Screening (Elevated Skin Temperature)
Safety personnel can utilize the specialized EST mode for:
- Non-contact preliminary temperature screening
- Enhanced accuracy in human temperature range (±0.5°C)
- Temperature alarm settings for screening protocols
- Documentation and reporting capabilities
- Portable screening solution for various locations
Mobile App Integration
The "Thermal Mobile" app transforms your smartphone into a complete thermal analysis platform with features including:
- Real-time thermal imaging with temperature data overlay
- Multiple color palette options for optimized visualization
- Comprehensive measurement tools with customizable parameters
- Image capture and video recording with embedded temperature data
- Gallery management for reviewing captured images and videos
- Professional report generation with customizable templates
- Image enhancement and analysis tools
- Intuitive sharing options via email, messaging, and cloud services
Available for both Android and iOS platforms, the app requires Android 7.0+ or iPhone 15+ with OTG enabled and a Type-C interface.
Frequently Asked Questions
How does the Super Resolution feature enhance thermal image quality?
The UTi740MS's Super Resolution technology uses advanced algorithms to enhance the native 400×300 pixel resolution to 800×600 pixels, effectively quadrupling the image detail. This enhancement allows the visualization of smaller temperature variations and finer details that would be missed in standard resolution. The increased clarity is particularly valuable when inspecting complex systems with small components or when creating detailed reports for clients, providing professional-level imaging quality in a compact, smartphone-connected device.
What advantages does the manual focus capability provide?
The UTi740MS's manual focus capability allows technicians to adjust the focusing ring to achieve the sharpest possible image at various distances and for different applications. Unlike fixed-focus thermal cameras that may produce blurry images when working outside their optimal distance range, the manual focus ensures clear, accurate temperature readings whether you're inspecting close-up electronic components or distant building elements. This flexibility significantly improves measurement accuracy and detail recognition across a wide range of inspection scenarios.
How does the UTi740MS compare to standalone thermal cameras?
The UTi740MS offers several advantages over traditional standalone thermal cameras. By leveraging your smartphone's processing power and display, it eliminates the need for a dedicated screen and battery, resulting in a significantly smaller, lighter, and more portable device. This smartphone integration also provides superior connectivity options for sharing and reporting, all while maintaining professional-grade specifications like 400×300 pixel resolution, ≤45mK sensitivity, and a wide temperature range. For professionals who already carry a smartphone, the UTi740MS provides comparable performance to mid-range standalone thermal cameras at a fraction of the size and weight.
What are the different isotherm modes used for?
The UTi740MS provides five isotherm modes that help focus analysis on specific temperature ranges: Auto mode automatically highlights the most relevant temperature regions; Below mode highlights areas below a set threshold (useful for finding cold spots or air leaks); Above mode highlights areas exceeding a set temperature (ideal for electrical hotspots); Section mode highlights a specific temperature band (perfect for process monitoring); and Manual mode allows complete customization of the isotherm parameters. These specialized visualization modes help technicians quickly identify areas of interest and create more effective reports by visually emphasizing critical temperature patterns.
What is the warranty period for the UNI-T UTi740MS?
UNI-T provides a 1-year warranty on the UTi740MS, covering manufacturing defects and component failures under normal use conditions. This standard warranty ensures your investment in professional measurement equipment is protected, giving you confidence in your purchase decision.
Support and Warranty
UNI-T stands behind the UTi740MS with comprehensive technical support and a 1-year warranty. Our dedicated support team is available to assist with application questions, measurement techniques, and warranty service.
Professional Thermal Imaging That Goes Anywhere
The UNI-T UTi740MS Smartphone Thermal Camera delivers exceptional imaging performance, comprehensive measurement capabilities, and professional reporting features in an ultra-portable package. With its high-resolution 400×300 pixel detector, Super Resolution enhancement, manual focus capability, and dedicated mobile app, it transforms your smartphone into a powerful diagnostic tool for building inspection, electrical troubleshooting, HVAC analysis, and preventive maintenance applications.
