UNI-T UT219P AC Digital Power Clamp Meter

Professional Power Quality Analysis in Your Hands

The UNI-T UT219P is an intelligent, handheld power and harmonics clamp meter that combines the functionality of a digital ammeter and power meter in one professional-grade device. Designed for electrical professionals who demand accurate power quality analysis, the UT219P delivers comprehensive measurement capabilities for voltage, current, power, harmonics, and more – all with exceptional precision and reliability.

Key Features

• High-Capacity Power Measurement: Test up to 3000KW for comprehensive system analysis
• Advanced Harmonics Testing: 32-order harmonic measurement for detailed power quality analysis

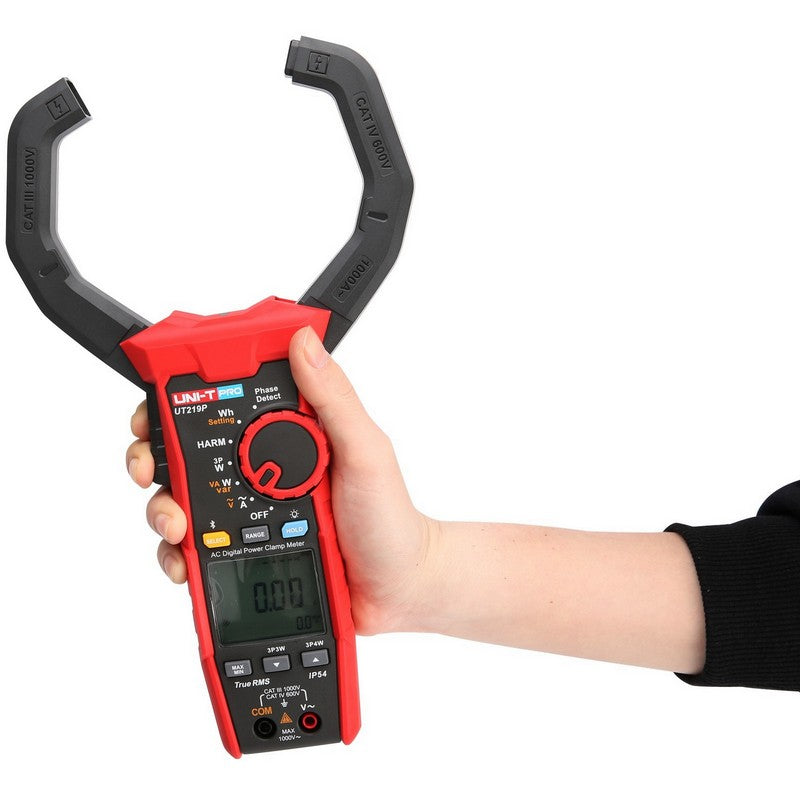

• Extra-Large 75mm Jaw Opening: Easily clamp around large conductors and bus bars
• 3-Phase Power Analysis: Complete single and three-phase power measurement capabilities
• Bluetooth App Integration: Wireless data logging and report generation

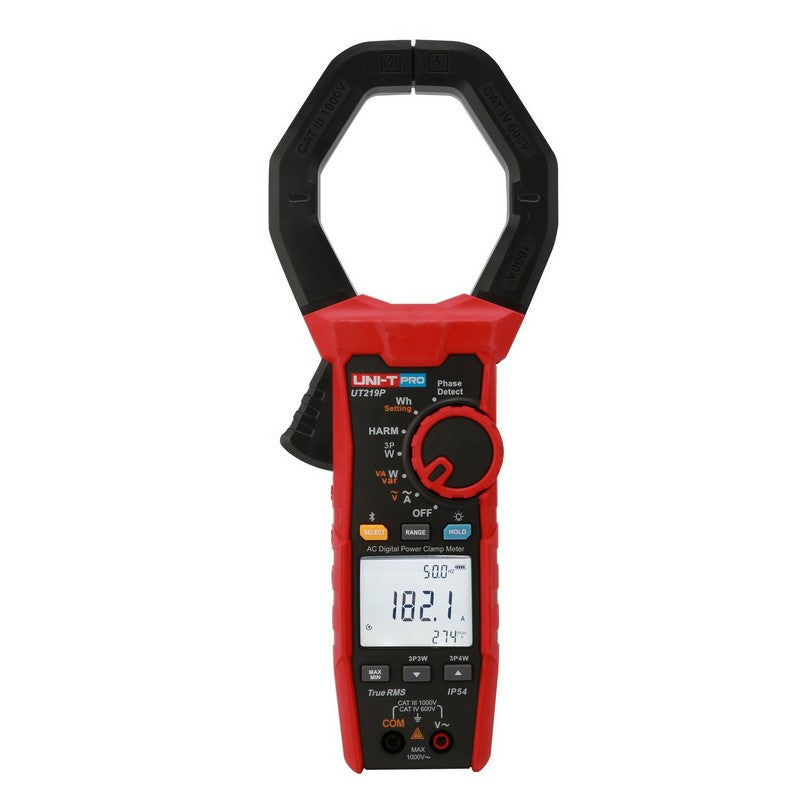

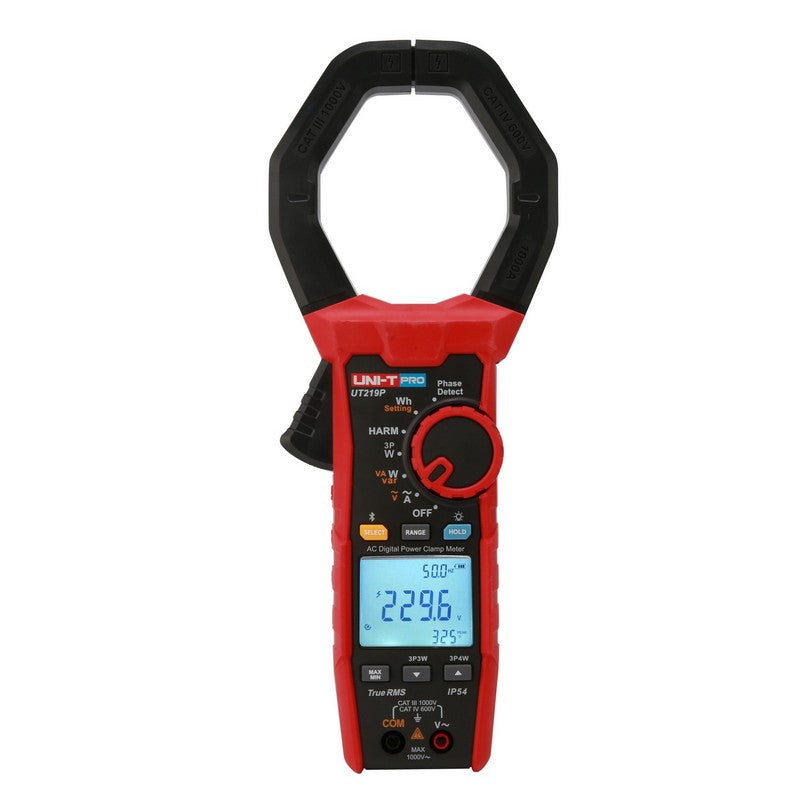

• Multi-Parameter Display: View 4 measurement values simultaneously on one screen
• True RMS Measurement: Accurate readings regardless of waveform distortion
• High-Resolution 9999 Count Display: Precise measurements for critical applications
• CAT III 1000V / CAT IV 600V Safety Rating: Professional-grade protection
• Peak Measurement: Capture transient events for comprehensive troubleshooting

UNI-T UT219P Details

Comprehensive Power Analysis

The UNI-T UT219P transforms complex power analysis into straightforward procedures with its advanced measurement capabilities. Electrical professionals can quickly assess single-phase power up to 1000KW, three-phase three-wire systems up to 1732KW, and three-phase four-wire systems up to 3000KW – all with a single meter.

The power quality analysis extends beyond basic measurements with 32-order harmonic testing, giving technicians detailed insight into system performance and potential issues. This comprehensive approach enables proactive maintenance and troubleshooting of sophisticated electrical systems across industrial environments.

Precision-Engineered for Field Professionals

The 75mm large jaw opening sets the UT219P apart from standard clamp meters, allowing measurements on larger conductors and bus bars commonly found in industrial distribution panels and power systems. This expanded capacity eliminates the need for additional measurement tools when working with varied conductor sizes.

The multi-parameter display shows four measurement values simultaneously, streamlining workflow and reducing the time required for comprehensive system checks. Technicians can view voltage, current, power, and frequency readings at a glance – significantly improving efficiency during commissioning and maintenance procedures.

Advanced Measurement Capabilities

The UNI-T UT219P provides a complete range of electrical parameters essential for power quality analysis:

• AC Current: Measure up to 1000A with high precision
• AC Voltage: Range up to 1000V for comprehensive system testing
• Power Measurement: Single-phase (1000KW), 3-phase 3-wire (1732KW), 3-phase 4-wire (3000KW)
• Harmonics: 32-order measurement for detailed analysis
• Phase Angle: Range from -180° to 179.9° with ±3° to ±5° accuracy
• Power Factor: Measure from -1 to 1 with phase angle-based accuracy
• Phase Detection: Positive and negative phase identification
• Frequency: Range from 15Hz to 1000Hz

The true RMS functionality ensures accurate measurements on non-linear loads and distorted waveforms, critical for reliable analysis in modern electrical systems with electronic components and variable frequency drives.

Smart Connectivity Solutions

The UNI-T UT219P integrates seamlessly with digital workflows through Bluetooth app connectivity. This powerful feature allows professionals to:

• Record measurement data in real-time
• Document system performance over extended periods
• Generate comprehensive power quality reports
• Share results instantly with team members and clients
• Store historical data for trend analysis and preventive maintenance

This digital integration transforms traditional testing procedures into streamlined data management processes, improving documentation quality and team collaboration.

Professional Applications

Industrial Power Distribution Analysis

Industrial electricians rely on the UNI-T UT219P for comprehensive power system verification:

• Load balancing across three-phase systems
• Power factor correction assessment
• Harmonic distortion analysis
• Peak demand monitoring
• System capacity utilization measurement

Power Quality Troubleshooting

The UT219P streamlines power quality investigations with specialized features:

• Harmonic analysis for identifying sources of distortion
• Power factor measurement for efficiency optimization
• Phase angle verification for proper system configuration
• Peak current capture for transient event analysis
• Three-phase imbalance detection

Energy Efficiency Auditing

Energy managers depend on accurate power analysis for optimization projects:

• Baseline power consumption measurement
• Motor efficiency testing
• Power factor improvement verification
• Harmonic mitigation assessment
• Energy consumption profiling

Transportation and Communication Systems

The versatile UT219P serves specialized applications in critical infrastructure:

• Railway power distribution testing
• Telecommunications power quality verification
• Traffic control system power monitoring
• Emergency power system analysis
• Critical equipment load profiling

Technical Specifications

Additional Features

• 75mm jaw opening for large conductors
• Phase detection (positive and negative)
• Peak measurement
• LCD screen with 4-value simultaneous display
• 9999 display count for precise readings
• Bluetooth app connectivity
• True RMS measurement
• Overload indication
• High voltage indication and overload warning
• Low battery indication
• Data hold functionality
• Auto power off (approximately 15 minutes)
• Max/Min value recording
• CAT III 1000V / CAT IV 600V safety ratings

Package Contents

• UNI-T UT219P AC Digital Power Clamp Meter

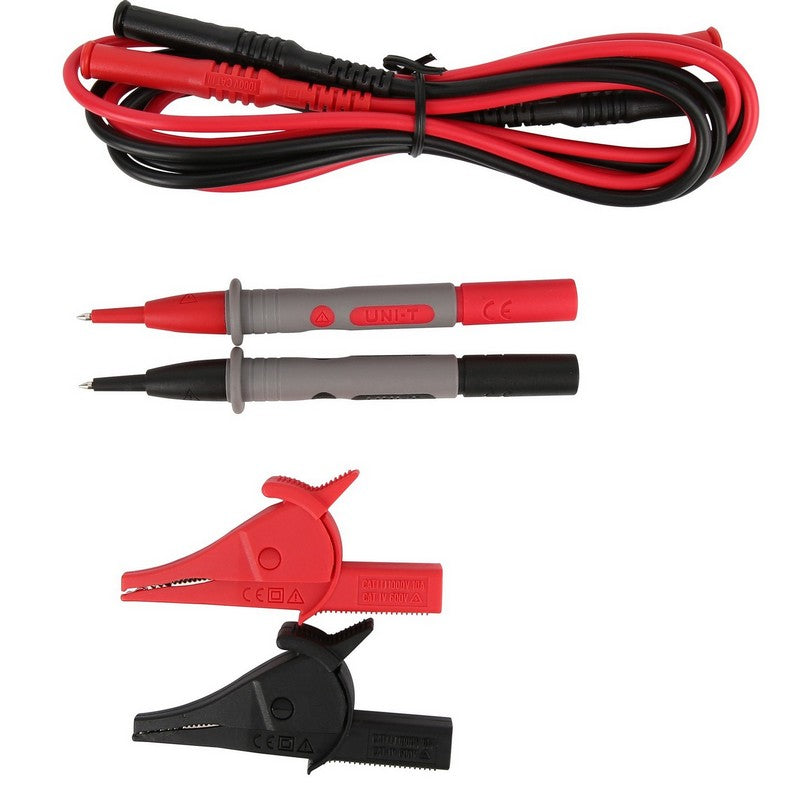

• Test leads
• Carrying case
• Batteries
• User manual

Product Comparison

Frequently Asked Questions

How does the UNI-T UT219P measure three-phase power?

The UT219P can measure three-phase power in both delta (3-wire) and wye (4-wire) configurations. For 3-phase 3-wire systems, it measures up to 1732KW, while for 3-phase 4-wire systems, it extends to 3000KW. The meter uses advanced algorithms to calculate three-phase power based on single-phase measurements, providing comprehensive power analysis.

What makes the harmonic measurement feature valuable for electrical professionals?

The 32-order harmonic measurement capability allows technicians to identify specific harmonic frequencies causing distortion in electrical systems. This detailed analysis is crucial for troubleshooting issues with sensitive electronic equipment, preventing overheating in transformers, and designing effective harmonic filters – ultimately improving system reliability and efficiency.

How does the large jaw size benefit industrial applications?

The 75mm jaw opening accommodates larger conductors and bus bars commonly found in industrial distribution panels, eliminating the need for multiple measurement tools. This expanded capacity is particularly valuable when working with parallel conductors, larger gauge wires in high-current applications, and bus bar configurations in power distribution centers.

Can the UNI-T UT219P measure distorted waveforms accurately?

Yes, the UT219P uses True RMS measurement technology, which ensures accurate readings regardless of waveform distortion. This is essential for measuring loads with non-linear characteristics such as variable frequency drives, electronic lighting, and switched-mode power supplies that generate non-sinusoidal waveforms.

What is the warranty period for the UNI-T UT219P?

UNI-T provides a 12-month warranty on the UT219P, covering manufacturing defects and component failures under normal use conditions.

Customer Testimonials

"As an industrial maintenance supervisor, the UT219P has become our go-to meter for power quality analysis. The ability to see four values at once on the screen has significantly streamlined our preventive maintenance procedures." - Carlos M., Manufacturing Facility Manager

"The harmonic analysis capabilities of the UT219P helped us identify the source of mysterious equipment failures in our data center. We were able to install the appropriate filtering and haven't had an issue since. Worth every penny." - Elena S., Data Center Electrical Engineer

"I work on large commercial HVAC systems, and the 75mm jaw opening on the UT219P handles all my measurement needs without having to swap tools. The Bluetooth feature lets me document readings for client reports without manually writing everything down." - Robert K., Commercial HVAC Specialist

Support and Warranty

UNI-T provides comprehensive support for the UT219P with technical assistance and a 12-month warranty. Our professional support team is available to help with application questions, measurement techniques, and warranty service.

Elevate Your Electrical Analysis

The UNI-T UT219P AC Digital Power Clamp Meter delivers professional-grade power quality analysis in a portable, user-friendly package. With comprehensive measurement capabilities, advanced harmonic testing, and smart connectivity, it's the essential tool for electrical professionals who demand accuracy, reliability, and efficiency.
