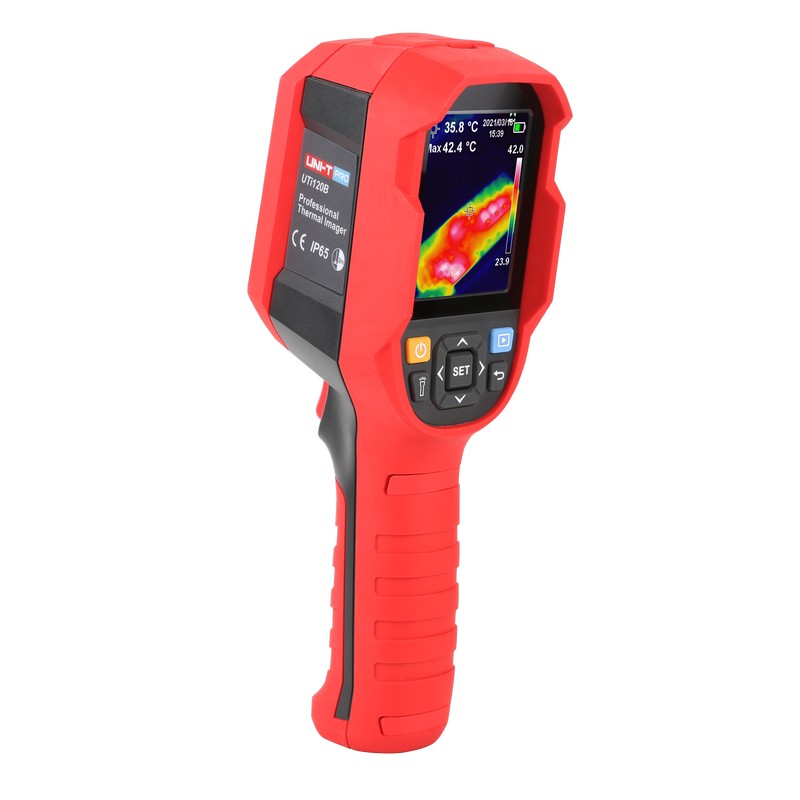

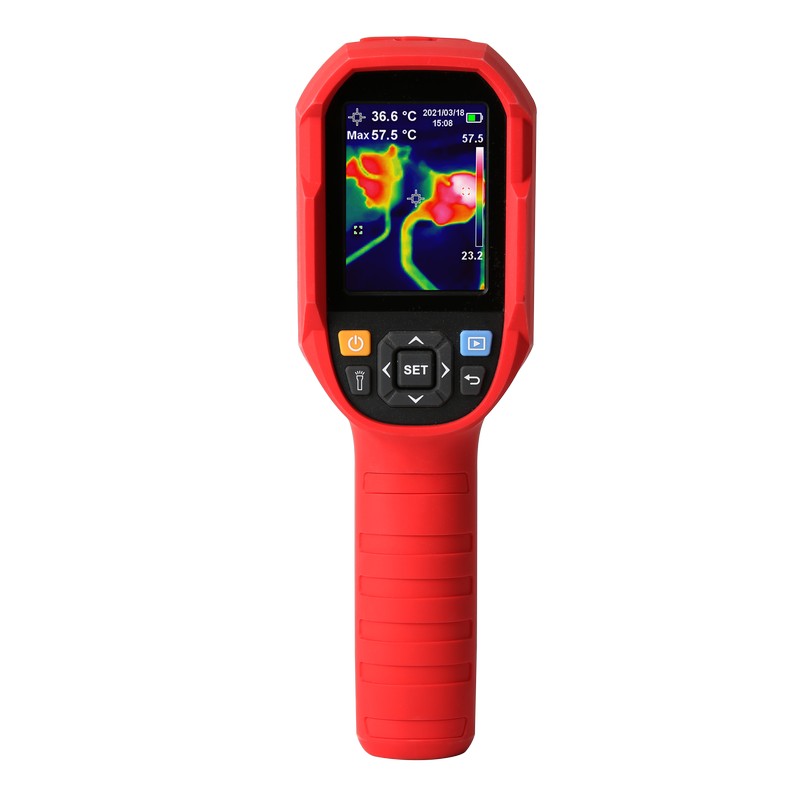

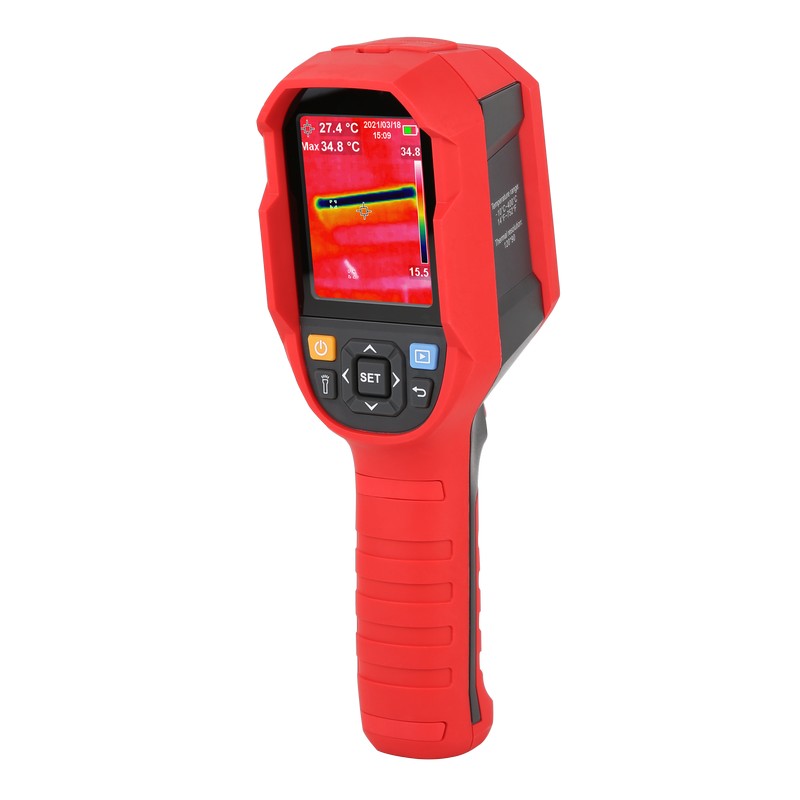

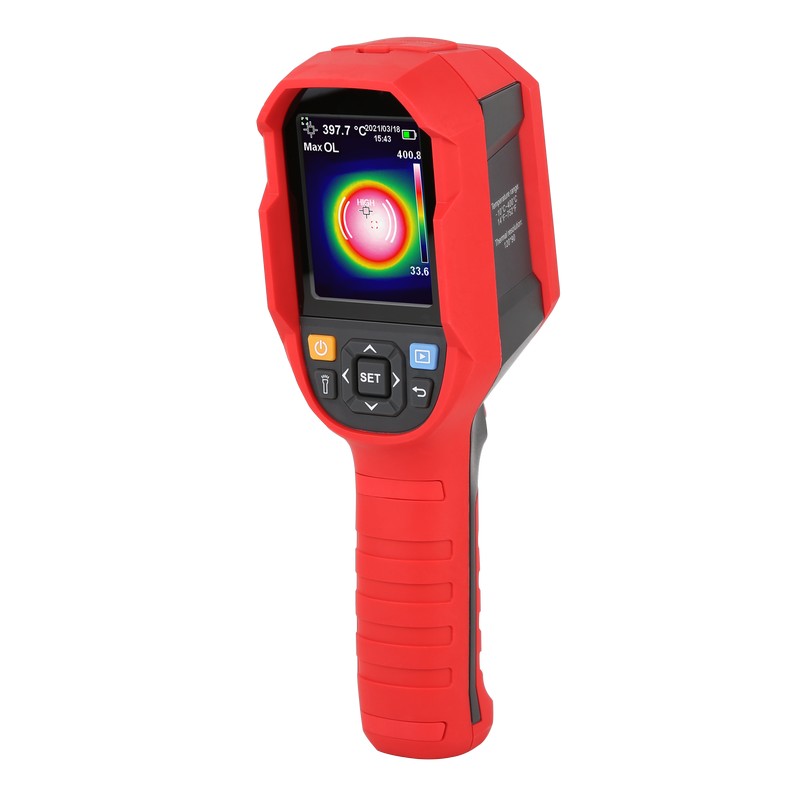

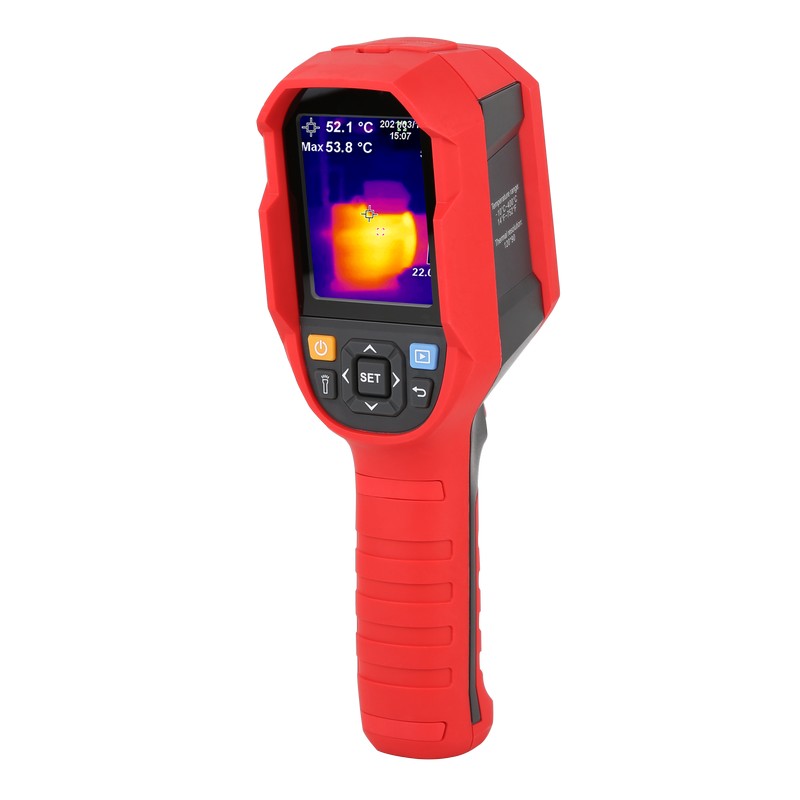

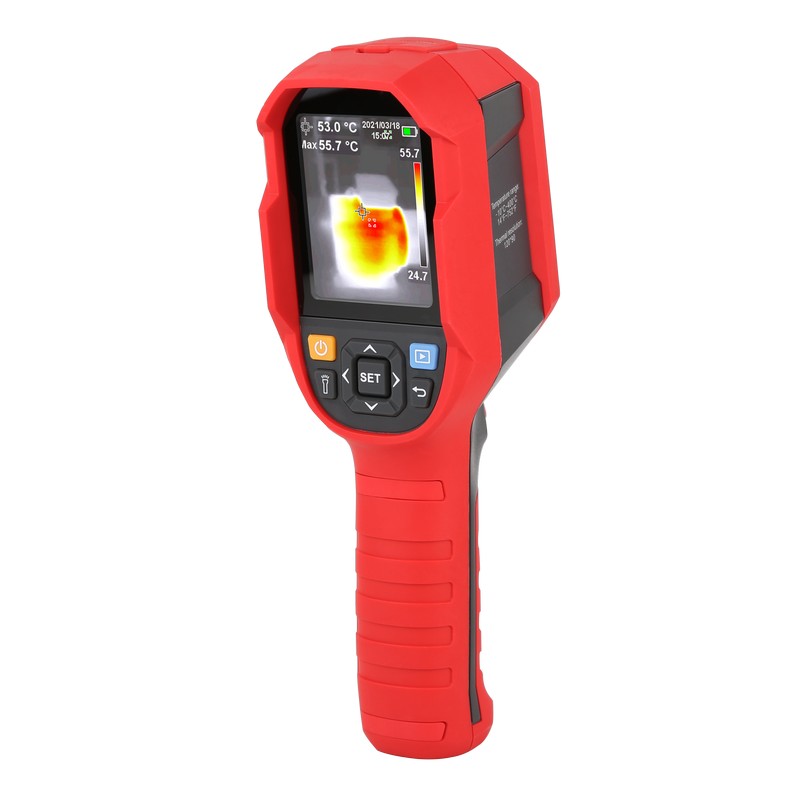

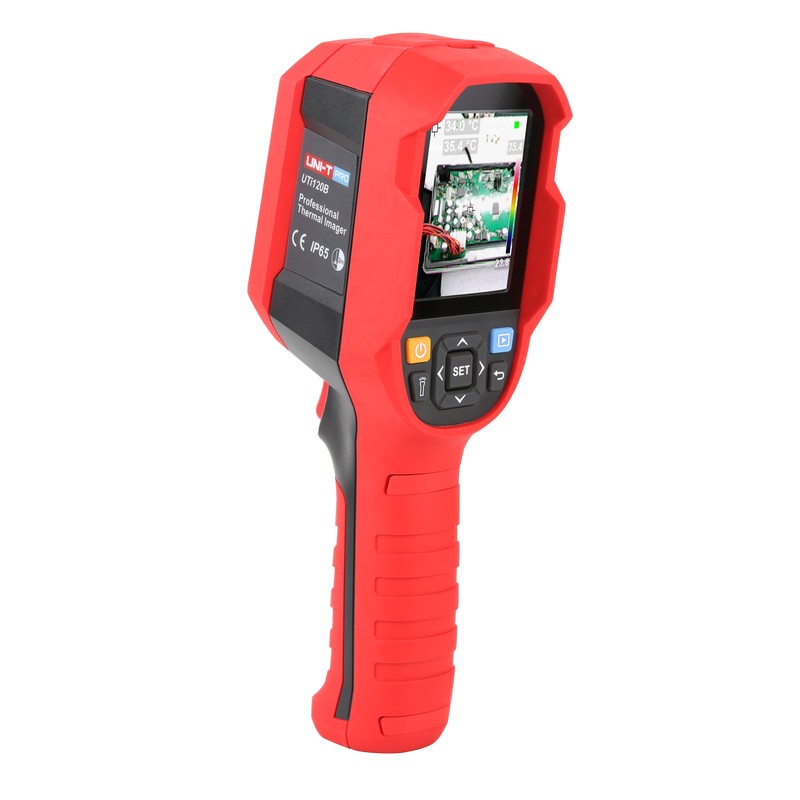

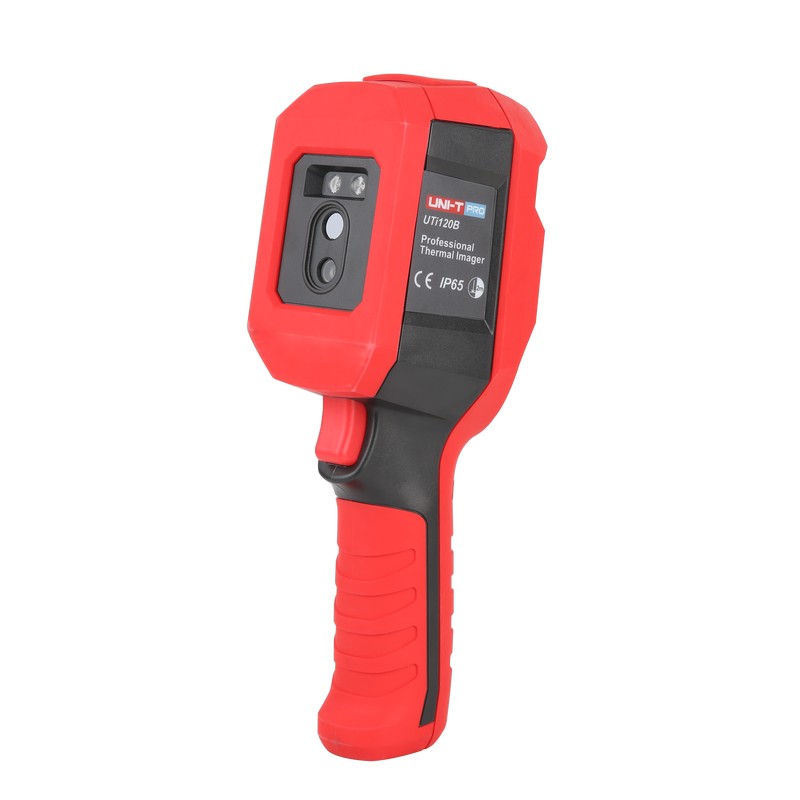

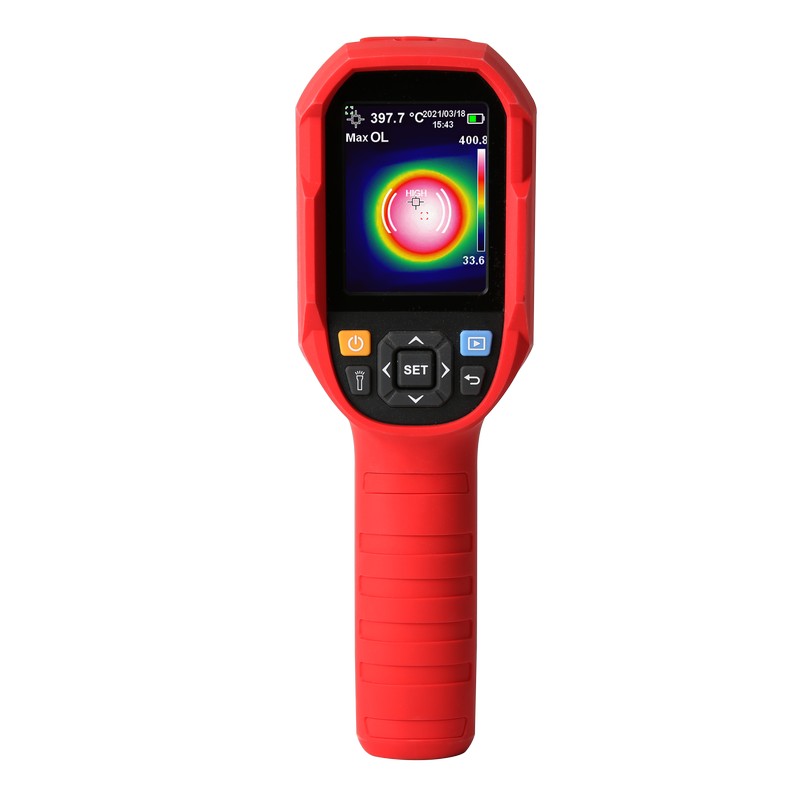

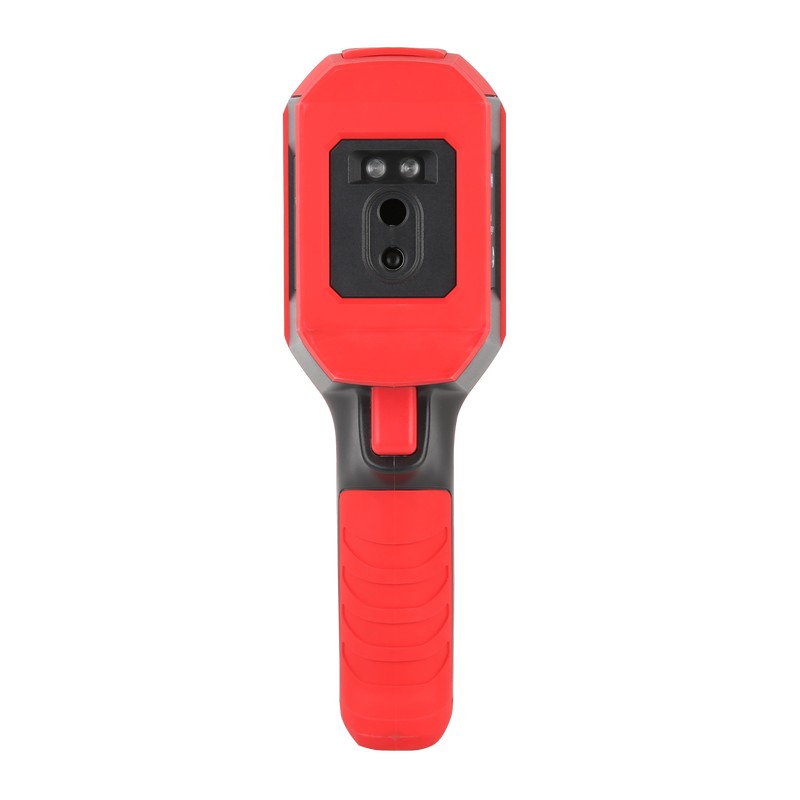

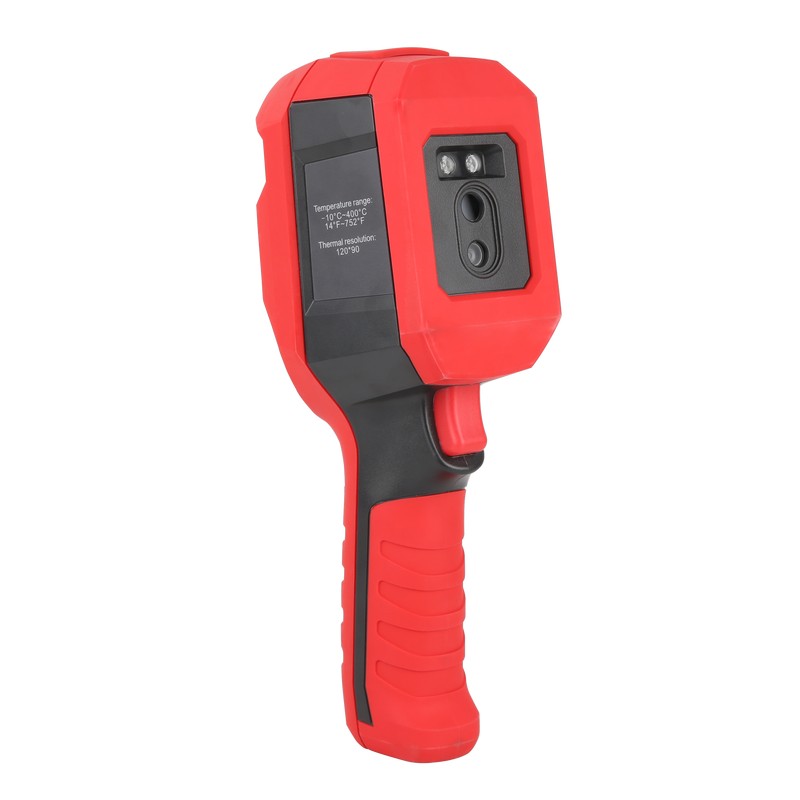

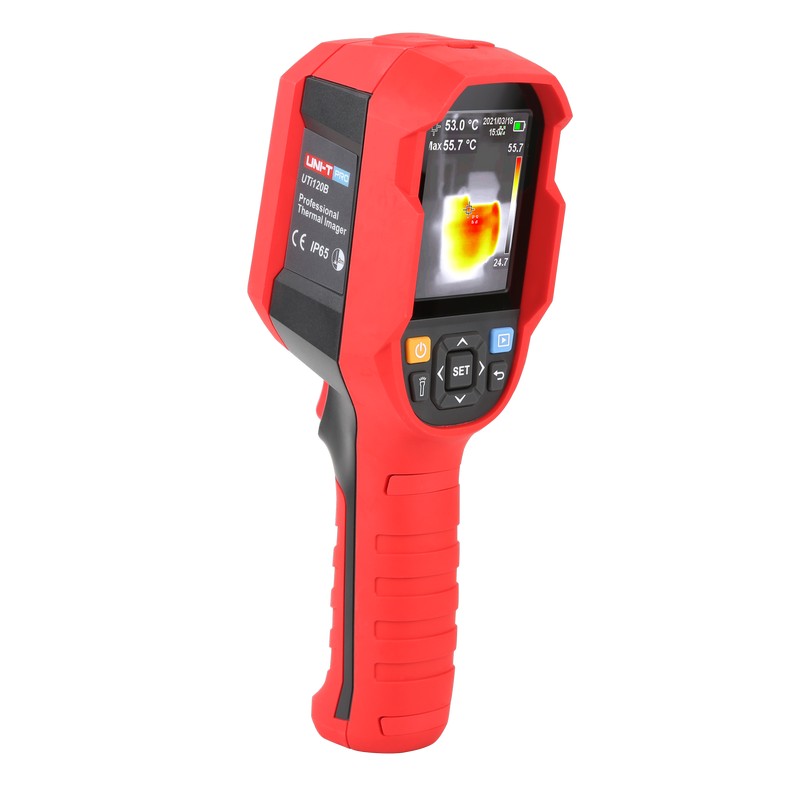

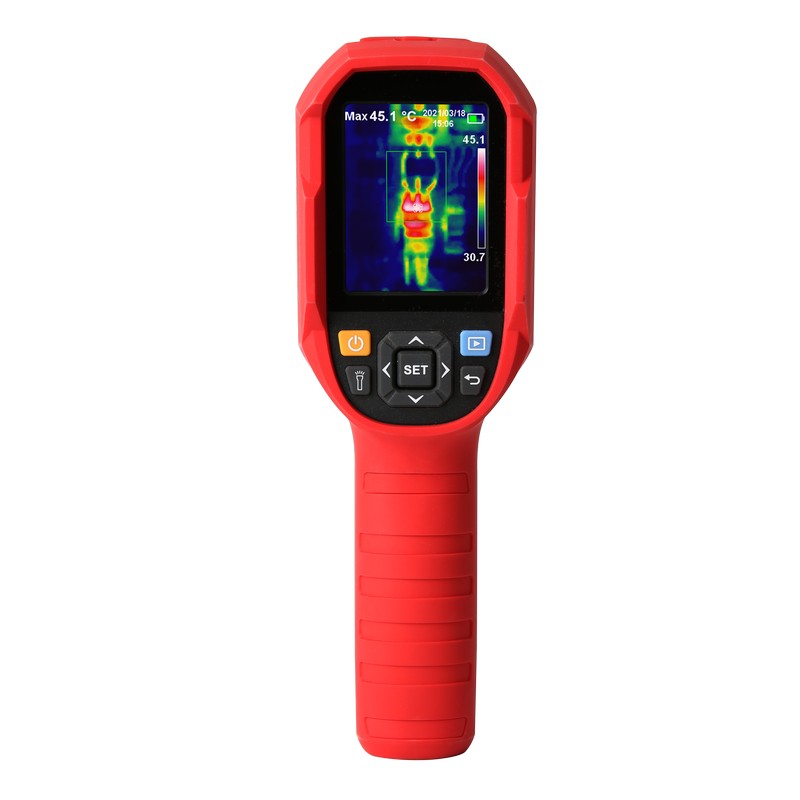

UTi120B 120 Heavy Duty Series Thermal Imager

$279.00
Save {price}%

26 items in stock

Description

A highly advanced thermal camera designed specifically for efficiently diagnosing and resolving issues in industrial applications.

Top Specifications

120x90, -4°F-752°F, 50°×38°, 25Hz, 2.8in TFT LCD, Thermal Sensitivity (NETD): 60mK, Adjustable Emissivity, LED Flashlight, IP65, Focus-Free, Wi-Fi
Register today for a 10% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

Heavy Duty Thermal Camera

The UTi120B is a robust and ergonomically designed thermal camera, combining powerful performance with user-friendly features at an attractive price point. With a resolution of 120×90 pixels in the infrared spectrum, it automatically tracks temperatures ranging from -20℃ to 400℃. This thermal camera serves as an affordable professional troubleshooting tool, finding wide applications in various fields.

Features :

  • Sturdy and user-friendly design
  • 2.8” TFT display screen (320×240 Pixels)
  • Infrared resolution: 120×90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
  • Refresh Rate: 25Hz
  • Automatic alarms for high/low temperatures
  • Auto-tracking for hot spot/cold spot
  • Image format: BMP

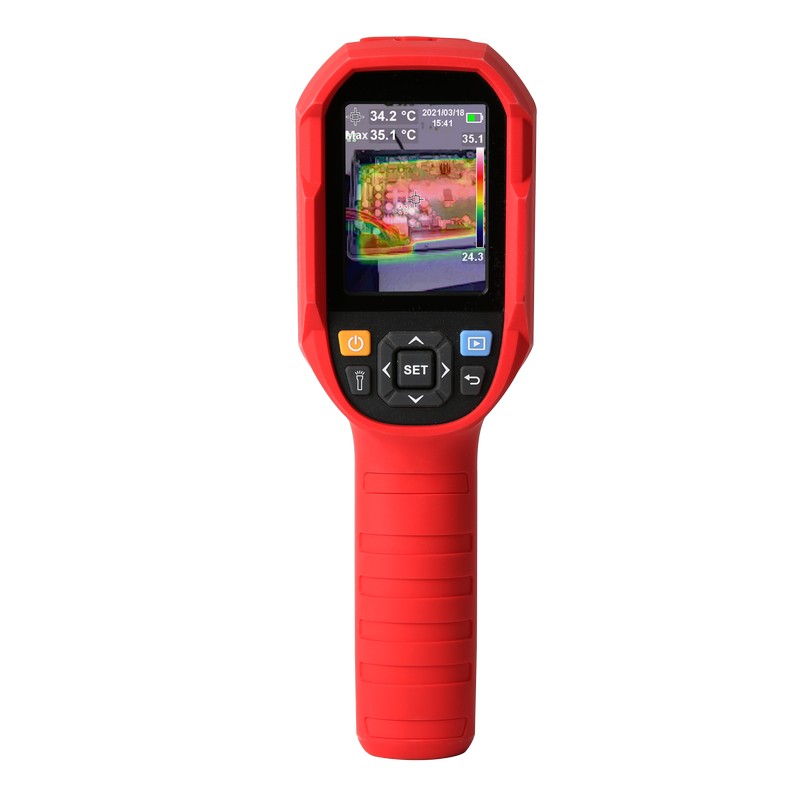

  • Image modes: Thermal, Visual image, Fusion
  • Buzzer alarm for alerts
  • Color palettes: 5 (White hot, Black hot, Red hot, Ironbow, Rainbow)
  • Integrated LED flashlight
  • PC software for analysis
  • Rechargeable Li-ion battery

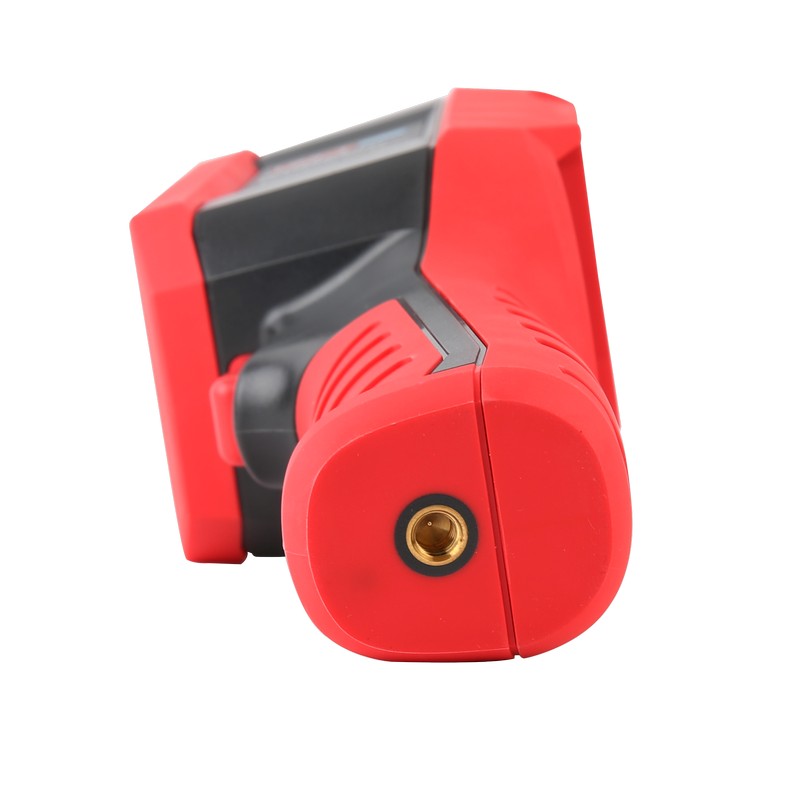

  • 1/4” tripod mounting hole
  • IP65 rating for dust and water resistance
  • 2m drop-proof design
FeatureSpecification
Model Number UTi120B
Resolution (px) 120px X 90px
FOV (Field of View) 50° x 38°
Max Temp (°F) 752°F
Min Temp (°F) -4°F
Refresh 25Hz
NETD 60mK
Focus Focus Free
Warranty 1 year
Shipping Dimmensions (L x W x H) x x
Shipping Weight
