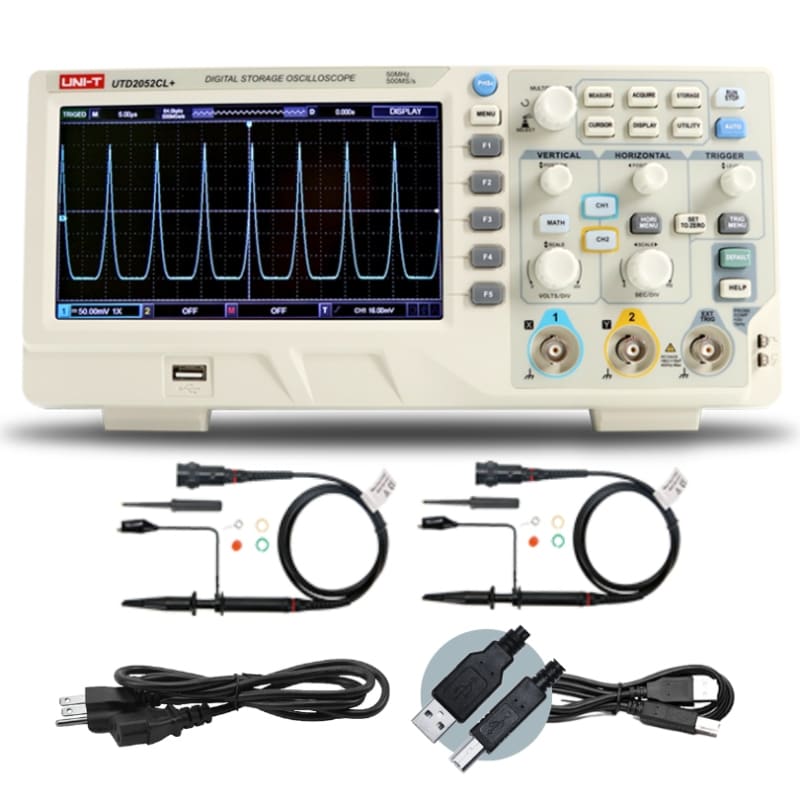

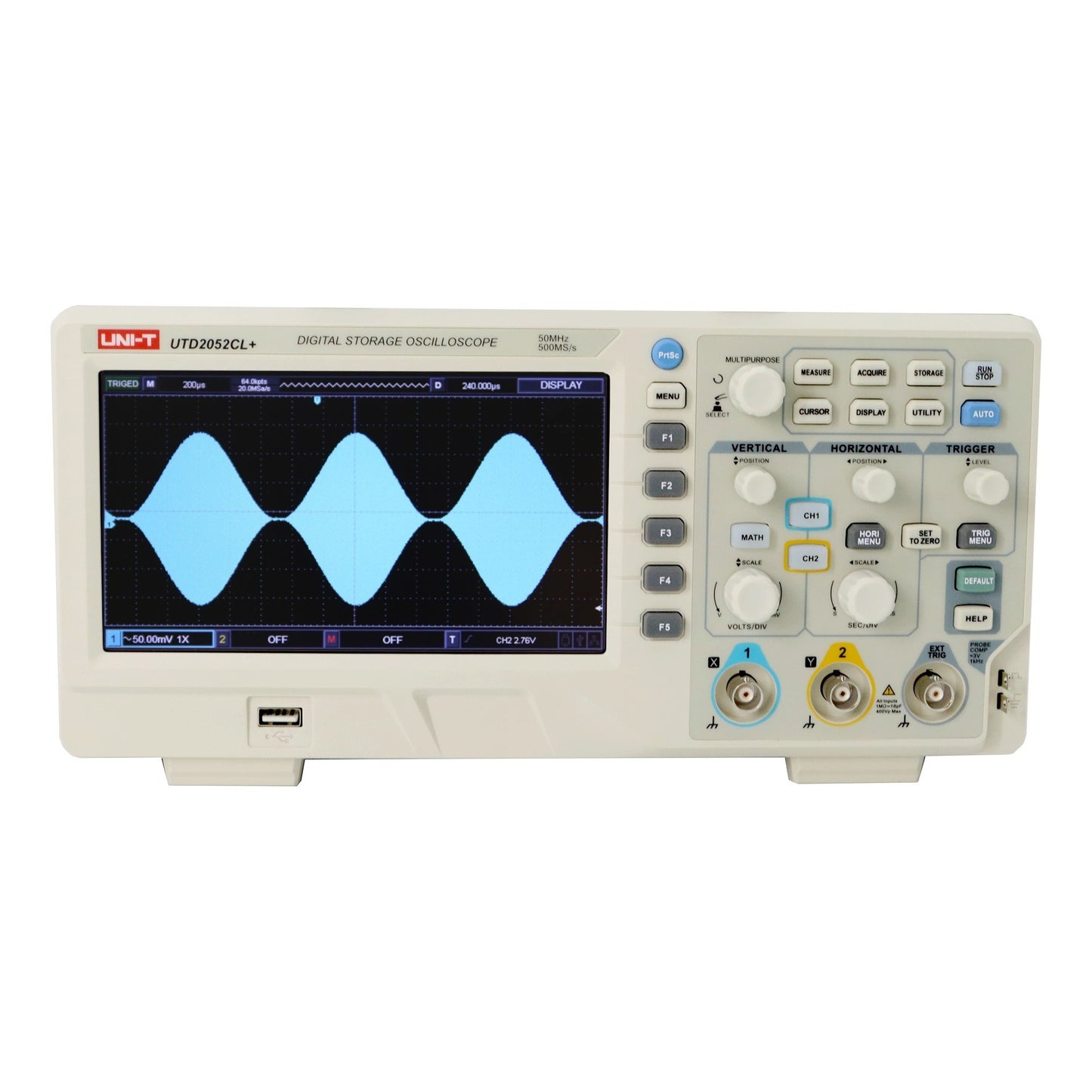

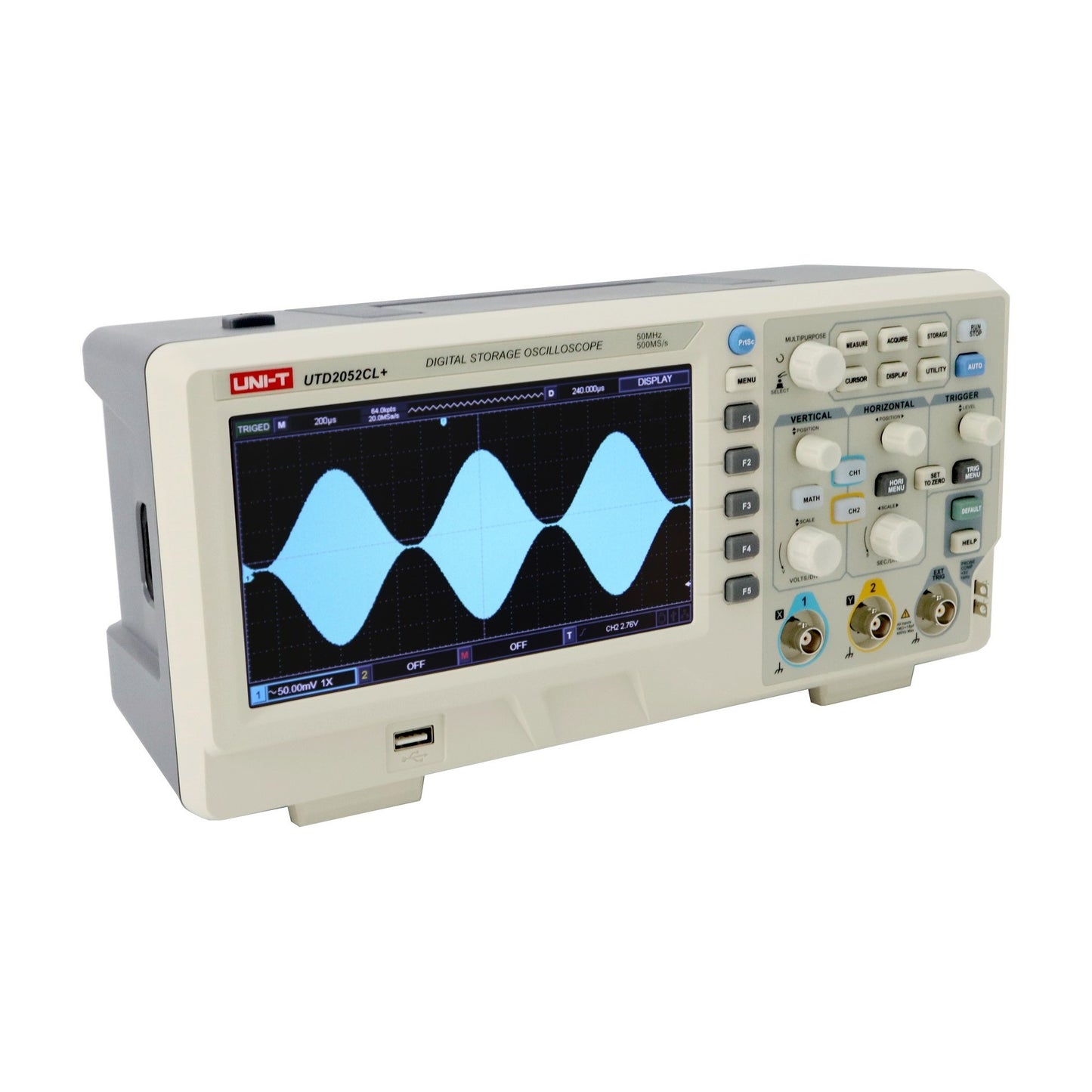

UTD2052CL+ | 50 MHz 2Ch Digital Storage Oscilloscope

UTD2052CL+ | 50 MHz 2Ch Digital Storage Oscilloscope

$171.60
$209.00 $171.60
Sale Sold out
Shipping calculated at checkout.

Out of stock

50 MHz 2-channel mixed signal oscilloscope. Versatile nine-in-one platform for engineering, production, and field applications.

View full details

UTD2052CL+ | 50 MHz 2Ch Digital Storage Oscilloscope

Overview

The UTD2052CL+ is a 50 MHz 2-channel digital storage oscilloscope with 500 MSa/s sample rate, 64 kpts memory depth, and a 7-inch display. It is a compact, affordable bench oscilloscope for basic electronics testing, education, and field service — providing reliable waveform capture and measurement without the feature complexity or cost of higher-end instruments.

The oscilloscope provides automated measurements for common waveform parameters, cursor measurements for manual analysis, math functions (addition, subtraction, FFT), and edge/pulse width/video triggering. USB connectivity supports data transfer and screenshot capture.

UTD2000CL display
Clear 7-inch display with waveform detail
× UTD2000CL display Clear 7-inch display with waveform detail

Key Features

  • 50 MHz Bandwidth, 2 Channels — Two-channel capture at up to 50 MHz.
  • 500 MSa/s Sample Rate — Adequate sampling for accurate waveform capture.
  • 64 kpts Memory Depth — Extended capture depth for the instrument class.
  • 7-Inch Display — Clear waveform display with measurement readouts.
  • Automated Measurements — Frequency, period, rise time, fall time, amplitude, duty cycle, and more.
  • Math Functions — Addition, subtraction, and FFT for basic waveform analysis.
  • Multiple Trigger Types — Edge, pulse width, and video triggering.
  • USB Connectivity — Data transfer and screenshot export.

Zoom Window for Detail Examination

The zoom function lets you expand a portion of the captured waveform for closer inspection while keeping the full record visible. Useful for examining edges, glitches, or protocol timing within a longer capture.

UTD2000CL zoom and navigation
Zoom window for examining waveform details
× UTD2000CL zoom and navigation Zoom window for examining waveform details
UTD2000CL trigger types
Multiple trigger types for signal isolation

Multiple Trigger Types

Edge, pulse width, and video triggering help isolate signals of interest. The 500 MSa/s sample rate and 64 kpts memory depth provide adequate capture for general-purpose electronics testing and education.

× UTD2000CL trigger types Multiple trigger types for signal isolation

Professional Applications

  • Electronics Education — Affordable and straightforward for teaching basic oscilloscope operation, signal measurement, and circuit analysis.
  • Hobbyist and Maker Projects — Debug Arduino, Raspberry Pi, and other microcontroller circuits with reliable waveform capture.
  • Field Service and Repair — Compact and portable for on-site diagnostics of electronic and electrical equipment.
  • Basic R&D Prototyping — Verify signal timing, check power supply behavior, and characterize basic circuit performance during development.

Frequently Asked Questions

What is the difference between the CEX+ and CL+ models?

The CEX+ models have a higher sample rate, which provides better waveform fidelity at higher frequencies. The CL+ models offer 500 MSa/s at a lower price point. Both share the same 7-inch display, trigger types, and measurement functions.

Does the UTD2000 series support protocol decoding?

No. The UTD2000 series is designed for basic analog waveform measurement. For serial bus decoding, see the MSO/UPO2000 or UPO1000 series.

Can I save waveforms and screenshots?

Yes. The USB interface supports saving waveform data and screenshots to a connected PC for documentation and further analysis.

The UTD2000 economy oscilloscope series includes the CEX+ models (UTD2202CEX+ (200 MHz), UTD2102CEX+ (100 MHz), UTD2052CEX+ (50 MHz)) with 1.0 GSa/s sample rate, and the CL+ models (UTD2102CL+ (100 MHz), UTD2052CL+ (50 MHz)) with 500 MSa/s. For more advanced features including deep memory, touchscreen, and protocol decoding, see the UPO1000 series.

Warranty

This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.

The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.

Register for Free Extended Warranty
