Digital Multimeter Buying Guide: Choosing the Right Tool for Your Needs

Understanding Digital Multimeters

Digital multimeters (DMMs) are essential diagnostic tools for electrical testing, combining multiple measurement functions in a single device. However, with hundreds of models spanning from basic to advanced professional instruments, selecting the right DMM requires understanding your specific measurement needs, safety requirements, and technical specifications. This guide will help you navigate these considerations to find the perfect multimeter for your applications.

Assessing Your Measurement Requirements

Types of Electrical Work

Residential/DIY Applications
For basic household electrical work, a standard multimeter with voltage, current, and resistance measurement may be sufficient. Look for models with:

600V voltage range
10A current capacity
Basic continuity and resistance testing
Simple, easy-to-read display

Professional Electrical Work
Electricians working in commercial and industrial settings need more robust features:

True RMS measurement
Higher voltage ratings (1000V+)
Enhanced safety features
Durability for field use
Specialized testing functions

Electronics Development and Repair
Electronics technicians and engineers require precision and additional measurement functions:

High resolution (4000+ counts)
Microamp and milliamp ranges
Capacitance and frequency measurement
Transistor and diode testing
Temperature measurement

Specialized Industries
Certain fields require specialized multimeter capabilities:

Solar/Renewable Energy: High DC voltage range (1500V+), data logging
HVAC: Temperature probes, microamp ranges, capacitance testing
Automotive: RPM measurement, dwell angle, duty cycle testing
Industrial Maintenance: High voltage/current, harmonic analysis, power measurement

Essential Specifications to Consider

Display Resolution and Counts

The display count indicates the level of measurement precision:

3½ digits (2000 counts): Entry-level resolution
3¾ digits (4000 counts): Standard professional resolution
4½ digits (20,000-50,000 counts): High precision
5½-6½ digits (200,000+ counts): Laboratory-grade precision

Higher counts allow you to see smaller changes in measurement values, which is crucial for precision diagnostics and calibration work.

Measurement Accuracy

Accuracy is typically expressed as a percentage of reading plus a fixed number:

DC Voltage: Look for ±(0.5% + 2) or better for professional use
AC Voltage: Typically ±(1.0% + 3) or better is considered good
DC Current: Professional meters offer ±(1.0% + 3) or better
Resistance: ±(0.5% + 2) or better for professional applications

Lower percentages indicate higher accuracy, which becomes increasingly important for precision work and calibration.

True RMS vs Average Responding

True RMS (Root Mean Square) Measurement:

Provides accurate readings on non-sinusoidal waveforms
Essential for measuring modern electronic loads (computers, variable frequency drives, LED lighting)
Required for professional electrical work with non-linear loads

Average Responding:

Calibrated to display RMS value for pure sine waves only
Less expensive but can have significant errors (10%+) on distorted waveforms
Adequate only for basic residential electrical systems with linear loads

Bandwidth and Frequency Response

For AC measurements, bandwidth indicates the frequency range the meter can accurately measure:

Basic meters: 50-60Hz (standard power frequencies only)
Mid-range meters: 1kHz-10kHz (suitable for most electrical work)
Advanced meters: 20kHz-100kHz+ (required for power electronics and harmonic analysis)

Wider bandwidth is essential when working with variable frequency drives, inverters, and electronic power supplies.

Safety Considerations

Safety Ratings (CAT Ratings)

CAT (Measurement Category) ratings define the meter's ability to withstand voltage spikes:

CAT I: Electronic equipment, low-energy circuits

Protected up to 800V impulse (laboratory equipment, electronics)

CAT II: Single-phase receptacle connected loads

Protected up to 2500V impulse (household appliances, portable tools)

CAT III: Three-phase distribution, including single-phase commercial lighting

Protected up to 4000V impulse (distribution panels, feeders, industrial equipment)

CAT IV: Three-phase at utility connection, any outdoor conductors

Protected up to 8000V impulse (utility connections, service entrances, outdoor lines)

Important: Always select a meter rated for the highest category environment you'll be working in. Using an inadequately rated meter can result in catastrophic failure during voltage spikes.

Voltage Ratings

The maximum voltage rating must match or exceed your application requirements:

600V: Sufficient for most residential and light commercial work
1000V: Standard for industrial and commercial applications
1500V-1700V: Required for solar and high-voltage industrial applications

Input Protection

Look for these additional protection features:

Fused current inputs
High-energy fuses (HRC, ceramic)
Overload protection on all inputs
Transient protection circuitry
Misplacement warnings (alerts when probes are in wrong terminals)

Special Features and Functions

Advanced Measurement Capabilities

Low Impedance Mode (LoZ): Eliminates ghost readings from capacitive coupling
Low Pass Filter (LPF): Filters high-frequency noise for accurate readings on drives
AC+DC Measurement: Measures true combined value of AC and DC components
Peak Capture: Records transients as short as 250μs
Temperature Measurement: Enables direct temperature reading with appropriate probes
Conductance: Measures very high resistances (useful for insulation testing)
Motor Testing: Phase rotation, inrush current, harmonic analysis

Data Management Functions

Data Hold: Freezes the display reading for easier viewing
Min/Max/Avg Recording: Tracks value changes over time
Relative Mode: Shows changes from a reference value
Data Logging: Records measurements for later analysis
Memory Functions: Stores readings for comparison
USB/Bluetooth Connectivity: Transfers data to computers or mobile devices

Usability Features

Backlit Display: Essential for work in dimly lit environments
Dual Display: Shows multiple parameters simultaneously
Auto-Ranging: Automatically selects the optimal measurement range
Auto Power-Off: Conserves battery life
Flashlight: Illuminates work areas
Analog Bar Graph: Provides visual indication of rapidly changing values
Audible Continuity: Beeps when continuity is detected

Environmental Considerations

Durability Ratings

IP Rating: Indicates protection against dust and water ingress

IP54: Dust protected, splash resistant
IP65: Dust tight, water-resistant from low-pressure jets
IP67: Dust tight, temporary immersion protection

Drop Test Rating: Indicates durability against falls

1-meter rating is standard
2-meter or higher for industrial instruments

Operating Environment

Consider the environments where you'll use the meter:

Temperature Range: Standard is 0-40°C, extended ranges available
Altitude Rating: Important for high-elevation work
Humidity Range: Critical for outdoor and high-moisture environments

Battery and Power Considerations

Battery Type:

Standard AAA/AA batteries: Common, easily replaceable
9V battery: Compact but shorter life
Rechargeable Li-ion: Longer operational time, reduces waste

Battery Life:

Consider expected usage between battery changes
Look for low battery indicators
Auto power-off features extend operation

Brand Reliability and Support

Established Meter Manufacturers:

Consider reputation for accuracy and reliability
Evaluate warranty periods and support
Check for local service centers

Certification and Compliance:

Look for UL, CE, or equivalent safety certification
Confirm compliance with international standards
Verify calibration certification if required for your application

Price Considerations

Entry-Level ($20-$50):

Basic functionality for DIY and occasional use
Limited accuracy and features
Minimal safety protections

Mid-Range ($50-$150):

Professional features for regular electrical work
True RMS capability
Enhanced safety features
Better accuracy and reliability

Professional ($150-$400):

Comprehensive measurement capabilities
Advanced functions for specialized applications
Superior accuracy and durability
Data logging and analysis features

Specialty/Industrial ($400+):

Laboratory-grade precision
Specialized industry-specific functions
Maximum durability and safety
Advanced data management capabilities

Making Your Final Selection

Prioritize Your Requirements

Safety First: Always select a meter with appropriate safety ratings for your environment
Essential Functions: Identify the measurement capabilities you need most frequently
Accuracy Requirements: Determine the precision level your applications demand
Special Features: Consider which advanced features provide the most value for your work
Durability Needs: Evaluate the environmental conditions the meter must withstand
Budget Constraints: Balance capabilities against cost for the best value

Try Before You Buy

If possible:

Handle the meter to evaluate ergonomics and display visibility
Test button feel and rotary switch action
Check the readability of the display from different angles
Assess weight and ruggedness for your intended use

Maintaining Your Investment

Regular Calibration:

Professional meters should be calibrated annually
Some industries require documented calibration intervals
Calibration services available from manufacturers and third parties

Proper Care:

Store with test leads properly coiled
Protect from extreme temperatures
Keep battery compartment clean
Remove batteries during extended storage
Use protective cases when available

Safety Inspection:

Regularly check test leads for damage
Inspect case integrity and protective holsters
Verify fuse condition after overload events
Test proper functionality of safety features

Conclusion

Selecting the right digital multimeter requires balancing measurement needs, safety requirements, special features, durability considerations, and budget constraints. By understanding the key specifications and how they relate to your specific applications, you can make an informed decision that provides both the capabilities you need today and the reliability to serve you well into the future. Remember that a quality multimeter is an investment in both productivity and safety—areas where compromise often proves costly.

Whether you're a DIY enthusiast tackling home projects, an electrician working on commercial systems, or an engineer designing sophisticated electronics, there's a DMM ideally suited to your requirements. Take the time to evaluate your needs thoroughly and select a meter that will become a trusted companion in your electrical work.

Country/region

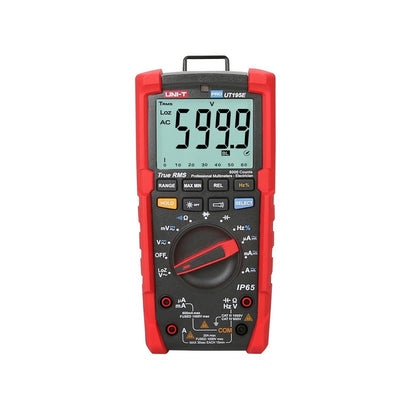

UT195E Industrial IP65 TRMS Digital Multimeter
