MSO2000-S-BODE Bode Plot Option for -S models
Overview
The MSO2000-S-BODE adds Bode plot analysis to your -S model oscilloscope (with built-in signal generator). Automated frequency response measurements of filters, amplifiers, and feedback loops.
The -S models include a signal generator. This option activates Bode plot analysis using that generator as the stimulus source.
Key Features

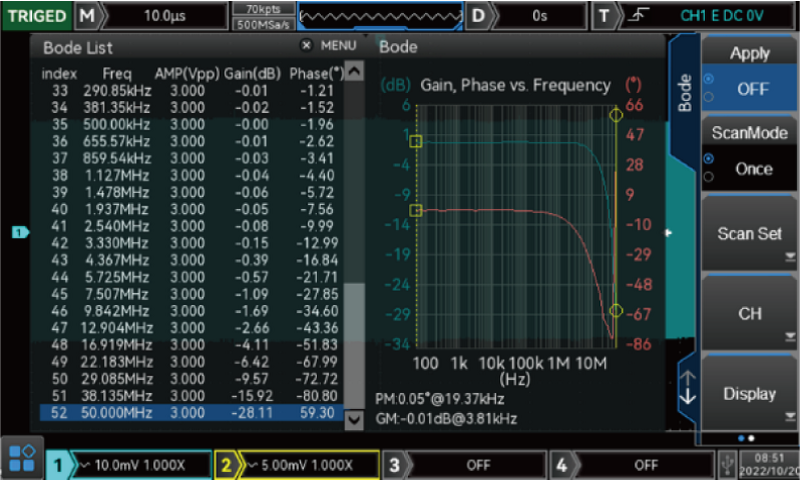

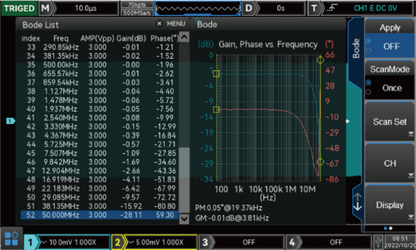

- Automated Bode Plot — Define frequency range and stimulus amplitude. Oscilloscope sweeps, measures, and plots gain and phase.
- Uses Built-In Generator — Works with the signal generator already in your -S model. No external equipment.
- Filter/Amplifier Characterization — Verify cutoff, roll-off, passband flatness, and bandwidth.
- Loop Stability — Measure gain and phase margin for power supply feedback loops.
- Software License Activation — License key via instrument menu. No hardware changes.
When You Need This
Power Supply Loop
Verify feedback loop stability with automated gain/phase margin measurement.
Active Filter
Confirm Butterworth/Chebyshev filter meets cutoff and roll-off specs.
Compatible Instruments
This option is compatible with MSO2000 -S model oscilloscopes with built-in signal generator.
Own a Different Instrument?
Need Bode plot analysis for -S models on a different oscilloscope? These series also offer it: MSO3000CS.
Frequently Asked Questions
Do I need a -S model?
Yes. Bode plot uses the built-in signal generator as stimulus. Only -S models have the generator.
How is this option activated?
You receive a license key after purchase. Enter the key in the instrument's menu under System → Options → Install. The capability is available immediately — no reboot, no hardware modification, no factory service required.
Is the license permanent or subscription-based?
All UNI-T software option licenses are permanent, one-time purchases. Once activated, the option remains available for the life of the instrument. No annual renewals or subscription fees.
