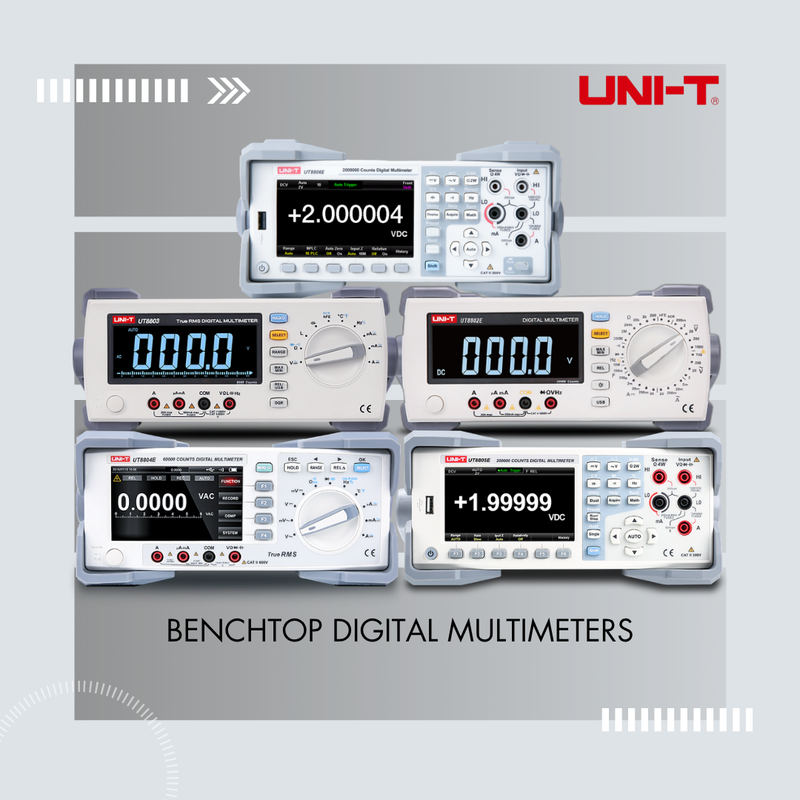

UNI-T Benchtop Digital Multimeter — Buyer's Guide
Which UT88xxE Is Right for You?
The UT88xxE series covers six benchtop multimeters from a compact 4.5-digit production-line meter up to a fully programmable 6.5-digit GPIB-equipped lab meter. Every model measures DC and AC voltage, DC and AC current, two- and four-wire resistance, capacitance, frequency, and temperature. The choice comes down to digit resolution first (accuracy and measurement speed), then connectivity (how you plan to log or automate).
What Every UT88xxE Shares
Functions
DCV, ACV, DCI, ACI, 2W/4W Ω, capacitance, frequency, temperature
Topology
Benchtop, rack-mountable, dual-row LCD
Sampling
Dual-display readings, math functions (dB, dBm, MX+B, REL, MIN/MAX)
Safety
CAT II 600 V input, fuse-protected current ranges
Calibration
Front-panel calibration, NIST-traceable
Warranty
3+2 years — parts, labor, return shipping
Function set and safety class are identical across the line. You're choosing for resolution and integration.
Decision 1: Choose Your Digit Resolution
Digit count drives DC voltage accuracy, AC bandwidth, and reading speed. Higher digits resolve smaller variations and integrate longer for better noise rejection — at the cost of slower readings.
4.5 digits
Best for: Production line go/no-go, education, basic bench QA where the meter measures one thing repeatedly and you need it fast and cheap.
3.8 digits, True RMS
Best for: AC-heavy bench work where True-RMS matters more than resolution — motor drives, lighting circuits, audio rails, harmonics on industrial equipment.
4.8 digits, True RMS
Best for: General-purpose bench measurement with a 4.3-inch graphical display and True RMS — the value-pick when you've outgrown a handheld and want bench-quality readings with USB logging.
5.5 digits
Best for: Engineering bench, calibration support, R&D characterization where 100 µV-level resolution and remote control over LAN are routinely needed.
6.5 digits
Best for: Precision metrology, low-level transducer work, four-wire micro-ohm measurement, automated test systems where ppm-level accuracy and LAN/USB SCPI control are required.
6.5 digits + GPIB
Best for: Drop-in replacement in legacy IEEE-488 racks — same 6.5-digit core as the UT8806E plus a native GPIB port for shops standardized on GPIB instrument buses.
Decision 2: Choose Your Connectivity
Higher-digit models add interfaces because logging, automation, and rack integration scale up with the value of each measurement.
| Model |
Connectivity |
Use case |
| UT8802E |
USB-Device |
Direct PC connection, simple datalogging |
| UT8803E |
USB-Device |
Direct PC connection, AC-focused datalogging |
| UT8804E |
USB-Device |
Direct PC connection with graphical display |
| UT8805E |
LAN, RS-232, USB-Device, USB-Host |
Networked test rack, multi-instrument SCPI control, USB-stick datalogging without a PC |
| UT8806E |
LAN, RS-232, USB-Device, USB-Host |
Same as UT8805E but with 6.5-digit precision |
| UT8806EG |
GPIB, LAN, USB-Device, USB-Host |
Legacy GPIB-rack drop-in |
Complete Model Comparison
| Model |
Digits |
True RMS |
Display |
Connectivity |
| UT8802E |
4.5 |
No |
VFD dual |
USB-Device |
| UT8803E |
3.8 |
Yes |
VFD dual |
USB-Device |
| UT8804E |
4.8 |
Yes |
4.3" graphical |
USB-Device |
| UT8805E |
5.5 |
Yes |
4.3" graphical |
LAN, RS-232, USB-Device, USB-Host |
| UT8806E |
6.5 |
Yes |
4.3" graphical |
LAN, RS-232, USB-Device, USB-Host |
| UT8806EG |
6.5 |
Yes |
4.3" graphical |
GPIB, LAN, USB-Device, USB-Host |
Recommended Configurations
Production-line QA
Pick: UT8802E — 4.5 digits is more than enough for go/no-go test against a fixed-tolerance spec. Fast updates, USB logging to a station PC, lowest unit cost.
AC-heavy industrial / lighting / motors
Pick: UT8803E — True RMS is the spec that matters when waveforms aren't sinusoidal. The 3.8-digit class lets the AC bandwidth and crest-factor headroom carry the measurement.
General R&D bench
Pick: UT8804E — 4.8 digits with True RMS and a graphical 4.3-inch display covers the broadest range of bench tasks at the value-pick price point.
Networked test rack
Pick: UT8805E or UT8806E — LAN-equipped, SCPI-controlled, fits multi-instrument racks under one test harness. Pick 5.5 digits for general lab, 6.5 for low-level transducers and metrology.
Legacy GPIB shop
Pick: UT8806EG — drop-in for an aging Keithley or HP/Agilent 34401 in an existing IEEE-488 rack. Same 6.5-digit core as the UT8806E plus native GPIB.
Calibration support / metrology
Pick: UT8806E or UT8806EG — 6.5 digits is the entry to metrology-grade work: micro-ohm measurement with four-wire leads, NIST-traceable, SCPI for automation under your cal-lab control software.
Why Choose UT88xxE?
Six tiers, one architecture
Same front-panel layout, same SCPI command set, same display family across the series. Move up the line as your work demands more resolution without re-learning the instrument.
Functions you expect, standard
Two-wire and four-wire resistance, capacitance, frequency, temperature, True RMS (4.8-digit and above) all come standard. No license keys, no add-on modules.
Connectivity scaled to the work
Production meters get USB. Engineering meters get LAN+RS-232 plus USB-Host for stick-based datalogging without a PC. Metrology meters add GPIB. You pay for the bus you need.
3+2 year warranty
Three-year base warranty, two additional years on registration. Parts, labor, return shipping included.
FAQ
Do I need 6.5 digits if I'm just doing general bench work?
Almost never. 4.5 to 5.5 digits covers the overwhelming majority of bench measurement. 6.5 digits earns its cost only when you're resolving below 1 mV on a meaningful voltage, doing four-wire micro-ohm work, or supporting calibration of other instruments.
Can the UT8805E and UT8806E be controlled from Python / LabVIEW?
Yes — both speak standard SCPI over LAN and USB. Any test framework with VISA support drives them directly. Same command set across the 5.5/6.5/GPIB-equipped models means scripts port up the line without rewrites.
What's the difference between True RMS and "average-responding"?
Average-responding meters give correct readings only on sine waves. True RMS measures the actual heating-equivalent value of any waveform — square, triangle, distorted AC, switching power supplies. If your AC isn't pure sine, you need True RMS. The UT8803E and every higher model is True RMS.
Why does the UT8806EG cost more for the same digits as the UT8806E?
GPIB hardware. IEEE-488 controllers are an additional internal card plus a rear connector and bus arbitration logic. If you don't have a GPIB rack to integrate into, the UT8806E is the better-priced choice with the same measurement core.
Can I rack-mount these?
Yes — half-rack chassis, optional 19" rack ears available as an accessory. Two units fit side-by-side in a 1U-tall rack tray for compact ATE.
Pick your digits first, then your bus — the rest is the same instrument.
