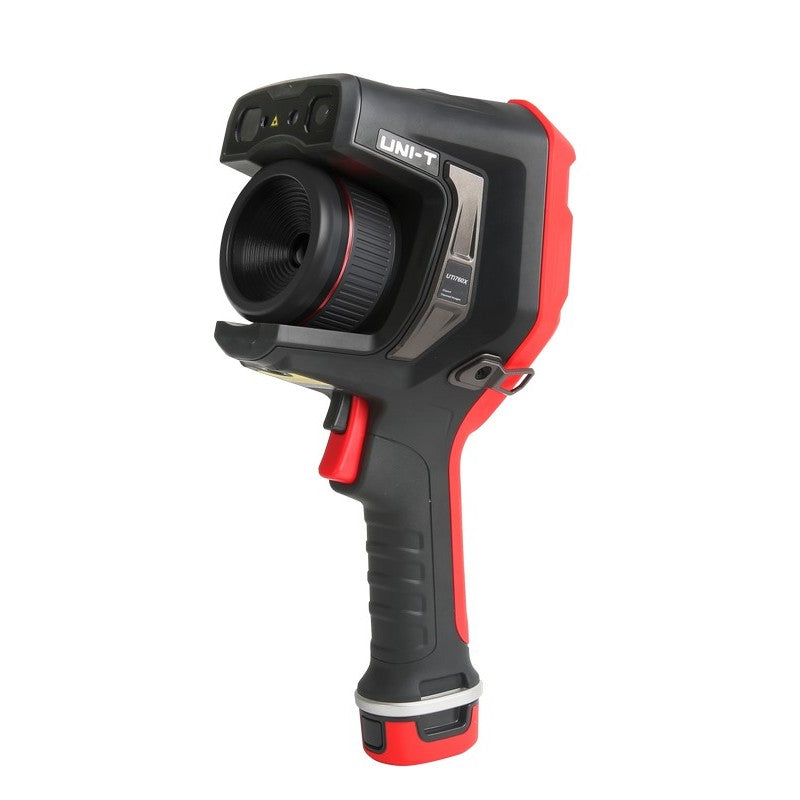

UTi760X 640 Inspector Series Thermal Imager

UNI-T UTi760X Professional Thermal Imaging Camera

Advanced Multi-Lens Thermal Imaging with Unprecedented Flexibility

The UNI-T UTi760X represents the pinnacle of professional thermal imaging technology, featuring a revolutionary 5-lens interchangeable system that provides unmatched versatility for diverse inspection scenarios. With its high-resolution 640×512 infrared detector, super resolution up to 1280×1024 pixels, and expansive 5-inch touchscreen display, this advanced thermal camera delivers exceptional image clarity and detail. Engineered for professional thermographers, building inspectors, HVAC technicians, and electrical maintenance specialists, the UTi760X combines multiple interchangeable lenses (9.6mm wide-angle, 18mm macro, 18mm standard, 36mm tele, and 62.8mm ultra-tele), intelligent AI-powered features, and comprehensive connectivity options to provide complete thermal inspection capabilities for any application from close-up electronic component analysis to long-distance power line surveys.

Key Features

• Revolutionary 5-Lens System: Interchangeable lenses covering every inspection scenario from macro to ultra-telephoto
• High-Resolution 640×512 IR Detector: Professional-grade thermal imaging with exceptional detail
• Super Resolution Technology: Enhanced image quality up to 1280×1024 pixels for superior clarity
• Large 5-inch Touchscreen: Intuitive 1280×720 display for easy operation and detailed viewing
• Thermal Sensitivity 35mK (NETD): Detects minute temperature differences for precise diagnostics
• Extended Temperature Range: Measures from -20°C to 1200°C (-4°F to 2192°F) across all standard lenses
• Advanced Focusing System: Multiple focus modes including continuous AF, semi-auto, laser-assisted, touch AF, and manual focus
• AI-Powered Intelligence: Smart meter reading and AI voice commands for hands-free operation
• Comprehensive Connectivity: Bluetooth, Wi-Fi live streaming, HDMI display extension, and laser pointer
• Professional Image Modes: Thermal, visual, fusion, T-Mix, PIP, and dual-channel imaging with customizable color palettes
• Free Professional Software: Lifetime access to PC and mobile analysis software with no subscription fees
• Rugged Construction: IP54 rated with 2-meter (6.6 ft) drop protection for demanding field conditions

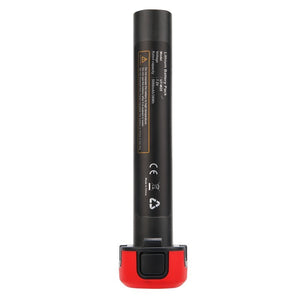

• Extended Operating Time: 5000mAh rechargeable battery providing ≥5 hours of continuous operation

Revolutionary 5-Lens System for Complete Inspection Versatility

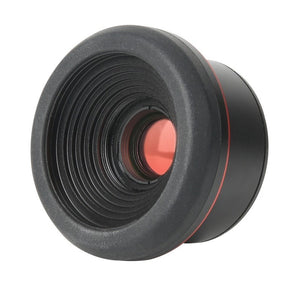

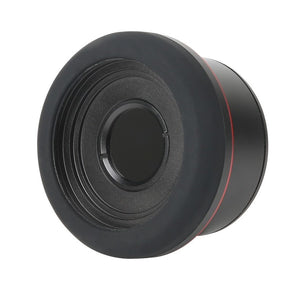

The UTi760X's groundbreaking interchangeable lens system represents a paradigm shift in thermal imaging flexibility, eliminating the need for multiple specialized cameras. Each precision-engineered lens is optimized for specific inspection scenarios, providing professional thermographers with unprecedented versatility in a single instrument. The 9.6mm wide-angle lens (46°H×37°V FOV) captures expansive areas for building envelope surveys and large equipment inspections. The 18mm macro lens enables ultra-close inspection down to 20mm (0.79 inches) minimum focus distance, perfect for detailed electronic component analysis and precision equipment diagnostics. The 18mm standard lens (24°H×19.3°V FOV) provides the ideal balance for general inspections, while the 36mm tele lens (12°H×9.6°V FOV) extends reach for overhead equipment and distant installations.

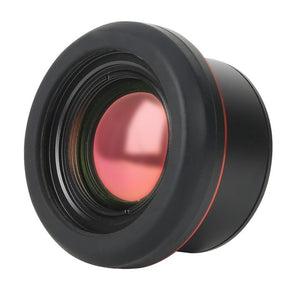

For specialized long-range applications, the 62.8mm ultra-telephoto lens (7°H×5.6°V FOV) enables detailed thermal imaging of power transmission equipment, elevated structures, and inaccessible installations from safe distances up to 2 meters (6.6 ft) minimum focus. This comprehensive lens selection ensures the UTi760X adapts seamlessly to any thermal inspection requirement, from microscopic circuit board analysis to distant infrastructure surveys. For applications requiring extreme high-temperature measurement capability beyond 1200°C (2192°F), the UTi760XH model includes a factory-calibrated high-temperature lens measuring up to 2200°C (3992°F) for furnace inspections, metal processing, and specialized industrial processes.

Professional-Grade Imaging Performance

The UTi760X delivers exceptional thermal imaging performance through its high-resolution 640×512 infrared detector combined with advanced super resolution processing. With 12μm pixel size and 30Hz frame rate, it captures smooth, detailed thermal video for dynamic temperature monitoring and transient event analysis. The outstanding thermal sensitivity of 35mK (NETD) enables detection of subtle temperature variations critical for identifying developing issues before they become failures, making it invaluable for predictive maintenance programs and quality assurance applications.

The extensive spectral range of 7.5-14μm optimizes detection across diverse materials and surface conditions, while the comprehensive temperature measurement range from -20°C to 1200°C (-4°F to 2192°F) supports applications from HVAC systems to industrial processes. With measurement accuracy of ±2°C or ±1.0% for 0°C to 120°C (32°F to 248°F), improving to ±1.5% for 120°C to 1200°C (248°F to 2192°F), whichever is greater, the UTi760X provides reliable measurements across its entire operating envelope. The sophisticated on-screen analyzer supports 16 measurement points, 16 lines, 16 rectangular areas, and 16 circles with T-select capability, enabling comprehensive thermal mapping and detailed temperature profiling of complex systems.

Advanced AI-Powered Smart Features

The UTi760X integrates cutting-edge artificial intelligence to enhance inspection efficiency and usability. The smart meter reading function automatically recognizes and records readings from analog gauges and digital displays, streamlining documentation of utility meters, pressure gauges, and instrument panels during inspections. This AI capability eliminates transcription errors and accelerates survey completion in facilities with numerous measurement points.

Voice command functionality enables hands-free camera operation, allowing technicians to capture images, adjust settings, and control functions while maintaining secure positioning on ladders or in confined spaces. Combined with the intuitive touchscreen interface, level and span adjustment, and comprehensive annotation tools including text input and customizable templates, the UTi760X provides a complete documentation solution for professional thermal inspections. The integrated 13MP digital camera captures high-resolution visual reference images, while the advanced T-Mix image fusion algorithm seamlessly blends thermal and visual data for enhanced context and improved thermal anomaly identification.

Professional Applications

Building Inspection and Energy Auditing

Building inspectors and energy auditors leverage the UTi760X's versatile lens system for comprehensive building envelope analysis:

• Thermal bridging detection in walls, roofs, and foundations using wide-angle lens
• Air infiltration identification around windows, doors, and penetrations
• Insulation deficiency mapping across large building facades
• Moisture intrusion detection behind walls and ceilings
• HVAC system performance verification and duct leakage identification
• Detailed window seal inspection using macro lens capabilities

Electrical System Maintenance

Electrical maintenance technicians depend on the UTi760X's precision for critical power system diagnostics:

• Switchgear and distribution panel thermal surveys using standard lens
• Transformer loading analysis and cooling system verification
• Circuit breaker contact resistance identification through thermal signatures
• Motor control center inspection for connection and termination issues
• Overhead power line surveys using ultra-telephoto lens from safe distances
• Detailed connector and terminal inspection with macro lens capabilities

Industrial Process Monitoring

Process engineers and maintenance specialists utilize the UTi760X for critical industrial applications:

• Heat exchanger performance analysis and fouling detection
• Steam system trap testing and condensate management
• Process equipment temperature profiling for optimization
• Bearing temperature monitoring across rotating equipment
• Pipeline insulation effectiveness verification
• Boiler system diagnostics and efficiency optimization

HVAC and Refrigeration

HVAC technicians rely on the UTi760X's comprehensive capabilities for system diagnostics:

• Refrigeration system component temperature verification
• Compressor electrical connection inspection
• Evaporator and condenser coil performance analysis
• Ductwork insulation integrity assessment
• Air handler motor and bearing condition monitoring
• Control system electrical termination inspection

Mechanical Systems and Manufacturing

Manufacturing engineers and mechanical maintenance teams utilize the UTi760X for:

• Production equipment thermal profiling for quality control
• Motor and gearbox temperature monitoring for predictive maintenance
• Hydraulic system component inspection and leak detection
• Conveyor system bearing analysis across extended production lines
• Welding process temperature verification and quality assurance
• Press and forming equipment thermal characterization

Research and Development

Research scientists and development engineers leverage the UTi760X for advanced thermal analysis:

• Electronic component thermal design validation using macro lens
• Heat sink performance optimization and thermal interface evaluation
• PCB hotspot identification and thermal management verification
• Battery thermal behavior characterization during charge/discharge cycles
• Materials science thermal property research
• Product thermal testing and validation documentation

Frequently Asked Questions

Warranty

This product includes a standard 1-year warranty covering manufacturing defects and component failures under normal use conditions.

UNI-T stands behind every product we sell. If you experience any issues within the warranty period, our US-based support team is here to help with troubleshooting, repair, or replacement.
